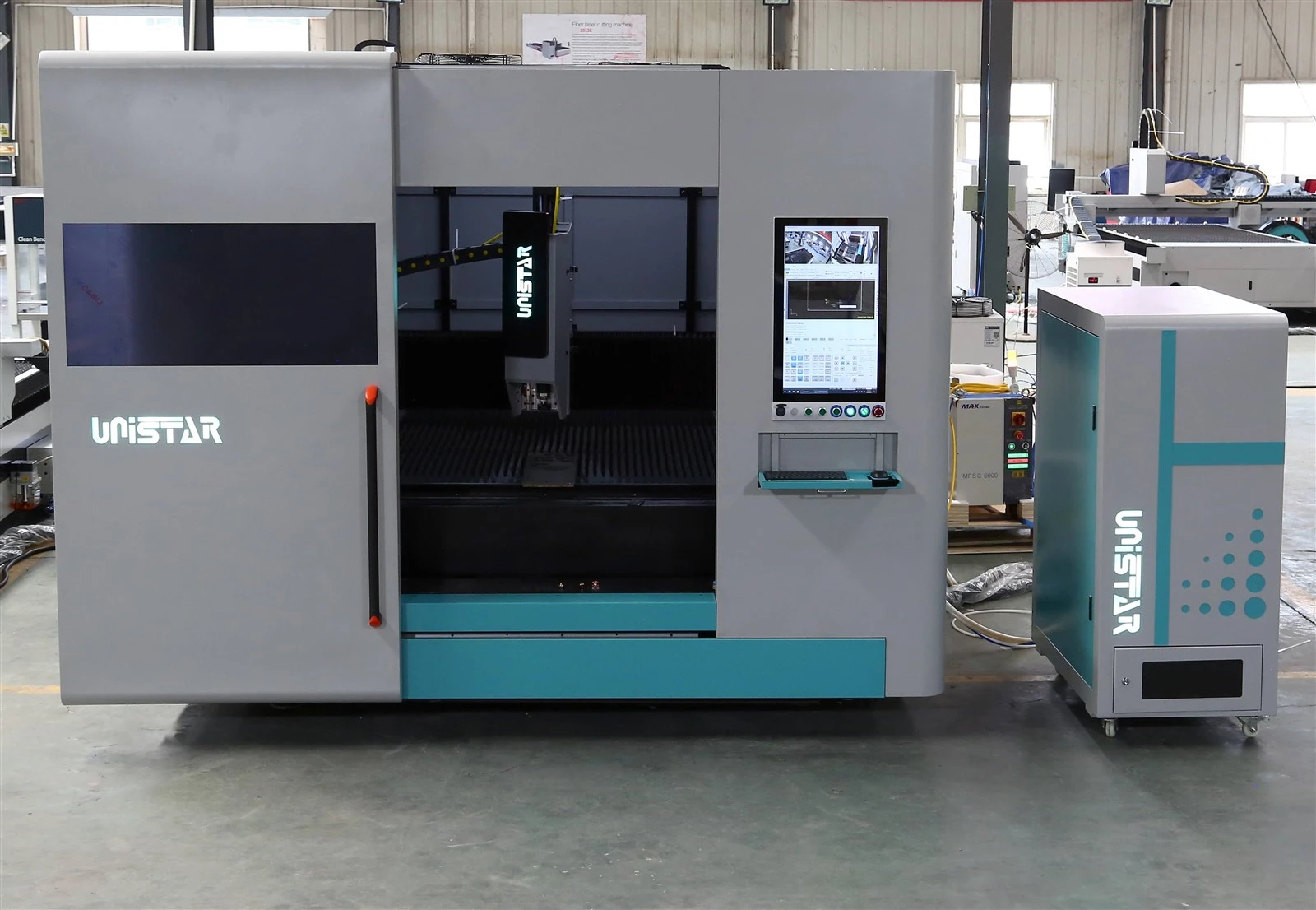

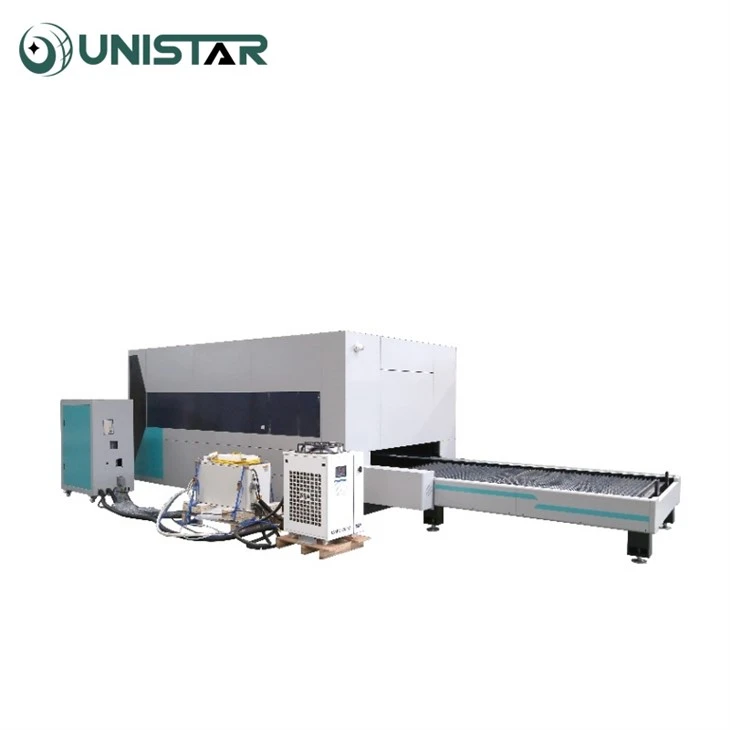

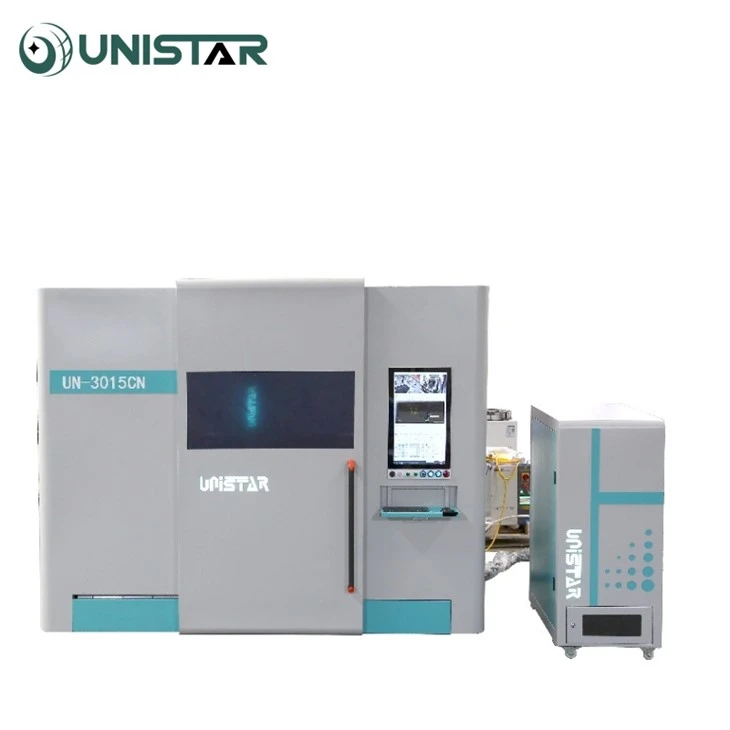

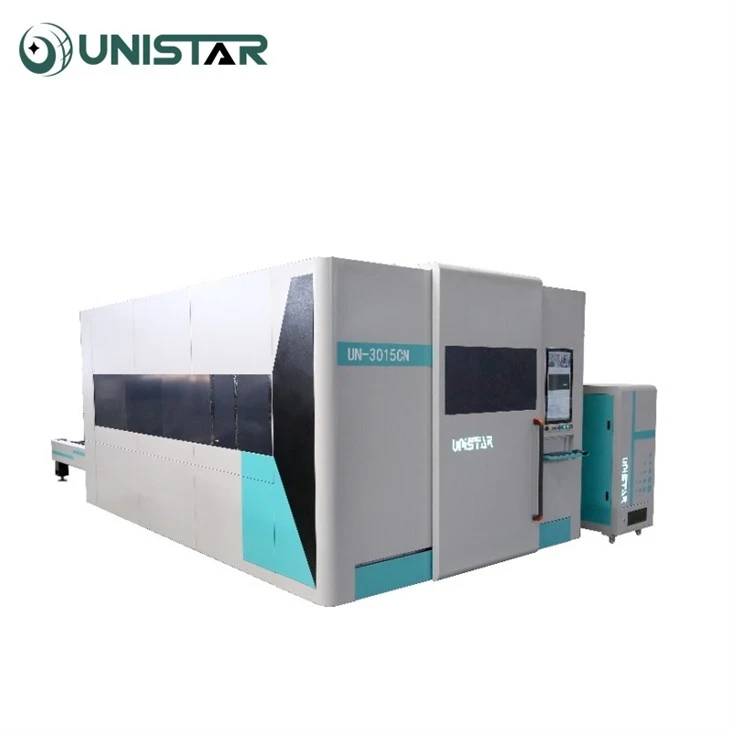

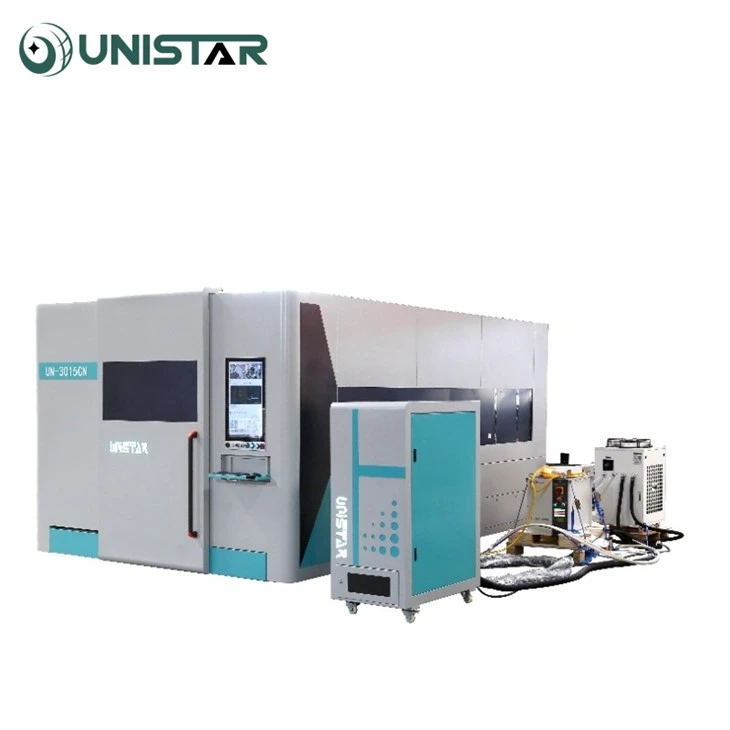

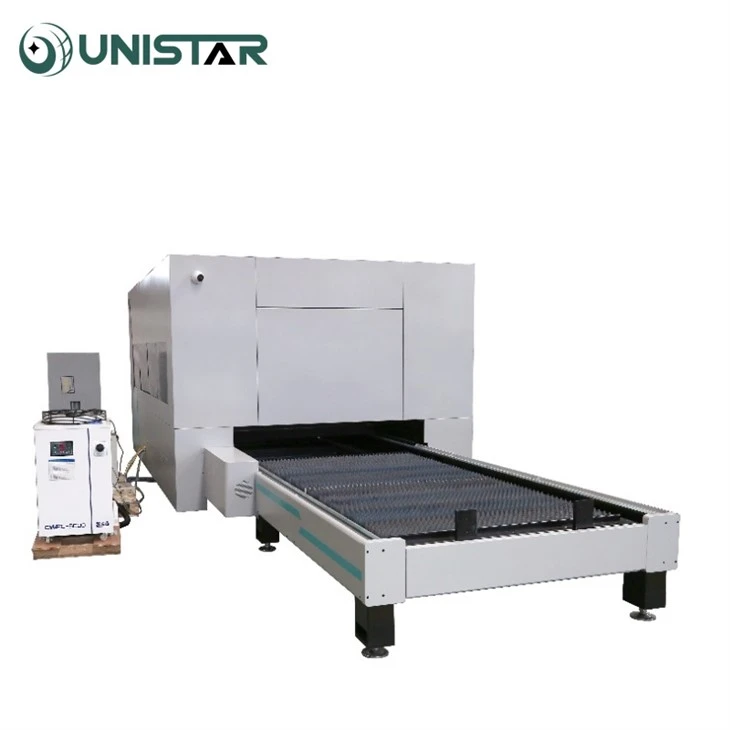

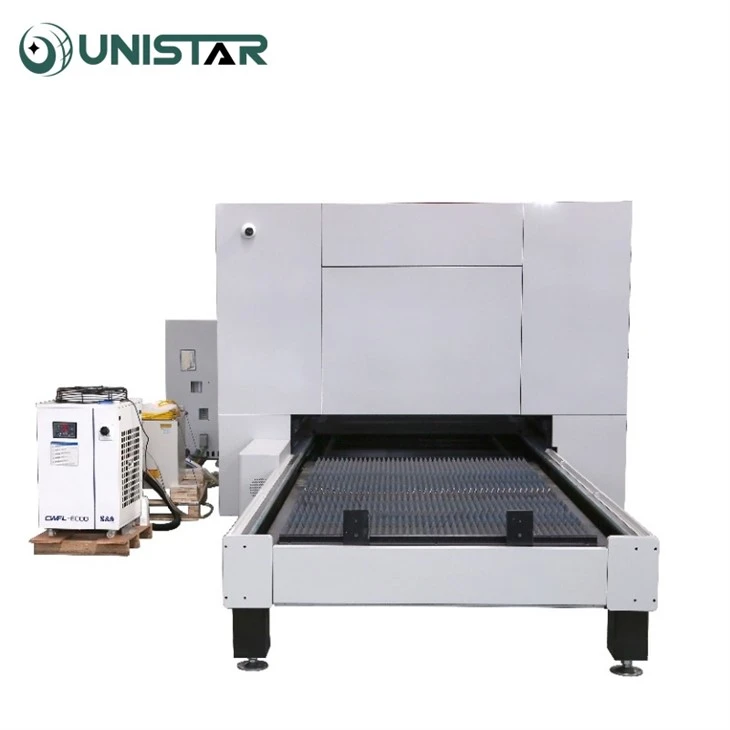

Fully Enclosed Fiber Laser Cutting Machine With Exchange Table

Efficient Heat Dissipation And Excellent Cutting Performance. Its Unique Design Includes A Fiber Optic Connector, A First Protection Component, An Optical Module, A Second Protection Component And A Nozzle Blowing Component. The Nozzle Blowing Component Is Provided With A First Light Blowing Channel And A First Heat Dissipation Channel, Which Can Effectively Dissipate Heat And Meet The Needs Of High-Power Lasers.

The aluminum alloy gantry bracket is manufactured according to aviation-grade standards. After aging treatment, it has higher strength. The frame is formed by integral steel mold and die-casting technology. The equipment runs faster. The thickened bed frame is used, and the rectangular tube wall thickness is 10mm. The entire bed is processed by gantry milling, which greatly increases the stability of the guide rail and effectively avoids deformation of the frame.

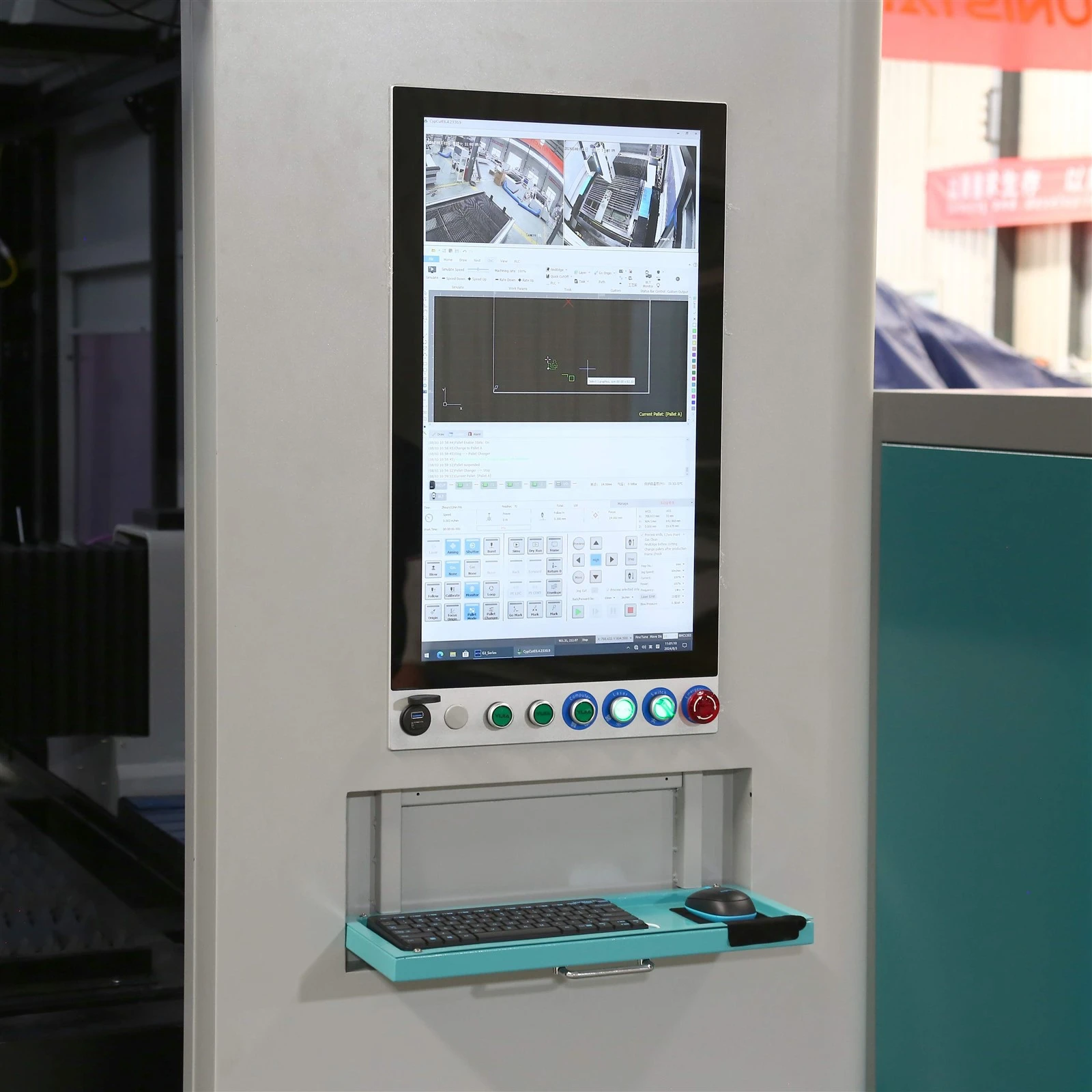

Using the Cypcut laser control system and an external wireless handle, it supports advanced functions such as finding the edge of the workpiece, auto-focus control, double shuttle, breakpoint positioning, QR code generation, and residual material segmentation. It is easy to operate and stable in operation. It can provide fine cutting technology and highlight high-quality cutting effects.

Raycus laser's optical devices are not easily affected by pollution and mechanical shock, have high reliability, and can work in harsh environments. And due to the use of advanced optical technology and strong stable fiber transmission, Raycus fiber laser reduces the need for maintenance and reduces maintenance costs.

According to the standard of large machine, the processing procedure as follows:
a. relief annealing/ vibration aging treatment;
b. rough machining;
c. fine machining.
It eliminates the stress of welding and machining greatly. It can maintain high strength and high precision.

Hiwin guide rails have a highly sophisticated manufacturing process and quality management system that can ensure the accuracy and stability of the guide rails, effectively reduce friction and vibration, and thus improve the machining accuracy and efficiency of machine tools. In addition, the accuracy of Hiwin guide rails can reach the micron level, and they are stable in high-precision machining, testing and other equipment, effectively reducing errors.

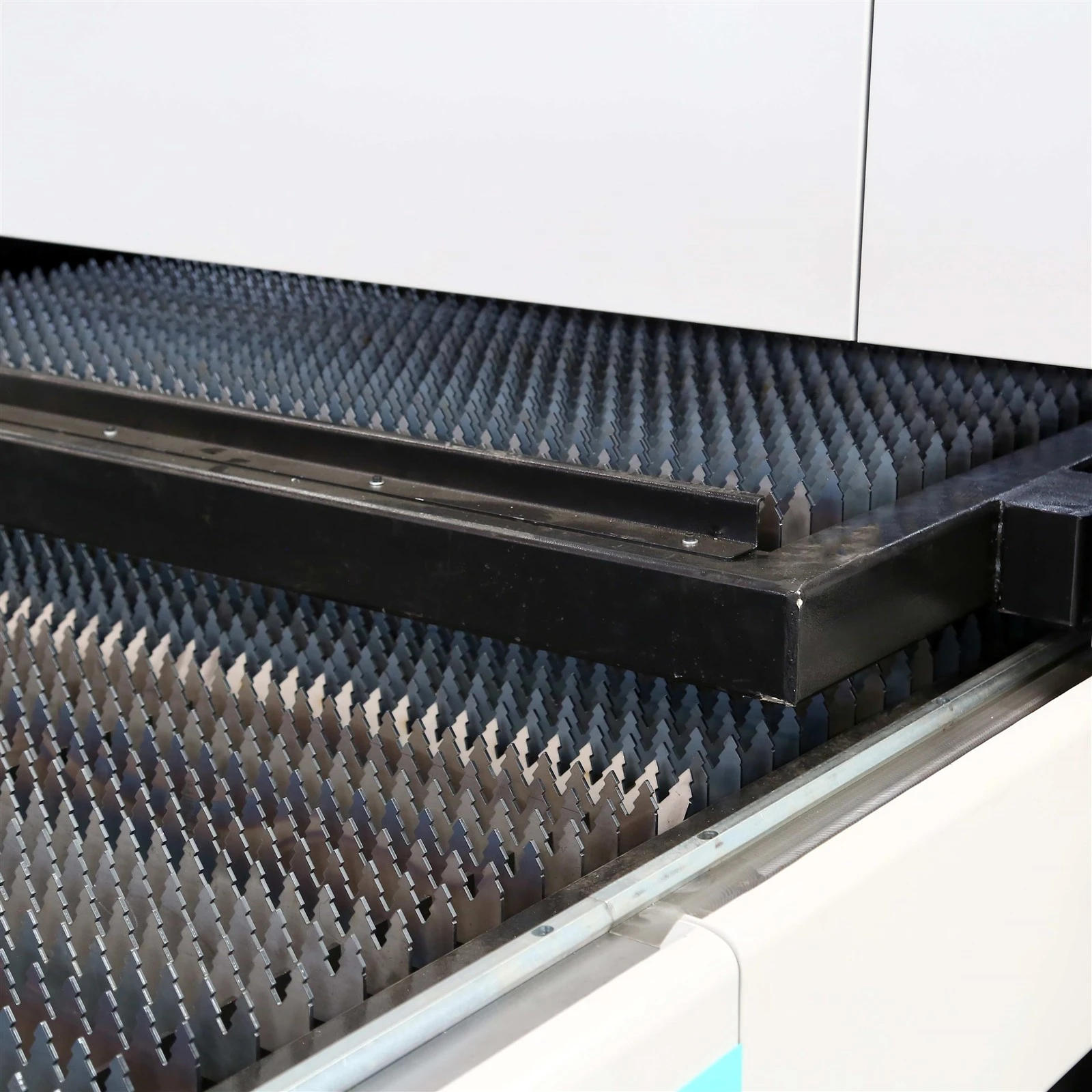

The table top with 3mm thick blade is usually thicker, can withstand heavier boards, and has good stability.It has high wear resistance, deformation resistance, good thermal conductivity and rigidity, and can meet the working requirements of laser cutting machines under high temperature, high pressure and friction environments.

The X,Y,Z axis is driven by a high-power servo motor, and the X,Y axis is used with a planetary reducer, which has higher precision, fast positioning, lower noise and higher processing efficiency.

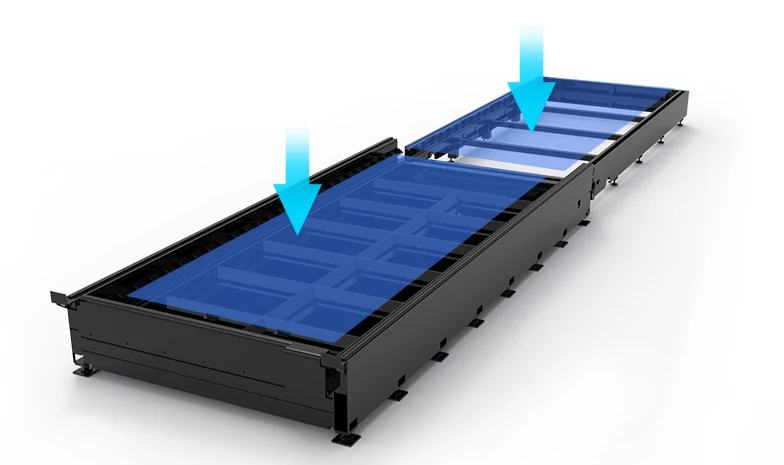

Using a double-layer sword-grid exchange platform, the switching is fully automatic. After one plate is processed, it will automatically switch to another platform for automatic processing, saving manual unloading and loading time and improving efficiency.

YYC gear rack is suitable for heavy-load, high-precision, high-rigidity, high-speed, long-stroke mechanical equipment, such as CNC machine tools, milling machines, drilling machines, lathes, machining centers, cutting machines, woodworking machines, welding machines, etc. Its materials and manufacturing processes ensure the durability and long life of the product.

Schneider Appliances uses advanced protection technology to quickly and accurately respond to and disconnect circuits, protecting equipment from current and short-circuit current damage. After power failure, the product can automatically release energy storage, avoiding potential hazards when the equipment continues to run ‌

Use S&A special domain water chiller, multiple alarm functions, all-round protection of laser, equipped with water pressure gauge: convenient to observe the water pressure of the water pump; add drain valve: convenient for drainage; high-precision temperature control system, dual temperature control circulation refrigeration function, two independent temperature control systems cooling at the same time, better effect.

A fully enclosed protective cover is used to isolate humans from the machine, and a dust recovery and purification system is installed to avoid light pollution and smoke pollution during equipment operation. The observation window uses European CE standard laser protection glass to reduce laser damage to the eyes.

The automatic oil filling system has the ability to detect the running state of the machine and equipment, and when the oil lubrication of the equipment is found to be insufficient, it can be immediately supplemented to avoid the failure of the equipment due to insufficient oil lubrication. The system will also be regularly tested and supplemented when the machine is running, to ensure that the equipment will not have insufficient oil lubrication problems, to avoid damage and accidents ‌
