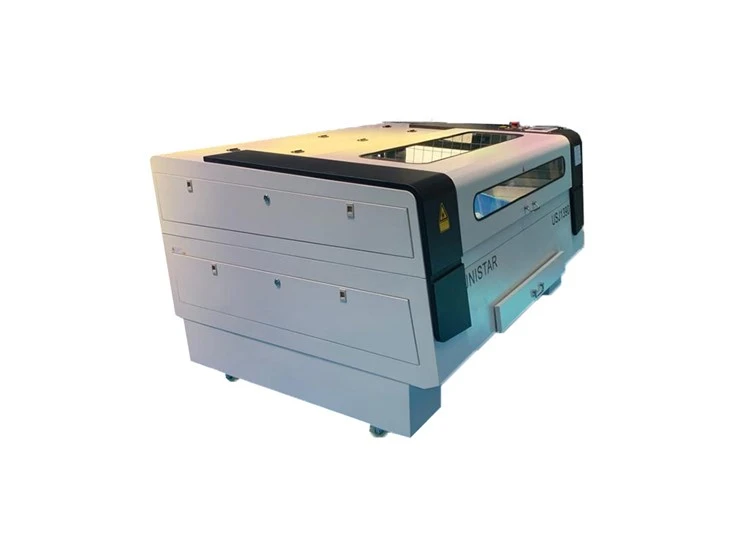

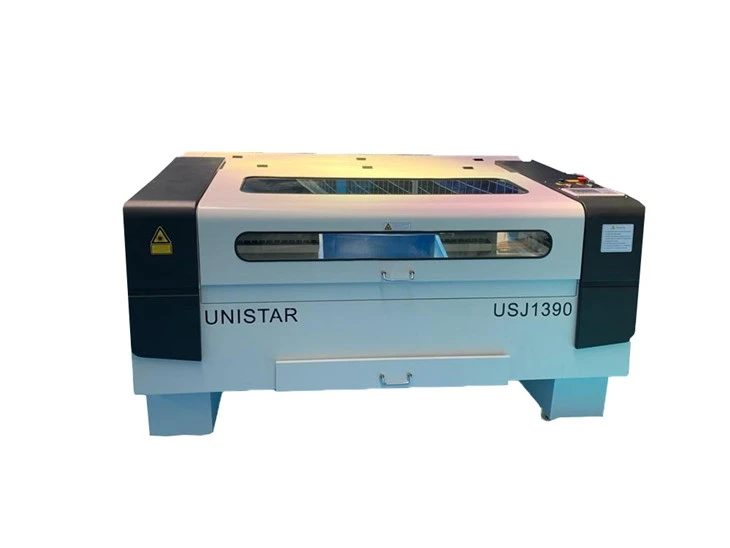

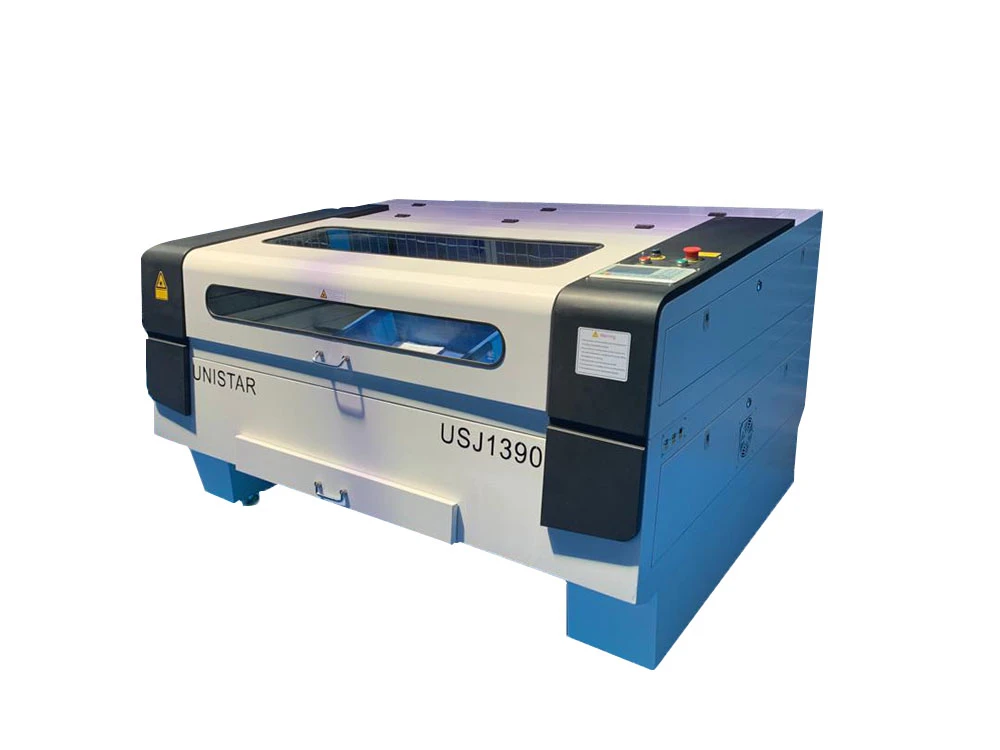

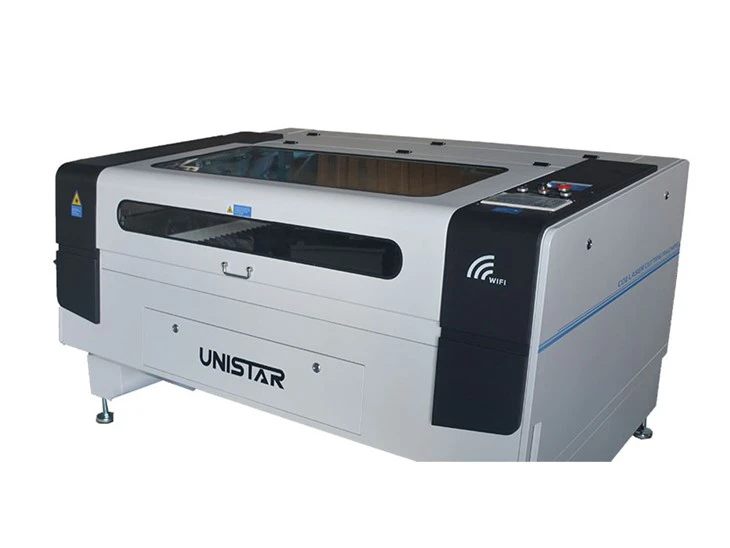

cnc CO2 laser Cutting and engraving machine USJ1390
application
1, printing and packaging industry: rubber plate laser engraving (laser engraving machine); paper products laser cutting machine (velvet paper cutting laser cutting machine, paper cutting hanging money (hanging money) laser cutting machine) and so on.
2, crafts and gifts industry: bamboo laser engraving machine; woodblock book laser engraving machine; mahogany laser engraving machine; two-color plate laser engraving machine; box-shaped artifacts laser engraving machine; chessboard laser engraving machine; set of baby laser engraving machine and so on.
3, advertising and publicity industry: plexiglass laser engraving (cutting) machine; all kinds of plaques laser production; . Two-color plate laser engraving, etc..
4, leather and garment industry: all kinds of shoes, leather leather artificial leather cutting and surface pattern engraving, cutting; all kinds of clothing, fabric textile pattern cutting. Garment industry: laser cutting machine, laser cutting machine, laser cutting machine, large format laser cutting machine;
5, modeling industry: architectural model laser engraving (cutting) production; aviation, navigation, model laser engraving (cutting) production; cartoon character model laser engraving (cutting) production; industrial sample model laser engraving (cutting) production and so on.
applicable material
It is suitable for double color plate ,organic glass,plate,glass,wood,paper,leather ,rubber, acrylic,MDF,
marble and other non-metal materials.
Machine features
Machine Features
1.Compact design,small footprint,conwenient place to save space,suitable for cutting small items.
2. High accuracy for high precision parts and letter cutting.
3. Fast speed: 100 times speed than wire cutting.
4. Small hot affecting area keeps flat and nice cutting line.
Detailed parameter
|
Model |
USJ-1390 |
||
|
Working Area |
1300*900mm*200mm |
||
| Laser Head | one heads | ||
|
Laser Power |
60w/80w/100w/130w//150w/180w |
||
|
Laser Type |
CO2 Sealed Laser Tube,10.6μm |
||
|
Cooling Type |
Water Cooling |
||
|
Engraving Speed |
0-60000mm/min |
||
|
Cutting Speed |
0-40000mm/min |
||
|
Laser Output Control |
0-100% Set by Software |
||
|
Min.Engraving Size |
Chinese:2.0mm*2.0mm,English Letter:1.0mm*1.0mm |
||
|
Highest Scanning Precision |
4000DPI |
||
|
Locating Accuracy |
≤+0.01mm |
||
|
Controlling Software |
Ruida 6445G Control System |
||
| Laser Tube | Beijing EFR /RECI Laser Tube | ||
| Table Structure | Blade or Honeycomb Table | ||
| Drive System | Stepper Motor and Driver | ||
| Belt | Shanghai Fulong Belt | ||
| Rails Guide | Taiwan HIWIN Square Linear Rail | ||
|
Graphic Format Supported |
DST PLT BMP DXF DWG AI LAS,etc |
||
|
Compatible Software |
CORELDRAW,PHOTOSHOP,AUTOCAD,TAJIMA,etc. |
||
|
Color Separation |
Yes |
||
|
Drive System |
High-precision 3-phase Stepper Motor |
||
|
Auxiliary Equipments |
Exhaust Fan and Air Exhaust Pipe |
||
|
Power Supply |
AC110V/220V+10%,50HZ/60HZ |
||
|
Working Environment |
Temperature:0-45C,Humidity5-95%(No Condensate Water) |
||
Product Description
The blade table is suitable for hard meterials.
Aluminum alloy knife strip working table, ensure high quality cutting, optional Honeycomb platforms table for soft material work.
Yongli/Reci Laser Tube technology is mature and the quality is stable and reliable. The use of the latest process technology improves the stability of the product structure and improves the spot output mode to a certain extent, Ensure stable cutting speed and cutting accuracy. With Long service life and low failure rate.
Automatic focus, can quickly locate the workpiece position,Flexible and fast, Reduce material waste.Double head can Increased speed
American import Three reflect mirrors and one focus mirror with high hardness make the optical path transmission more efficient.
Control system from Shenzhen RD company ,no need dongle. English Control panel is convenient to operate and with Re-carving function after break point or power failure.
Ruida control system Supports USB cable controled by computerand and also offline control system by just a U disk
Leadshine motor drive
The high-torque Leadshine stepper motor driver has a20% higher engraving accuracy than other drives andhas a long service life.
detail samples
Packing and delivery
why choose us
*2 years guarantee of the whole machine and we give lifetime maintenance free of charge.
*Free training to make sure you master the operating of machine at our factory.
* 24 hours online services through Whatsapp, Skype, Email or on the phone.
*Engineers available for overseas training and after-sale services.
* Friendly English version manual and operation video CD disk.
