Working principle of sheet metal cutting machine
The laser generator emits the laser, through the optical path integrated system, focusing into a high-density, high-power beam, the beam irradiates to the surface of the sheet metal, the irradiated place reaches the melting point, instant melting, at the same time, the coaxial high-pressure gas will melt the metal and the sheet metal parts blown away, so as to achieve metal cutting.

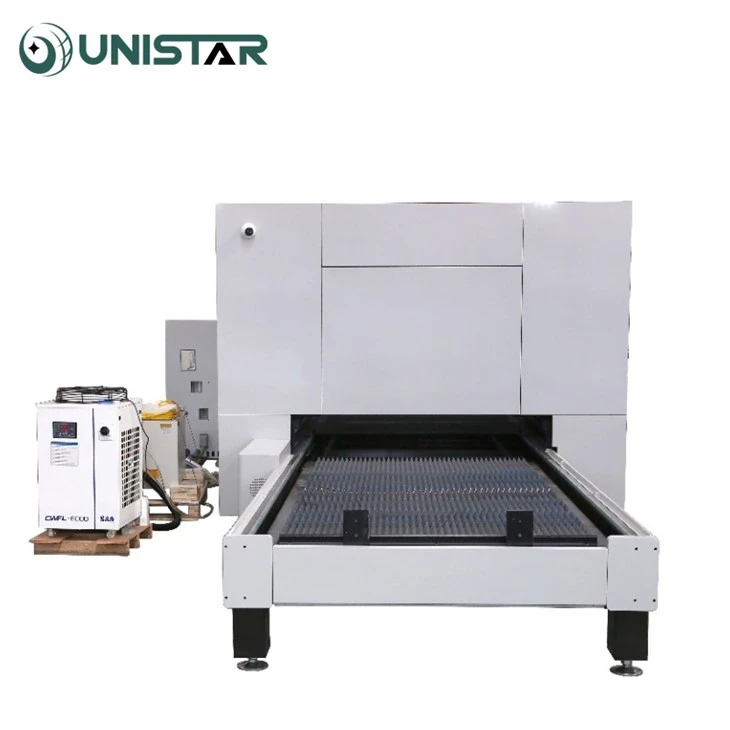

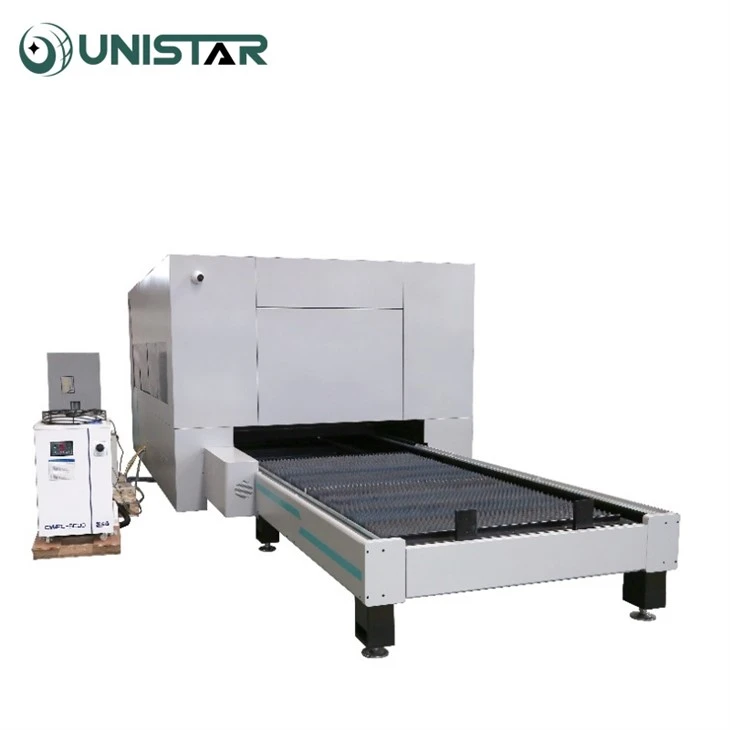

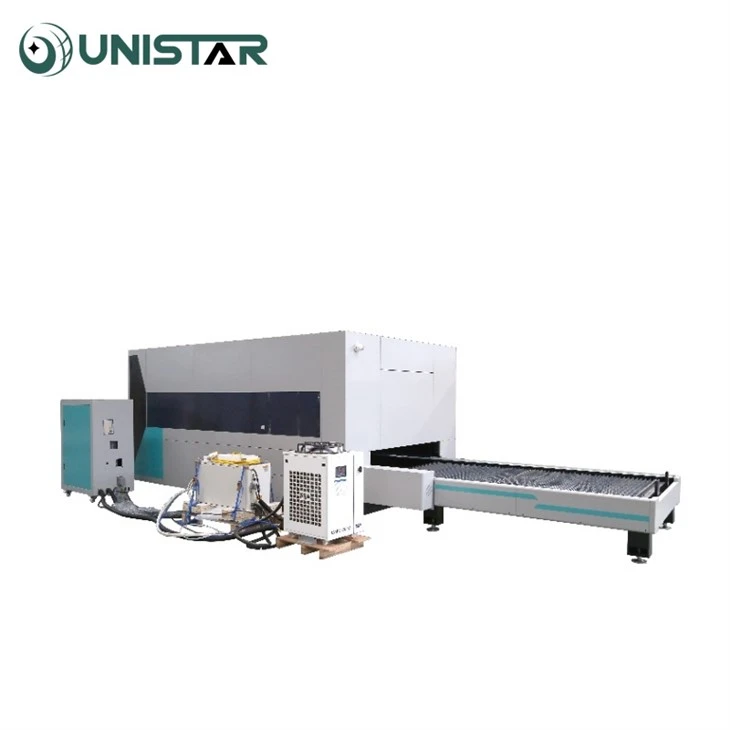

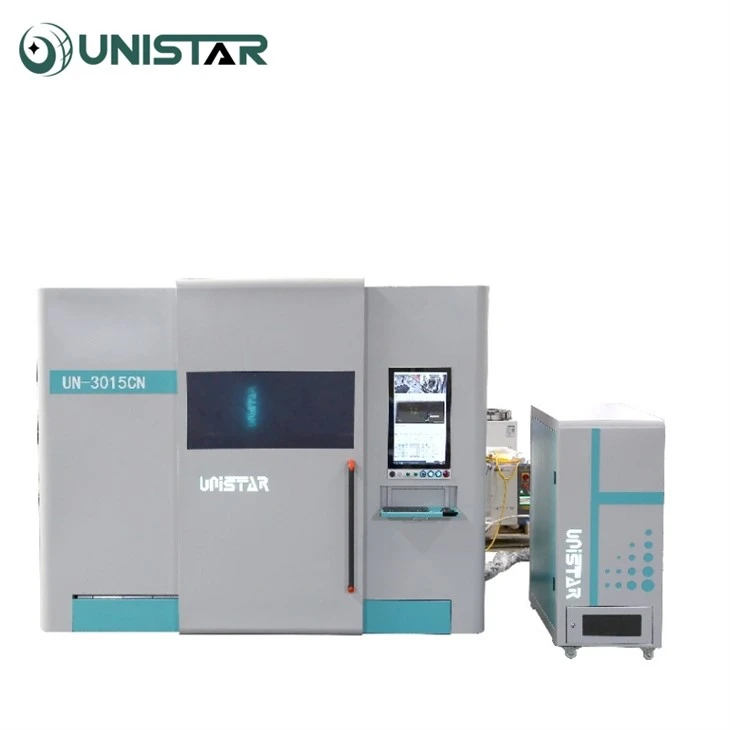

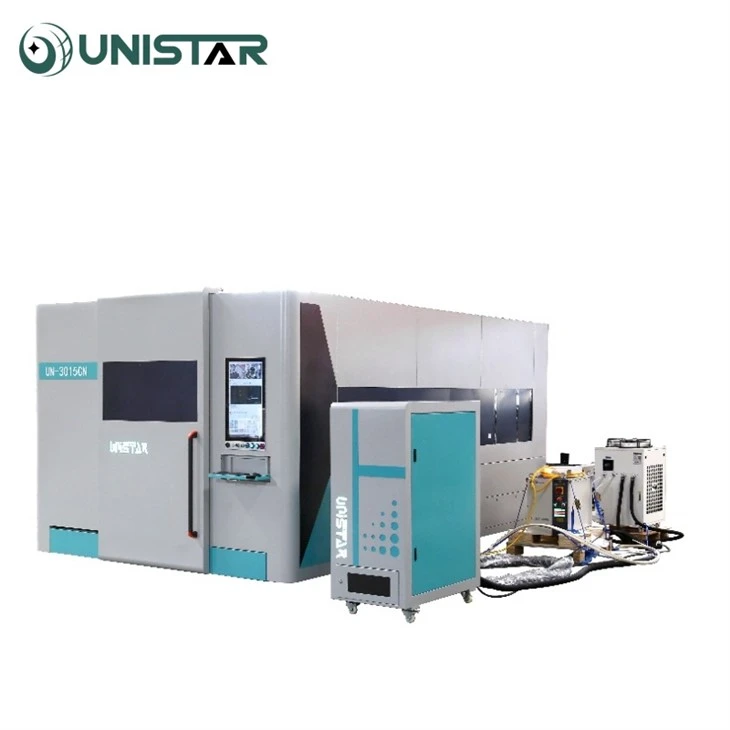

Full enclosed laser cutting machine features
1. The whole machine adopts large enclosed closed cutting processing to provide a good operating environment; Adapt to the environmental protection requirements of various regions;
2. The whole industrial camera has no dead Angle tracking and monitoring, to achieve the entire intelligent operation of laser equipment;
3. Adopt imported servo motor and precision guiding transmission mechanism, high cutting precision;
4. The use of professional laser nesting software can be designed at will all kinds of parts instant processing;
5. The product is easy to operate and maintain, suitable for different plate cutting.
Full enclosed laser cutting machine advantages
1. Fully protected fiber laser cutting machine using a fully enclosed laser protective cover, detailed parts layout makes the whole machine more stable, comfortable, precise, science and technology.
2. Equipped with special laser protective glass observation window, equipped with scientific dust recovery and purification treatment system, the overall appearance, safety and environmental protection.
3. At the same time, it is equipped with a special exchange platform, which has fast exchange speed, convenient loading and unloading, and high processing efficiency. Is a high-end plate laser cutting special equipment, is the preferred product of modern manufacturing enterprises.
Application
Application material
Stainless steel, alloy steel, silicon steel, aluminum, aluminum alloy, galvanized plate, aluminum plated zinc plate, copper, silver, gold and other metal materials.
Application industry
1. Advertising industry: suitable for LOGO, signs, souvenirs and other production
2. Kitchen and bathroom furniture industry: fiber laser cutting machine can be used to cut stainless steel, aluminum alloy, copper and other materials, making kitchen hardware, bathroom hardware and so on.
3. Aerospace industry: precision aircraft parts can be manufactured.
4. Automobile manufacturing industry: It is suitable for the production of various parts such as engine and transmission in automobile manufacturing.

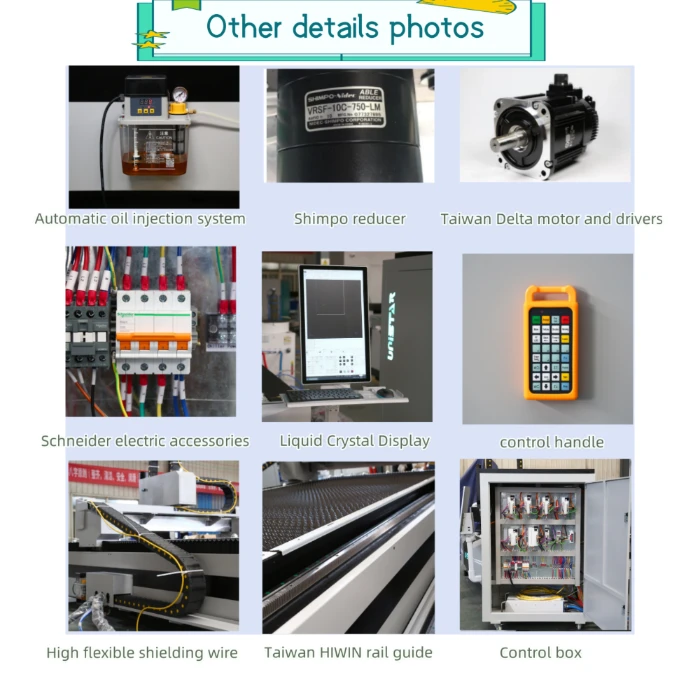

Detail Photos of Fiber Laser Cutting Machine

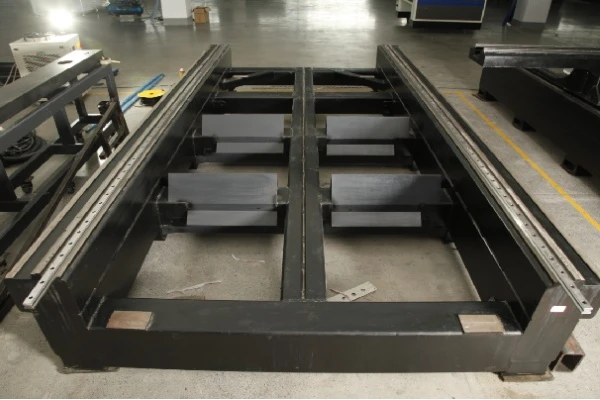

machine body
Our bed adopts Metal plate welding machine body , more stable,simple structure, good load-bearing capacity. In order to prevent rust, we use spray process instead of spray painting process. The spraying process can prevent the machine from rusting and will not fall off in a year like paint.
boci laser head
Boci laser head built-in various sensors, real-time feedback internal lens temperature, chamber temperature humidity, chamber pressure, cutting gas pressure and other parameters.
raycus laser source
This brand is a famous brand in China. They have been focusing on the development of fiber lasers for nearly 20 years, with rich experience and top technology, and high quality products.The laser energy conversion rate is high, it can convert the input electrical energy into the laser output energy up to 90%.

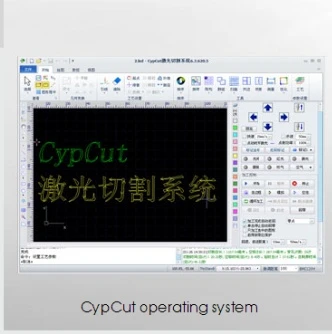

CYPCUT control system
CYPCUT system operation interface is simple and intuitive, novice can also quickly get started. In the process of operation, CYPCUT efficiency is high, not easy to make mistakes. And the CYPCUT system has more rich functions, can meet the different processing needs.

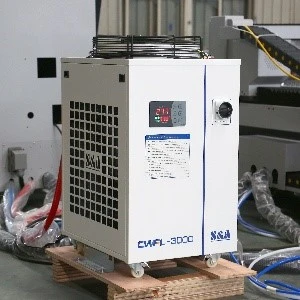

Water chiller
S&A water chiller has the following characteristics:
1.Cooling water flow and high and low temperature alarm safety protection function
2.Two operating modes: constant temperature and intelligent temperature control
3.Temperature precision control can reach ±0.1ºC
4. Including input and output control device switch

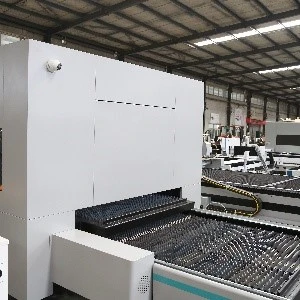

Exchanging Platform
It adopts an up and down exchange platform, and the converter is responsible for controlling the exchanging motor. The machine is able to finish the platform exchanging within 15s.
Optional configuration

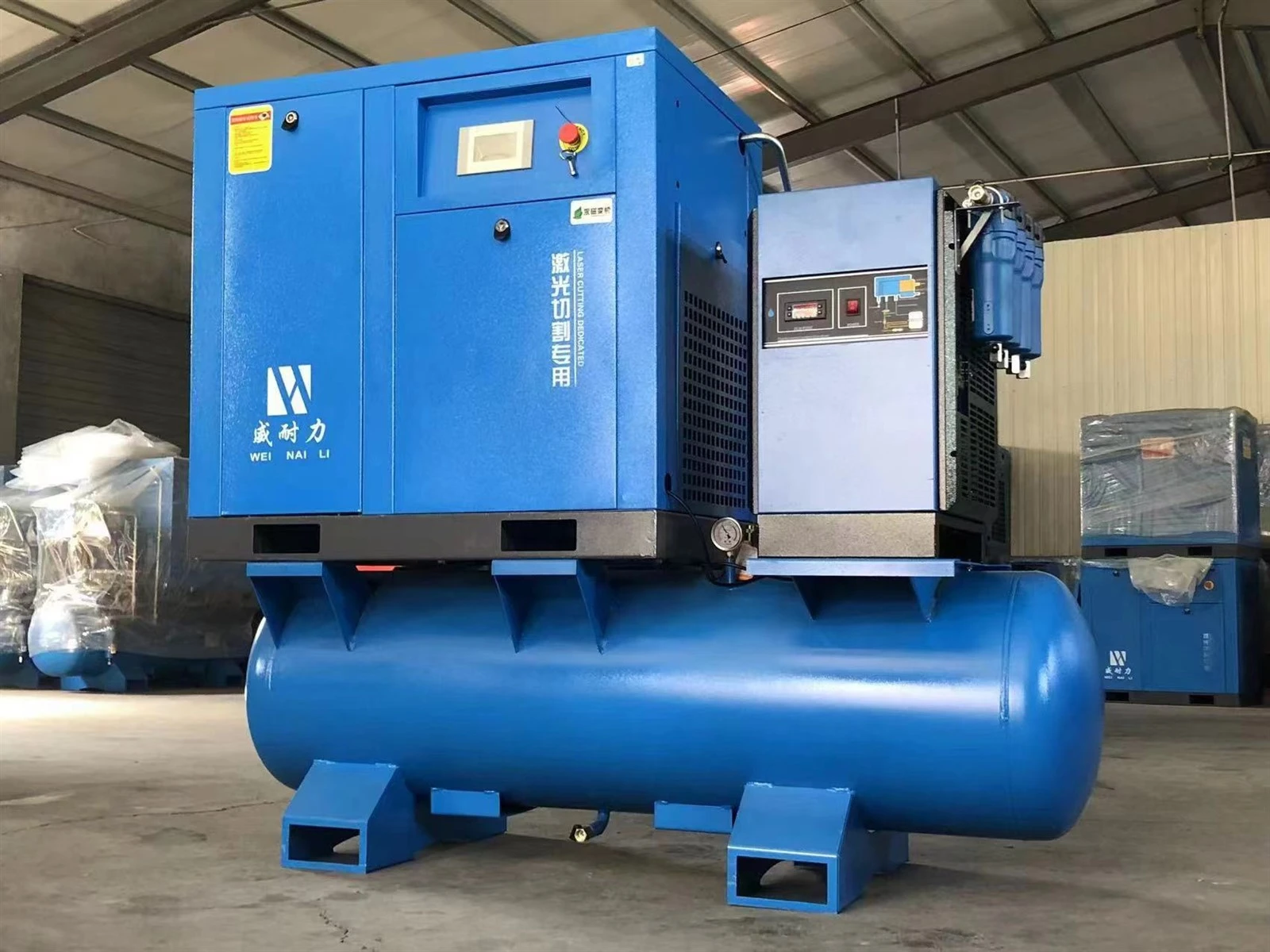

It can provide clean, dry and stable air to improve the quality and effect of cutting.
In addition, the compressed air provided by the air compressor can also provide power to stabilize the workbench

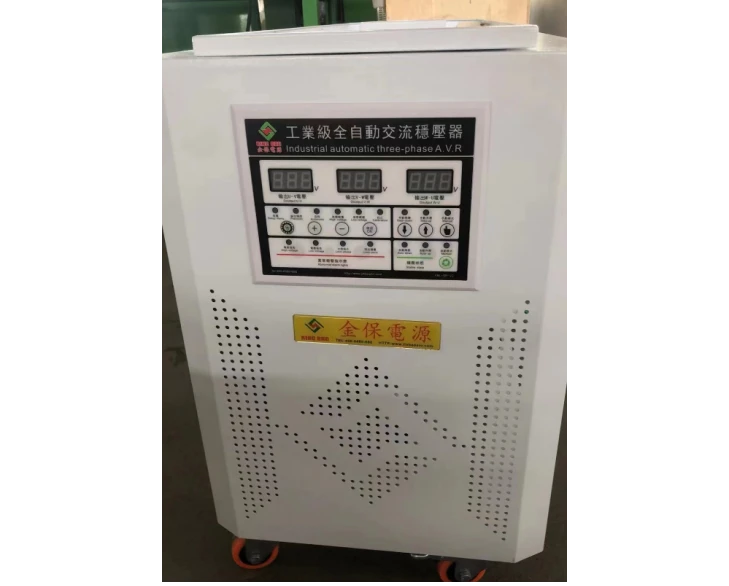

The output voltage of the electrical apparatus with large current fluctuation can be controlled within a fixed value range to ensure the smooth circuit and the normal use of the electrical apparatus.
Product Parameters
| Model | UN-3015 |
| Work Area | 3000*1500 mm |
| Fiber Laser Source | Raycus/MAX/IPG |
| Laser Power | 1500W/3000W/000W/12000W/20000W |
| Max Moving Speed | 120 m/min |
| Max Acceleration | 1.5G |
| Positional Accuracy | ± 0.02 mm |
| Control System | Raytool/CYPCUT |
| Motor and Driver | Taiwan Delta /Japan Yaskawa/ Japan Fuji |
| Reducer | Japan SHIMPO reducer |
| Transmission | Rack and pinion |
| Pneumatic Accessories | Japan SMC |
| Table | Blade table |
| Supported Graphic Formats | NC PLT, DXF, BMP, AI, DST, DWG, etc |
| Work Voltage | 3 phase 380V/50HZ |
| Warranty | 2 years |
| Water Chiller | S&A/Hanli |
Samples

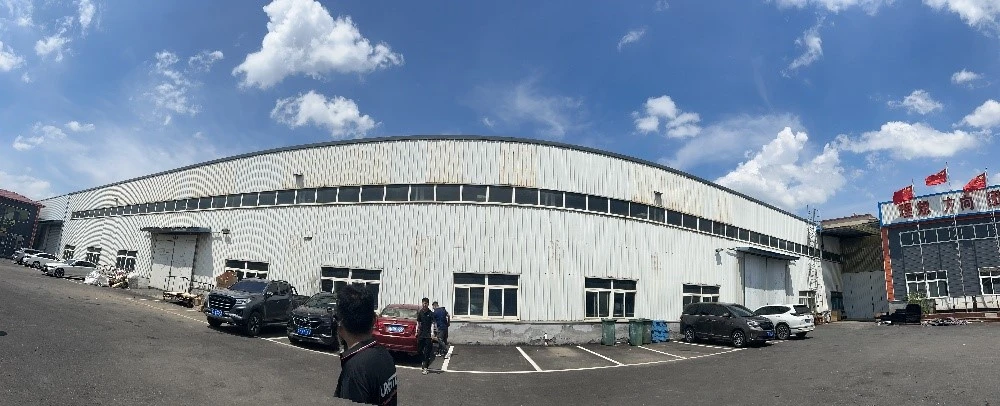

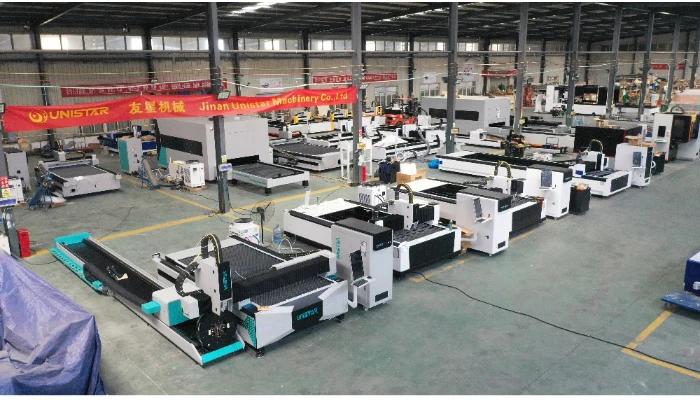

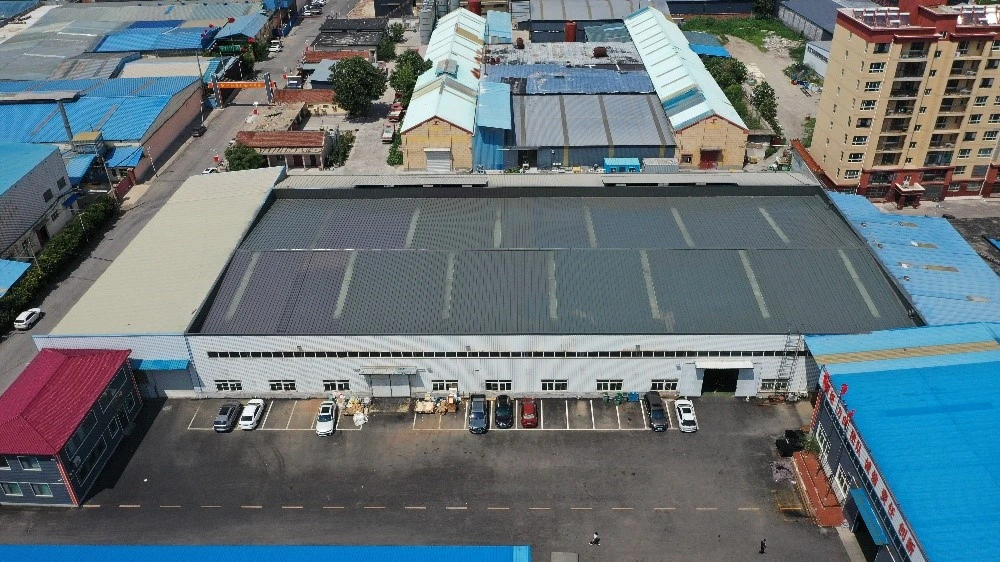

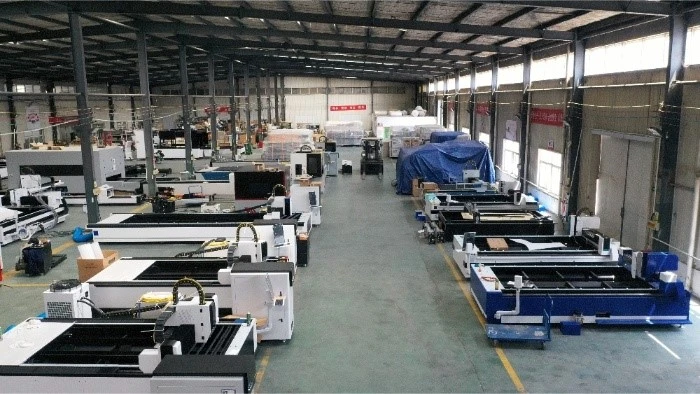

Company Profile
Why choose us?
1. Quality assurance. All our products have passed product quality inspection. Each of our machines has a quality inspection certificate.
2. Widely used. Our machines can cut all kinds of metal materials in aerospace, automotive manufacturing, sheet metal processing, decoration and other industries.
3. Source factory. We have our own machine manufacturing factory, we strictly control every link of machine manufacturing, can ensure the quality of the machine.
4. Worry free after sale. We have a complete after-sales service system, 24 hours to serve you.
After Sales Service and Warranty
1> The machine warranty 2 years
2> 20 sets consumable parts Nozzle free ,10 sets protect lens free
3> a> During the warranty period, in case of failure or part damage (except human factors and force majeure factors), the seller shall be responsible for free repair. The parts need to be replaced will be provide from the seller for free (except the wear-quick part)
b> After the warranty period expired, the buyer only need to pay the actual maintenance cost
c> UNISTAR laser will make return visit of customers at regular time one year
4> We can offer engineers go abroad installation and training , 150USD/One day
Customer offer engineer come and back tickets fees living and eating. Usually it takes 7 days finished training
The training subject as below :
a>How to connect machine and assemble if machine is taken apart
b>how to maintain machine at daily time; how to operate machine;
c>if happen urgently things , how to dealt with;
d>When cutting different thickness material , how to set the parameter.
e> Control system and drawing design training so on

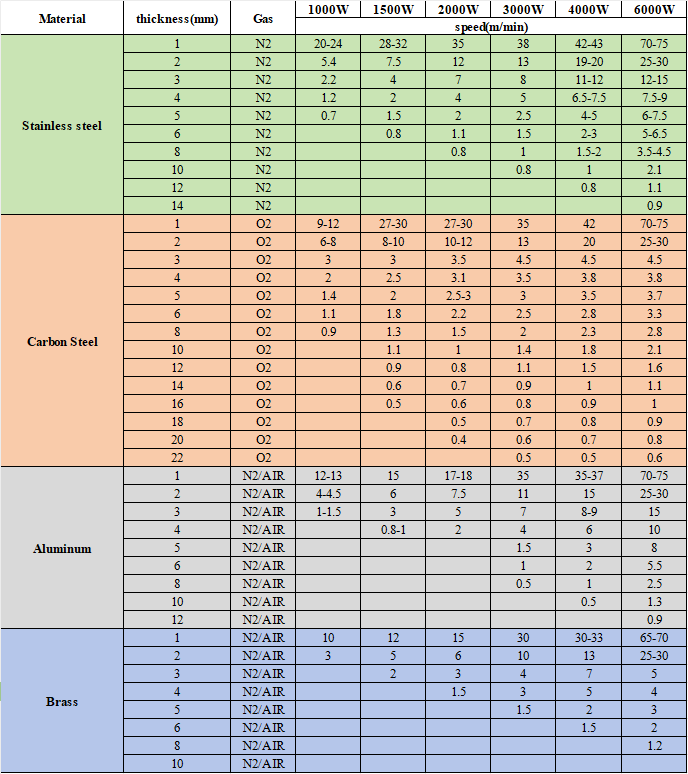

Cutting Data Reference
 |
|||
Customer Visiting
In recent years, we have received many foreign customers from far away, and the customers have personally visited our production line and witnessed the quality of our products. Throughout the visit, customers were full of praise for our products and spoke highly of our company.
Certificate
We have passed the ISO high quality inspection certification, which shows that our management system integration has reached the international standard, and can continue to provide users with expectations and satisfaction of qualified products. We also have CE, FDA, Saber certificates, which have reached the standards of exporting to EU countries, the United States, Saudi Arabia and other countrie
.
Package
Related products
FAQ
Q: What kind of Training and After-Sales Service do you offer?
Q: Did Your Factory Accept OEM Production ?
Q: How to solve it if there is some problem or parts broken during operating metal laser cutting machine
Q: Why I choose your company products
High quality machine control inspection and perfect service:
All Parts of our machine are adopted top quality parts →
1) Testing machine work well for 3 days before delivery → sent working video and all items photos base on the order list to buyer to check →
2)buyer check everything is included and satisfied → Professional plywood package to avoid damage → shipping machine
Supply technical support all life time for our machine; We have professional after-sale service team to supply technical support to our clients for free. You can talk with them at any time if you need.
Strict implementation of after-sales warranty.
The important is that you will receive the Corresponding goods after you do payment.
Q: If I want to see the machine condition of your factory , And It's not convenient for me to go to China , what should I do?
