CNC Router

A CNC (Computer Numerical Control) router  is a computer numerically controlled machine tool

that  makes use of a set of computer-generated instructions called G-code to automatically move a high-speed rotating cutting tool to various coordinates to carve out a design programming to control high-speed rotating cutters for cutting and shaping operations.

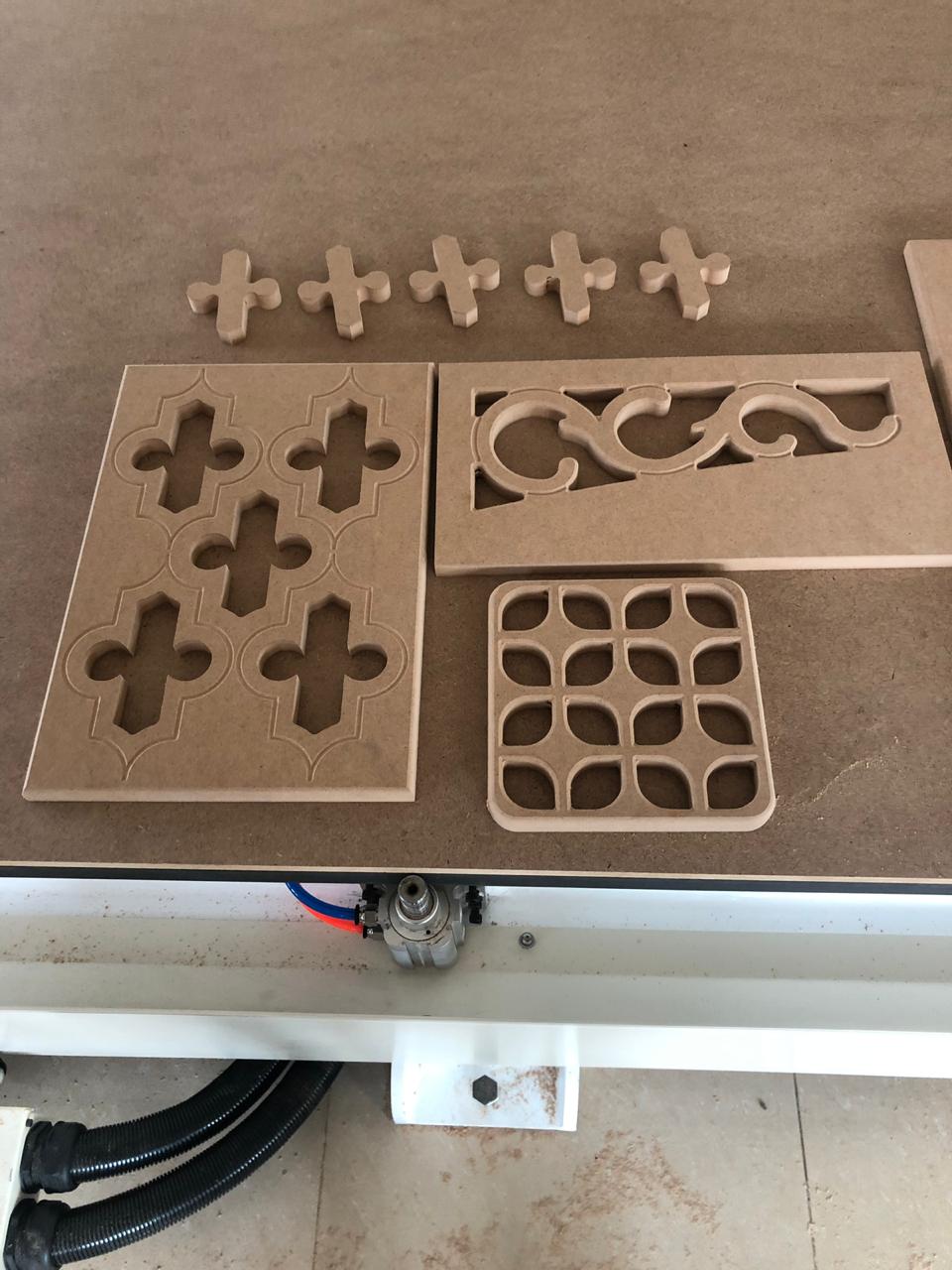

These machines can cut and engrave a variety of materials, such as wood, plastic, MDF, lumber, acrylic and some soft metals and so on

Engraving machines have a wide range of applications and are distributed in different industries and fields.

They have become an indispensable tool in c people's hands. However, we need to know that there are many types of engraving machines.

Different processing techniques and industries have different requirements for engraving machine models, configurations and requirements.

They are all different.

People who are working in Advertising industry, they could buy an affordable small mini cnc router machine

or standard equipment woodworking cnc router for arts and crafts. This is simple model and easy to operate it.

Price is also suitable for customer.

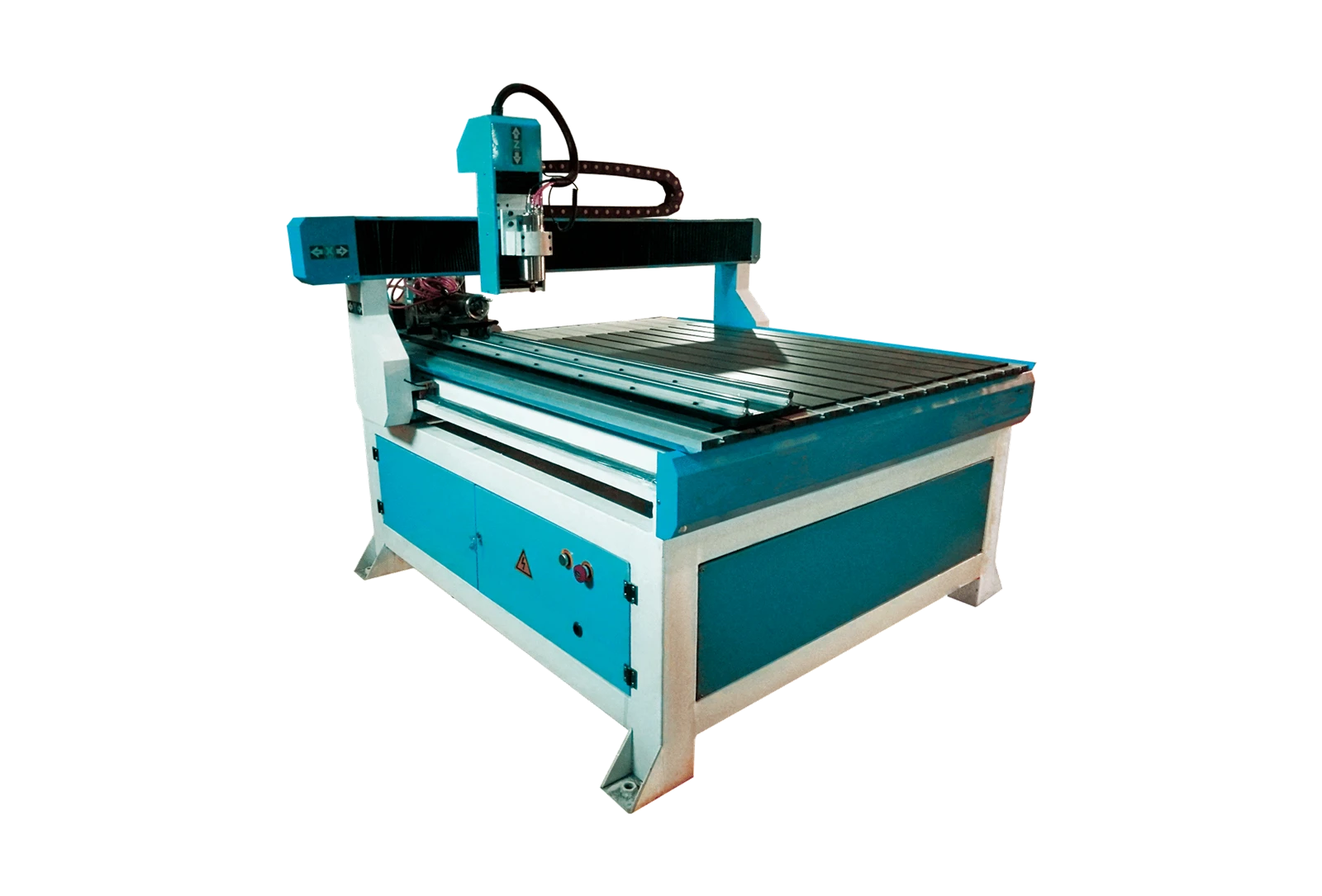

Small size 6090 cnc router table

For some panel furniture or wooden door manufacturers who make panel furniture, office furniture, customized furniture, cabinets, wardrobes, wooden doors, bedside tables, etc., automatic loading and unloading machines, panel furniture production lines, and high-configuration engraving machines for wooden door production lines are their first choice. , the  customized  production line can improve production efficiency and greatly save labor costs, achieving high-quality production volume.

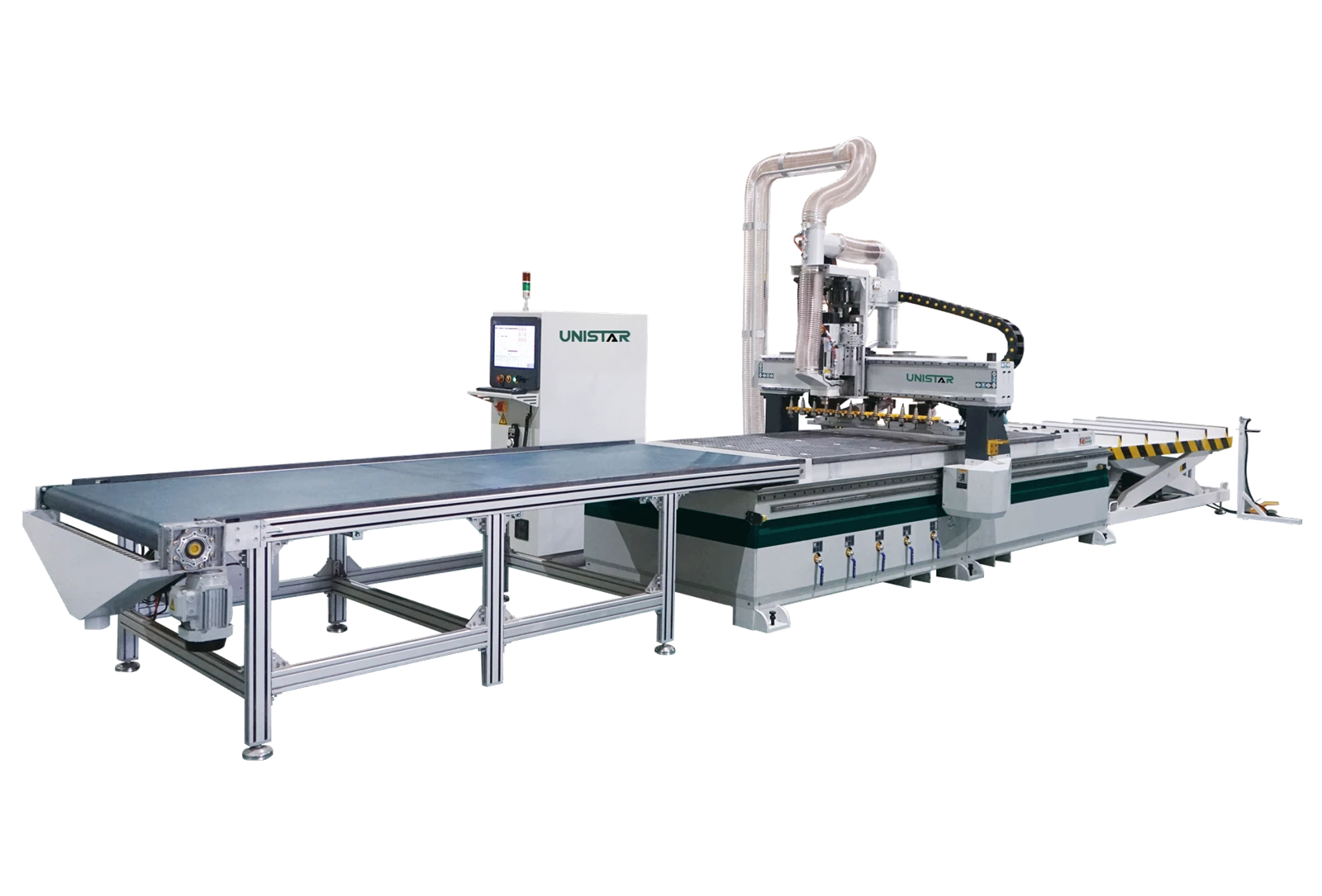

                                                            Auto Feeding Cnc Router Machine for Furniture

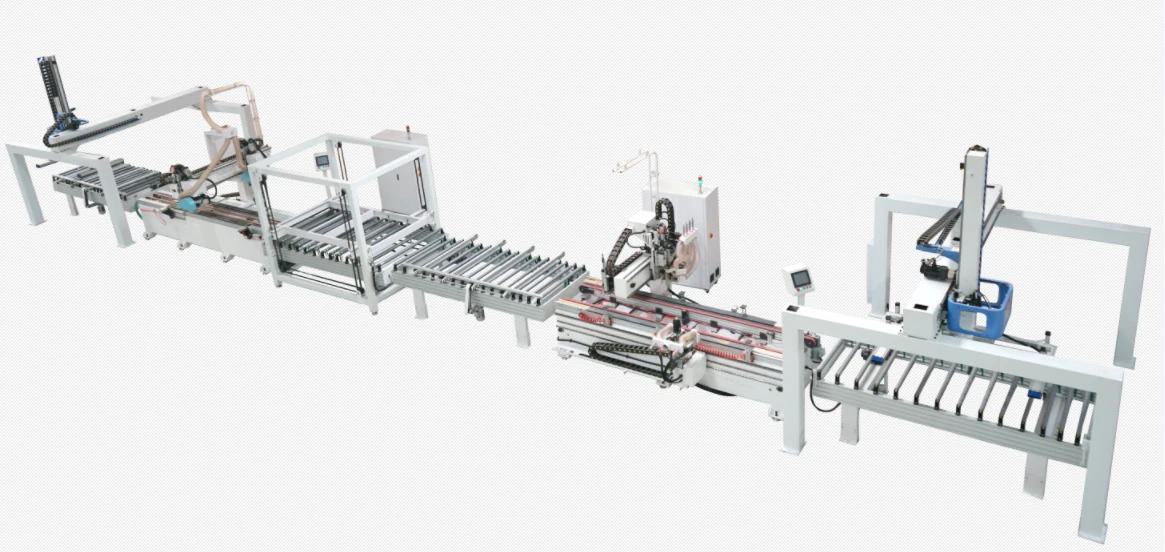

   Wood Door Flexible Production Line

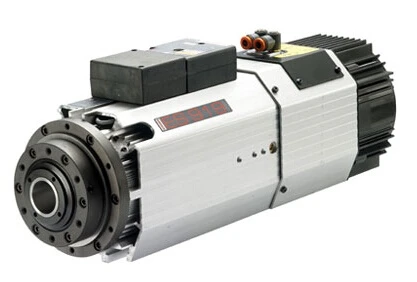

 In addition to the simple  Cnc Router machine and  Automatic tool changer spindle  cnc router  we mentioned above, it also has an important function. It can also be used in engraving and cutting stone, marble, granite, artificial stone, and tombstone materials. This is what we called cnc Stone engraving machine machine. The difference between  the  Marble engraving machine  and ordinary  best cnc router  kit is  machine bed and spindle .The stone engraving machine table adopts a sunken structure. The bed is weighted with a sink and a high-power frequency conversion water-cooled spindle, which can effectively process hard materials.

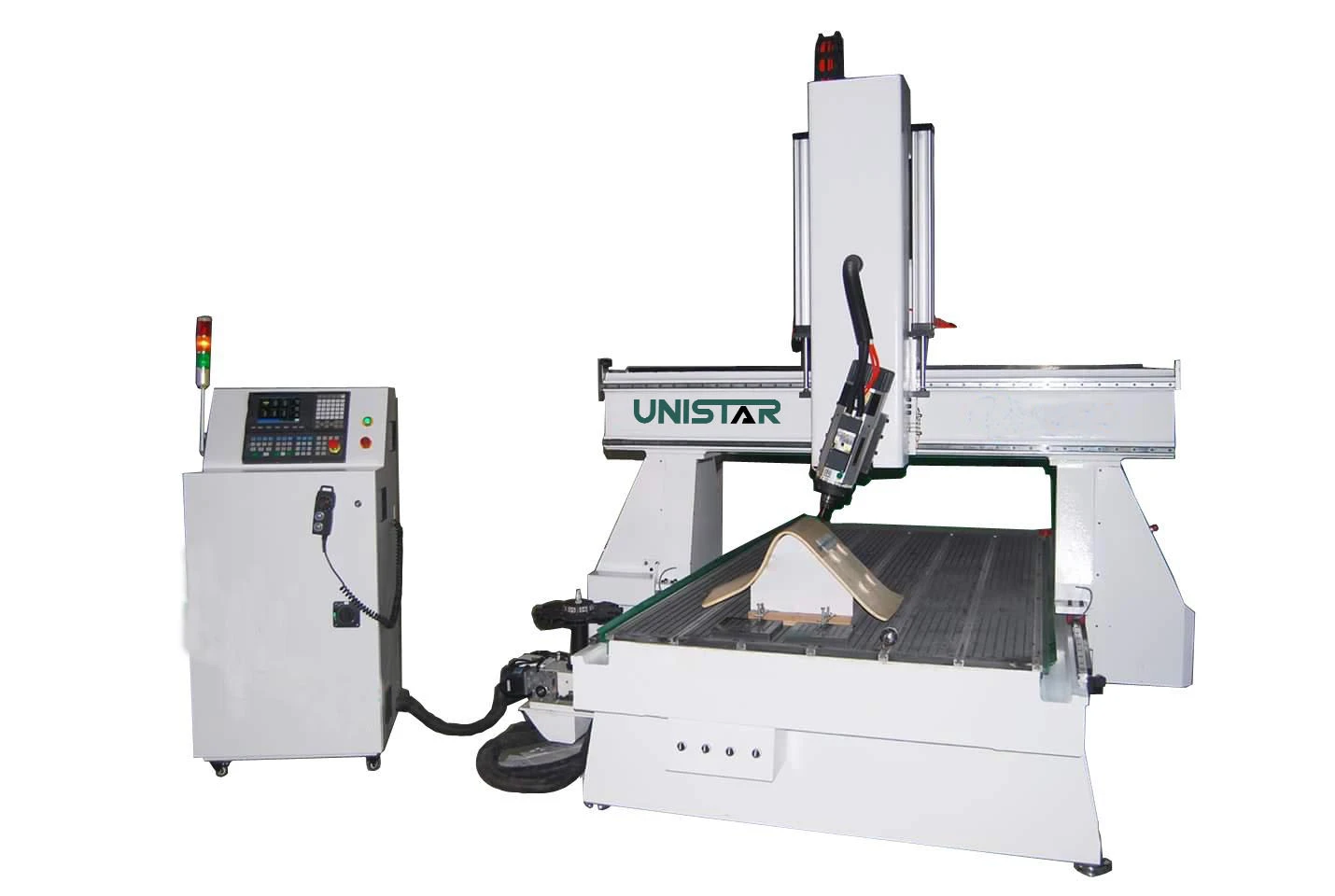

 Ordinary 3D cnc router machine  plus a  A axis.  which is  called 4 axis wood cnc machine

 The spindle has 3 linear axes of movement (X-Y-Z), like in 3-axis machining, plus the A-axis occurs by rotation of the workpiece. There are a few different arrangements for 4 axis machines, but typically they are of the ‘vertical machining’ type, where the spindle rotates about the Z axis. The workpiece is mounted in the X-axis and can rotate with the fixture in the A-axis. For a single fixture setup, 4 sides of the part can be machined.

By moving a tool to specific x, y, and z coordinates throughout the machine's available working area.

A router or high-speed spindle with a cutting tool then removes material at the desired locations.

Different cutting tools can be used depending on the material and the feature being machined.

These tools can be manually changed or in the case of a more advanced machine, an ATC (Automatic Tool Changer) can swap out tools.

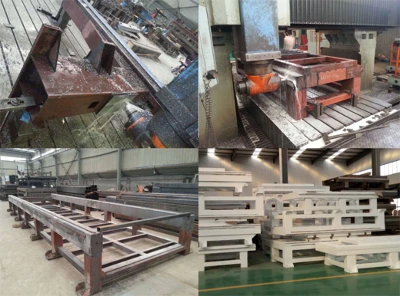

Machine Bed



Adopting   square steel welding and tempering treatment to eliminate welding stress and ensure that it will not be deformed after many years of use.

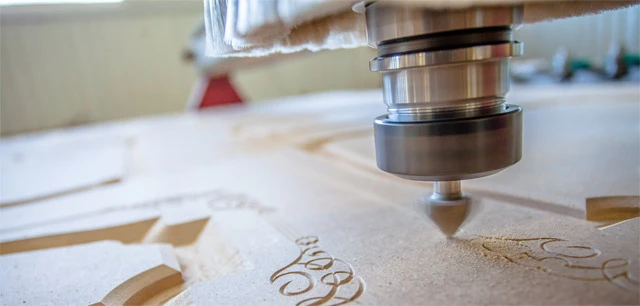

 Spindle



 The spindle is the single most critical component of a CNC router.We are usually adopt famous brand Spindle , keep machine working high accuracy

Italy HSD spindle or China famous brand HQD ,CC brand ,Motor bearings are strong enough, not easy to wear, strong,

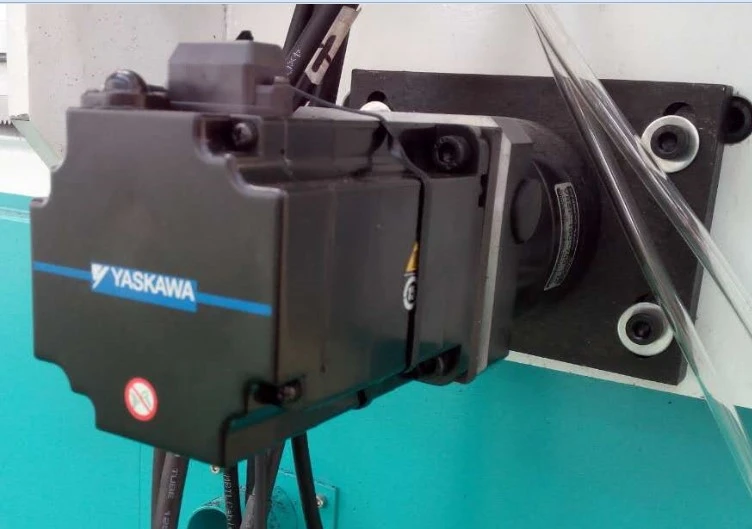

 Motor and drivers



 Yaskawa servo motor, drive: strong rigidity, compared with other brands of servo motors, the same power of the motor torque, power enough, fast speed, processed products are also high precision, Yaskawa servo is recognized as the best servo motor in China, of course, the price is also proportional

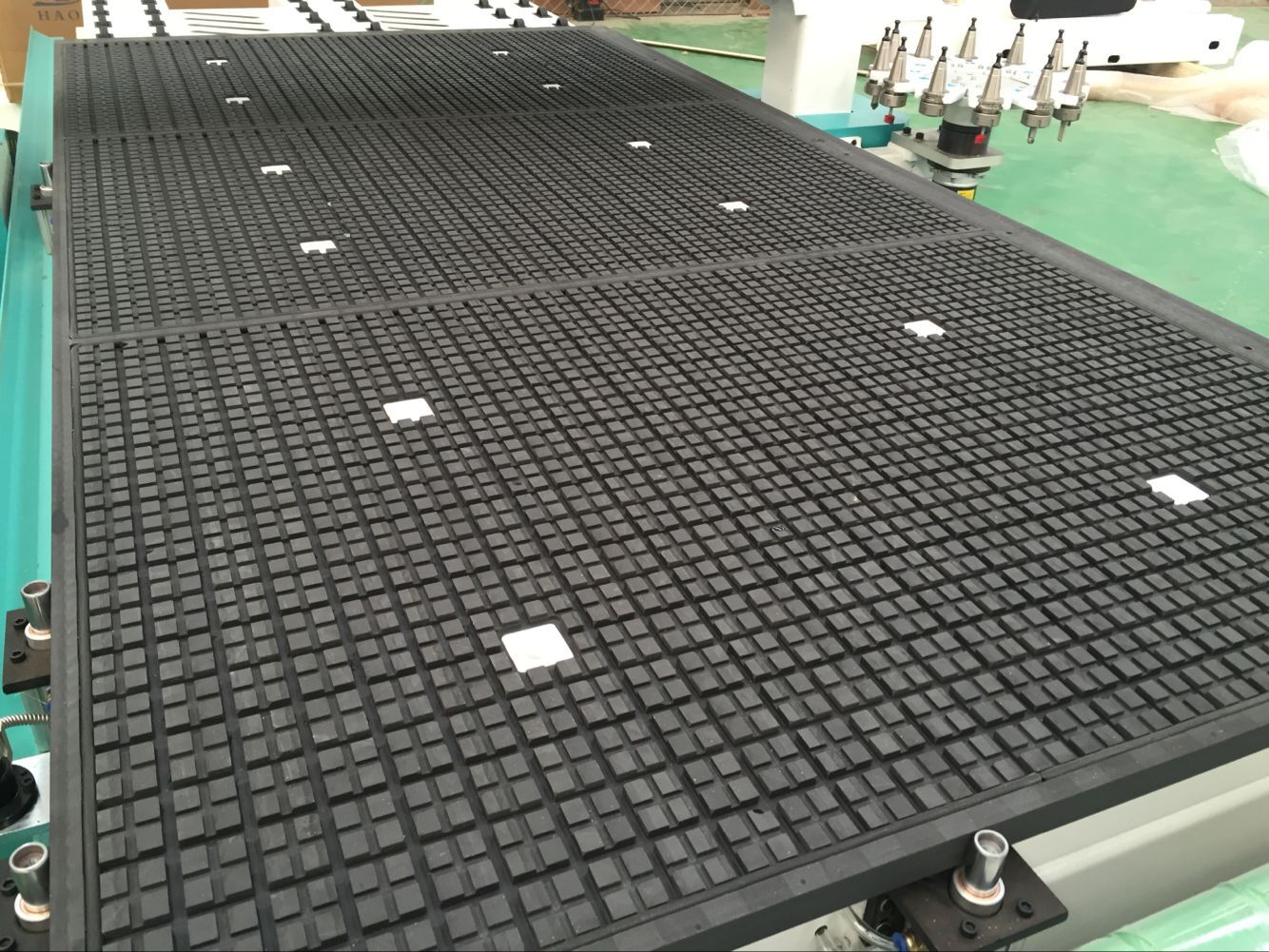

Vaccum table



Vacuum adsorption table: The table is made of high hardness PVC sheet, high temperature, low temperature will not be deformed, to ensure the flatness of the table. The whole table is divided into six control areas, and both large and small plates can be easily processed. At present, the vacuum tube uses high temperature PPR hot melt tube, and the vacuum adsorption pressure is large, and the normal plate pasted on the surface can reach the pressure value of -0.08MPA

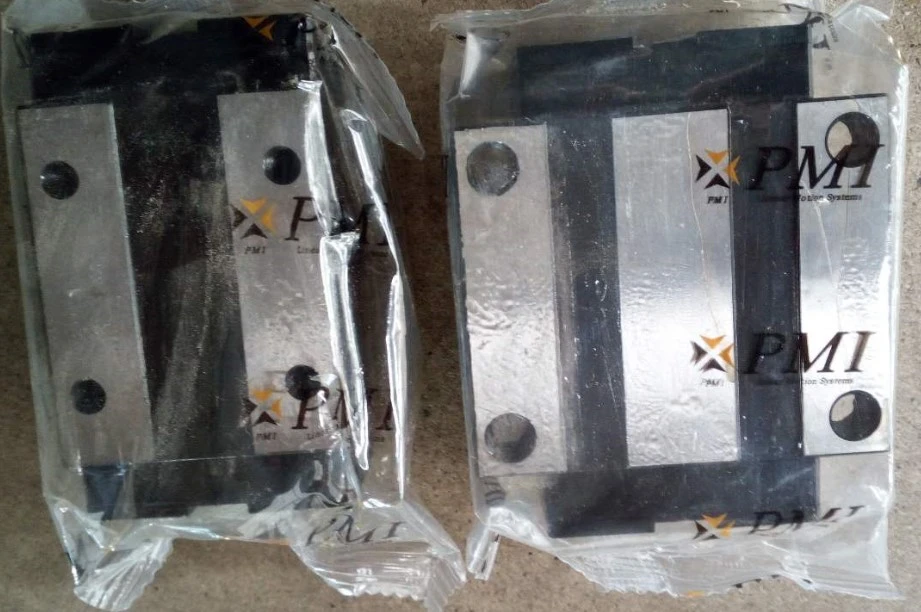

  PMI or HIWIN Original Rail Guide



 PMI 25/ 30 square rail: relatively large specifications, large contact surface, strong load-bearing capacity, which can better ensure operational stability during high-speed processing.
The XYZ three-axis is equipped with an efficient dust-proof slider for longer service life.
The guide rail mounting surfaces are all milled flat with large milling machines and CNC drilled, ensuring high installation accuracy.

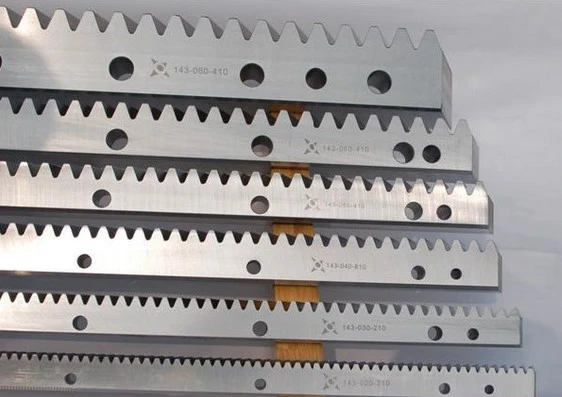

High Accuracy Helical Rack



Imported rack: Germany imported rack, high wear resistance, 1.5M rack can ensure processing speed .

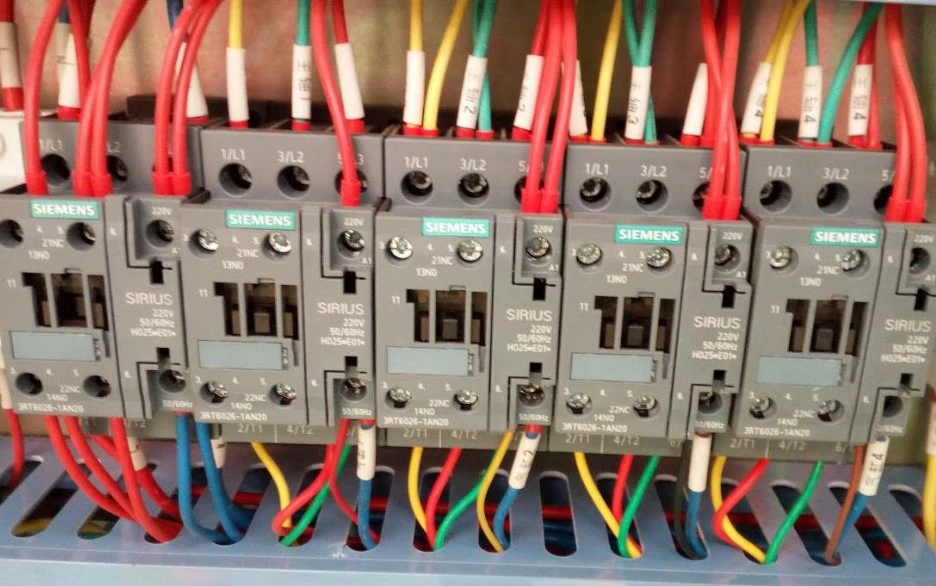

Control cabinet electrical components



 Germany Siemens electrical parts or France Schneider,

Mobile control cabinet, internal low-voltage electrical components are Siemens /ABB/ Schneider

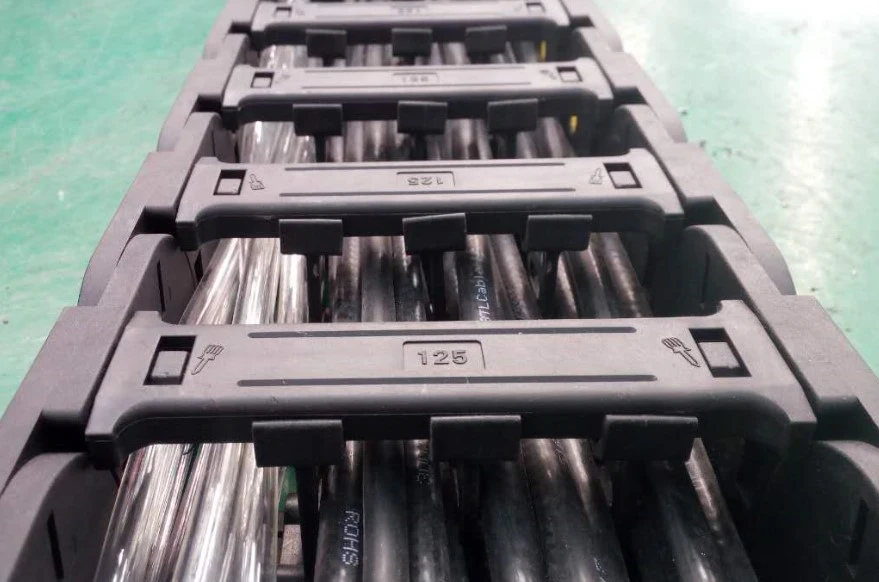

Drag Chain Cable



 Using a new structure, signal lines, power lines, and air pipes can be classified and routed according to different specifications, which improves the straightness of the cables, prevents twisting and other phenomena during processing, and better prevents signal interference.

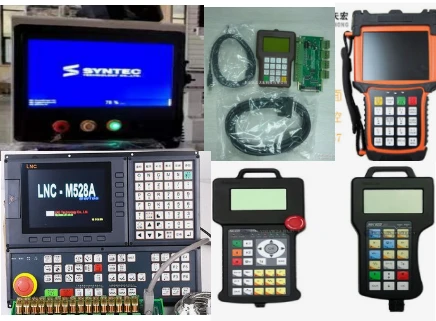

Control System



 DSP handle, Taiwan LNC control system, Taiwan Syntac control screen can customize different machine needs according to customer needs, equipped with control systems of different models and functions,

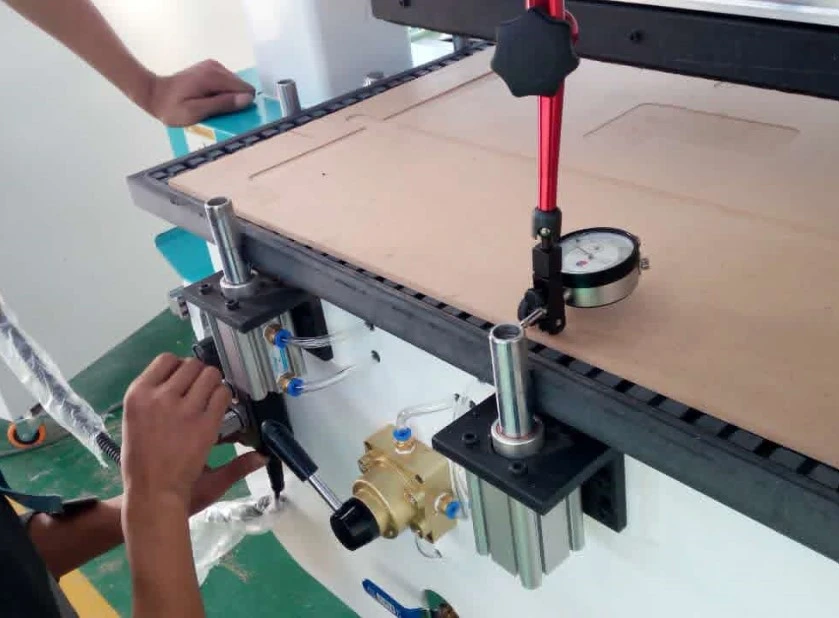

Machine detection accuracy test



  Three Y axes and two X axes form a right Angle. All five positioning cylinders are adjusted by the dial indicator to ensure the secondary positioning accuracy of the front and back processing. All milling flat cylinder installed base, to ensure the installation precision.



Each machine should be checked for accuracy in all aspects before leaving the factory, and each processing area of the entire table should be tested for accuracy separately to ensure that the machine processing has no dead corners

Multi-functional

•  A major benefit of cnc routers  is being able to cut and engrave  different kinds of material without  replacement tools required

The  shaping material enables you to cut materials precisely ,Consistency of output – reduced human error, Save much time and cost

High Effeciency

• With Special cnc engraving software for design and layout, and the computer design and layout information is automatically transmitted to the cnc Routers machine controller, and then the controller converts this information into a power signal (pulse train) that can drive the stepper motor or servo motor, and controls the engraving machine host to generate X,Y,Z three-axis engraving cutting subgrade. At the same time, the high-speed rotating engraving head of the engraving machine cuts the processing materials fixed on the main machine workbench through the tool configured according to the processing material

 Easy to Use

•  CNC routers generally receive their toolpath instructions from a Professional software like ARTCAM , JDpaiting . programmers can continue to use their drawing package of choice. Programming and operating the machine is relatively simple providing training has been undertaken.

Flexible

• CNC milling machines offer perfect flexibility. These are capable of cutting and drilling various types of materials, including software metals. you can use wood routers to create signs, moldings, furniture, instruments and other items we use regularly. The flexibility of CNC Kit home with allows businesses to perform multiple tasks and bring in more business.

Saving Labour Cost

• Efficient machine operation means that the machine reduces the man-hours required for specialized products. Skilled operators can choose to operate several automatic CNC machine tools, allowing companies to reduce labor costs per unit of output. Labor savings can be passed on to the end consumer, making the business more competitive

1. Power on
Before starting up, first make sure that all connections between the CNC engraving machine and the computer are normal, and then turn on the power of the engraving machine and the computer. After the system is started, enter the CNC system.

2. Mechanical reset
After starting the system (the system will determine whether the machine tool has "returned to the mechanical origin" before entering automatic processing), the "return to the mechanical origin" prompt dialog box will first appear. Click the corresponding button, the engraving machine tool will automatically return to the mechanical origin position, and Correct coordinate system.

3. Check the I/O status
Check the input and output of each signal and check whether there is a fault signal to ensure that the woodworking engraving machine can be processed safely.

4. Load the processing program
Before processing, users generally need to load the required processing program, otherwise all automatic processing functions will be invalid.
Select the [File (F)] -> [Open and Load (O)...] menu, and the Windows standard file operation dialog box will pop up, from which you can select the file to be processed. Or right-click the mouse in the automatic processing window to pop up the shortcut menu, select [Open and load (O)...], and select the desired processing file in the pop-up file operation dialog box. Then click the "Open" button, and the processing program will be loaded into the system. At this time, you can click the "Auto" window to view the current processing program.

5. Manual operation

(1) Display manual operation interface
Click the [Manual] window with the mouse to display a manual operation interface. On this interface, you can manually operate the engraving machine tool.

(2) Manual movement
Manual movement can be achieved by clicking the corresponding button on the manual operation interface with the mouse. You can also manually move the CNC woodworking engraving machine through the small numeric keys on the keyboard. Note that you must first switch the input focus to the manual window. The specific method is to switch to the manual window first, then left-click any position of the manual window, and press the corresponding number keys on the keyboard to realize manual movement.

6. Determine the origin of the workpiece
The origin of the X, Y, Z, and A coordinates in the machining program is the origin of the workpiece. Before processing, you first need to
Set the origin of the workpiece. The specific method is:
Manually move the X-axis, Y-axis, Z-axis, and A-axis of the engraving machine to the position of the workpiece origin desired by the user, and clear the coordinate value of the current position to zero in the coordinate window (or select [Operation (O)]->[Settings] The current point is the workpiece origin]), so that when executing the processing program, the current position is used as the workpiece origin for processing.

7. Automatic processing.

Automatic processing means that the woodworking engraving machine tool automatically processes according to the selected processing program.

(1) Start automatic processing
Select the [Operation (O)] | [Start] menu item or click the button on the toolbar, and the machine tool will automatically start execution from the first sentence of the processing program.

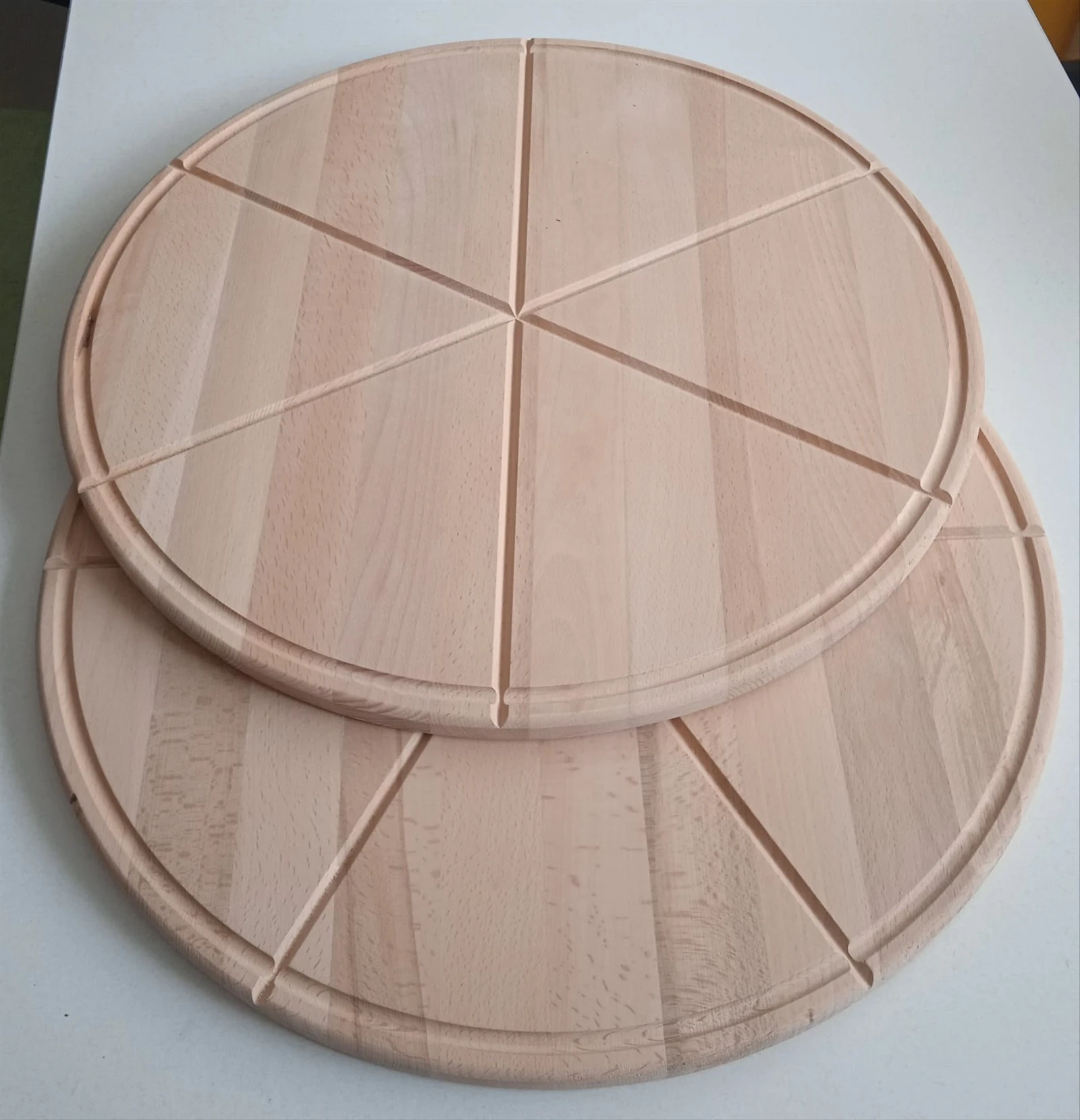

CNC Router project









Which Industries Make Use of CNC Routers ?

CNC routers are a low-cost alternative to CNC mills and are used in a range of industries,

Advertising

Cnc Routers are used to Advertising signs, logo production, acrylic cutting, blister molding,

a variety of materials advertising decoration products

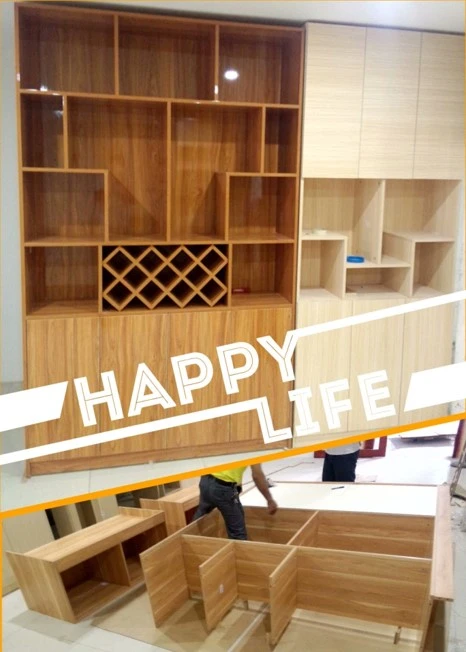

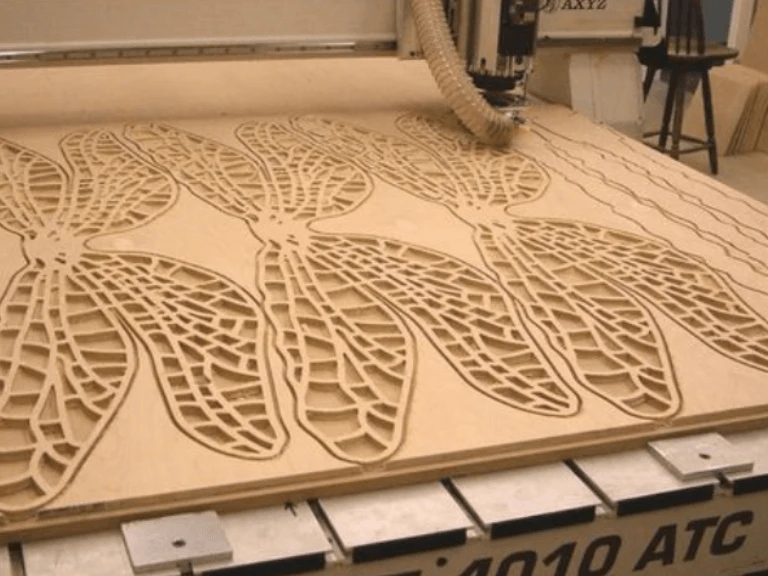

 Furnituring

CNC Routers are Used to the furniture industry, processing and cutting of wooden doors, cabinet doors, cabinet doors, wardrobe doors, panel furniture, office furniture, sofas, tables, cabinets and other materials



Molding

A Cnc Router Macine can process all kinds of  model , such as Architectural models, physical models, hot stamping molds, high frequency molds, micro-injection molds, shoe molds, badges, embossing molds, biscuit, chocolate, candy molds

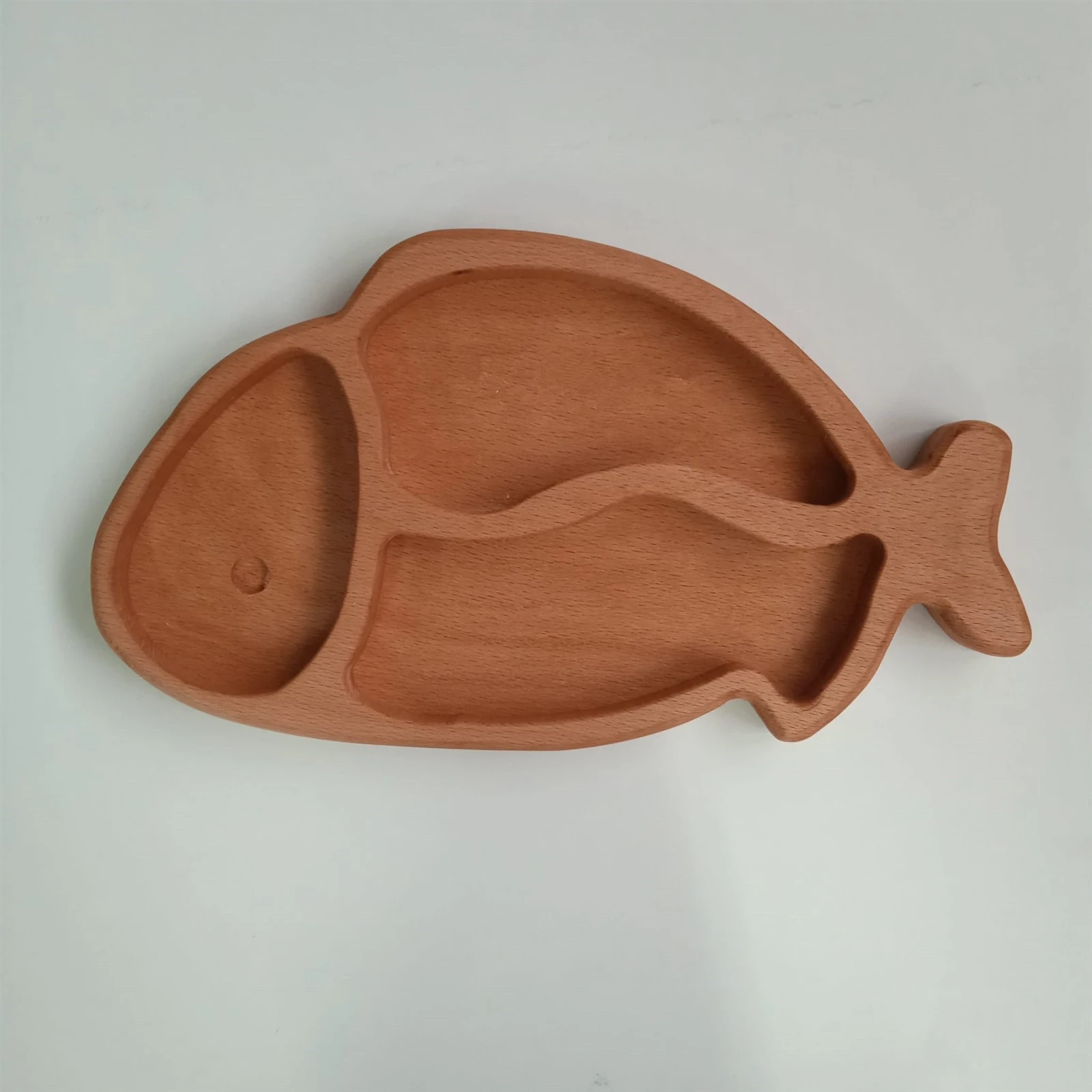

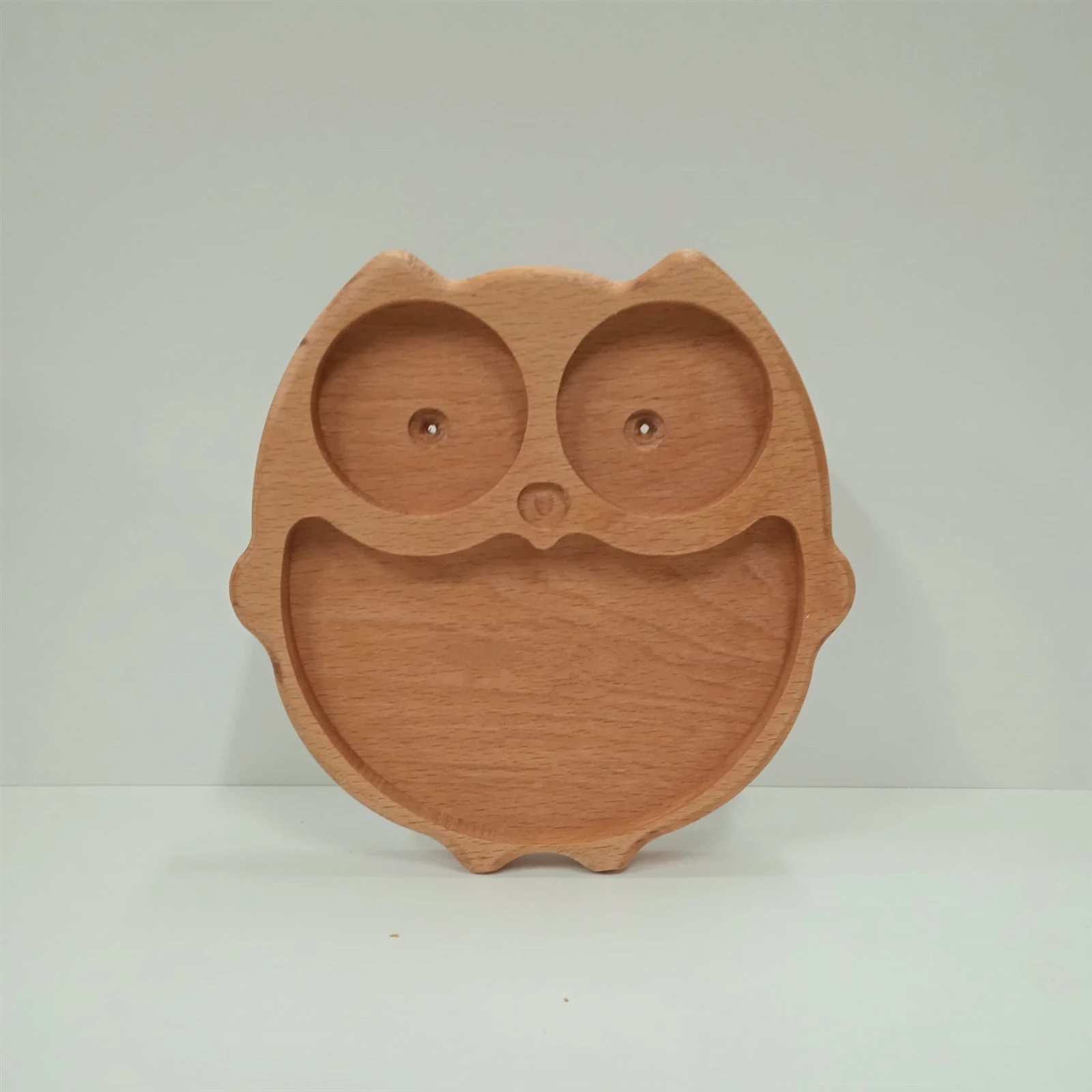

Arts and Crafts

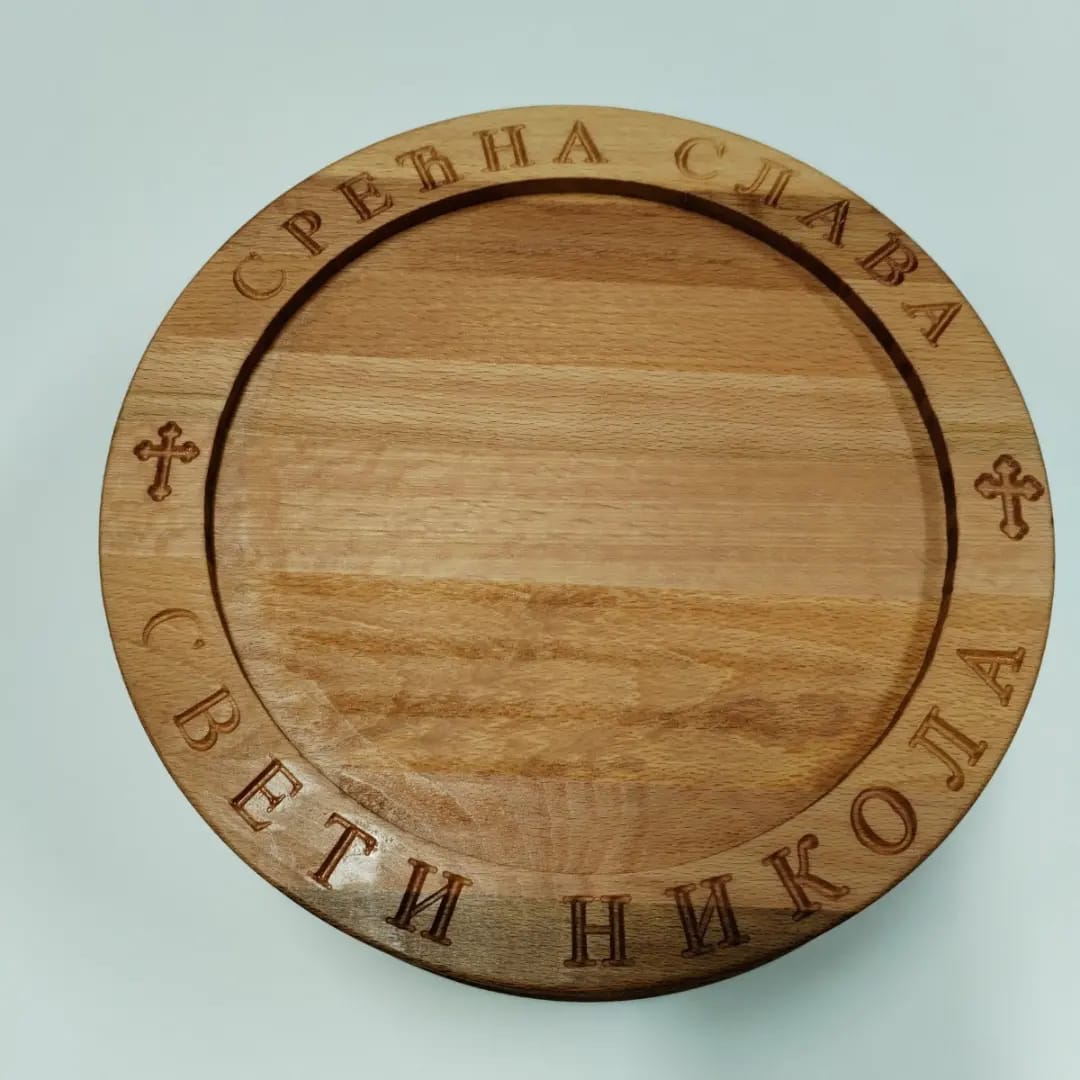

All kinds of characters and graphics are engraved on artificial stone handicrafts and souvenirs





Our Certificate

CE

CE

Saber

CCPIT identify

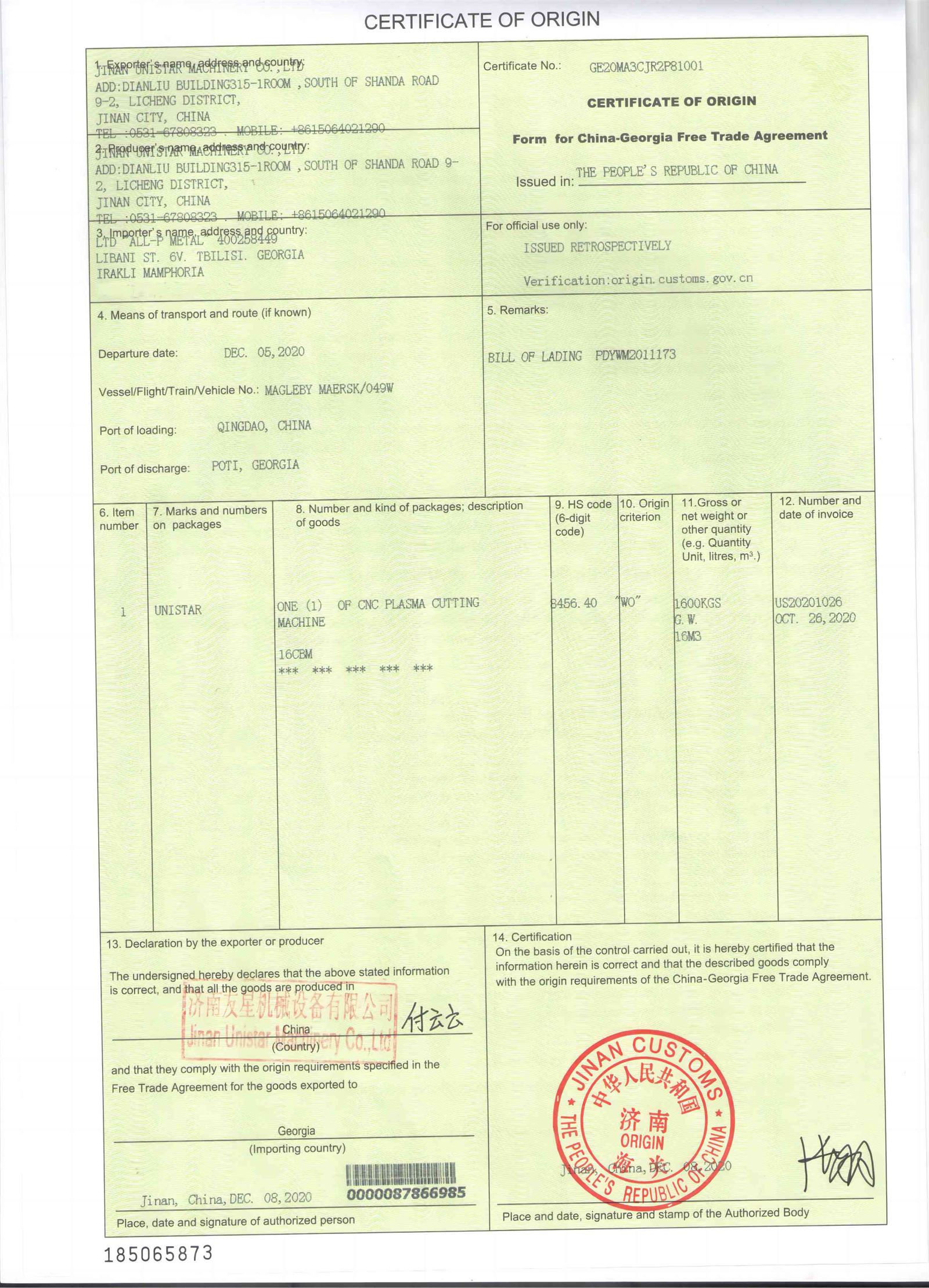

CO

ISO9001

Patent

Patent

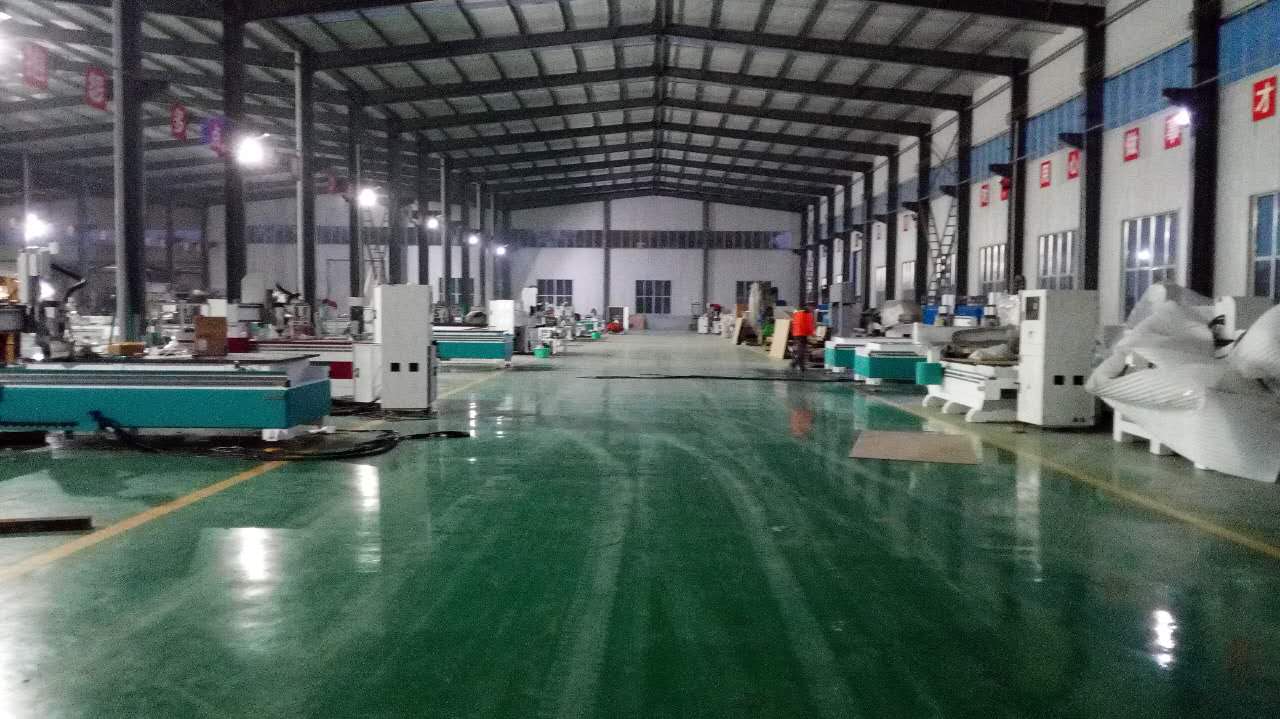

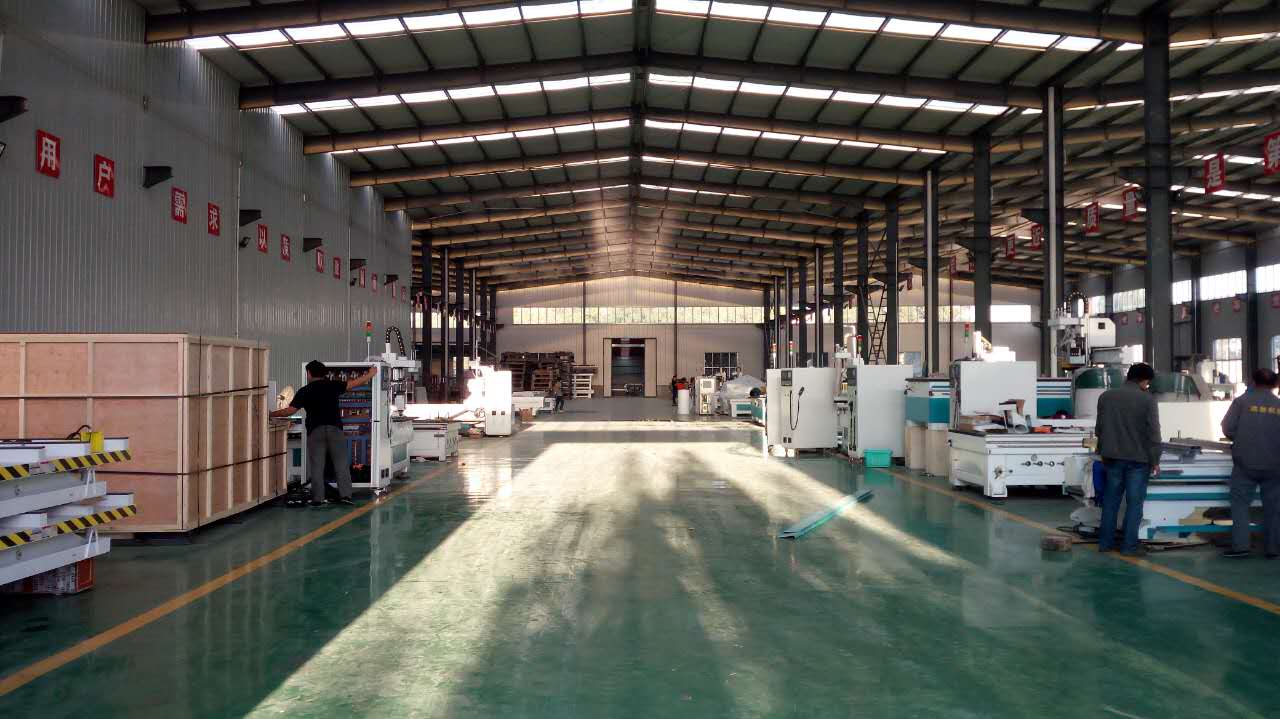

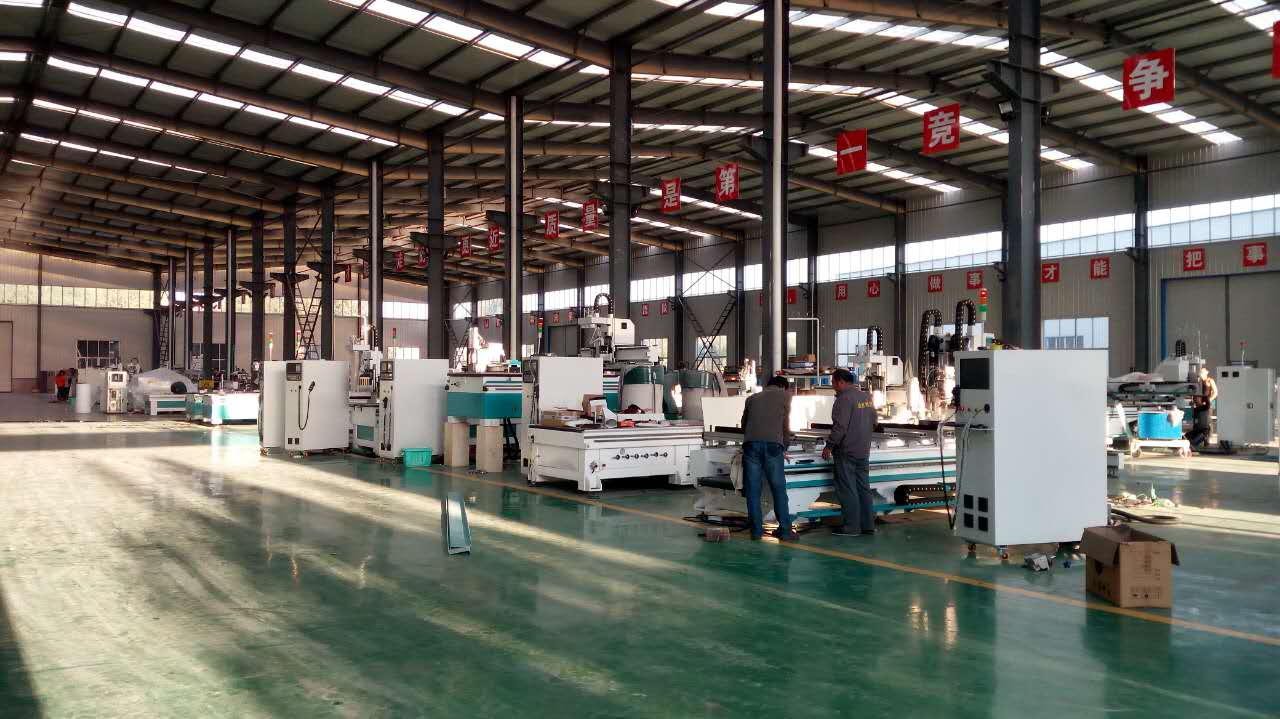

 Factory Show

Cold chain transportation of semi-finished food project

view more

Perfect 5S on-site management and strict quality management system ensure the quality of all machines

Cold chain transportation of semi-finished food project

view more

Cold chain transportation of semi-finished food project

view more

FAQ





01.What are models of CNC routers  ,  Can you offer different size ?

 Yes ,customer can choose various size , such as  4*4 , 2*3,  4*8,  5*10,  6*10 .

Supporting customzied size to satisfied customer needs

02.  What if happened problem during running machine , how should we do

 Customer can Through whatsapp , wechat ,skype , Facebook or  E-mail to contact us

Engineer will solve your problem within 24 hours . we can through remote control  or video call to

solve problem .We have a professional after-sales team to quickly respond to customer requirements

03. How to perform daily maintenance of engraving cnc machine

•   Clean equipment regularly :The engraving machine will produce a large amount of chips, grease and dust during the processing, and these dirt may cause the performance of the equipment to decrease. Therefore, regular cleaning of equipment is key to maintaining stable operation. It is recommended to use a soft brush and cloth to clean tools, fixtures, workbenches and other parts after work every day to ensure that the equipment is clean



• Lubrication system  :Check the amount of lubricating oil regularly and add it in time to keep the guide rail, lead screw and other parts well lubricated



• Check fasteners  During the long operation of the engraving machine, some fasteners may be loose. Check screws, nuts and other fasteners on the equipment regularly



•   Check tools and fixtures

Regularly check the wear of the tool, if there is serious wear of the tool should be replaced in time

•  Electrical system maintenance

Check the electrical system regularly, such as power cables, connectors, switches and other components, to ensure that they are intact

04.   How much does a cnc router cost ?

 Different range Cnc Router machine with different price , for example , high specification Auto

tool changer cnc router machine price is from $13000 to 18000$ . Portable small size with simple

configuration cnc machine price is about from $2000 to $3000 . Next is  middle size like 1530 ,2040,

2060 big size cnc router price is about from $4000 to  $6000 , for  cutting different   material  heavy

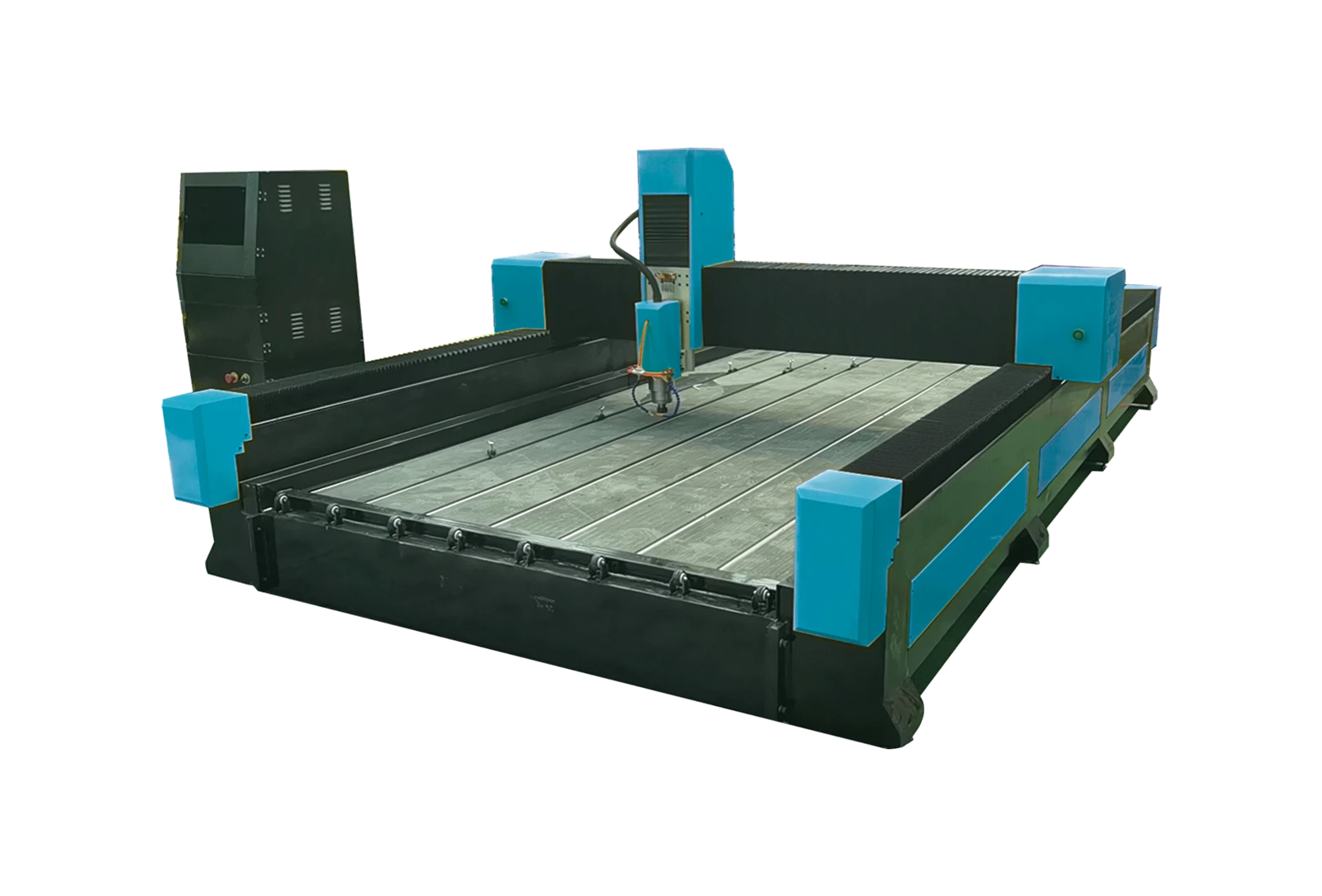

cnc stone engraving machine price  is another  range ,from  $5000 to $8000 , Therefore, customers

should choose the machine that suits them based on their actual needs. Size, price, configuration,

and functions are all factors that affect the price of the machine.

05.  What the delivery time and machine shipping  ?

  Common  cnc router machine delivery  time is about 15 days .

  Customized  cnc routers delivery time is about  25 days

   Production line cnc equipment for wood door delivery time is  about  35 days

06 .What are the terms payment of Orders ?



1. T/T payment

2. L/C at sight

3. Alibaba Trade Assurance

4. Letter of Credit

5. Payble , Western Union , Moneygram
