Applicable industry
The automotive industry:the front cover, automotive sheet metal, automotive exhaust pipes, etc., are used to laser cutting machines, which need to be processed after forming some excess corners or burrs. If manual operation is used, both efficiency and accuracy are difficult to achieve the desired standards.
Advertising industry:the production of billboards, cutting acrylic more, more personalized requirements.
Fuinture industry:Kitchenware related products demand is growing, laser cutting machine is suitable for cutting sheet stainless steel, fast, high precision, high satisfaction, and can achieve customized and personalized product development, deeply loved by kitchenware manufacturers.
products details
leaser head
The laser head uses a high-precision mirror, which can focus and cut quickly and accurately, making the cutting speed and effect very good.
table and platform
Withstand the cutting effect of the laser beam and Serrate platform and trim strip are very suitable for cutting metal sheets.
motor and driver
Advanced motor and drive equipment, good quality, long service life, can better drive the machine.
rail guide
High positioning accuracy, strong bearing capacity, small friction coefficient.
laser power
Cowers Commercial Cleaning Robot Landing Case:China Mobile Software Park
control system
Handwheel handle control system, small size, light, can better control the machine.
control screen
Operation screen, can better control the machine, to ensure safety and stability.
reducer
Improve the machining speed, ensure the running accuracy of the bed, and ensure the positioning accuracy and speed.
detailed information
|
Model |
Fiber-USJ2030 |
||||||
|
Working Area |
2000*3000mm |
||||||
|
Laser source media |
Fiber laser generator |
||||||
|
Laser Power |
Domestic famous brand RAYCUS 1000W/1500w |
||||||
|
Rotary included |
Diameter is 200/250/300mm/ ,length can be 2m/3m etc |
||||||
|
Laser head |
Swiss Raytools laser head /American lasermech /Germany precitec laser head |
||||||
|
Laser Wavelength |
1080 nm |
||||||
|
Beam Quality |
<0.373mrad |
||||||
|
Positioning Accuracy |
≤ ±0.03mm/m |
||||||
|
Re-positioning Accuracy |
≤±0.02mm/m |
||||||
|
Max Cutting Speed |
0-40m/min(depending on material and thickness) |
||||||
|
Max moving speed |
120m/min |
||||||
|
Power Supply Rated Voltage |
3-phase 380V/50Hz |
||||||
|
X-axis Stroke |
2000mm |
||||||
|
Y-axis Stroke |
3000mm |
||||||
|
Z-axis Stroke |
200mm |
||||||
|
Working Table |
Blade platform |
||||||
|
Control System |
China Professional CYPCUT(cypone ) control system |
||||||
|
Location System |
Red dot indicator |
||||||
|
Water chiller |
Water chiller CW6200 |
||||||
|
Transmission |
X,Y,Z axis adopt ball srew transmission |
||||||
|
Motor and drivers |
Japan PANASONNIC servo motor and drivers with good performance |
||||||
|
Reducer |
Japan shimpo reducer, machine working more stable, lower noise |
||||||
|
Windpipe |
Noss from shenzhen |
||||||
|
Handheld Terminal |
Bochu (Cypone control handle ) |
||||||
|
Supported Graphic Formats |
NC PLT, DXF, BMP, AI, DST, DWG, etc |
||||||
|
Dust Blower |
The machine with dust blower system |
||||||
|
Working temperature |
Indoor temperature is ok |
||||||
|
Years of warranty |
1.5 year warranty, no human damage |
||||||

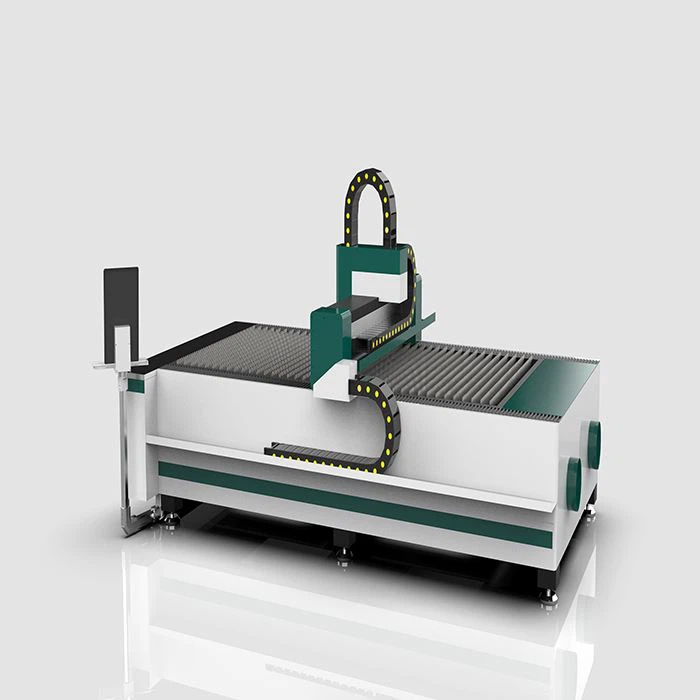

The Sheet Metal Laser Cutting Machine uses an advanced fiber laser to output a high-energy-density laser beam and focus it on the surface of the workpiece, so that the area of the workpiece that is illuminated by the ultra-fine focus spot is instantly melted and vaporized. Automatic cutting is achieved by moving the spot illumination position through a numerically controlled mechanical system. It is a high-tech equipment that integrates the most advanced fiber laser technology, numerical control technology and precision mechanical technology.
samples
warranty and training
1.The machine warranty we give 1.5years, usually other company is 1 years
2.About machine spare parts, we will send two sets consumable parts with machine together for your spare use
3. a. In the warranty period, if it break down or some parts damage Factors and factors force majeure, the seller should be responsible for repair for free
The parts need to be replaced will be provide from the seller for free wear-quick part)
b.after the warranty period expired, the buyer only need to pay the actual maintenance cost
c.Unistar laser will make return visit of customers at regular time one year
If customer machine overtime the guarantee time, has require to let engineers.
For second time service, we can make visa, and for second time service, please the fees should be taken by buyer, like visa fees, come and round tickets, training fees.
