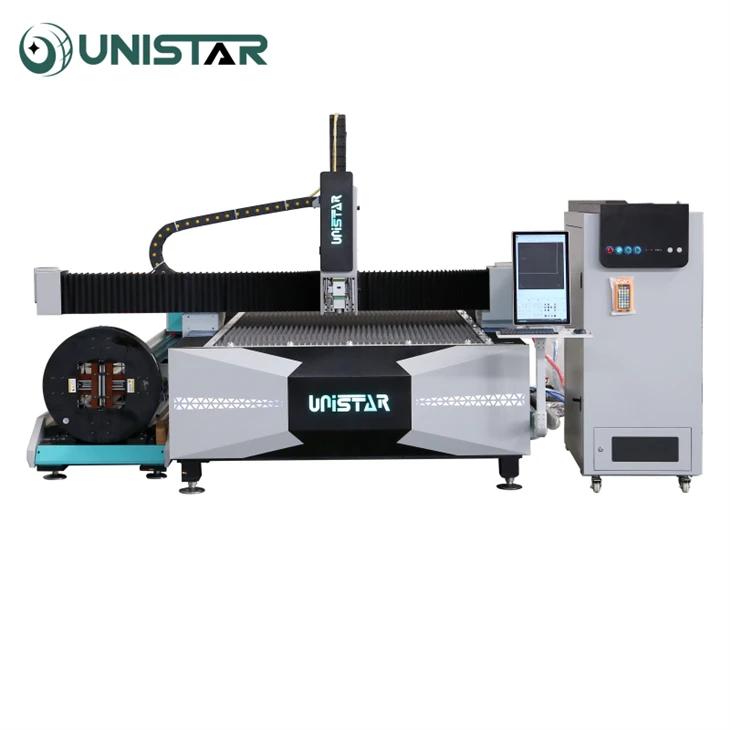

CNC FIBER LASER CUTTING MACHINE METAL SHEET AND TUBE
Features
Sheet and Pipe Laser Cutting Machine Exclusive Features:
1.Unique leading climbing pallets ,synchronous exchanging tables and at same height. faster and better for cutting accuracy.
2.Fully enclosed cutting table with powerful blowser and Smart control exhaust system that create cleaner jobshop.
3.Thick sheet metal welded industrial grade machine tool bed ,true heat-treatment ,annealing machine bed, time aging, vibration residule stress relief ,unique"W"beams strengthened.
4.Aviation grade extruding aluminium beam, no any pinhole allowed.lighter in weight but more tough.
5.For high-power laser machine, exclusively using graphite sheet as dunnage to protect machine bed in case of heat damage.
SPECIFICATION
| Product Name | Fiber Laser Cutting Machine |
| Working Area |
3015/4015/4020/6015/6020/6025/8020,8025 |
| Laser Power | 1500w/2000w/3000w/4000w/6000w/8000w/10000w/12000W/24000W/50000W/80000W |
| Tube Length | 3m/6m |
| Max Cutting Thickness | 0-100mm(Depends on the power of the machine & cutting material) |
| Max Cutting Speed | 120m/min |
| X,Y,Z Traveling Positioning Accuracy | ±0.02/2000mm |
| Laser Head | Raytools/Boci |
| Laser Source | Max/Raycus/IPG |
| Power System | Taiwan Deltamotor and drivers+Japan Shimpo reducer |
| Delivery Time | 7 - 10 working days after payment |
| Application Material | stainless steel, carbon steel, electrical steel, galvanized steel, aluminum zinc plate, aluminum, aluminum alloy, titanium alloy,copper, brass, iron . |
Machine Details
Fiber Laser Cutting Machine Description:
1. Laser power: 1000W, 1500W, 2000W, 3000W, 4000W, 6000w, 10000w, 12000w, etc.
2. Laser generator: JPT, RAYCUS, MAX, RECI, IPG etc.
3. Cutting materials: Iron, aluminum, carbon steel, stainless steel, copper, hardware and another metal sheet materials.
4. Other machine optional parts can be chosen, such as, rotary axis, exchange working table, full cover, etc.
5. China fiber laser machine cutting manufactuers, low cost and best quality, with CE, ISO etc certificates.
Auto-focus laser head
Auto-focus software adjusts lens for precision cutting of 20mm thick plates. 10x faster than manual adjustment.Collimator and
focus lenses have water-cooling heat sink, extending head life.
Laser cutting CNC system
The special CNC system of intelligent laser cutting machine is adopted to realize automatic edge searching, automatic typesetting, automatic focusing, automatic cutting, convenience and efficiency.A set of software specially customized for laser cutting industry, easy to use, rich in functions, suitable for various processing occasions.
TAIWAN HIWIN SQUARE DUIDE RAIL
Taiwan Hiwin linear guide rail, high positioning accuracy, scroll guide reduce wear to maintain accuracy for a longer time.
THE MOTOR AND REDUCER
Machine adopt Taiwan Delta/Fuji/Yaskawa servo motor and Japan Shimpo/Motovario reducer.
WATER CHILLER
1.Cooling water flow and high and low temperature alarm safety protection function 2.Two operating modes: constant temperature and intelligent temperature control 3.Temperature precision control can reach ±0.1ºC 4. Including input and output control device switch
HIGH LIGHT AND RIGIDITY
Aerospace grade aluminum light qualit, high speed.Beam as a whole by the finite element analysis optimization of high rigidity.
Heavy plate welding machine bed
Super stable heavy duty plate welding machine bed for high power laser cutting. High-quality steel construction resists deformation and ensures accuracy. Efficient heat dissipation and dust removal extend equipment life.
Pneumatic Chucks
Wireless control, one-key clamping, and constant clamping force make our chucks ideal for tightly securing heavy tubes. Plus, concave supports prop up the tube for added stability.
FAQ
Q1. Are you a factory or a trading company?
A: We are a professional manufacturer of fiber laser cutting machine and other sheet metal processing equipment. We have more than 40 years of manufacturing experience, and our products were exported to more than 100 countries and regions.
Q2. This is the first time I use this kind of machine, is it easy to operate?
A: Detailed installation and operation instructions are sent to you free together with the machine. Free training courses are offered in our factory. Engineers are available to serve overseas but all the expense needs being paid by your side. Video technical support and online support are provided, 24 hours technical support by calling, video and email.
Q3. If we are interested in your machine, how to choose proper power?
A: Please inform us the detailed information of your workpiece to be cut, then we will recommend you a suitable powe
Our Service
After-sales services:
1. 2 year warranty, Provide a full range of technical support for life.
2. From monday to sunday 9am to 22pm. Experienced technician to guarantee lifetime online support. So there is no need to worry about technical support due to time difference.
3. Support local after-sales service.
Packing & Delivery
Professional package of laser cutting machine:
1. Whole film packaging tube laser cutting machine;
2. Anti-collision package edge;
3. Fumigation-free plywood wooden box and pallets with iron binding belt.
