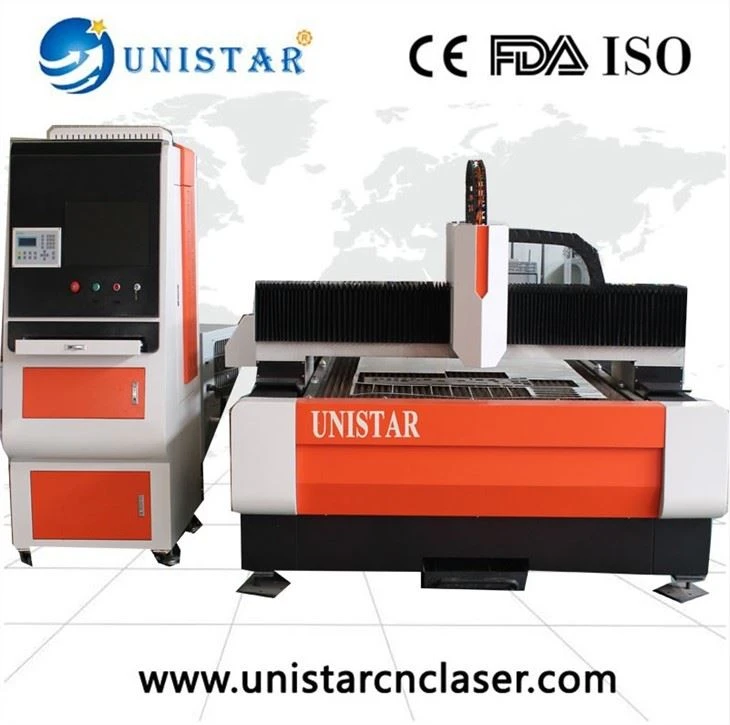

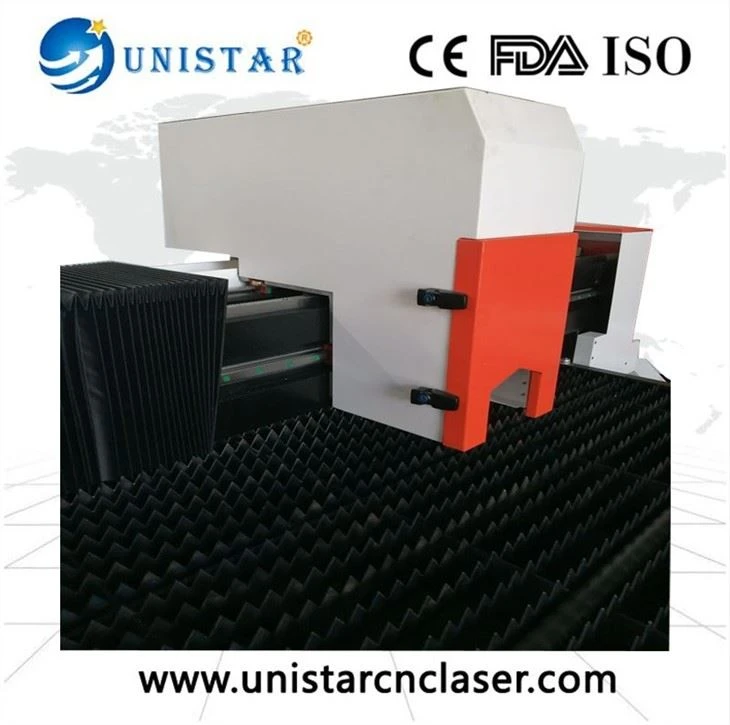

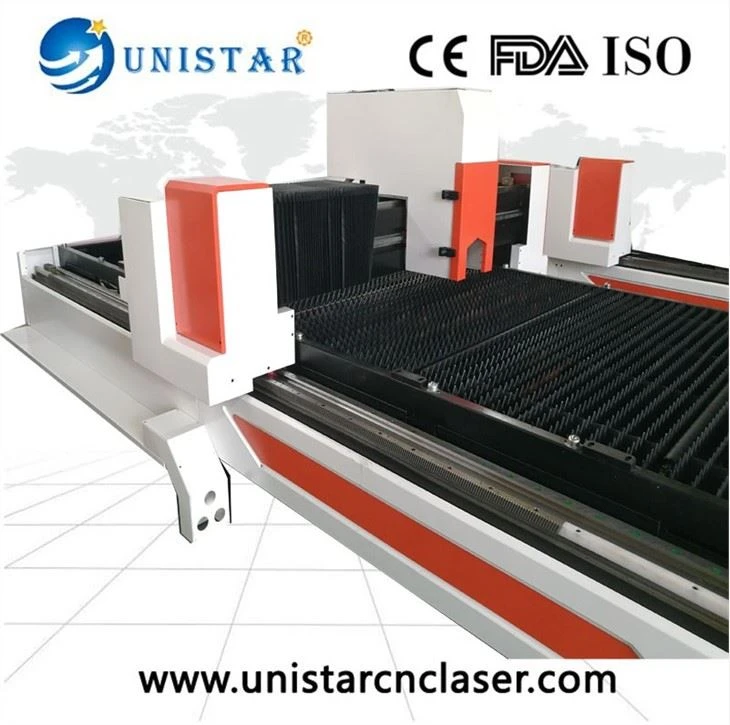

1325 CNC Sheet Metal Plate Fiber Laser Cutting Machine
Features:
1, high rigidity of the machine tool bed, exclusive high temperature control standard furnaces annealing treatment, can guarantee the precision of the machine tool is stable for a long time does not change.

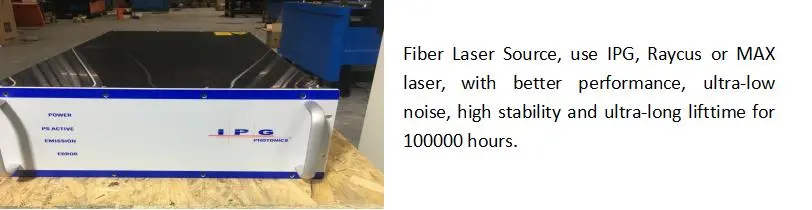

2,Imported original fiber laser generator with good beam quality, stable performance, no reflector lens, no need to adjust the optical path, basic maintenance free, service life can reach more than 10 hours;
3, fiber laser with high Electro-optical conversion efficiency, conversion efficiency of 30%, the power consumption can be saved greatly when working.
4, Adopts imported original guiding drive and servo motor, high precision, high speed;

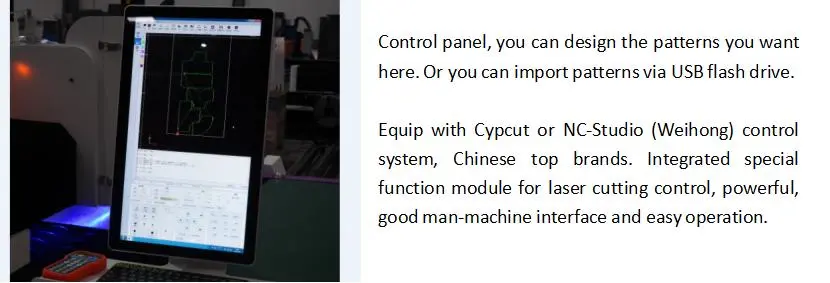

5, Supported all kinds of graphic format or text instant cutting, simple operation, flexible and convenient.
6, Beautiful, smooth cutting edge,without deformation;
7, low energy consumption, energy saving and environmental protection, low power consumption, the power consumption is VAG with the power consumption of 1/3-1/5, cutting speed of YAG is more than three times;
8, without working gas lasers, air available for sheet cutting ; 9, fast cutting speed, low operation cost,investment recovery quickly;
Application area

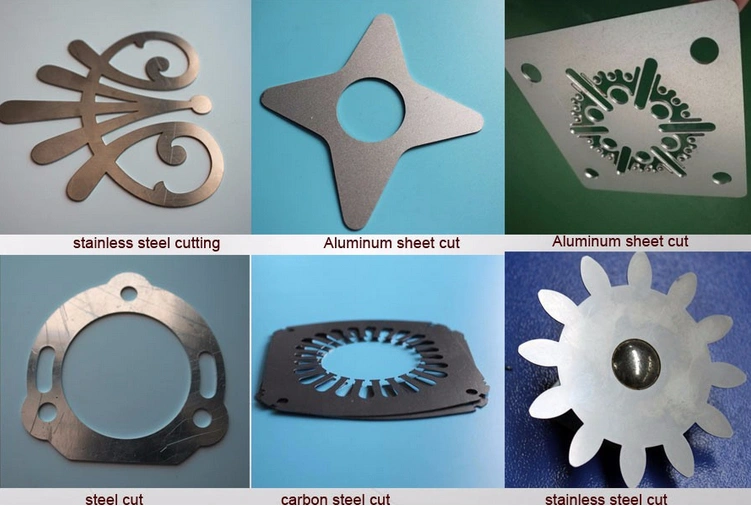

Widely used for :sheet metal cutting, pipe (needs to add another tube cutting device):stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum steel, manganese, all kinds of alloy plate,rapid processing and so on.
Widely used in: Electrical power, auto parts, mechanical equipment, electrical equipment, hotel kitchen equipment, elevator equipment, advertising decoration, car decoration, sheet metal chassis cabinets, hardware, lighting, display equipment, precision parts, all kinds of metal cutting industry etc.
| Technical Parameters | |||
| Model | USF-1325-500W | USF-1325-1000W | USF-1325-1500W |
| Laser type | fiber laser | ||
| Laser power | 500w | 1000w | 1500w |
| Machine power | ≤8kw | ≤12kw | ≤15kw |
| Laser wavelength | 1070-1080nm | ||
| Working area | 3000mm×1500mm | ||
| X/Y/Z axis stroke | 1530mm/3050mm/80mm | ||
| Cutting speed | Depends on the materials and its thickness | ||
| Repeated positioning accuracy | ±0.02mm | ||

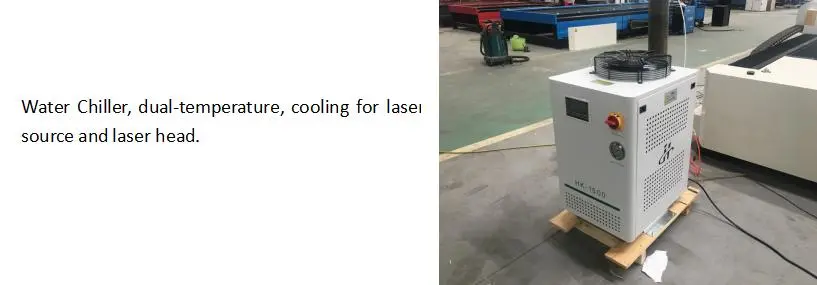

| Cooling type | water cooling | ||
| Aiming and positioning | red light | ||
| Voltage | 3 phase 380V/50Hz/60A | ||
| Machine occupy space | 9000*5000MM | ||
Packing and shipping
Contact: Jinan Unistar Machinery Co.,Ltd Connect Person:Lily
