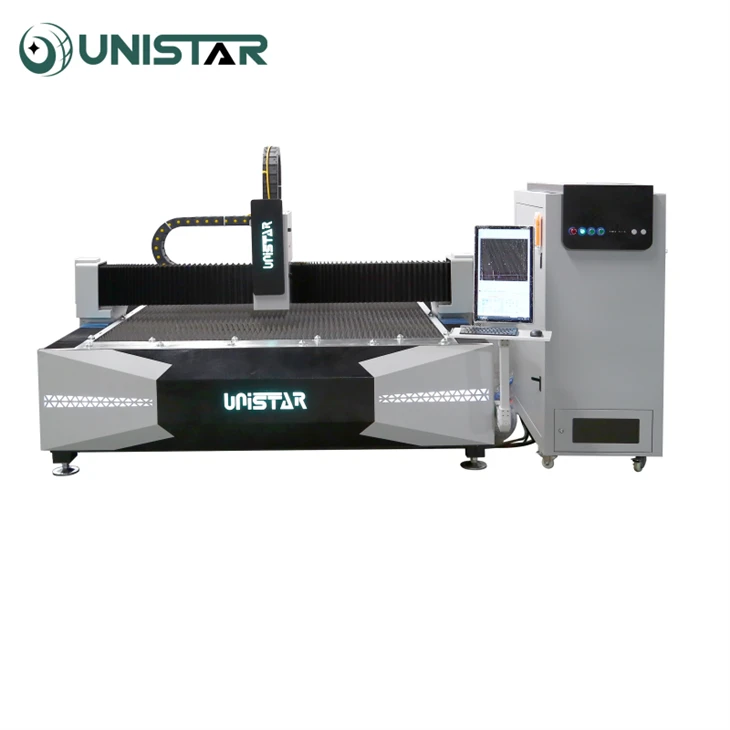

UNISTAR 3015A Fiber Laser Cutting Machine

UNISTAR 3015A Fiber Laser Cutting Machine

Equipped with the most advanced international imported fiber laser source which generates powerful laser focused on objects to cause instant melting and evaporation.Automatic cutting is controlled by digitalied mechanic system.This hi-tech machine has condensed the advanced technologies of fiber laser,digital, and precise mechanics. Applicable to fast cutting on plate or tube in metal,mainly for cutting on SS,carbon steel,Manganese steel ,galvanized plate, alloy plate,rare meta Widely used in kitchen appliance,electric control box, high-resolute device,mechanical equipment,electrical equipment,lighting,posters,auto parts,display equipment, hardware and metal processing.

1.Automotive:

Cutting parts like body panels, exhaust systems, and suspension components

2.Aerospace:

Cutting parts like engine components, fuselage panels, and landing gear

3.Electronics:

Cutting circuit boards, wires, and other electronic components

4.Medical:

Precision cutting surgical instruments and implants

5.Architecture and construction:

Cutting sheet metal panels or glass windows for precision fitting

6.Shipbuilding:

Cutting steel plates for hull-plate parts

7.Kitchenware:

Cutting sheet metal panels for gas burners, range hoods, stove tops, and more

1, photoelectric conversion efficiency can reach 30%, two times that of CO2;

2, less consumption of power source, CO2 is 20% ~ 30%;
3, no laser working gas, can save a lot of laser maintenance cost;
4, optical fiber transmission, without reflection lens, do not need to adjust the light path.

Product features:
1,Gantry double drive structure, smooth and reliable movement;
2,Independent research and development design, the manufacture of machine tool bed, special processing technology, machine tool precision, stable and reliable, long life;
3,Precision gear rack drive, with high response and high precision servo motor;
4,The international first-class quality of fiber laser, industrial application for many years, long service life, maintenance free, stable and reliable;
5,High precision laser cutting head, imported optical lenses, is focused on the fine, the adjustment is convenient, cutting perfect;
6,A double closed-loop control capacitive height controller, low requirement to the steel sheet, cutting quality is stable and reliable;
7,CNC system is concise and easy operation, low requirements for the operator;
8,Cutting graphic input multiple formats, powerful draw and edit graphics function;
9,Special cutting software, cutting technology experts, data call functions;

01

Laser head

3 pieces of protection lens, highly effective protection of collimating focus lens. 2-way optical water cooling, effectively
extending the continuous working time.
Various brands of laser head are available

02

Gantry

The beam body adopts the overall aluminum casting method, annealing eliminates internal stress and processes, The process is
casting →annealing stress → rough machining → vibration aging → semifinishing → vibration aging →finish machining, the machine is machined after tempering, the strength, rigidity and stability of the beam are guaranteed, the precision of the beam can be
maintained for a long time. Mainly for the high speed cutting of high power laser cutting machine provides an effective guarantee.



03

Control system

Cypcut Control System

1. High Accuracy: The Cypcut system can realize the precise control of the laser, and the processing of the product is of high accuracy and high quality. 2. High Speed: The Cypcut system is quick to respond, and the laser can be adjusted and controlled within a short period of time.

3. Stability: The Cypcut system has a very stable control function, which guarantees the continuous and stable processing.

4. Ease of operation: Cypcut system has good interface design and operation experience, and the operator can master it in a short time.

04

Laser source

1. High efficiency: Raycus lasers use high-efficiency optical pumping technology, which can greatly improve the conversion efficiency of lasers, making the output power higher and the efficiency higher, and also extend the service life of lasers.

2. High stability: Raycus lasers use high-precision optical systems and temperature control systems, which can ensure the output stability and consistency of lasers, and maintain good performance under high power, high frequency and other working conditions.

3. High precision: Raycus lasers use advanced laser control technology, which can achieve micron-level precision control and meet various high-precision processing, cutting, marking and other requirements.

4. High reliability: Raycus lasers have high reliability and stability, can work in harsh environments, and also have automatic protection functions, which can effectively protect lasers from damage.

05

Machine body

Steel frames undergo annealing at over 600 degree to relieve stress. They are built to last years of heavy use without distortion. Auto
changing pallet system allows over 1800kg loading weight.A heavier frame means less vibration and better accuracy. the machine
frames are reinforced to minimize twists and deformation while the robust frame of the machine is joined to the chassis by steel
bars.

06

Rail guide

Taiwan Hiwin square linear guide way Square rail can bear high load pressure in four directions,high positioning precision,low friction coefficient,can keep the precision of walking for a long time, Its bearing capacity and precision retention ability are 30 times of round guide.



07

Blade table

The table top with 3mm thick blade is usually thicker, can withstand heavier boards, and has good stability.

08

Motor and Driver

It realizes closed-loop control of position, speed and torque; overcomes the problem of stepping motor out of step;

-Rotating speed is more faster
High speed performance, general rated speed can reach 2000~3000 rpm;

-Daptability
High strong anti-overload capability, load three times the rated torque, suitable for occasions with transient load fluctuations and fast start required;

-Stable
Smooth operation at low speed, no stepping operation similar to stepper motor when running at low speed.

09

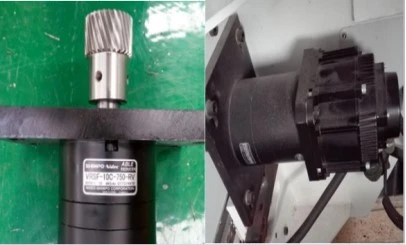

Reducer



Simpo decelerator is highly efficient. It adopts advanced transmission technology to convert input power to output torque, which achieves high efficiency in energy transfer. Using high-quality materials and precise manufacturing technology to guarantee the product's stability and reliability. The reliability and lifetime of the device have been increased.





10

Transmission

Taiwan YYC Import helical rack Improves power transfer, minimizes friction, and improves the stability and durability of the machine, leading to more efficient power transfer and longer service life.

11

Schneider electrical accessories

Adhering to the consistent strict manufacturing process and quality assurance, have good current limitation, greatly reduce the impact of failure on system and equipment, and increase safety and electric life.

12

Water chiller

The chiller ensures that the fiber laser cutting machine works normally at a constant temperature. It is a refrigerator specially designed for optical fiber laser cutting machine. There are two kinds of operation modes: constant temperature and intelligent temperature control. It can control the temperature to ± 0.3 ° C, and it has a wide range of equipments, such as input/output switch, cooling water flow, high and low temperature alarm, advanced function, stable and durable.

13

Cable

The new structure can classify the signal line, power line and air pipe according to different specifications, which improves the straightness of the cable, prevents twisting and dragging in the process of processing, and better protects against signal interference

14

Oiling system

Microcomputer control, DIP switch settings 1,2,3,6,12 months automatic, uniform, timelyand accurate daily injections of lubricant required.
