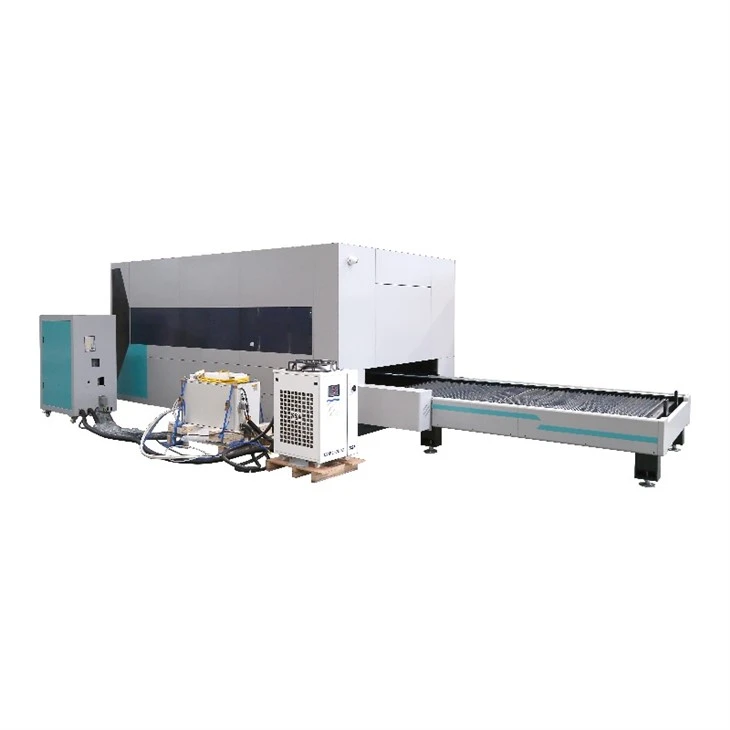

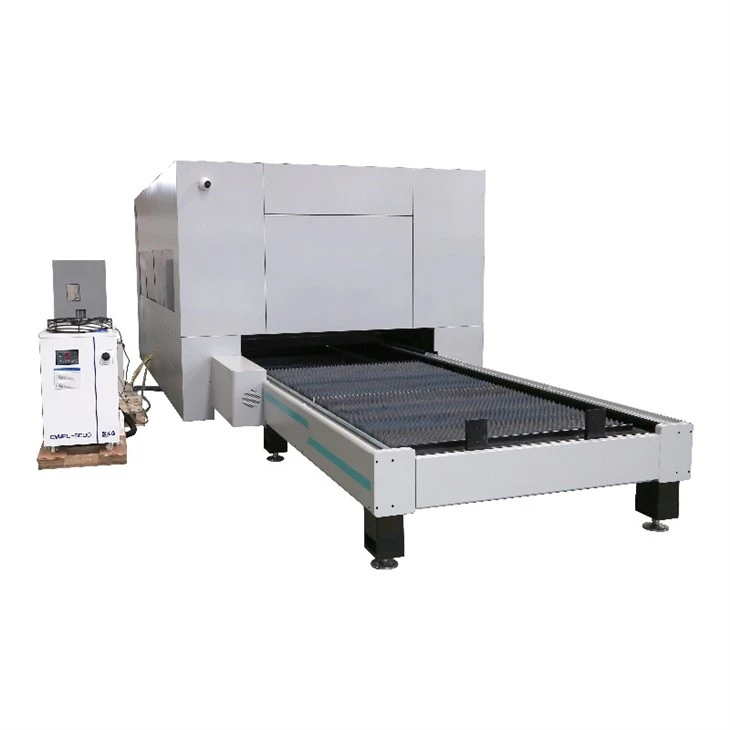

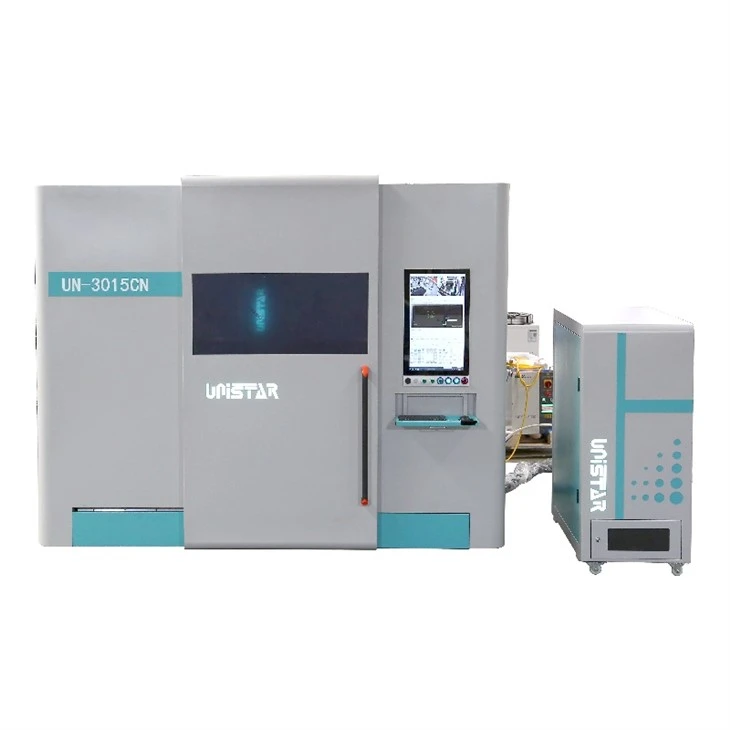

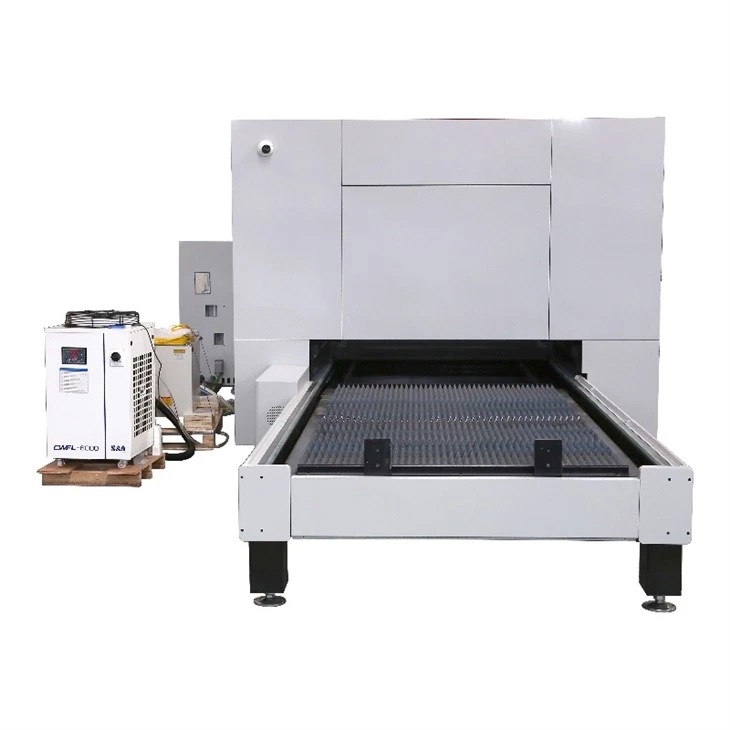

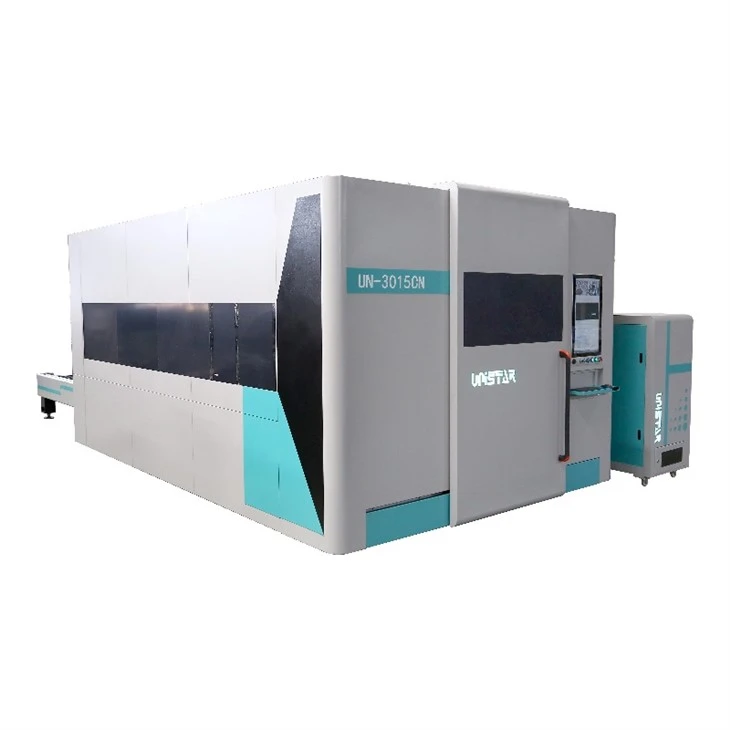

Enclosed Fiber Laser Cutting Machine

Enclosed Fiber Laser Cutting Machine

The fully enclosed laser cutting machine has a full coverage of sheet metal shell, which can effectively reduce the cutting dust, dust flying, and ensure that the cutting process is environmentally friendly and smokeless.
In addition, the dark acrylic window allows the room to clearly see the cutting reality, and can prevent the damage caused by the light source to the eyes.
Send Inquiry
Description

Working principle of sheet metal cutting machine



The laser generator emits the laser, through the optical path integrated system, focusing into a high-density, high-power beam, the beam irradiates to the surface of the sheet metal, the irradiated place reaches the melting point, instant melting, at the same time, the coaxial high-pressure gas will melt the metal and the sheet metal parts blown away, so as to achieve metal cutting.

Full enclosed laser cutting machine features

1. The whole machine adopts large enclosed closed cutting processing to provide a good operating environment; Adapt to the environmental protection requirements of various regions;

2. The whole industrial camera has no dead Angle tracking and monitoring, to achieve the entire intelligent operation of laser equipment;

3. Adopt imported servo motor and precision guiding transmission mechanism, high cutting precision;

4. The use of professional laser nesting software can be designed at will all kinds of parts instant processing;

5. The product is easy to operate and maintain, suitable for different plate cutting.

Full enclosed laser cutting machine advantages

1. Fully protected fiber laser cutting machine using a fully enclosed laser protective cover, detailed parts layout makes the whole machine more stable, comfortable, precise, science and technology.

2. Equipped with special laser protective glass observation window, equipped with scientific dust recovery and purification treatment system, the overall appearance, safety and environmental protection.

3. At the same time, it is equipped with a special exchange platform, which has fast exchange speed, convenient loading and unloading, and high processing efficiency. Is a high-end plate laser cutting special equipment, is the preferred product of modern manufacturing enterprises.



Application



Application material
Stainless steel, alloy steel, silicon steel, aluminum, aluminum alloy, galvanized plate, aluminum plated zinc plate, copper, silver, gold and other metal materials.

Application industry
1. Advertising industry: suitable for LOGO, signs, souvenirs and other production
2. Kitchen and bathroom furniture industry: fiber laser cutting machine can be used to cut stainless steel, aluminum alloy, copper and other materials, making kitchen hardware, bathroom hardware and so on.
3. Aerospace industry: precision aircraft parts can be manufactured.
4. Automobile manufacturing industry: It is suitable for the production of various parts such as engine and transmission in automobile manufacturing.



Detail Photos of Fiber Laser Cutting Machine

Laser head



BOCI laser cutting head

BOCI laser head adopts fully enclosed optical path design to ensure long-term stable operation of the machine. In addition, it adopts modular design, convenient replacement and maintenance.

204A0532

laser source



MAX laser source

Max laser can work in relatively harsh environment such as high impact, ‌ strong vibration, ‌ high temperature, ‌ large dust, ‌ has good environmental adaptability. ‌

204A0539

control system



CYPCUT control system

CYPCUT system operation interface is simple and intuitive, novice can also quickly get started. In the process of operation, CYPCUT efficiency is high, not easy to make mistakes. And the CYPCUT system has more rich functions, can meet the different processing needs.

product-600-300

monitor



Omnidirectional surveillance camera

The whole industrial camera tracking and monitoring, to achieve the entire intelligent operation of laser equipment.

204A0533

water chiller



S&A water chiller

1.Cooling water flow and high and low temperature alarm safety protection function
2.Two operating modes: constant temperature and intelligent temperature control
3.Temperature precision control can reach ±0.1ºC
4. Including input and output control device switch

204A0538

Display screen



Control Panel

It is the interface between the operator and the fiber metal cutting machine. This panel allows the operator to adjust the settings of the machine, including the power of the laser, the speed of the cutting process, and the thickness of the metal being cut.

204A0542

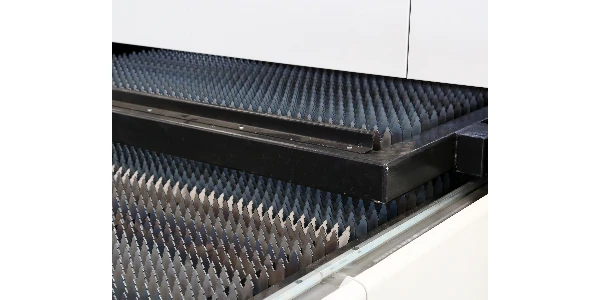

Exchanging Platform



Automatic exchanging platform

It adopts an up and down exchange platform, and the converter is responsible for controlling the exchanging motor. The machine is able to finish the platform exchanging within 15s.

204A0537


 Product Parameters

Model UN-3015
Work Area 3000*1500 mm
Fiber Laser Source Raycus/MAX/IPG
Laser Power 6000W/12000W/20000W
Max Moving Speed 120 m/min
Max Acceleration 1.5G
Positional Accuracy ± 0.02 mm
Control System Raytool/CYPCUT
Motor and Driver Taiwan Delta /Japan Yaskawa/ Japan Fuji
Reducer Japan SHIMPO reducer
Transmission Rack and pinion
Pneumatic Accessories Japan SMC
Table Blade table
Supported Graphic Formats NC PLT, DXF, BMP, AI, DST, DWG, etc
Work Voltage 3 phase 380V/50HZ
Warranty 2 years
Water Chiller S&A/Hanli
