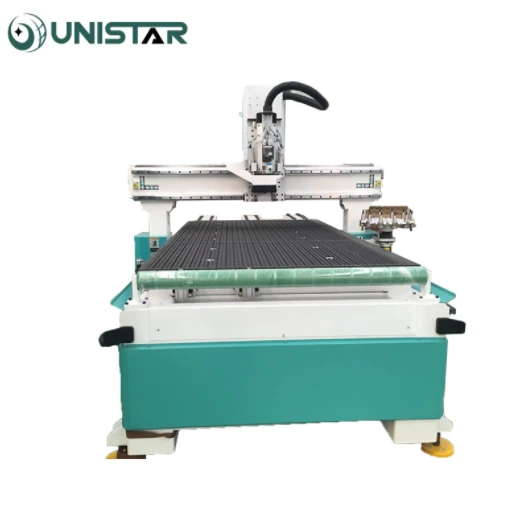

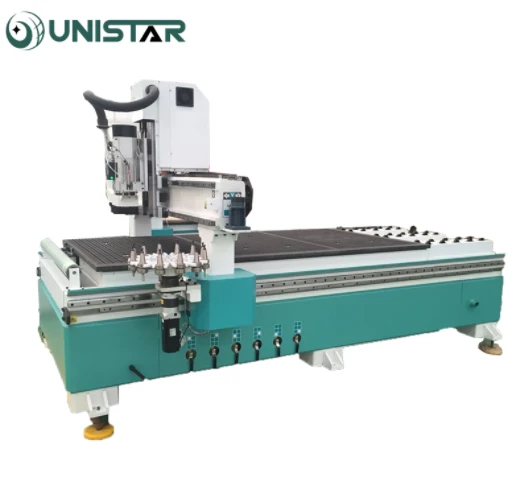

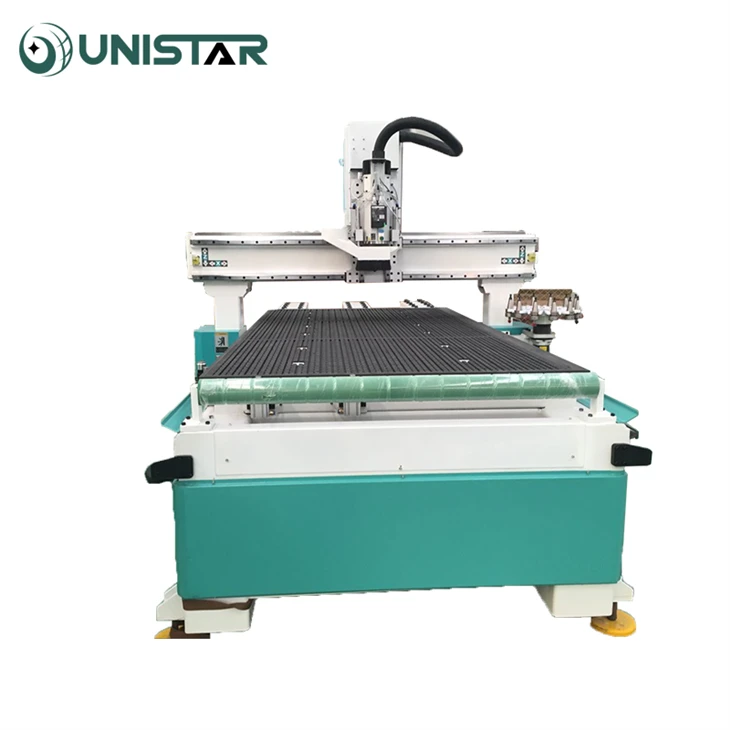

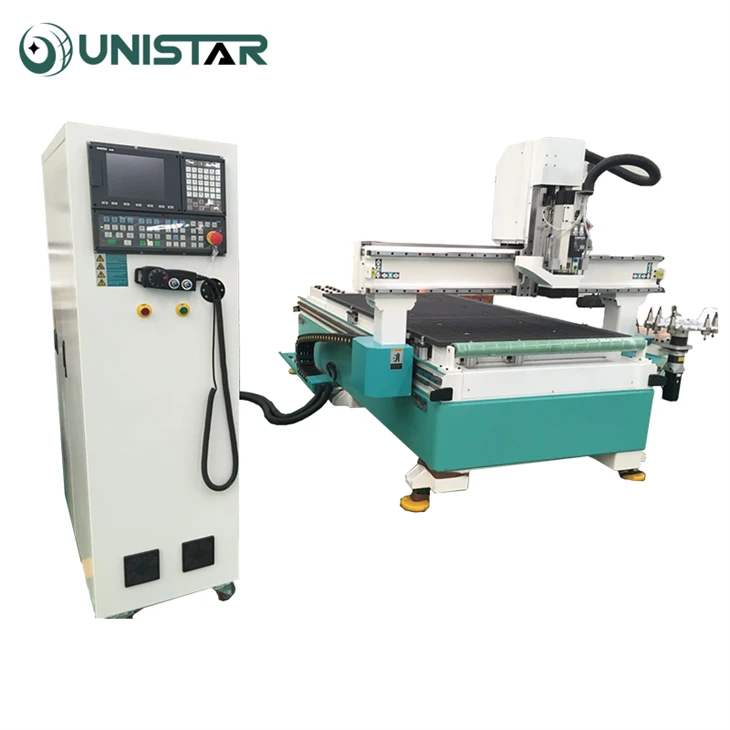

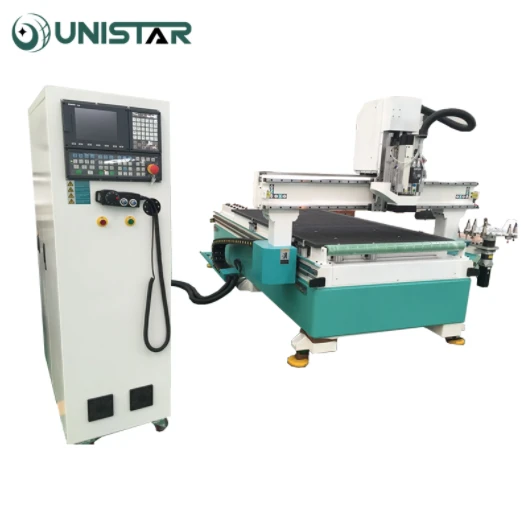

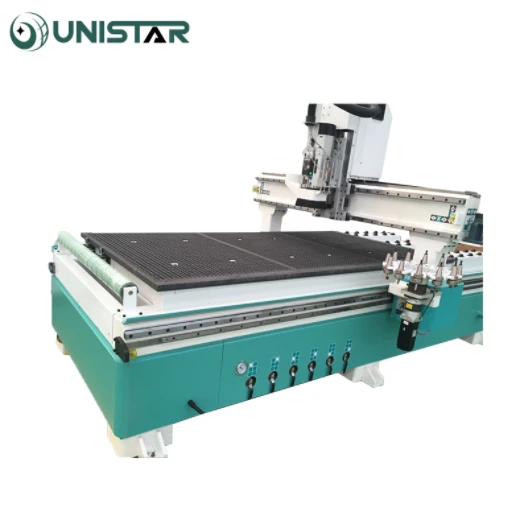

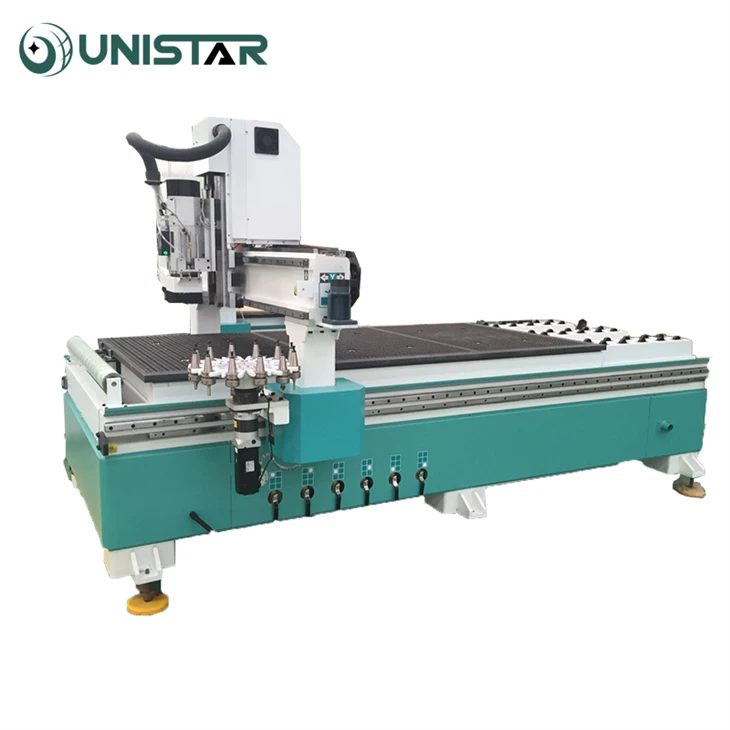

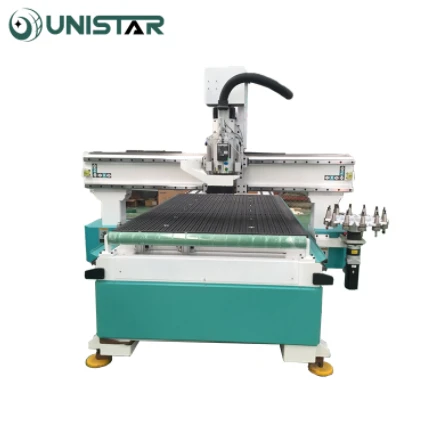

Automatic 4x8 CNC Machine With Tool Changer For Woodworking

An automatic 4x8 CNC machine with tool changer refers to a computer-controlled router with ATC spindle kit, featuring a full-size working area of 4 feet by 8 feet (approximately 1.2 by 2.4 meters). 4x8 ATC CNC router is a smart CNC machine that can automatically change cutting tools such as drill bits, milling cutters, and end mills without manual intervention, allowing for reduced labor costs, increased production efficiency, shorter production cycles, and improved accuracy in industrial woodworking.

Send Inquiry

Description

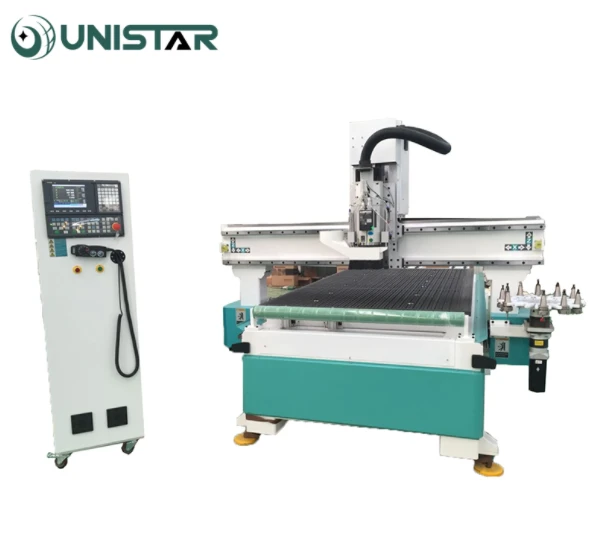

product-596-542

Applications of Automatic 4x8 CNC Machine with Tool Changer for Woodworking

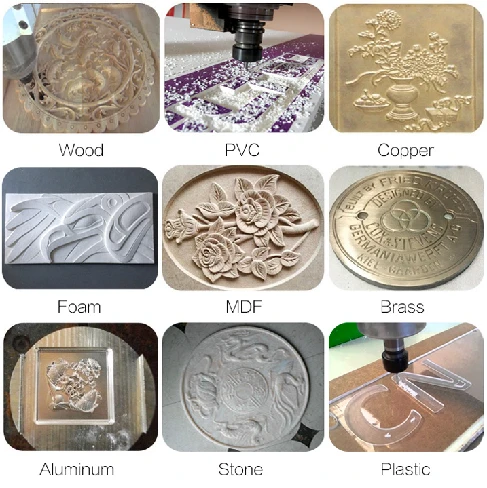

The 4x8 CNC machine with automatic tool changer can perform a variety of operations, including cutting, carving, milling, routing, drilling, and tapping, making them a versatile tool for a wide range of applications.

Furniture Making

Indoor and office furniture manufacturing, including cabinet doors, interior doors, entrance doors, craft window sashes, tables, and chairs.

Decorations

Wall decorations, screens, signs, 3-dimensional corrugated boards, bookshelves, bookcases, wall cabinets, sound-absorbing panels, and musical instruments.

In addition, with special tools, the USM1325 can also create molds by cutting and milling soft metals such as copper and aluminum.

Technical Parameters of Automatic 4x8 CNC Machine with Tool Changer for Woodworking

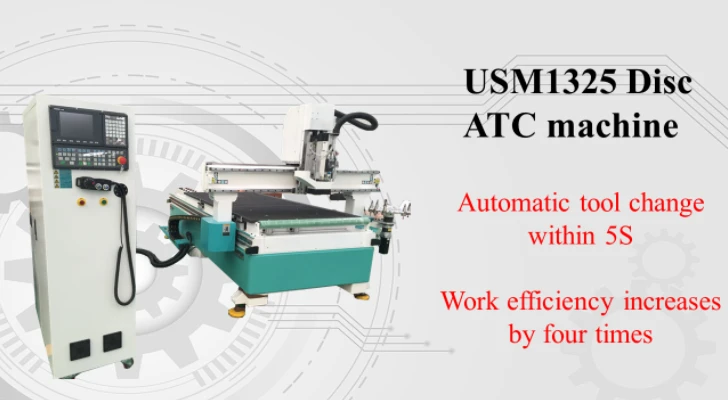

Model	USM1325
Table Size	4' x 8'
Working Area	1300x2500x200mm

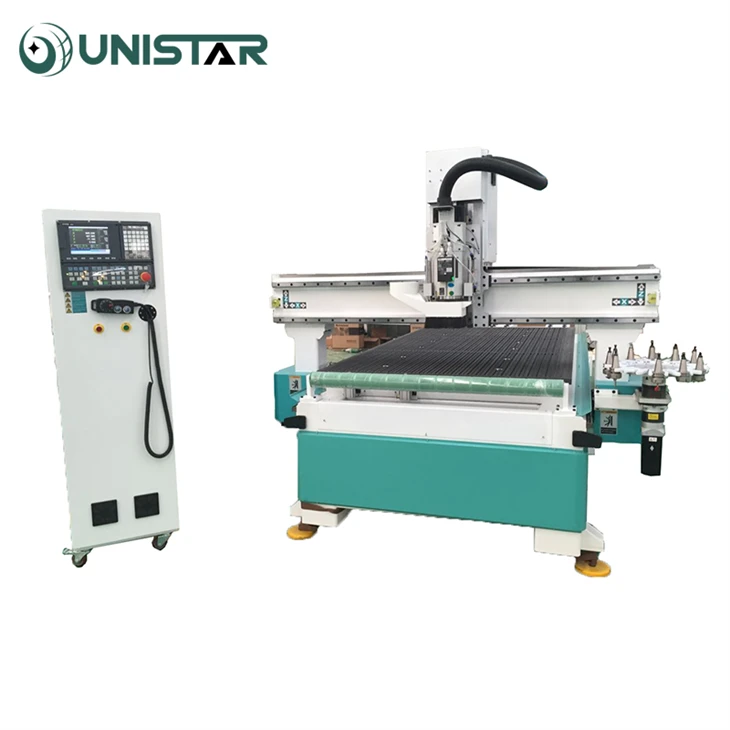

CNC Controller	LNC Control System
Spindle	9.0KW HQD Air-Cooling Spindle
Resolution	0.01mm
Lathe Structure	Seamless Welded Steel Structure
X/Y Structure	Rack and Pinion, Gear Drive, Taiwan Hiwin 30 Square Guide Rails
Z Structure	Taiwan TBI Ball Screw, Taiwan Hiwin 30 Square Guide Rails
Max. Idling Speed	60m/min
Spindle Speed	0-24000r/min, Variable Speed
Working Voltage	AC380V/50Hz
Motor and Driver	Leadshine
Working Mode	Servo
Command	G-Code (HPGL, U00, mmg, plt)
Tool Diameter	φ3.175 - φ12.7
Cooling Mode	Air-Cooling
Dust Collection	Yes
Work Holding	Suction or Clamp
Tool Magazine	Rotary Automatic Tool Changer with 12 Tools
