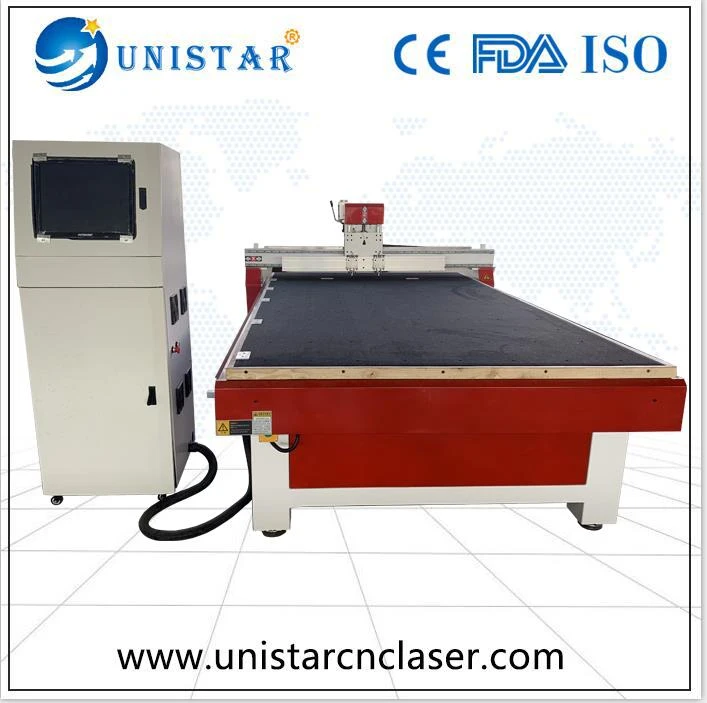

UNISTAR Automatic 1625 CNC Glass cutting machine

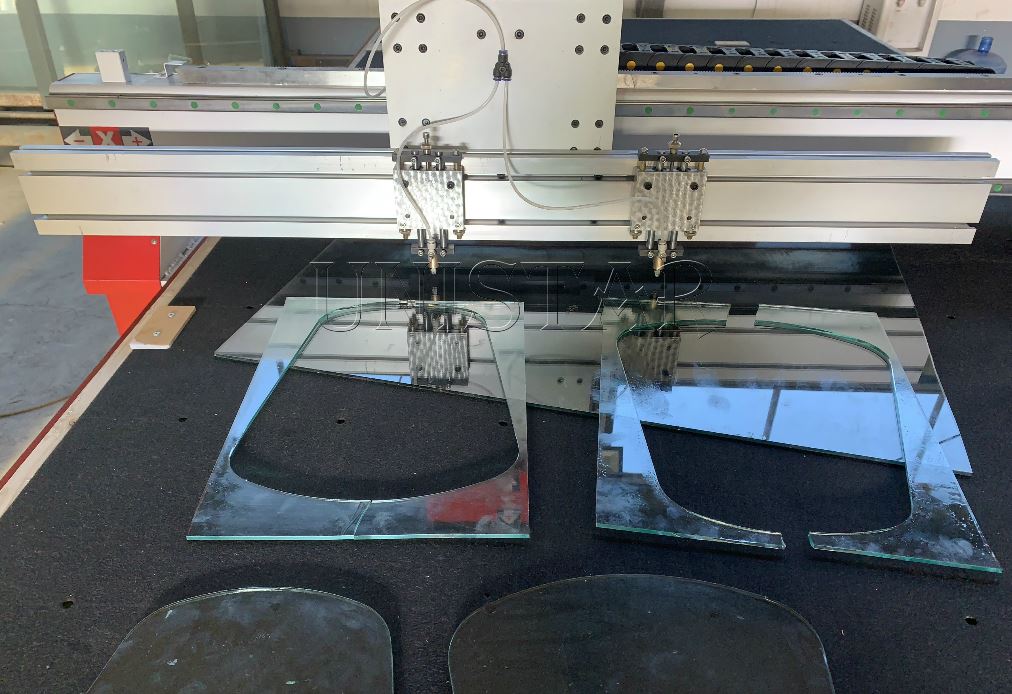

This automatic 1625 cnc glass cutting machine allows users to cut any shape of glass with high precision. AUTO CAD designed graphs and figures, automatic cutting, with all the cutting data fully computer controlled. The operator can edit the glass size for cutting with computer. The computer can optimize the cutting size, and give the data for processing, driven the machine to cut glass sheet automatically in high speed and high precision.
FEATURES OF CNC GLASS CUTTING MACHINE
1. It use professional computer software equipped professional cutting and optimized composing system. It features easy operation, high accuracy and fast speed. Cutting speed can be adjustable.
2. Cutting beam was imported from German high precision rack and rail. It features high accuracy. Main parts are imported from famous company with high quality level and long life.
3. Maintain and operation were easy for the machine. Edit the glass size for cutting with computer. The computer can optimize the cutting size, and give out the data for processing, driven the machine to cut Glass sheet automatically in high speed and high precision.
TECHNICAL INFORMAITON OF CNC GLASS CUTTER
| A axis | Stepper motor and drivers |
| Y axis | Stepper motor and drivers |
| Rack | high accuracy helical rack |
| Rail guide | ∅ 20 Taiwan Hiwin linear rail guide |
| Cable | import brand cable wires |
| cutter box | Double guide post spring knife box |
| Cutter wheel and cutter holder | Equiped the company's tool frame, with German cutter wheel |
| Control system | Shanghai Weihong |
| Z axis | Z axis with double heads |
MAIN TECHNICAL PARAMETERS OF UNISTAR CNC CUTTING MACHINE
Suitable for machining maximum sheet size | 1600*2500(mm) |
| Cutting accuracy | Linear tool changer ≤0.10mm Straight cut ≤0.15mm |
| Diagonal cutting accuracy | ≤0.15mm |
| Can cut glass thickness | 1.5mm~12 mm |
| Electricity voltage | AC 380V 或 220V |
| Working table | Rubber and plastic plate （ surface evenness 0.05mm） |
| Oil injection system | Automatic oil injection （ Cutting oil） |
DETAILED PICTURES OF THE GLASS CUTTING MACHINE

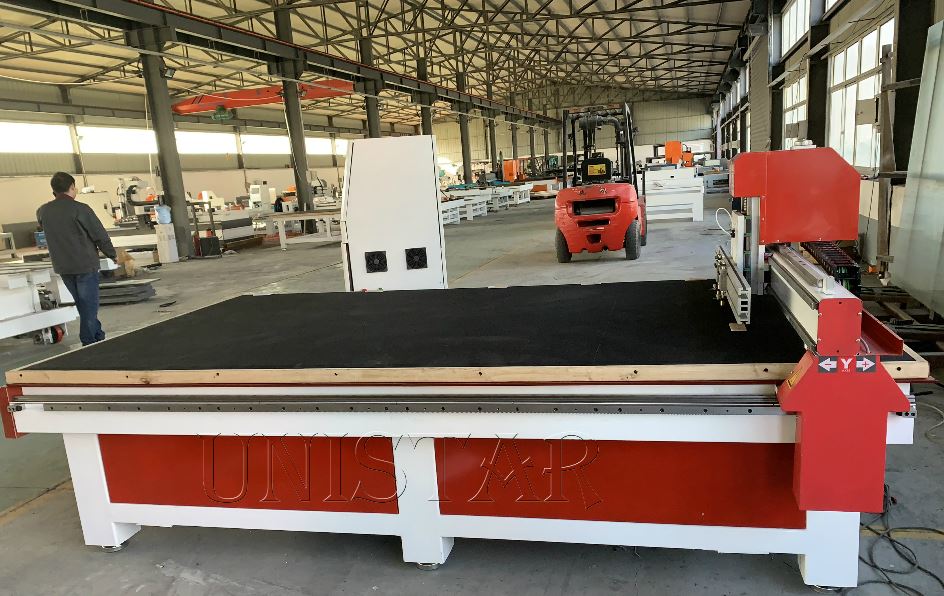

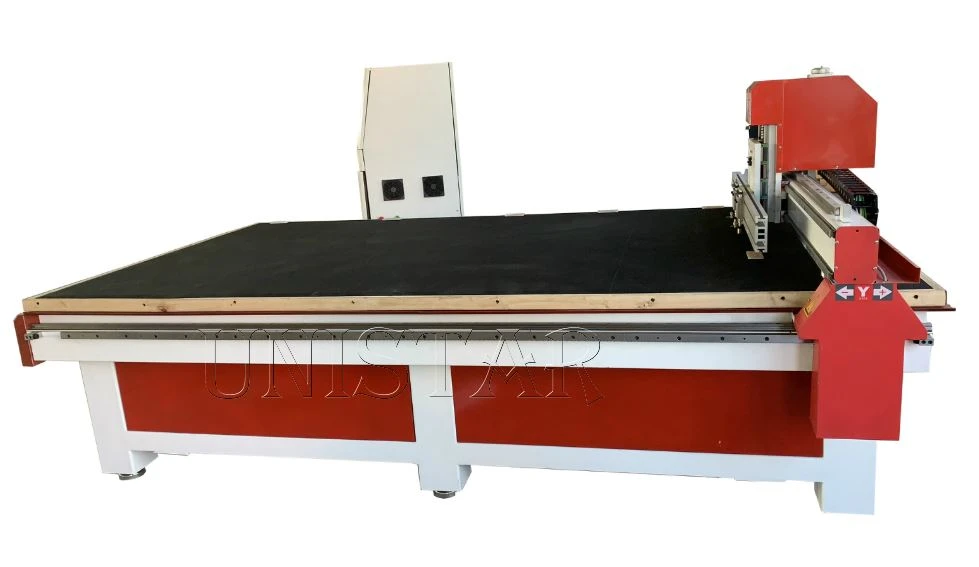

1: Heavy-duty bed with rust-proof treatment to ensure the high accuracy of the glass cutting machine

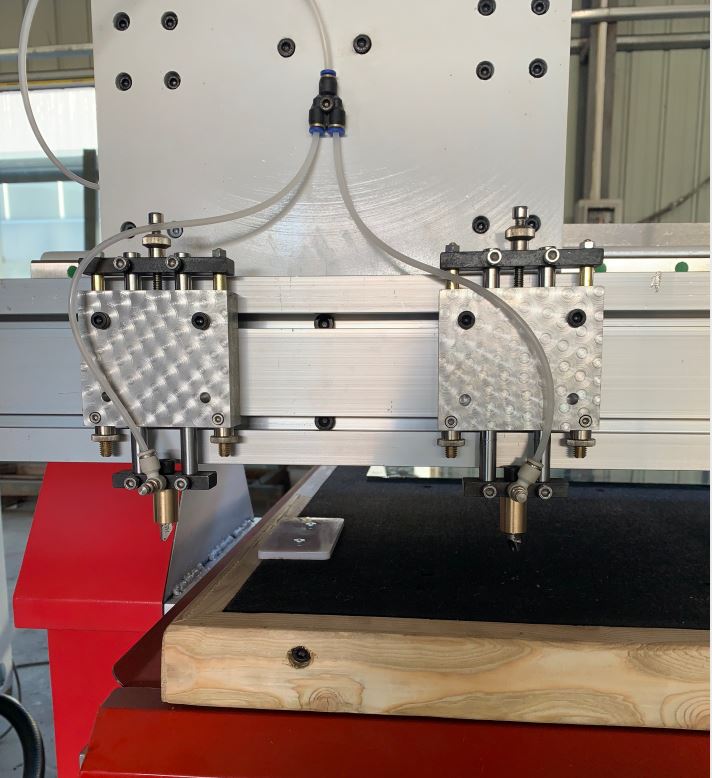

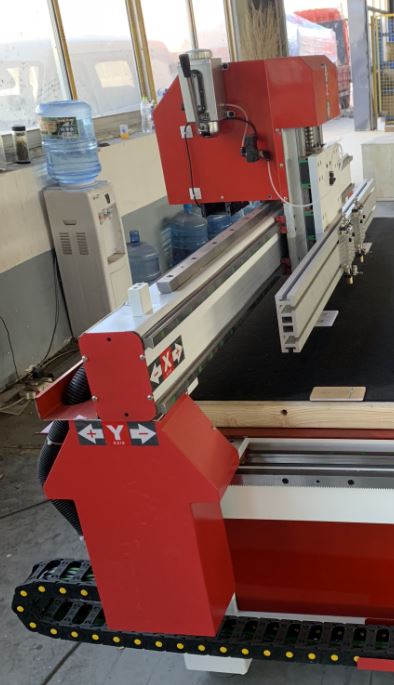

2: Equiped the company's tool frame, with German cutter wheel of high quality and accuracy

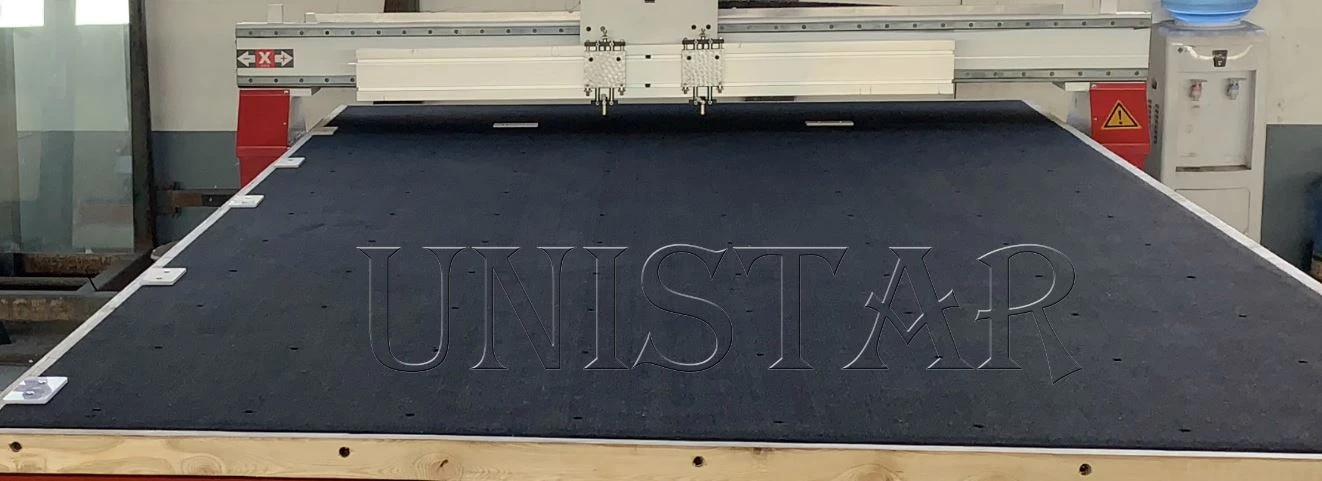

3: Durable Rubber and plastic plate （ surface evenness 0.05mm ) protect the glass and cutting samples.

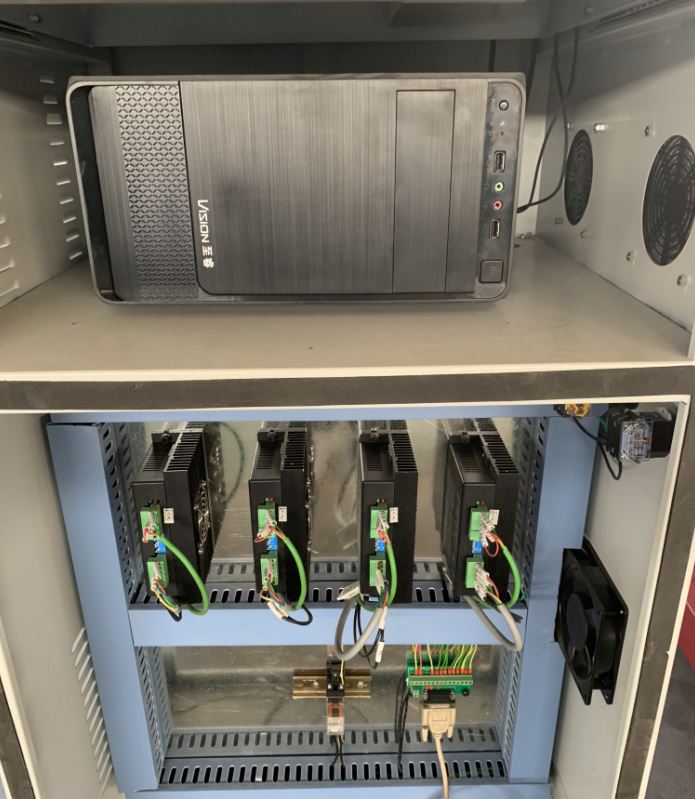

4: Shanghai Weihong Control System， adopts Stepper motor and driver
Machine Automatic oil injection （ Cutting oil）

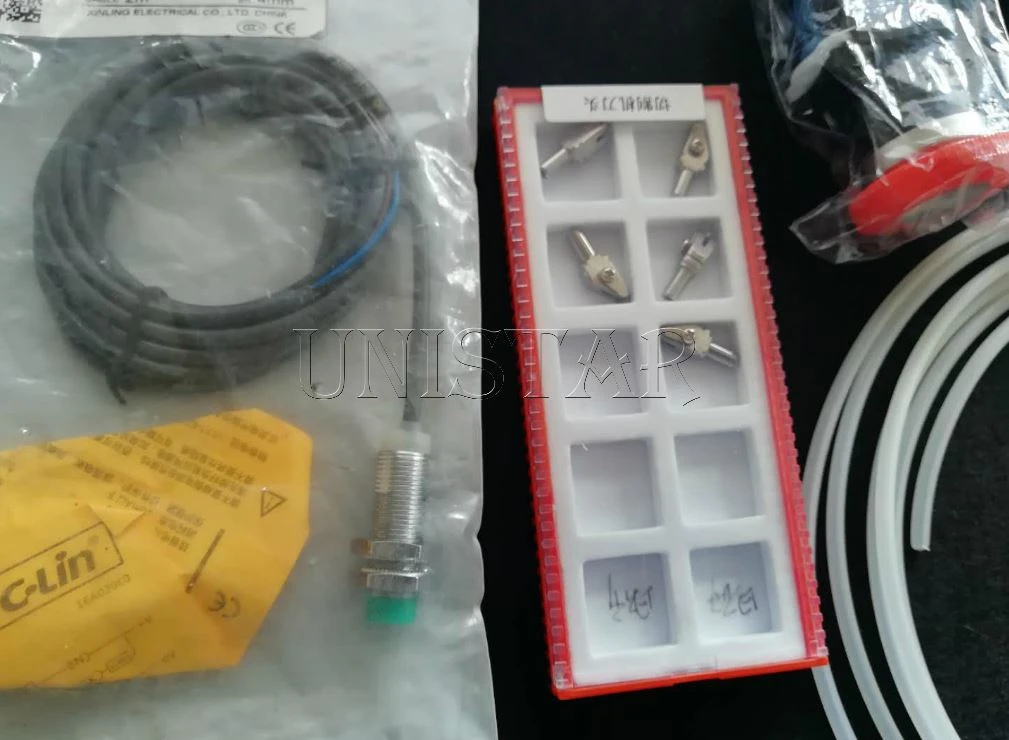

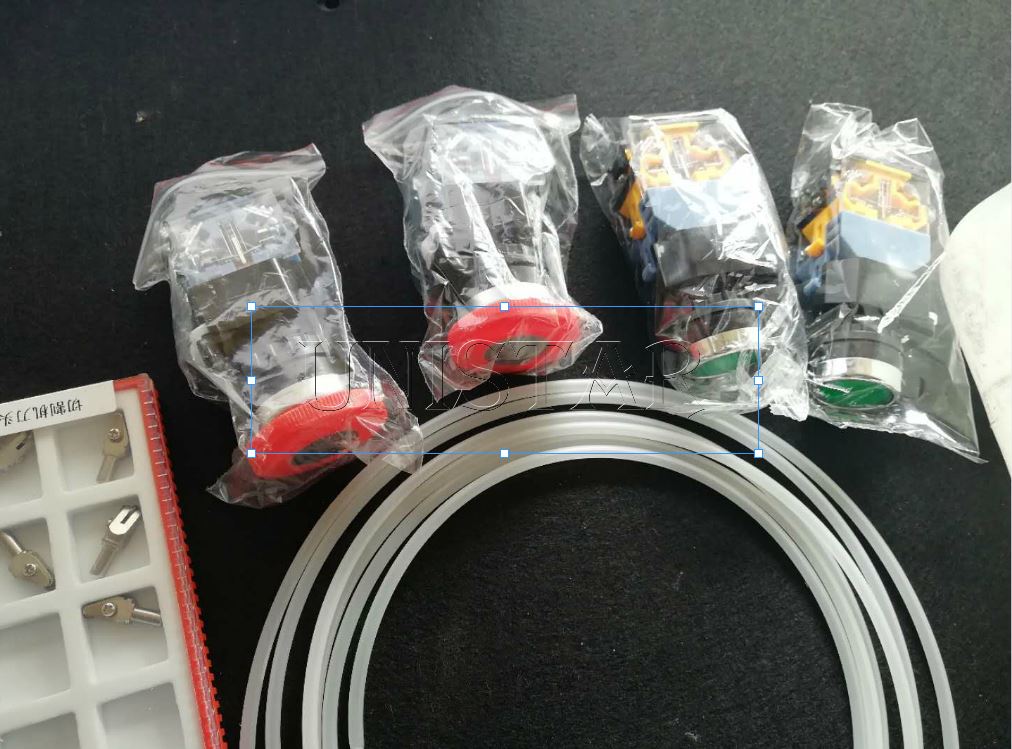

4：necessary parts shipping with the machine
REMARKS WORDS OF CNC GLASS CUTTING MACHINE
1. Packing: Machine is Wooden Cases
2. Terms: Freight On Board (FOB, Qingdao Port)
3. From Qingdao, China To customer port.
4. Delivery Time: During 15 Days After We Receive Your First Payment
5. Payment: Telex Transfer (T/T), 30% after confirm the Order and the rest 70% pay before the shipping
6. Our Trademark: UNISTAR or customized
COMPANY PROFILE
Jinan Unistar Machinery Co.,Ltd is specializing in manufacturing and exporting cnc machine and laser machine since 2002 years.
The company has two big factory, one is cnc router factory, another is laser machine factory.
UNISTRCNC has professional technical and research teams with rich experience of cnc router, ATC cnc Router, Laser machine, Laser cutting machine, Laser marking machine, cnc metal engraving machine, cnc plasma cutting machine, Fiber metal cutting machine.
Our distribution in twenty regions,and exported to the UK, Iraq, India, Mexico, New Zeland, Pakistan, Lebanon, Morocco and so on.
GUARANTEE & SERVICE OF GLASS CNC CUTTING MACHINE
1. Guarantee the complete machine for one year, except the consumable parts.
2. We have 24 hours technical engineer online service, you can contact us or calling or teamviewer
3. We have English manual shipping with the machine for machine using and maintaining.
SHIPPING AND PACKING OF CNC GLASS CUTTING MACHINE
