Application
- Woodworking industry: cabinet doors, solid wood doors, craft wood doors, paint-free doors, screens, craft Windows processing, game console cabinets and panels, computer tables and panel furniture.
- Advertising industry: advertising signs, signs, a variety of advertising materials and decorative products.
- Mold industry: carve copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic board, PVC pipe, wood and so on.
Advantages of ATC machine
- Improve production efficiency: By using the automatic tool change system, the engraving machine can complete a variety of different engraving tasks without an operator.
- Reduce the labor intensity of the operator: the automatic tool change system can reduce manual operation.
- Improve accuracy and reliability: Automatic tool change can make the machine always maintain a consistent working accuracy, thus ensuring high quality production results.
Product Parameters
| Item | USM-2040 | |
| Work Area | 2000*4000*200 mm | |
| Transmission | X, Y | Rack and pinion |
| Z | Ball screw | |
| Rail Guide | Taiwan HIWIN | |
| Motor and driver |
Taiwan Delta motor driver |
|
| Spindle | 9KW HQD air cooling spindle | |
| Spindle speed | 6000~24000 r/min | |
| Inverter | Fuling Inverter | |
| Control System | Taiwan LNC control system | |
| Software | ARTCAM, JD painting, Alphacam | |
| Tool Changer Type | automatic linear tool changer | |
| Maximum Tool Holder Diameter | 12.7 mm | |
| Maximum Air Move Speed | 40000 mm/min | |
| Effective Machining Speed | 15000 MM/min | |
| Machining Precision | ±0.05 mm | |
| Table | T-slot and vacuum table | |
| Working Command | G command | |
| Working Voltage | 380V/5PH/50Hz | |
| Accessory |
vacuum pump | |
| dust collector | ||
| work-box | ||
| Warranty | 2 years | |
Detail photos
HQD air cooling spindle
No need to install water pump, easy to operate

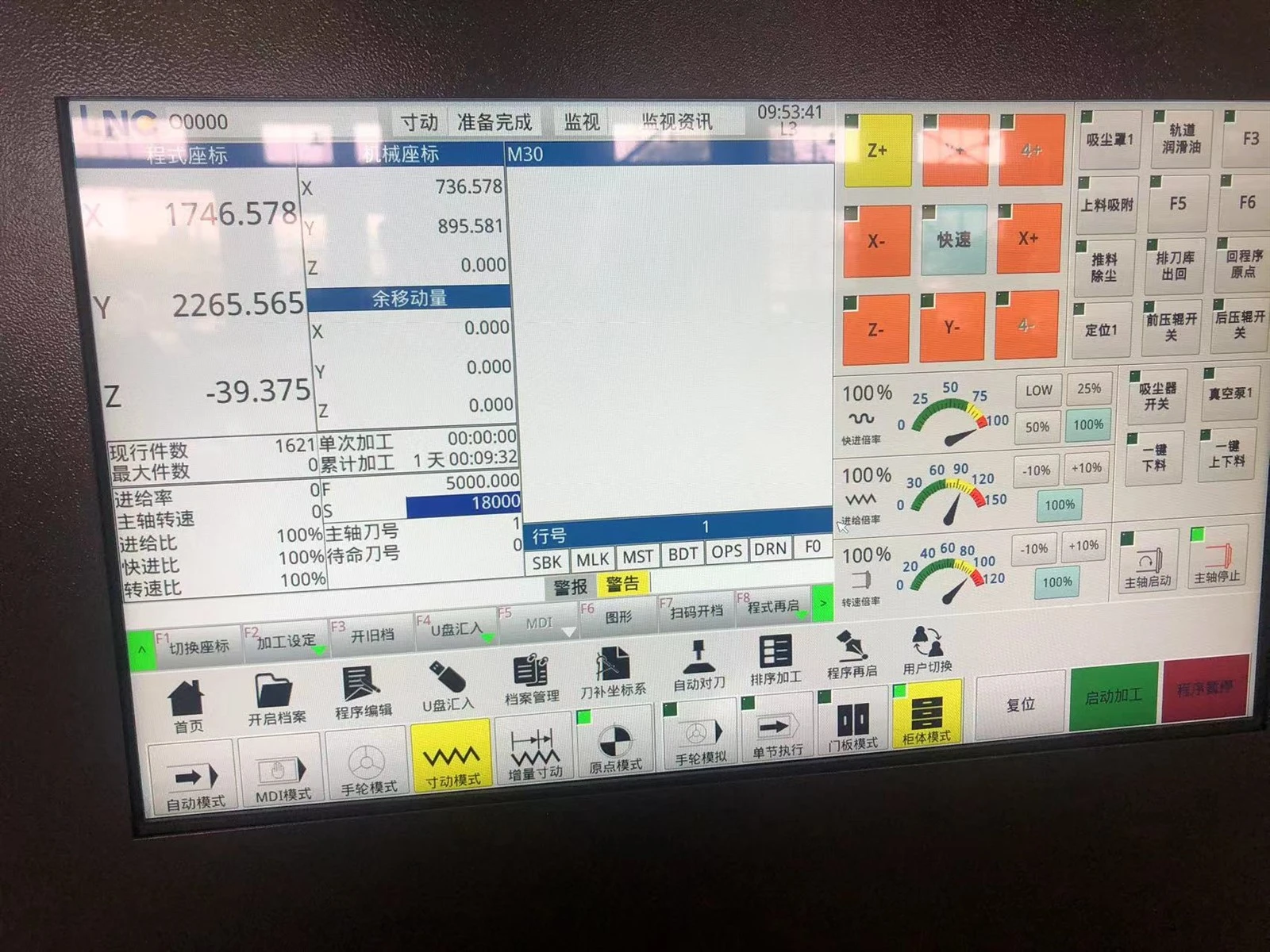

Taiwan LNC system has high data processing speed and stable operation. The operation interface is intuitive and simple, easy to learn
Taiwan Delta motor driver
Stable operation;
Good control ability;
Quick response;
High sensitivity;
The non-linearity of mechanical and regulatory characteristics is strict
Japan Shimpo reducer
It can be called the unprecedented ultra-quiet reducer, compact structure, suitable for the development trend of servomotor light and compact.
The precision positioning characteristics of the reducer fully demonstrate the performance of the high-precision servo motor
Fuling inverter has a variety of protection functions, such as overheating, overcurrent, overload, short circuit, etc., effectively improve the reliability and safety of the equipment.
Taiwan HIWIN square rail guide
The cost can be effectively controlled by using the HIWIN guide rail. The HIWIN guide rail has a small friction coefficient, which can effectively reduce power consumption during use. HIWIN rail design is simple, strong rigidity, can be perfect for optical fiber cutting machine.
Rack and pinion drive is a widely used transmission form. Compared with other drives, it has the characteristics of large transmission power, wide speed range, high efficiency, reliable operation, long life, compact structure and so on.
Dust collector
Effectively inhales dust such as wood chips and dust generated during the production process to keep the working area clean
Vaccum table need to combine with vacuum pump. Wihout it, vacuum table can not work. We use 7.5 KW water pump.
Positioning cylinders: three on the Y axis and two on the X axis. The five positioning cylinders are all adjusted by the dial indicator to ensure the secondary positioning accuracy of the front and back machining.
The filter can filter out the current interference, has the effect of stable signal transmission, and ensures the stability of the machine processing.
