2040 Wood ATC CNC Router for wooden door,furniture industry
Product Description:
1. High-quality HQD 9.0 kw air-cooling spindles, ensures efficient operation.
2. Japan Yaskawa Servo motor and driver, higher precision.

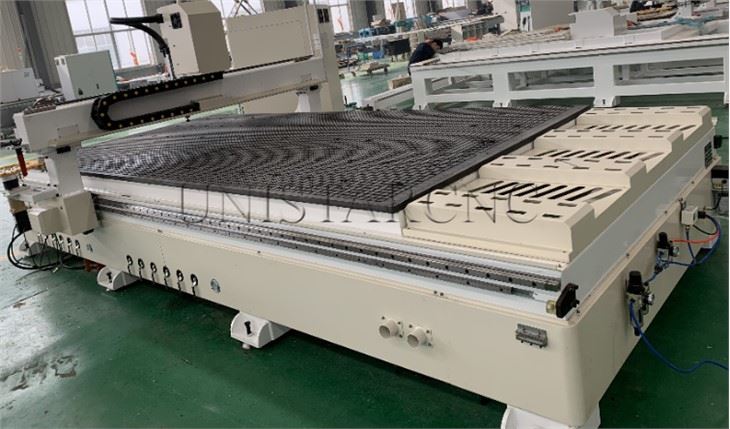

3. Vacuum table with T-slot (Clamps) table, more convenient for woodworking.
4. Table with a pressure wheel for fix materials and fixing the deformed sheet for adsorption.
5. Different working size 1300 * 2500mm / 1500*3000mm / 2000*4000mm dependent on your choose and more practical for woodworking.
6. Disc Type Automatically lubrication system ensures the stability of mechanical parts.

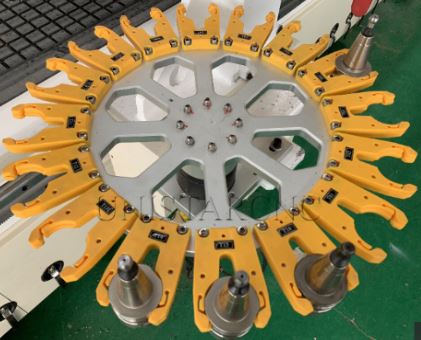

7. 8-16 Tool Magazine, Tool changer automatically, many times increases productivity.
8. Taiwan's SYNTEC control system is more convenient to operate the machine for processing 2D, 3D engraving.

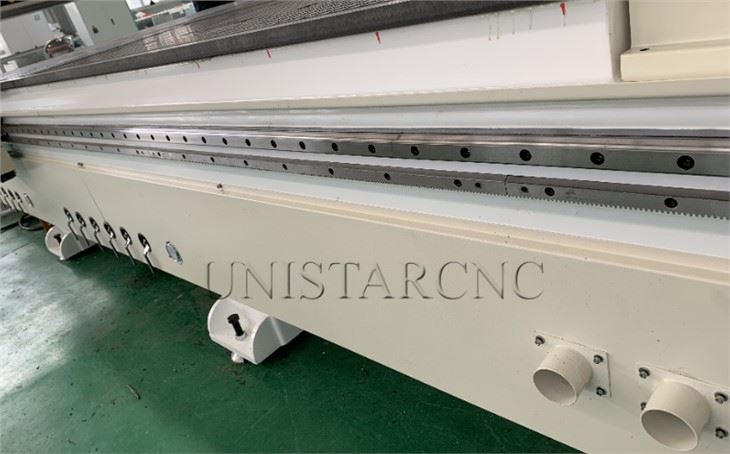

9. HIWIN 25 square guide rails and rack transmission.
10. Breakpoint memory, can continue to work after power off & breaking knife.
11. Positioning pneumatic cylinder design to fix the plate faster and more accurately, improving work efficiency.
Application:
Wood furniture Industry, Furniture decoration, music instrument, wooden arts and crafts, large scale board engraving, solid wood furniture, solid wooden mural, composite door, free-paint door, cabinet doors, advertising industry, Die industry, Relief sculpture, toy production, bedside cupboard, screen sculpture etc.
Materials:
Woods, acrylics, artificial stones, artificial marble, bamboos, organic boards, double-color board, PVC board, aluminum, brass and other materials.
Technical Parameters:
| Model | USM-1325 | USM-1530 | USM-2030 | USM-2040 |
| X, Y Working size | 1300*2500mm | 1500*3000mm | 2000*3000mm | 2000*4000mm |
| Z feed Height | 200mm | |||
| Table Surface | Vacuum working table with 5.5kw/7.5kw vacuum pump | |||
| X, Y Structure | Rack and Pinion Drive, Hiwin 25 Linear Square Guide Rail | |||
| Z Structure | Hiwin 25 Linear Square Guide Rail and Ball Screw | |||
| Spindle Power | 9.0kw HQD spindle | |||
| Inverter | 11KW | |||
| Tools change type | Disc type | |||
| Pressure wheel | With | |||
| Max. Rapid Travel Rate | 33000mm/min | |||
| Max. Working Speed | 25000mm/min | |||
| Tool sensor | With | |||
| Dust collector | 3kw | |||
| Spindle Speed | 0-24000RPM | |||
| Drive Motors | Japan Yaskawa Servo motor and driver | |||
| Working Voltage: | AC 380V | |||
| Command Code | G code | |||
| Control System | Taiwan Syntec Control System | |||
| Tool Magazine | 8-16 PCS | |||
| X,Y,Z repositioning Accuracy | ±0.01mm | |||
| X,Y Resolution | <0.01mm | |||
| Software | Artcam | |||
| Lubrication system | Automatically | |||
| Sensor for positioning the cutter | Yes | |||
| Running Temperature | 0 degree - 45 degree | |||
| Relative Humidity | 30% - 75% | |||
| Warranty | Two years | |||
Samples
Payment methods:
| MOQ | 1 set |
| Port of loading | Qingdao, China. Other cities are ok |
| Time of delivery | 15 working days after receiving payment |
| Payment methods | T/T in advance, 30% deposit, the balance should be paid before shipping |
Main parts
Packing and shipping
All the machine parts have been packaging, and whole of the machine with waterproofing membrane. And then have been package use standard wood case (The fumigation-free ), on the case top and bottom have steel tube for support. let it more strong to avoid damage during the transport and for long distance transportation.
Certificate
Factory picture
Our service
1. We provide 24 months warranty for the machine. Machine as normal using
and maintenance condition, if get any problem, will provide spare parts for free.
2.We would deal with all the production and shipping affairs,
after everything is ready, we would tell you everything goes well here.
3. Consumable parts will be replaced free during the warranty.
4. Our engineer could provide technology support and training for you in your country,
If your machine has big problems if by any chance, our engineers would arrive there to debug and fix.
5. Our engineer could service for you 24 hours online, by Whatsapp,Wechat,
or by cellphone etc.we would pay their 100% time and energy to solve your problems!
FAQ
1. Q: How do you send your machine?
A: We can send our machines by sea, land and rail way, or we can send the machine to your doors.
2. Q: This is my first time to use this machine, is it easy to operate?
A: Machine operate is easy and we will send to you manual for system manual in English. And if you have question for use it we also can send to you video that show how to use machine.
