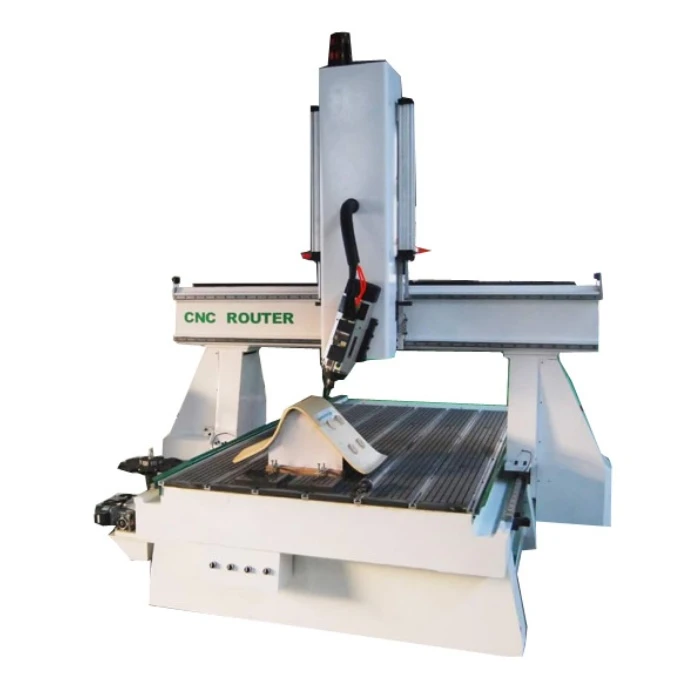

4 axis CNC router is also known as 4 axis CNC machine, 4 axis CNC router machine, 4 axis router, 4 axis machine. A 4 axis CNC router is also equipped with X, Y, Z and A axis, 4 axis is refer to X-Y-Z-A, 4 axes are linked to work at the same time. 4 axis CNC router machine will make working possible on both sides, which is not on 3 axis CNC router. Someone may call a 4th axis CNC router as a 4 axis CNC router. Actually, a 3 axis CNC router is equipped with a rotary axis, also called A axis, that is a 4th axis CNC router or rotary axis CNC router, not a real 4 axis CNC router.
4 Axis CNC Router Features and Advantages
1. The 4 axis CNC machine is especially designed for processing on different 3D curved surface carving.
2. The 9KW ATC spindle (A axis) can rotate ±90 degree, which is suitable for side milling, drilling, cutting, lock slot and so on.
3. With a heavy-duty frame and gantry, the machine has a stronger structure, ensuring stable and safe operation
4. High-precision ball screw, which moving smoothly, to ensure the machine's high precision.
5. 12 pieces linear type tool changer with ISO30 tool holder,suitable for different bits.
6. High-performance driven motor to ensure the machine's high speed and accuracy.
7. Breakpoint specific memory to keep the carving status when power off, processing time forecast and other functions in case of the accidental power outages.
8. Auto lubrication system and separated control system, easy to operate.
9. Perfect design, top quality accessories, to minimize the machine's failure rate.
10. Four-axis CNC machines can do everything that 3-axis CNC machines can do.
4 Axis CNC Router Technical Parameters
| Brand | UNISTAR |
| Model | USM1325 |
| Working Area | 1300x2500x500mm ±90degree |
| Traveling Positioning Accuracy | ±0.03/300mm |
| Repositioning Accuracy | ±0.03mm |
| Table Surface | Vacuum and T-slot Combined |
| Frame | Big Steel Tube Structure |
| X, Y Structure | Rack and Pinion Drive,Hiwin Rail Linear Bearings |
| Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
| Max. Rapid Travel Rate | 50000mm/min |
| Max. Working Speed | 30000mm/min |
| Spindle Power | 9.0KW |
| Spindle Speed | 0-24000RPM |
| Drive Motors | 1500W leadshine servo motors |
| Working Voltage | AC380V/3 phase or 220V/Single phase |
| Command Language | G Code |
| Operating System | LNC Control System |
| Computer Interface | Ethernet |
| Collet | ER32 |
| Software Compatibility | Artcam software |
| Running Environment Temperature | 0 - 45 Centigrade |
| Relative Humidity | 30% - 75% |

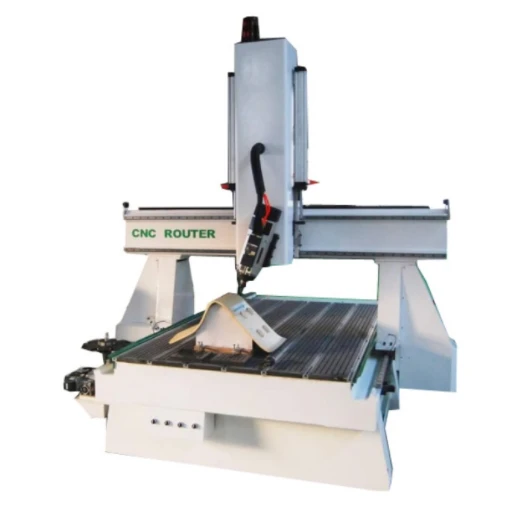

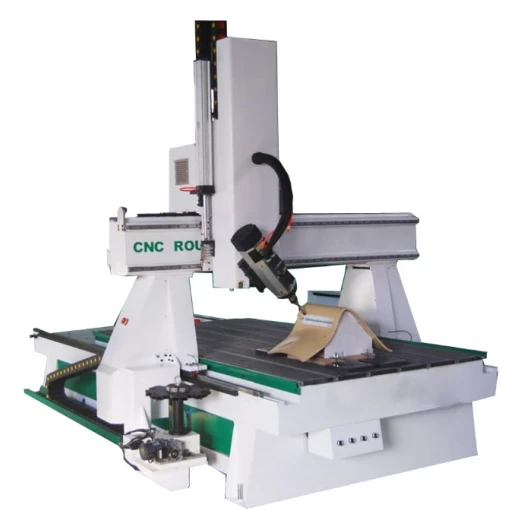

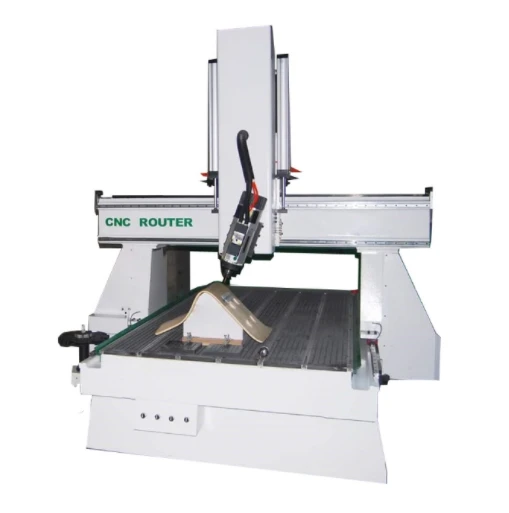

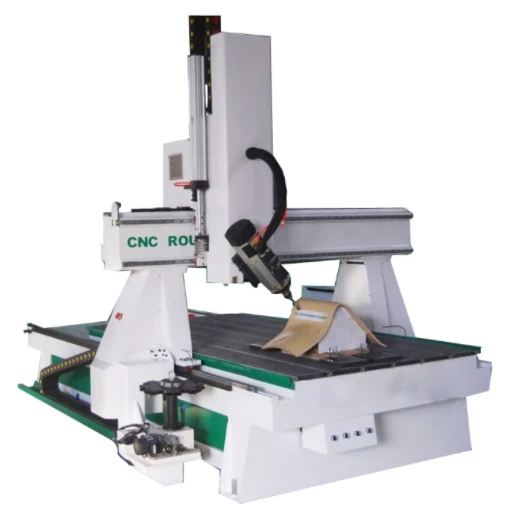

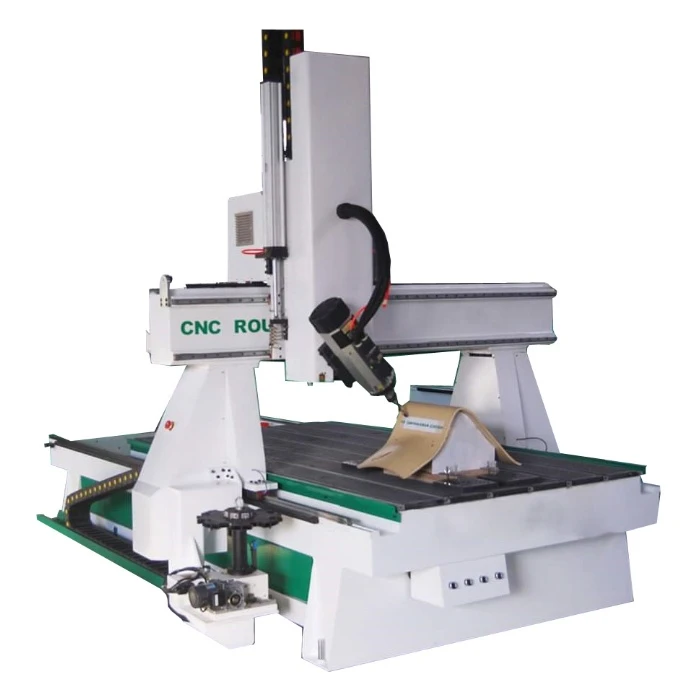

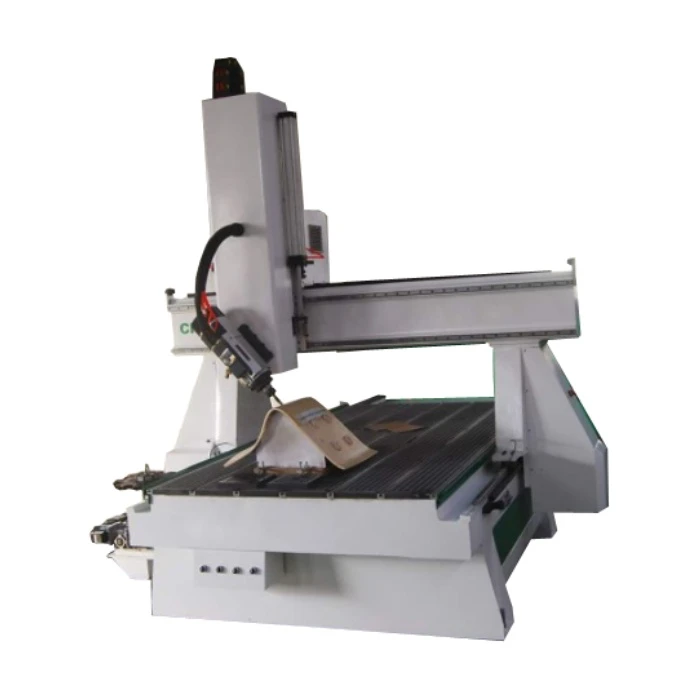

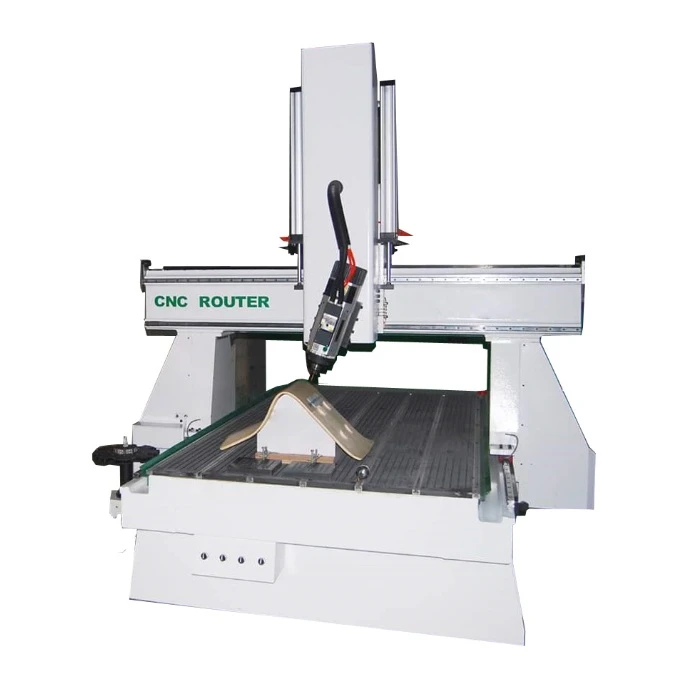

4 Axis CNC Router Machine Details
4 Axis CNC Router Machine Option Items
1. Bigger size like 1500*3000mm, 2000*3000mm, etc.
2. Rotary Device for processing column materials.
3. Z axis h8 400mm,500mm or 600mm.
4. Mist spray cooling system.

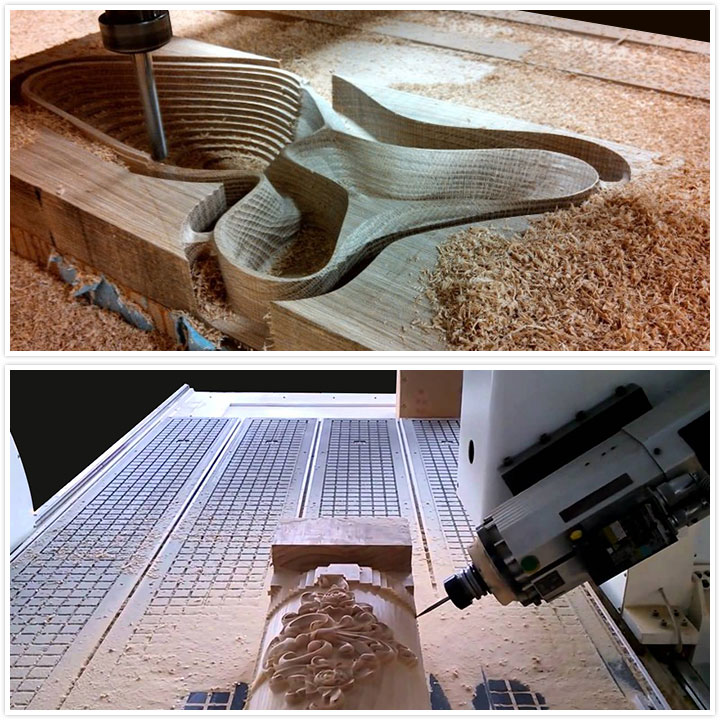

4 Axis CNC Router Machine Applications
| Industry | Products |
| Woodworking Industry | 1. Wood doors 2. Cabinets 3. Office furniture 4. Speakers 5. Musical instruments |
| Panel Processing Industry | 1. Insulation 2. Plastic and chemical 3. PCB, ABS, PP, PE and other carbon mixture |
| Decoration Industry | 1. Acrylic 2. PVC 3. MDF 4. Plastic 5. Copper, Aluminum and other soft metal, engraving and milling |

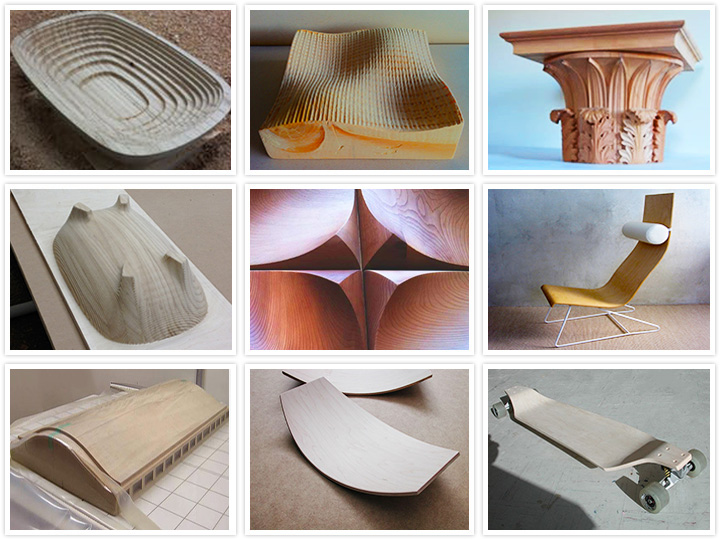

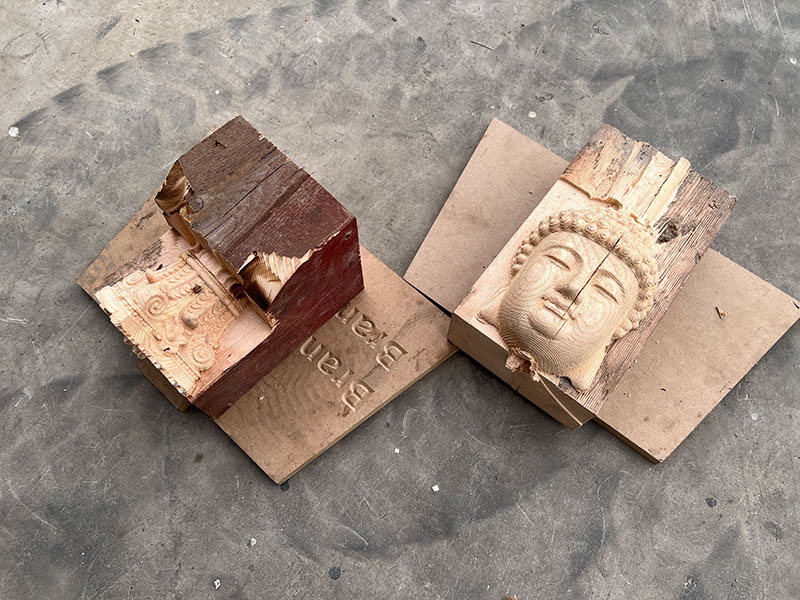

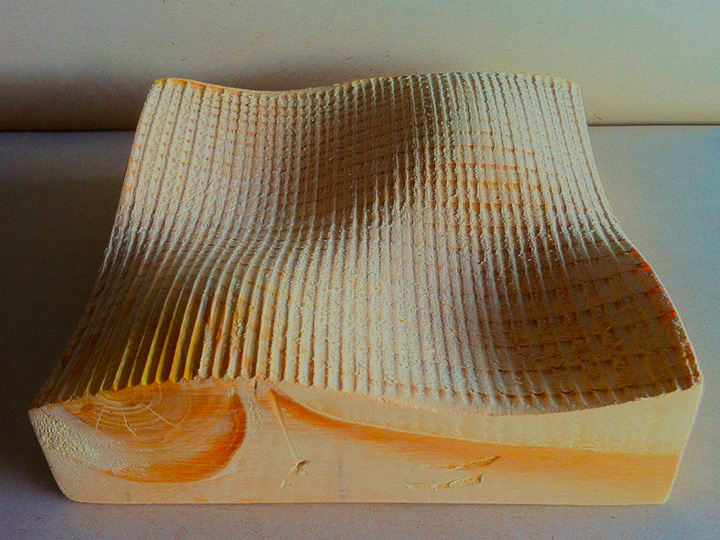

4 Axis CNC Router Machine Projects
