1325 High Quality And Cost-effective CNC Engraving Machine With Rotating Axis

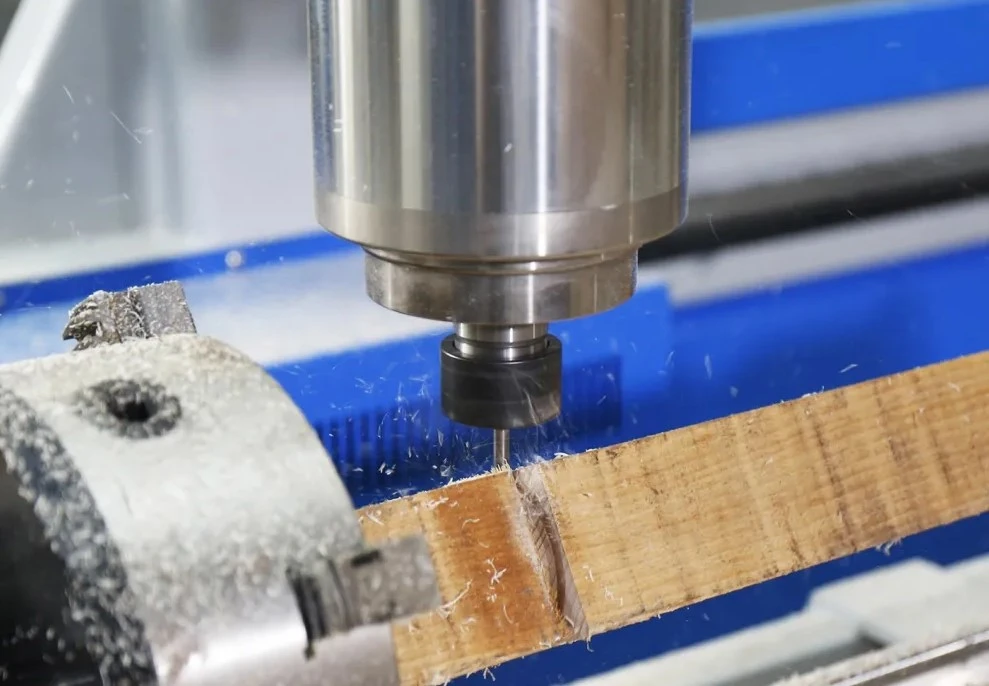

This 4 axis CNC Router mainly process the circle and cylinder wood materials,the rotary is on the side of the machine,its fixed and stable,so although process the big and heavy materials,it can also high speed run and small vibration.When machine working,it needs to move the spindle to the above of the rotary,then can process the wood materails,easy to operate.

Send Inquiry

Description

1325 High quality and cost-effective CNC engraving machine with rotating axis

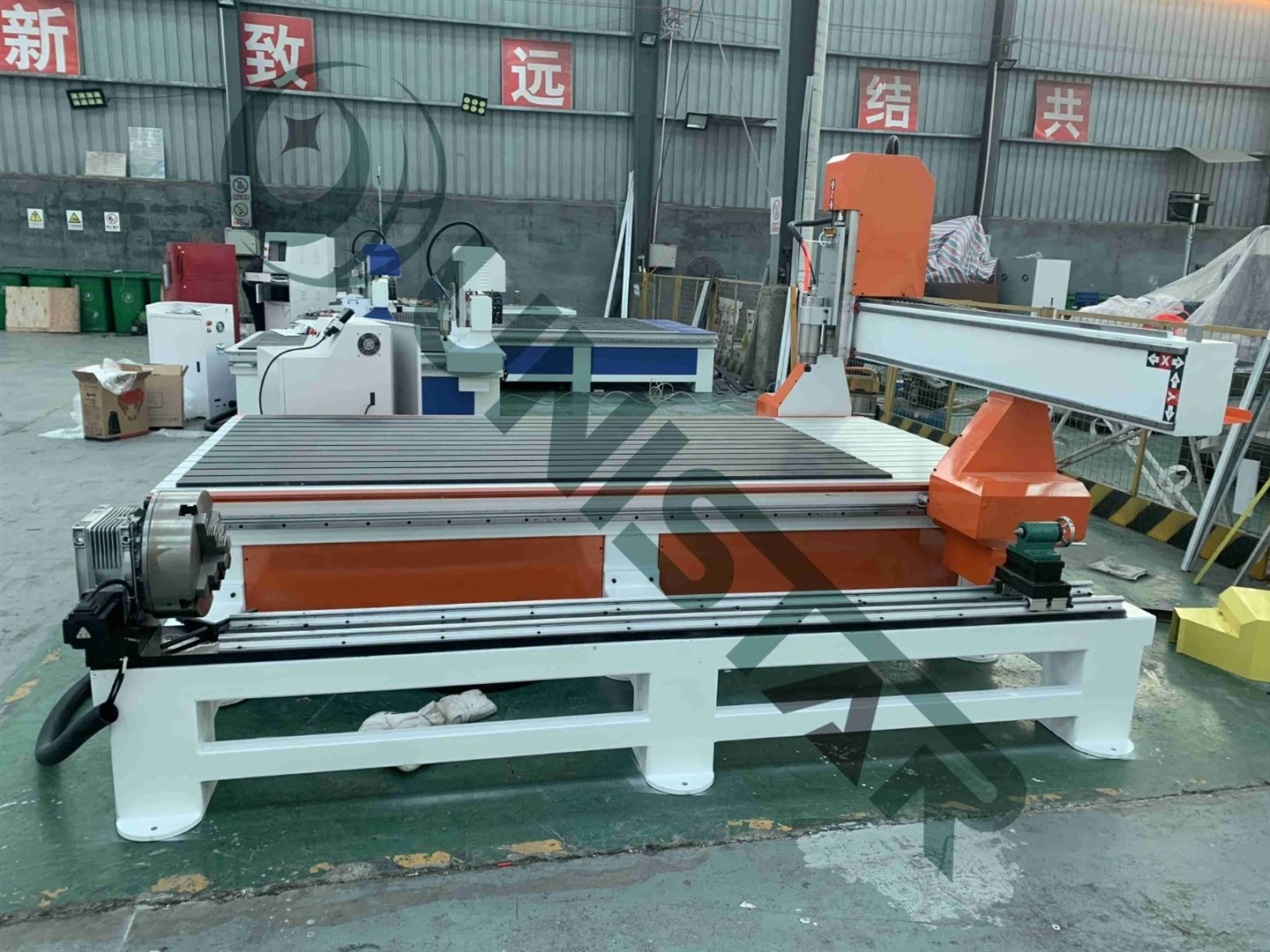

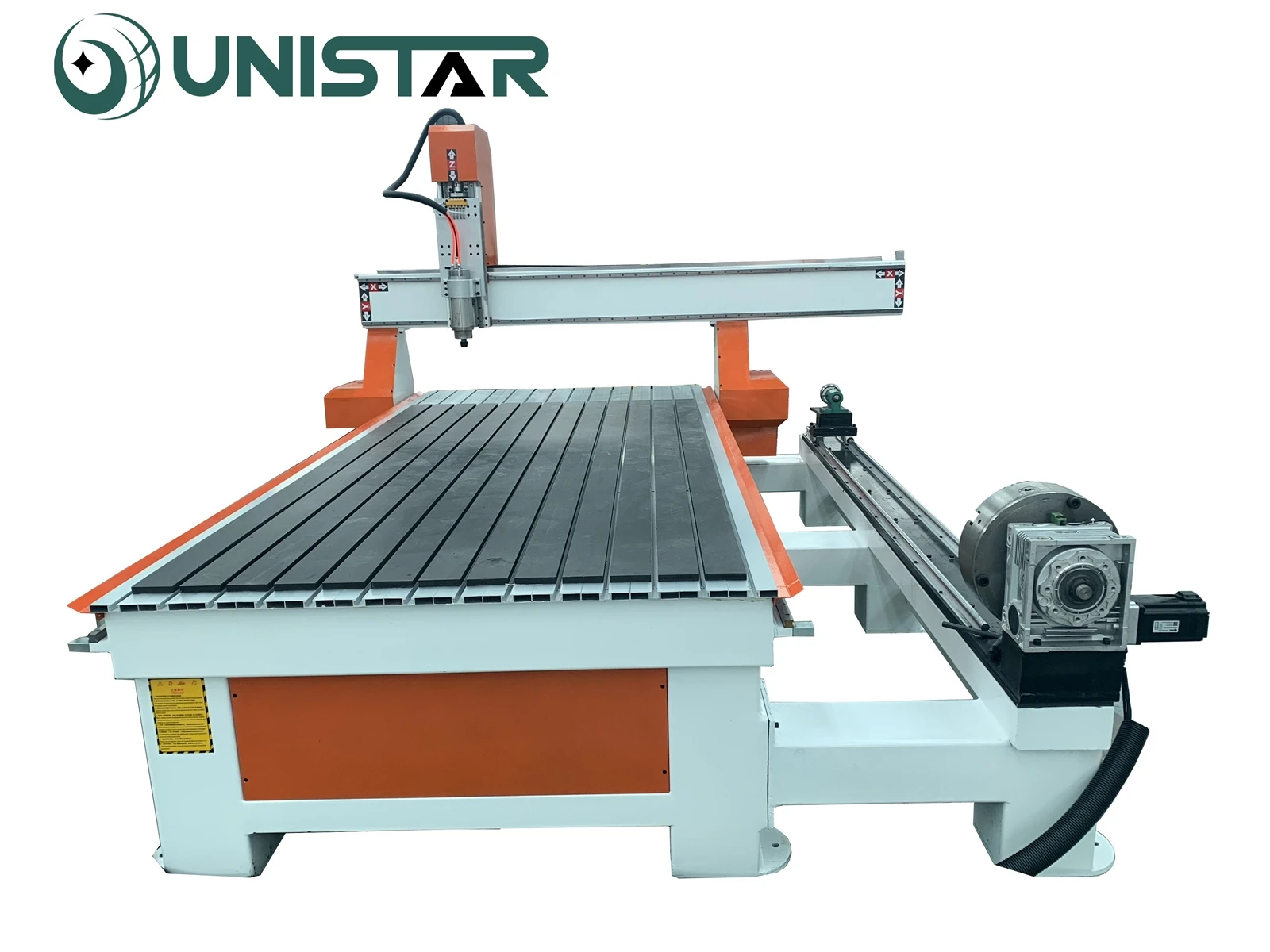

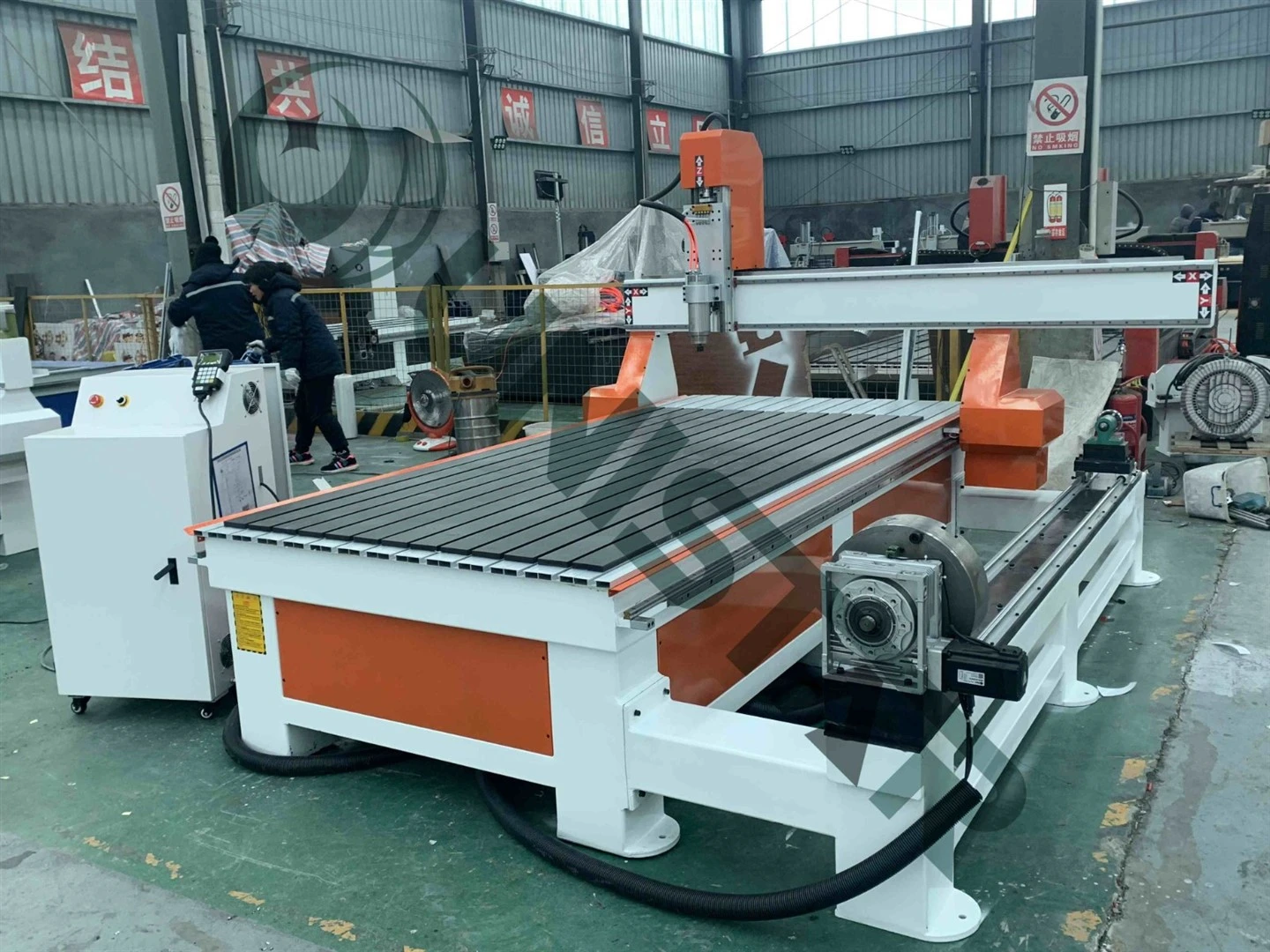

The 4 axis 1325 CNC Router is mainly used to process the wood materials,especially used for processing the cylinder materials.The rotary is put on the side of machine,more stable.And it adopt servo motor,the speed of the rotary is more faster.

Product Configuration

Model	USM-1325
Machine Area (X)	1300 mm
Machine Area (Y)	2500mm
Machine Area (Z	200mm
Working Area	13002500200 mm

Spindle	HQD Air-cooled spindle
Control System	DSP control system
Table Type	T-slot table
Rotary	Diameter 200 mm, Length 1300 mm
Motor and Controller	Leadshine Motor and Drivers

Inverter	Full inverter
Transmission	X and Y axes via high-precision helical racks and pinions. Taiwanese TBI ball screw, Z axis (good performance, long lifespan, imported from Taiwan)
Guide rail	Taiwanese Hiwin square linear guide for X and Y axes, imported from Taiwan. High-quality guide rail
Electricity	French electrical parts
Working voltage	AC 380V/3-phase/50Hz

Feature with picture

Item	Picture	Brand/advantage	Item	Picture	Brand/advantage

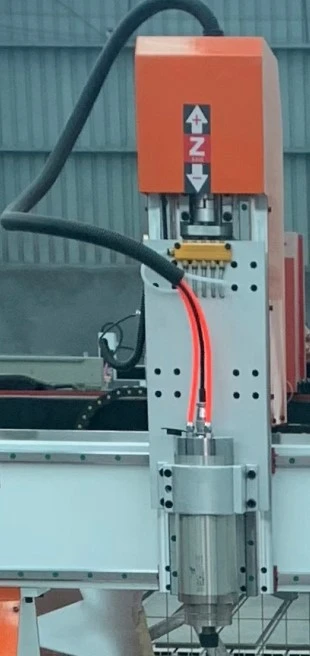

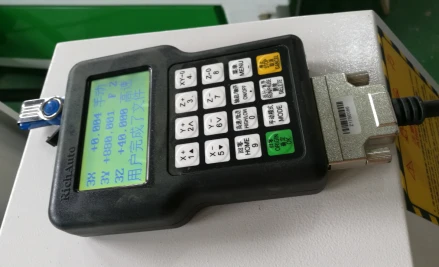

1		HQD air cooling spindle	2		DSP control system

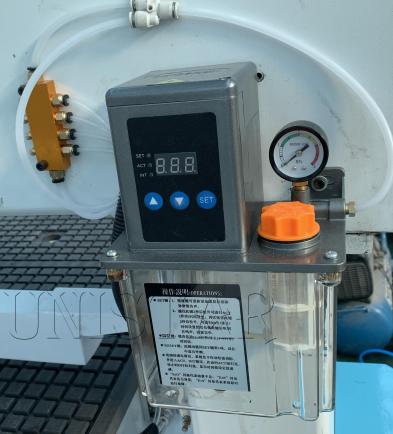

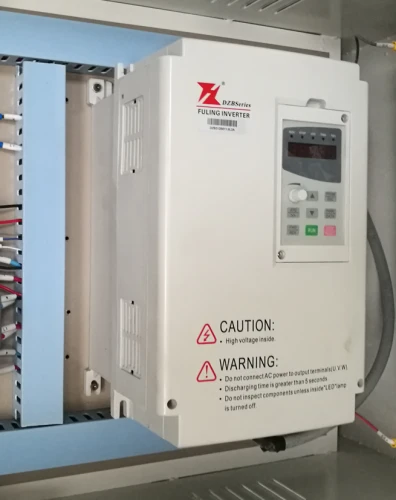

3		Fuling inverter	4		Automatic oil injection system

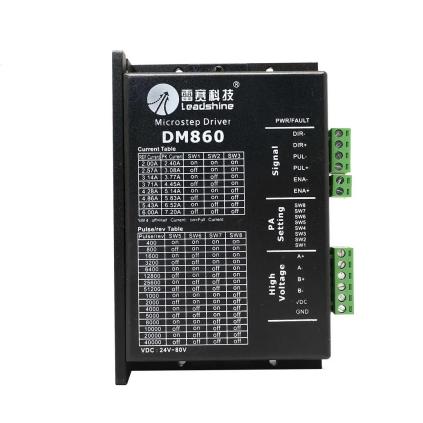

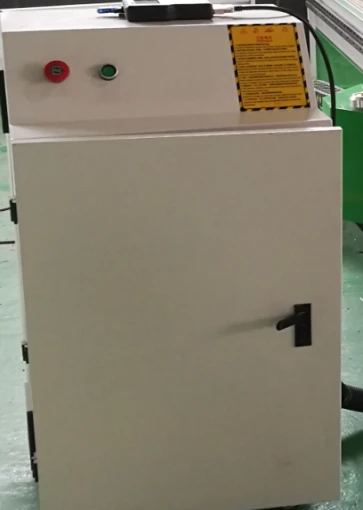

5		Leadshine Stepper motor and drivers	6		Control box

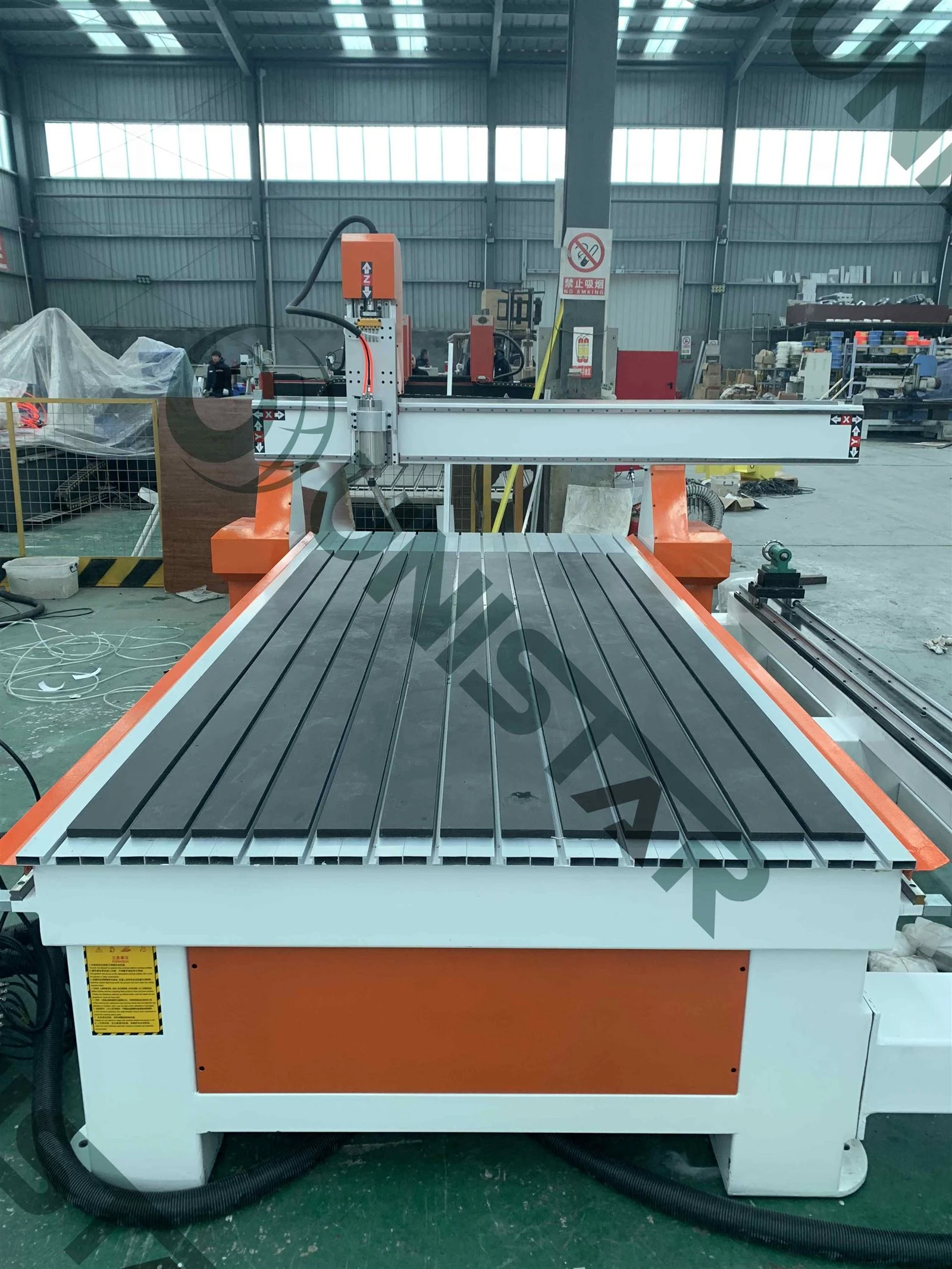

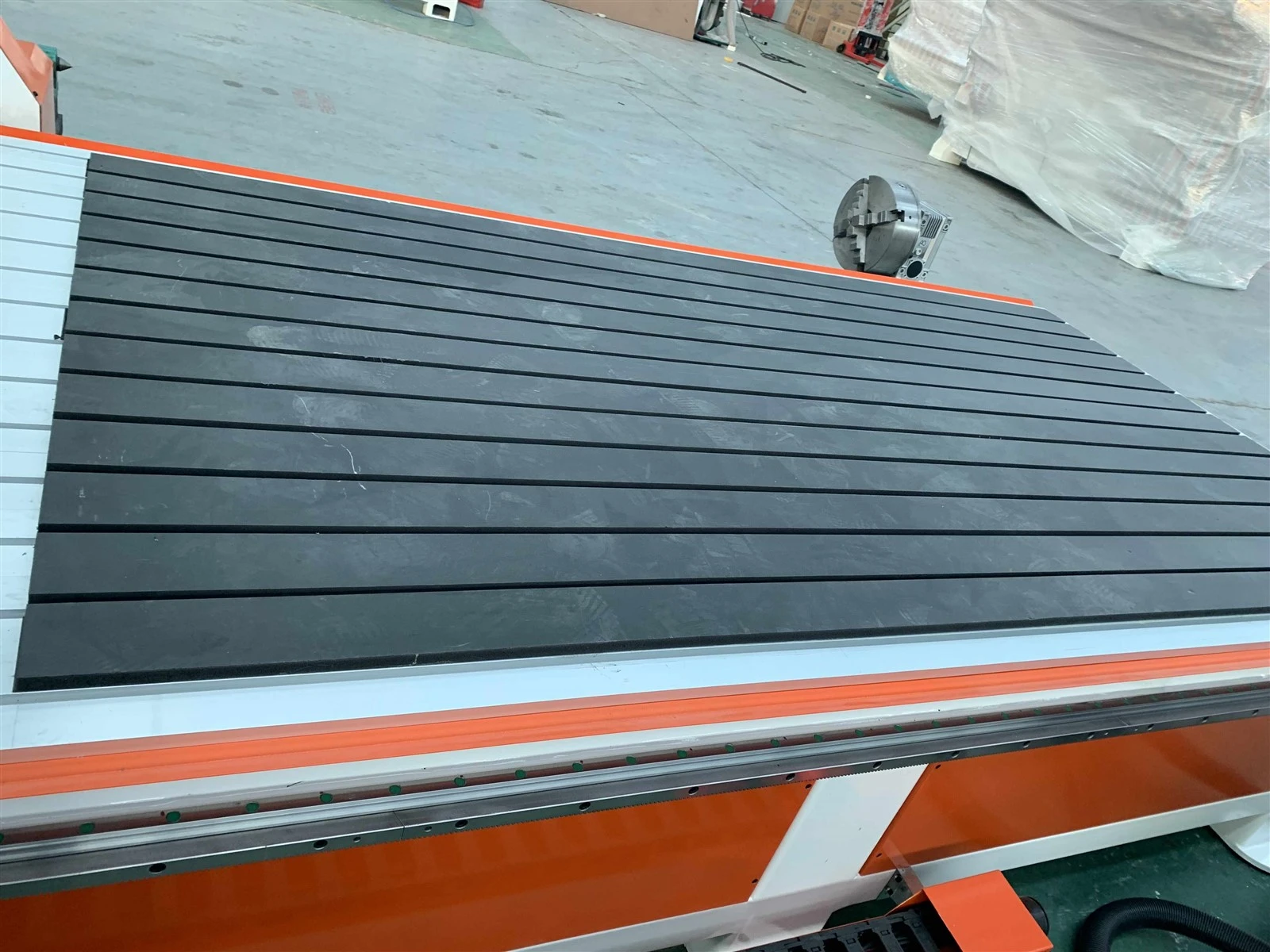

7		T-slot table	8		X.Y Rack transmission Square guide from Taiwan Hiwin

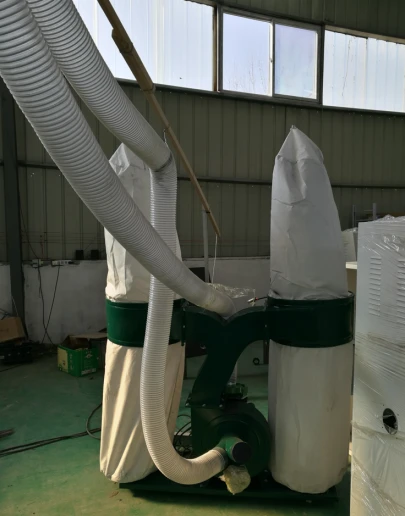

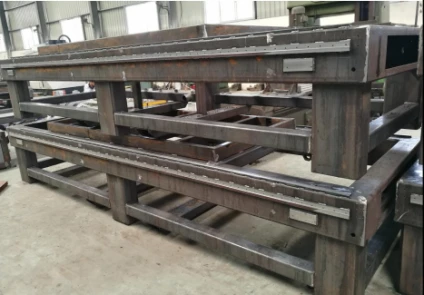

9		Strong machine body , not easy to deformation	10		3KW Double bottle dust collector

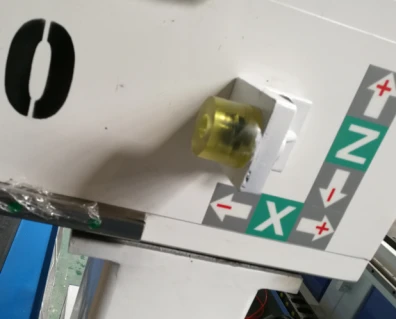

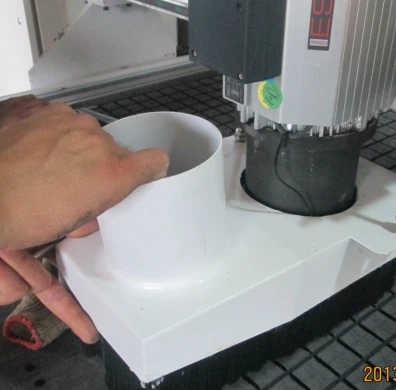

11		Dust hood Hairbrush	12		Sensor switch
