CNC FIBER LASER TUBE CUTTING MACHINE
Pipe Laser Cutting Machine Exclusive Features:
High performance: The speed is 10 times that of CO2 laser cutting machine of the same power and 5 times that of YAG laser cutting machine.
Low energy consumption: extremely low power consumption, only 1/6 of YAG laser cutting machine.
Low maintenance: optical fiber transmission, only the protective lens needs to be replaced, no need to adjust the optical path.
Low operating cost: High photoelectric conversion rate, not only low power consumption, but also less maintenance than YAG.
High laser source stability: using advanced medium-power continuous fiber laser source, stable performance, laser source service life can reach 100,000 hours.
Good cutting effect: High-precision electronic proportional valve imported from Germany can accurately control the pressure of cutting auxiliary gas to achieve the best cutting effect.
Convenient material handling: Use a small trailer to collect the fallen materials, which is convenient for distinguishing and handling the fallen materials.
Simple operation: It uses a dedicated CNC system for fiber laser cutting machines based on the Windows operating system, which integrates many dedicated functional modules for laser cutting control. It has powerful functions, good human-machine interface and simple operation.
Advanced software: Special nesting software is the core technology for CNC cutting machines to achieve "full-time cutting, efficient cutting and high nesting rate cutting", and is the fundamental guarantee for effectively saving materials and improving cutting efficiency.
High precision and high free speed: The machine adopts gantry-type double-drive structure, imported high-precision gear rack and linear guide rail, with stable transmission, high speed and high precision.
High stability of the work bed: The bed adopts an integral welded structure, which is rough-machined after annealing and then subjected to vibration aging treatment, which can completely eliminate the stress of welding and processing. It has good rigidity and high precision, can maintain long-term use without deformation, and greatly improves the response speed during movement and the stability of the bed.
High speed and acceleration: X, Y, and Z axes all use servo motors imported from Japan, which have high precision, high speed, large torque, large inertia, stable and durable performance. This ensures the high speed and acceleration of the whole machine.
Stable cutting head performance: EO's dedicated fiber laser cutting head and capacitive sensor are used, which have high sensing accuracy, sensitive response, and the most stable and reliable performance.
SPECIFICATION
| Product Name | Fiber Laser Tube Cutting Machine |
| Laser Power | 4000w/6000w/8000w/10000w/12000W |
| Max Cutting Thickness | 0-100mm(Depends on the power of the machine & cutting material) |
| Max Cutting Speed | 120m/min |
| X,Y,Z Traveling Positioning Accuracy | ±0.02/2000mm |
| Laser Head | Raytools/Boci |
| Laser Source | Max/Raycus/IPG |
| Power System | Taiwan Delta motor and drivers+Japan Shimpo reducer |
| Delivery Time | 15-20 working days after payment |
Application & Capability
1.Cutting materials: carbon steel, stainless steel, aluminum alloy, brass, copper, galvanized steel, silicon steel plate, electrolytic plate, titanium alloy, manganese alloy;
2.Cutting range: 0.5-16mm carbon steel, 0.5-8mm stainless steel, 0.5-6mm aluminum alloy, 0.5-5mm brass;
3.Applied industries: rail transit, automobile, machinery, electrical manufacturing, elevator manufacturing, household appliances, kitchen and sanitary ware, advertising, and other machinery manufacturing and processing industries.
Machine Details
Fiber Laser Cutting Machine Description:
1. Laser power: 1500W, 2000W, 3000W, 4000W, 6000w, 10000w, 12000w, etc.
2. Laser generator: JPT, RAYCUS, MAX, RECI, IPG etc.
3. Cutting materials: Iron, aluminum, carbon steel, stainless steel, copper, hardware and another metal sheet materials.
4. Other machine optional parts can be chosen, such as, rotary axis, exchange working table, full cover, etc.
5. China fiber laser machine cutting manufactuers, low cost and best quality, with CE, ISO etc certificates.
Auto-focus laser head
Auto-focus software adjusts lens for precision cutting of 20mm thick plates. 10x faster than manual adjustment.Collimator and
focus lenses have water-cooling heat sink, extending head life.
Laser cutting CNC system
The special CNC system of intelligent laser cutting machine is adopted to realize automatic edge searching, automatic typesetting, automatic focusing, automatic cutting, convenience and efficiency.A set of software specially customized for laser cutting industry, easy to use, rich in functions, suitable for various processing occasions.
TAIWAN HIWIN SQUARE DUIDE RAIL
Taiwan Hiwin linear guide rail, high positioning accuracy, scroll guide reduce wear to maintain accuracy for a longer time.
THE MOTOR AND REDUCER
Machine adopt Taiwan Delta/Fuji/Yaskawa servo motor and Japan Shimpo/Motovario reducer.
WATER CHILLER
1.Cooling water flow and high and low temperature alarm safety protection function 2.Two operating modes: constant temperature and intelligent temperature control 3.Temperature precision control can reach ±0.1ºC 4. Including input and output control device switch
HIGH LIGHT AND RIGIDITY
Aerospace grade aluminum light qualit, high speed.Beam as a whole by the finite element analysis optimization of high rigidity.
Heavy plate welding machine bed
Super stable heavy duty plate welding machine bed for high power laser cutting. High-quality steel construction resists deformation and ensures accuracy. Efficient heat dissipation and dust removal extend equipment life.
Pneumatic Chucks
Wireless control, one-key clamping, and constant clamping force make our chucks ideal for tightly securing heavy tubes. Plus, concave supports prop up the tube for added stability.

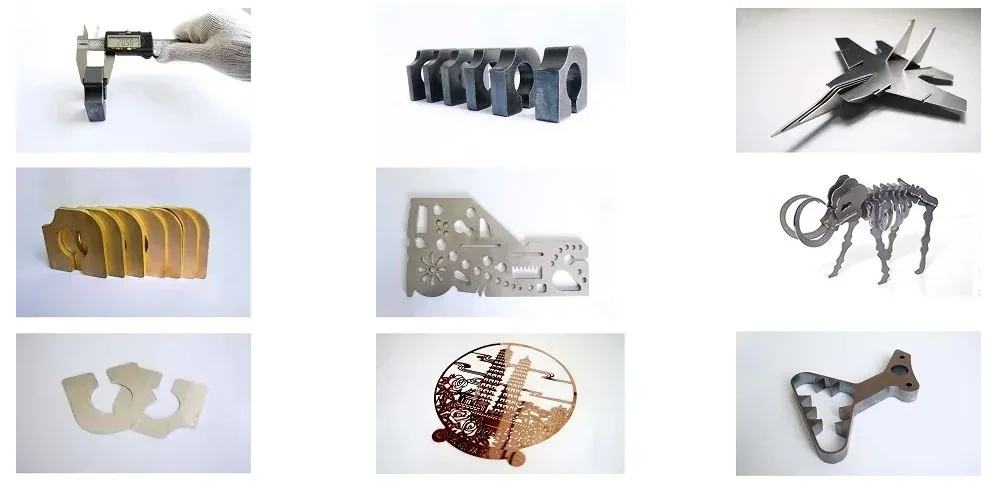

Sample
High cutting accuracy, good cutting effect, no need for two times
FAQ:
| 1. What is fiber laser? A fiber laser is a specialized type of solid-state laser, typically optically pumped. This involves coupling diode laser radiation or other fiber lasers into the cladding or core in a direction parallel to the fiber core. Double clad fibers are often used to achieve higher output power. 2. What materials can a fiber laser cut? Fiber lasers can cut a variety of metals including Stainless Steel, Carbon Steel, Mild Steel, Galvanized Steel, Aluminum, and Copper. 3. Which fiber sources does Shandong Unistar Laser apply? IPG - Manufactured in USA. Raycus - Manufactured in China; Maxphotonics - Manufactured in China; |
|
|
Packing & Delivery
Professional package of laser cutting machine:
1. Anti-collision package edge: All parts of the machine are protected with soft materials, primarily using pearl wool.
2. Fumigation wooden box: Our wooden boxes are fumigated, circumventing the need for wood inspection and thus saving transportation time.
3. Complete film packaging: Thoroughly protects against potential delivery damage by tightly covering with plastic, safeguarding the soft material and preventing water and rust ingress.
