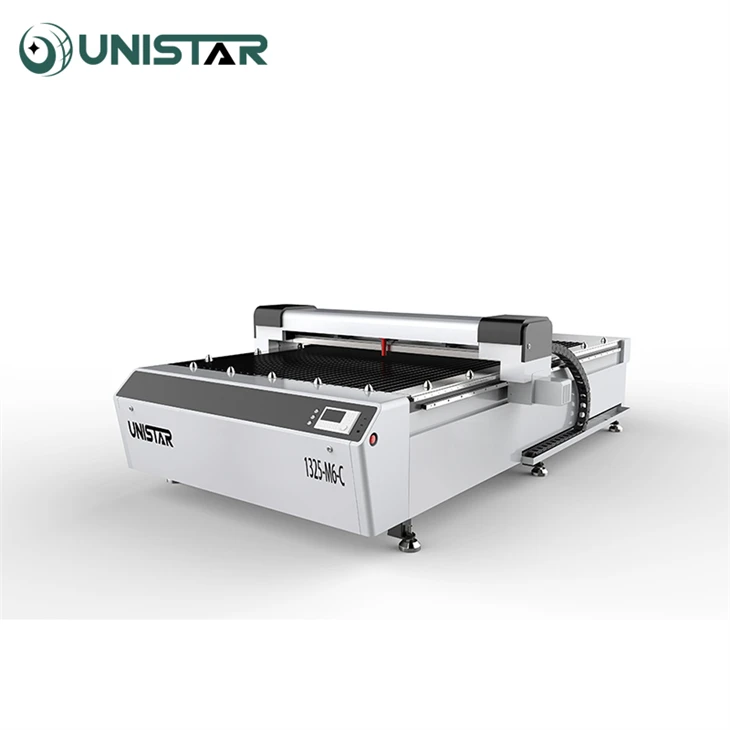

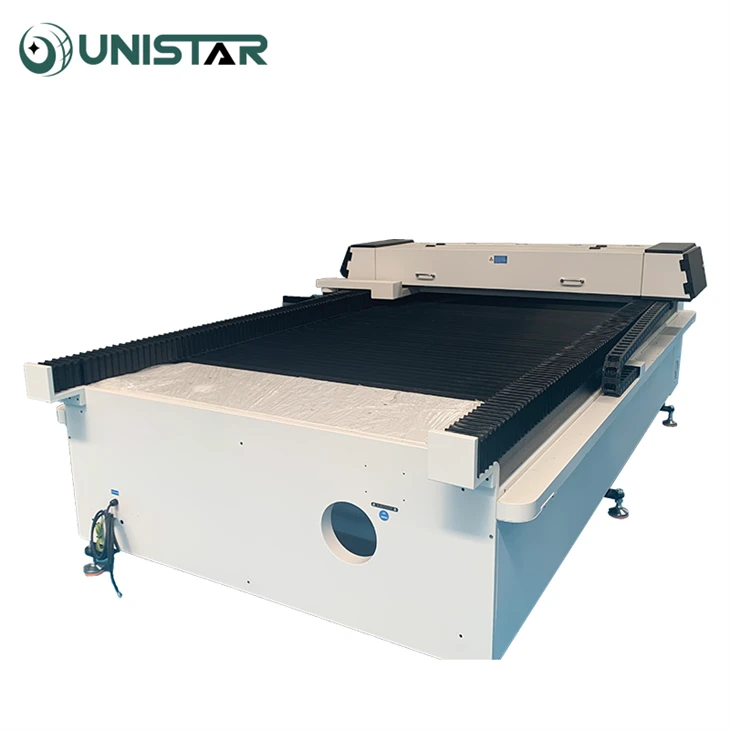

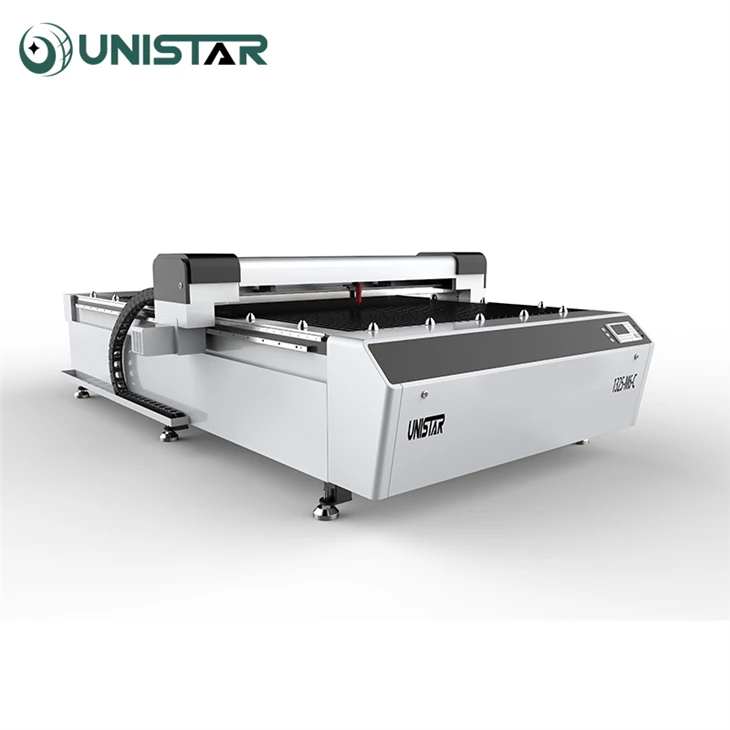

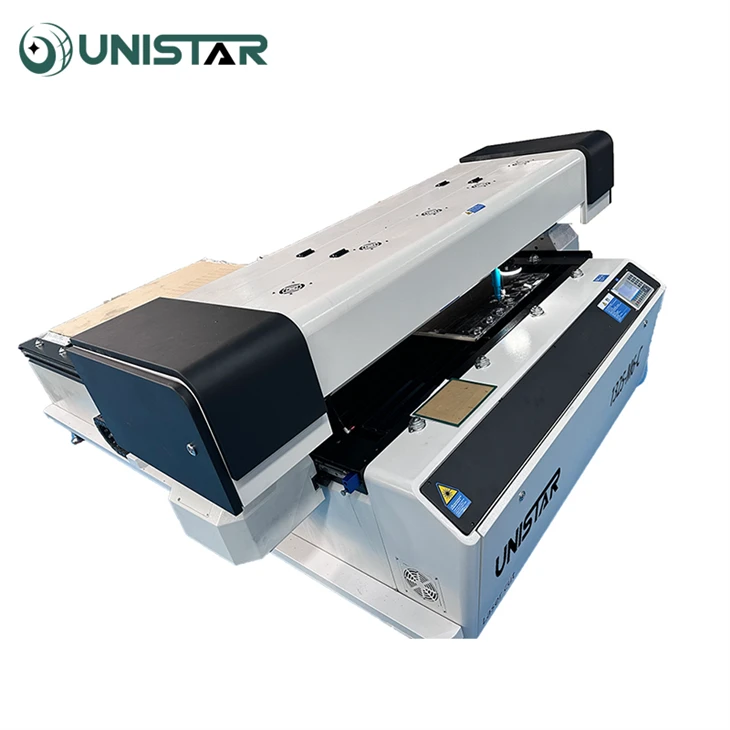

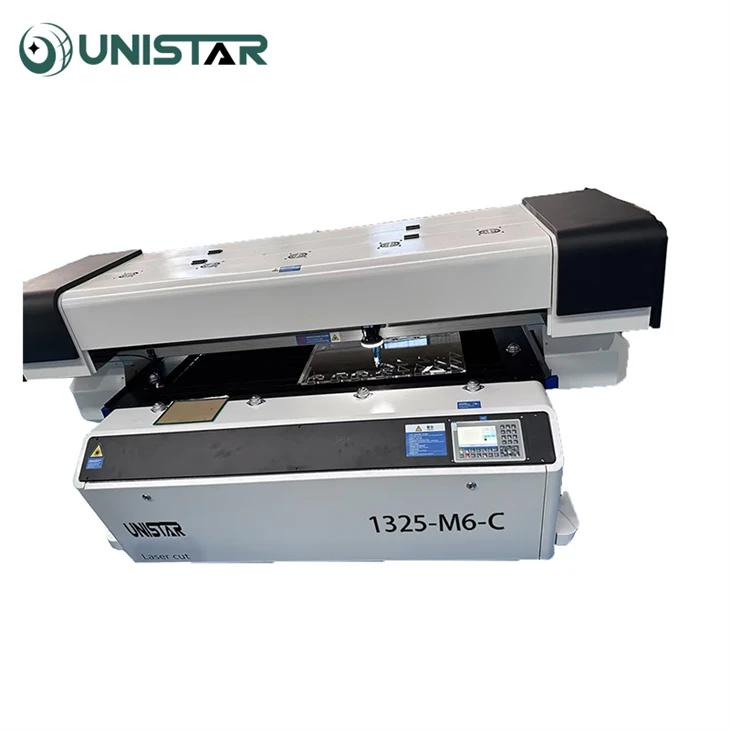

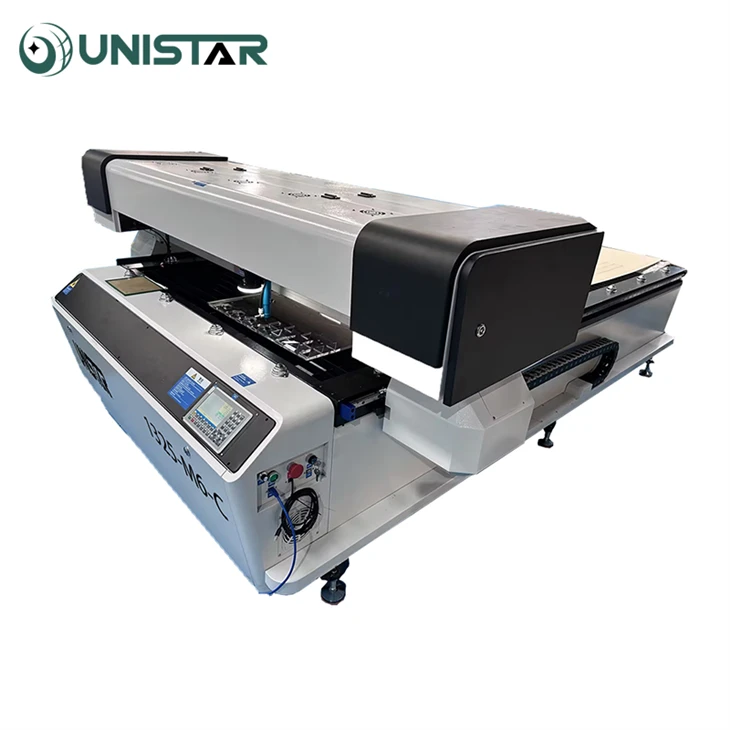

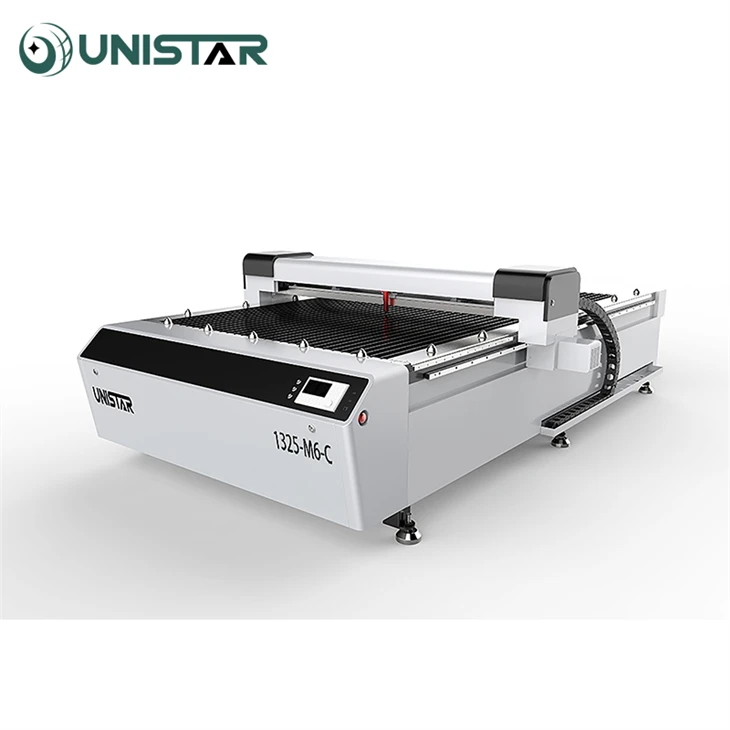

CO2 laser cutting carving machine for Non-metal
Machine configuration
| Mold | USJ-1325 |
| Working area | 1300*2500mm |
| Laser type | CO2 laser tube*2 |
| Focus | 63.5mm |
| Laser tube | EFR / RECI optional*2 |
| Power | 60w/80w/100w/130w/150w/180w/200w/300w |
| Control system | RD control system |
| Motor and driver | Stepper motor and driver |
| Transmission way | Rack and belt |
| Table type | Blade or honeycomb optional |
| Red-light pointer | Included |
| Cooling Mode | Water Cooling |
| Water chiller | CW 3000/5000/5200 |
| Control pannel | LCD English |
| Graphic Format Supporte | AI,PLT,DXF,BMP,DST,DWG,LAS and DXP. |
| Belt | Fulong |
| Air pump | ACO-009 |
Advantages of machine
High accuracy: positioning accuracy 0.05mm, repeated positioning accuracy 0.02mm.
Narrow slit: the laser beam is focused into a small spot, so that the focus point reaches a high power density, the material is quickly heated to the degree of gasification, evaporation to form holes. As the light beam moves relatively linearly with the material, the holes continuously form a slit of very narrow width. The incision width is generally 0.10 ~ 0.20mm.
Smooth cutting surface: the cutting surface has no burrs, and the surface roughness of the incision is generally controlled within Ra12.5.
Fast speed: the cutting speed can reach 10m/min, and the maximum positioning speed can reach 70m/min, which is much faster than the wire cutting speed.
Good cutting quality: no contact cutting, the cutting edge is very little affected by heat, basically no thermal deformation of the workpiece, completely avoid the collapsing edge formed when the material is punching and cutting, generally do not need secondary processing.
No damage to the workpiece: the laser cutting head will not be in contact with the surface of the material to ensure that the workpiece is not scratched.
Not affected by the hardness of the material to be cut: the laser can process steel plates, stainless steel, aluminum alloy plates, cemented carbide, etc., no matter what kind of hardness, you can cut without deformation.
Not affected by the shape of the workpiece: laser processing flexibility is good, can process any graphics, can cut pipes and other profiles.
Can cut and process non-metals: such as plastic, wood, PVC, leather, textiles and plexiglass.
Saving mold investment: laser processing does not require mold, no mold consumption, no need to repair mold, save time to replace mold, thus saving processing costs, reduce production costs, especially suitable for processing large products.
Material saving: Using computer programming, you can cut the whole sheet material of different shapes of products to maximize the utilization rate of materials.
Machine detail
Machine body
The machine bodies produced by our company are all welded from square steel pipes. The bed is a heavy-duty bed and the work surface is precisely processed to ensure the stability and high precision of the whole machine.
Guide rail
The guide rail surface is precisely ground and has high plane accuracy; the reference guide rail datum has high linearity.
table
Blade table space is relatively large, and the contact surface of the material is relatively small, very suitable for acrylic, density board and other hard plates, to avoid leaving traces at the bottom of the material.
Honeycomb table is more suitable for leather, cloth, paper and other soft materials. These soft materials can be adsorbed to ensure that the material is smooth and to eliminate bumps and warped edges.
Laser tube
The laser tube adopts the Beijing Reci closed CO2 laser with good stability and long life. The spot is small and the power is sufficient.
Laser head
The high-quality laser head can adapt well to various mechanical requirements, ensuring high precision, long service life and high temperature resistance.
Control system
RD touch screen control system. The system uses a high-speed USB communication interface to facilitate user learning and operation.
Belt
Belt drive is a kind of mechanical transmission. It relies on friction to achieve movement and power transmission. Its biggest feature is: elasticity. It can reduce vibration and vibration during work, and run smoothly and without noise.
Distribution box
This box is small in size, easy to install, has unique technical performance, fixed position, unique configuration function, is not restricted by the site, has a wide range of applications, operates stably and reliably, has high space utilization, occupies a small area, and has good environmental protection effect.
Applicable industry
Mainly used for advertising industries ( stainless metal and carbon steel ), sheet metal industry (carbon steel ), packaging industry (die board )and so on . steel industries,Plastic and rubber industry, ads/crafts/presents industry. Strumpet/machine components, leather cloth industry. Advertising logo signs, gifts, crystal ornaments, paper cutting techniques, relief, wood carving Jane. Printing plate, leather clothing, embroidery, decoration, frame making and other industries.
Applicable materals
Wood/MDF/Plywood, acrylic, glass bamboo, foam, rubber, plastic, garments, fabric, fiberglass, paper, leather, marble, granite, tiles, carbon steel, stainless steel and etc...
sample
how to clean the lens?
1.For light pollution(dust,fiber particles)were flexible cleaning
Using a blowing balloon,blow off scattered contaminants on the surface of the option element.
2.For light pollution (stains,fingerprints) were flexible cleaning
Propanol,acetone glue with a cotton swab or alcohol to gently wipe the surface.
3.For moderately polluted (saliva,oil) in moderate-intensity cleaning
Infiltrating distilled white vinegar with a cotton swab,wipe the surface a little pressure.
Packaging and transportation
Customer visit picture
Warranty and Service
Warranty
1.Our professional technicians review the process during the production process to ensure the quality of the product
2. Every machine must undergo 8 hours of testing before it is shipped, and all of them are perfect.
3.Two years warranty for the entire machine.
4. Major parts (excluding consumables) will be replaced free of charge if there is a problem within the warranty period.
5. Lifetime maintenance free.
6. We will provide spare parts at agent's price in case you need to change them.
7.The machine was modified prior to delivery. 8.If necessary, you can send our staff to your company for installation or modification
Service
1.We have excellent engineers good at English to provide at door service
2.If your machine has big problems if by any chance,our engineers would arrive three to debug and fix.Could be remote control if needed.
3.We can provide English software,user manual and detailed Videos CD.
4.Door to door technical group service.24 hours technology online support. 5.Free training course at ourplant.
