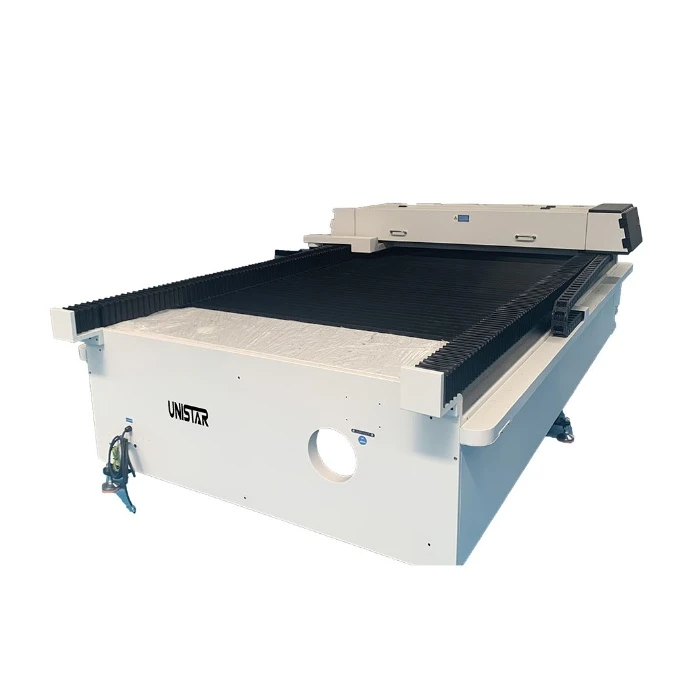

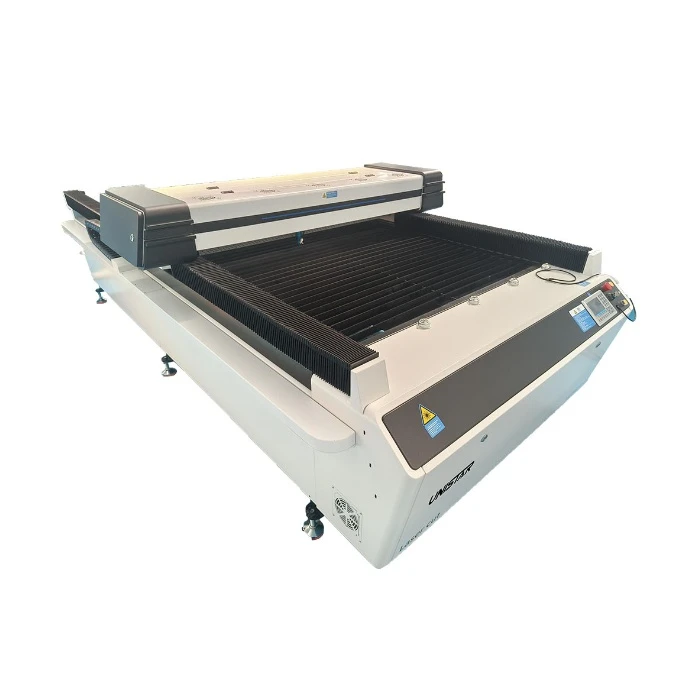

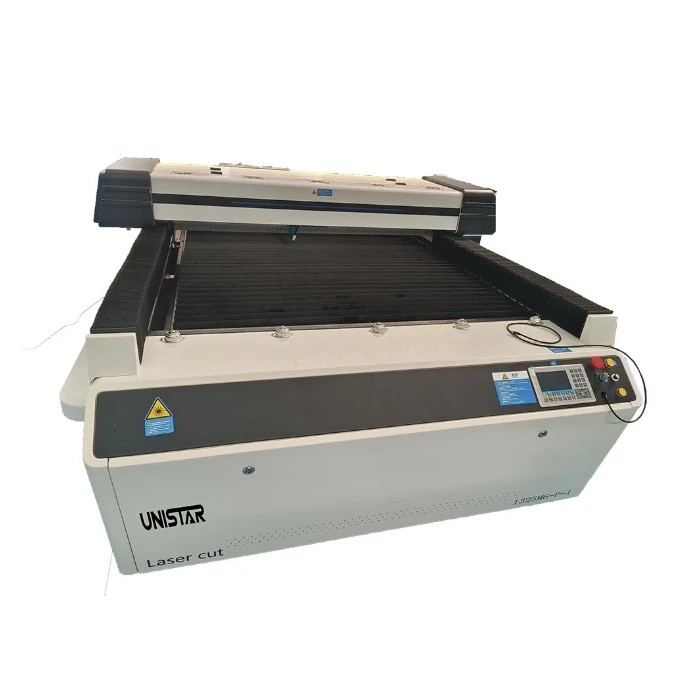

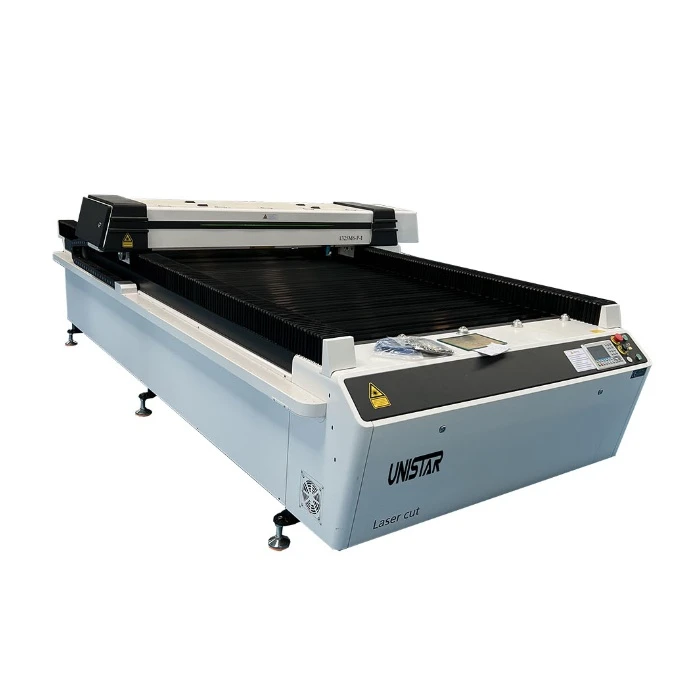

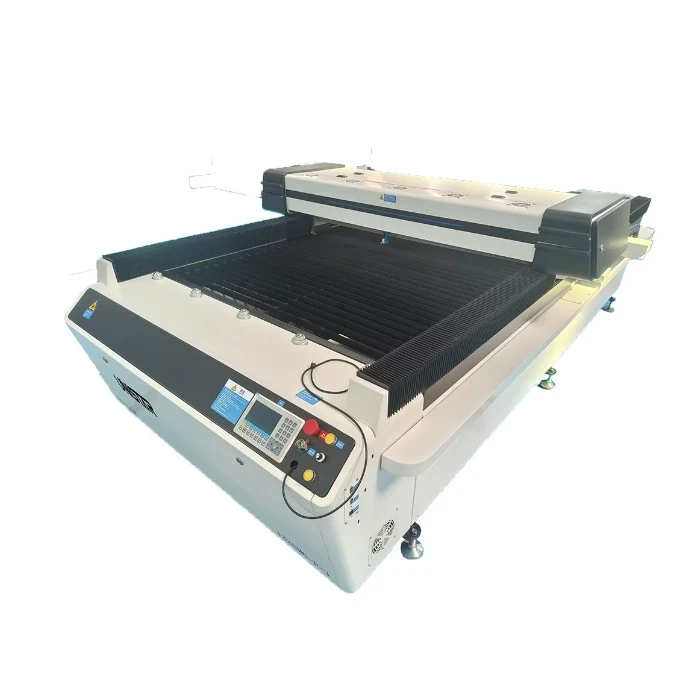

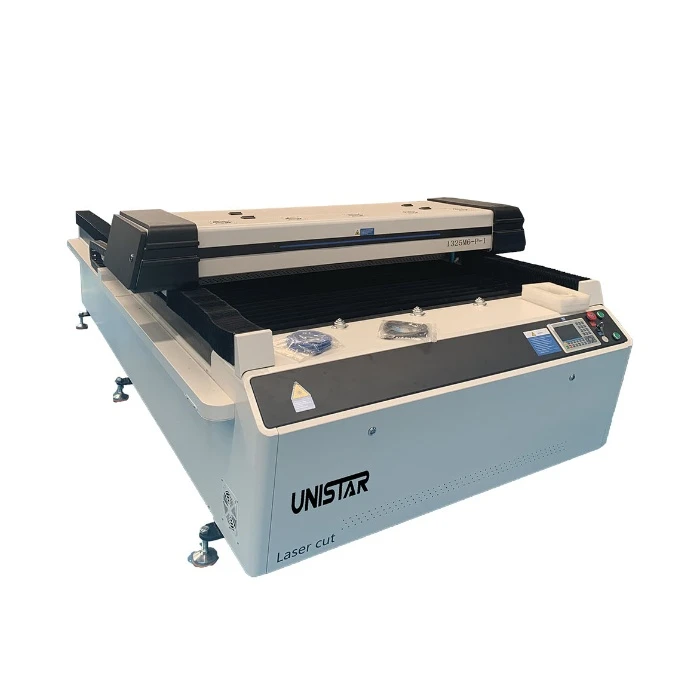

High Quality CO2 Laser Wood cutter Machine
Applicable Industry
- Advertising decoration industry: Laser cutting machine can carve and cut some patterns, letters or signs. Can make trademarks, nameplates, certificates, etc.
- Mold industry: Laser cutting machine can make molds of various materials.
- Clothing industry: Laser cutting machine can cut a variety of fabrics, production efficiency and product accuracy are high.
Applicable Materials
It is widely used for engraving & cutting on materials like bamboo, wood, acrylic, organic glass, PVC plastic, leather, rubber, marble, granite and paper cutting....
Technical Parameters Of CO2 Laser Wood Machine
|
Model |
USJ 1325 |
|
Working Area |
1300mm*2500mm |
|
Laser Type |
Sealed CO2 Glass Laser Tube |
|
Laser Power |
80W,100W,130W,150W,200W,280W |
|
Cooling |
Air cooling |
|
Control System |
RD Color touch sreen control systerm |
|
Rails |
Taiwan imported linear square Rails |
|
Drive System |
Leadshine stepper motor and drivers |
|
Lenses And Mirror |
American import Lenses and mirror |
|
Working Table |
Blade table or honeycomb |
|
Cutting speed |
0-4000mm/min |
|
Engraving speed |
0-6000mm/min |
|
Resetting accuracy |
±0.01mm |
|
Resolution Radio |
0.025mm |
|
Max Scan |
4000DPI |
|
Assist device |
Exhaust fan, air pump, water chiller |
Detailed Photos Of The Laser Cutter Machine

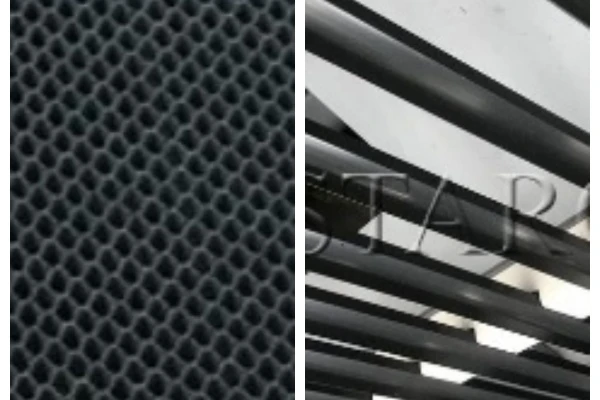

table
Honeycomb table is suitable for cutting paper, fiber, leather and other materials, and the small hole of the mesa has a good support force to ensure that the material is processed without deformation.
Blade table space is large, suitable for cutting some plates, such as acrylic, wood, plywood and MDF.

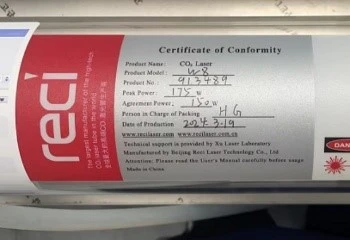

laser tube
Beijing RECI laser tube
The output beam of the laser tube is concentrated, the engraving line is narrow, the engraving effect is good, and the picture character is clear.
rail guide
Taiwan HIWIN square rail guide
High precision, high speed, super smooth

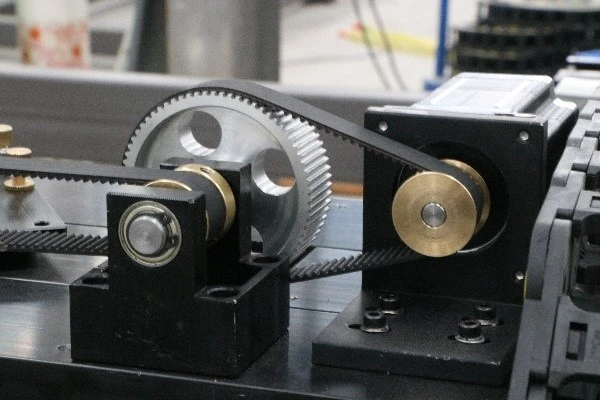

transmission
Rack and belt transmission
Simple structure, high transmission efficiency

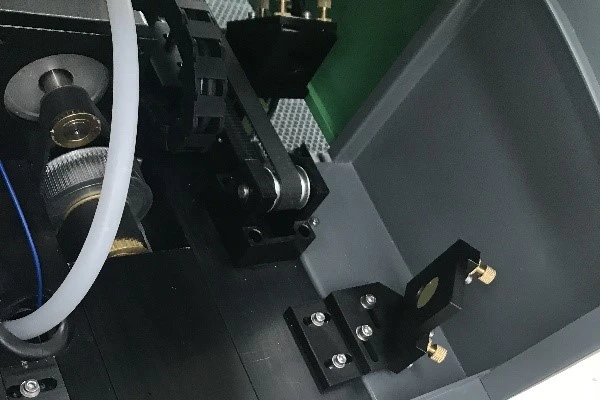

lens and mirroes
American II-VI
It has very good quality

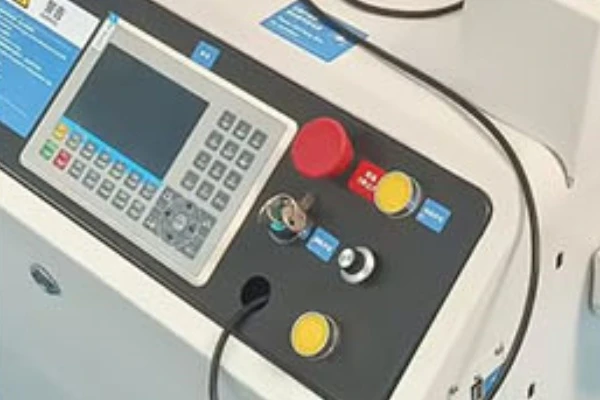

control syetem
RD touch screen control system
Very easy to operate, novice can also quickly master.

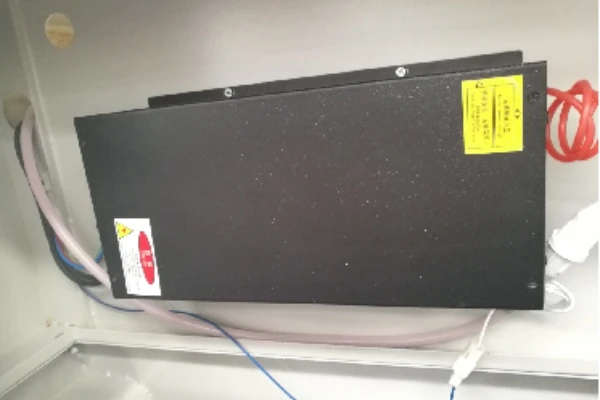

laser power
It is used with the laser tube to provide power for the laser tube.

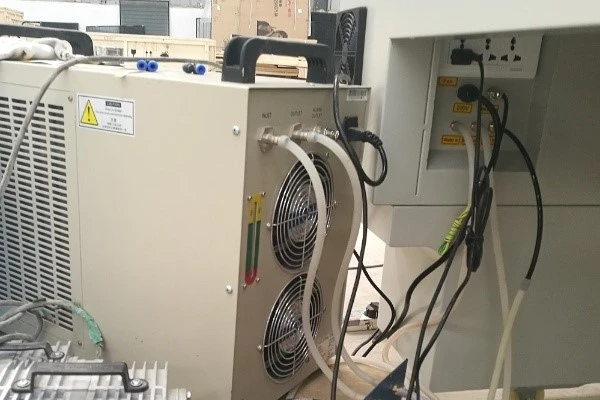

water chiller
Good cooling effect, easy to use.
exhaust fan
The main function is to remove smoke and dust and remove debris generated by machine cutting.

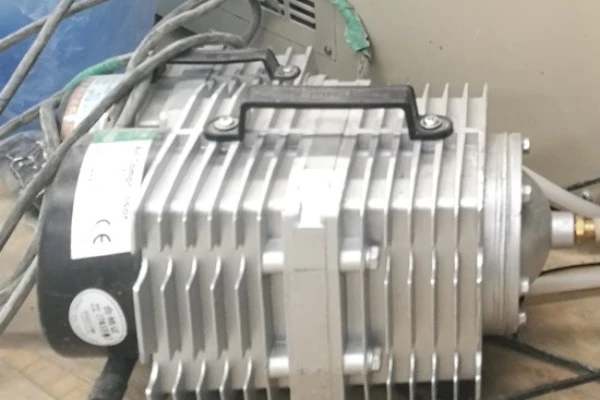

air pump
The main function is to cool the material, the lens and the laser head, and also to blow away some debris.

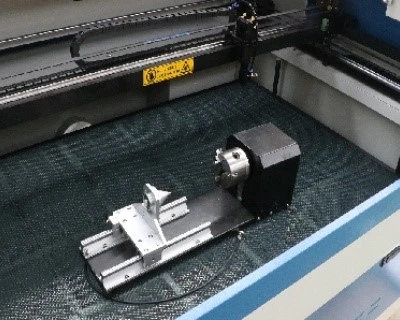

Optional Accessories
Advantages
1. Good quality glass laser tube, lens imported from USA, long life.

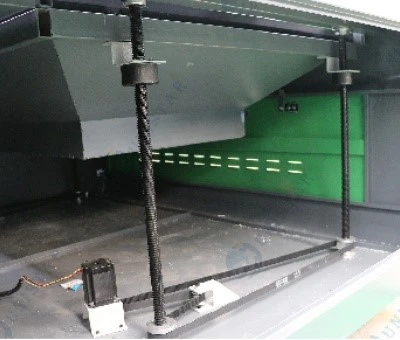

2. Automatic working table, it can adjust higher and lower. Better to match the need to engraving big materials.
3. Support Software: Coredraw, Photoshop, Autocad...
4. Working environment: temperature 0-45°C. Humidity: 5-95%
5. All finished machine before delivered are 100% strictly tested by our QC department and engineering department.

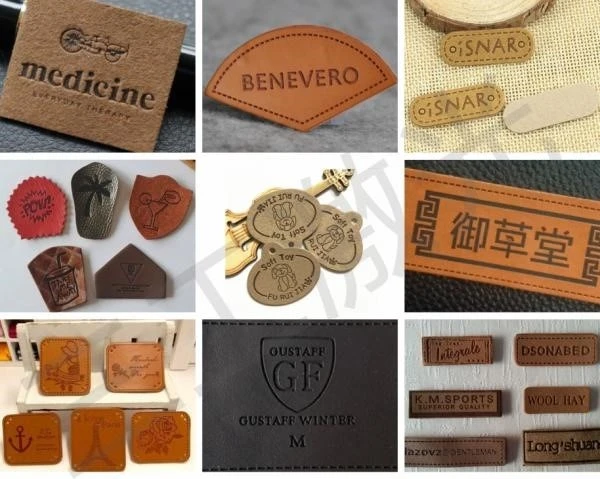

Samples of Laser Engraving Machine
Packing and Shipping
1.Shipping: Shipping time depends on the port of destination.
2. Package: Standard plywood case.
The advantages of Plywood Case Package: Firstly, plywood case, its compressive strength and bearing quality is
better, is the market of choice for the goods of high-weight packaging. Secondly , the board area is big, the soil
structure is good,and operational process is simple, so it is better in leakproof and waterproof. Thirdly , when
importing the plywood case is with fumigation-free , the procedure is simple.

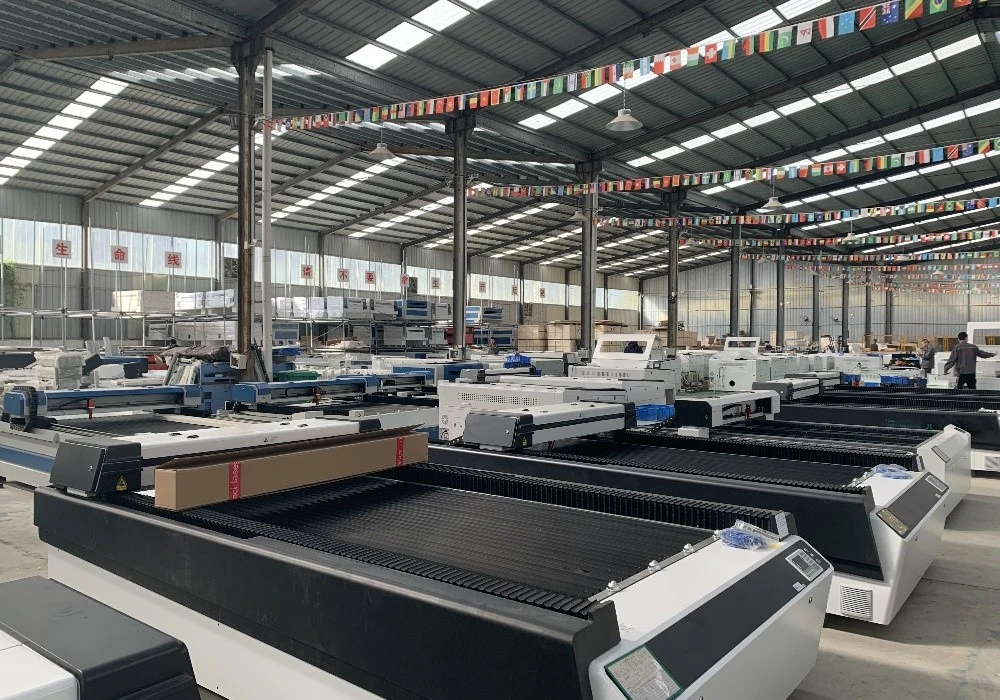

Customer Visiting
Certificate
Why Choose Us?
1. Unistar company have been in machinery manufacture industry for more than 20 years, we always aim to
satisfied customer around world with our rich experience and optimal solution, we trade quality first , service
first , customer first as our purpose to help every customer earn benefit.
2. We have expert R&D team to ensure product quality and continuous introduction of new products to meet
market demand.
3. We have our own factory, quality and service are guaranteed.
4. Enterprise excellent management mechanism, reliable quality assurance system and advanced technology and
equipment and advanced management concept, so that the company has been sustained and steady development.
5. We pursue efficiency by management, survival by quality, actively improve product quality values, adhere to the
principle of professional and practical product design, the pursuit of excellence, continuous progress, dedicated to
provide customers with excellent products and perfect after-sales service system.
Our Service For Laser Cutting Machine
1. 18 months guarantee of the whole machine.
2. Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty
period.
3.Lifetime maintenance free of charge.
4.We will provide the consumable parts at an agency price when you need replacement.
5.Machine has been adjusted before delivery.
6.We have excellent engineers good at English to provide at doorservice. If your machine has big problems if by any chance,
our engineers would arrive there to debug and fix.
7. Could be remote control if needed.
8. We can provide English software, user manual and detailed Videos CD
9. Door to door technical group service. 24 hours technology online support ,Skype, MSN, Yahoo,etc or by mail and phone .
10. Free training course at our plant.
FAQ
Q: Do you have CE document and other documents for customs clearance?
Q: How to install and run the machine?
Q: How to solve it if there is some problem or parts broken during operating metal tube laser cutting machine?
Q: I don't know which kind of cnc router machine is suit for me
Q: Which payment way your company can accept?
Q: If I want to see the machine condition of your factory , And It's not convenient for me to go to China , what should I do?
Q: This is the first time I buy the machine, is it easy to operate?
Q: How to choose a suitable machine?
Q:How can I trust your company and your products?
Q: If machine have any problem after I ordered it, what could I do?
Q: Can I visit your factory?
Q: What's your date of delivery?
Q: MOQ?
