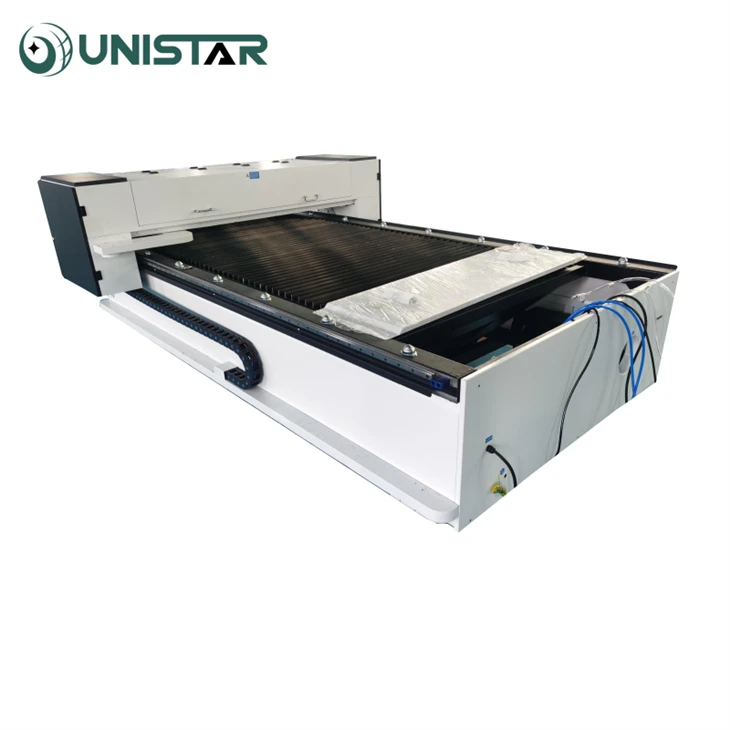

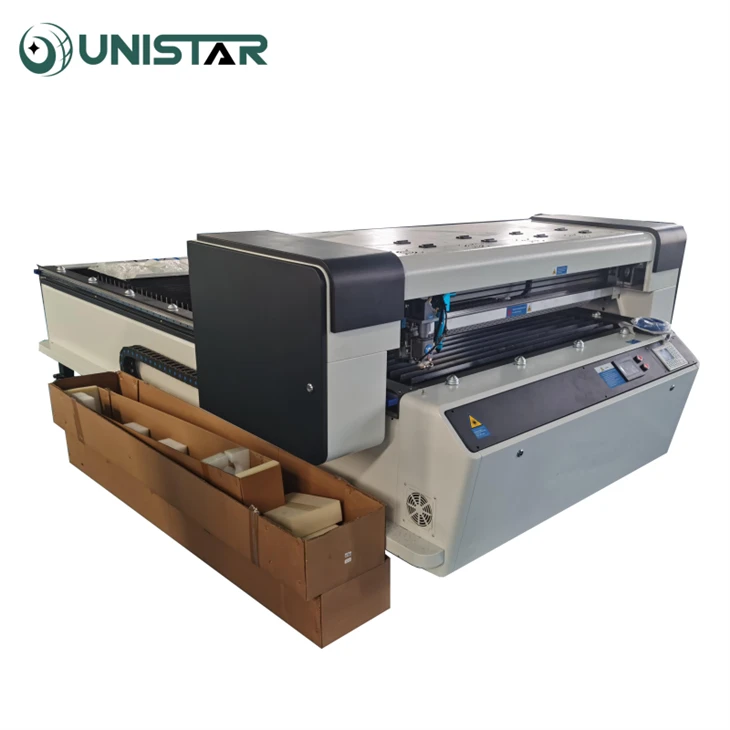

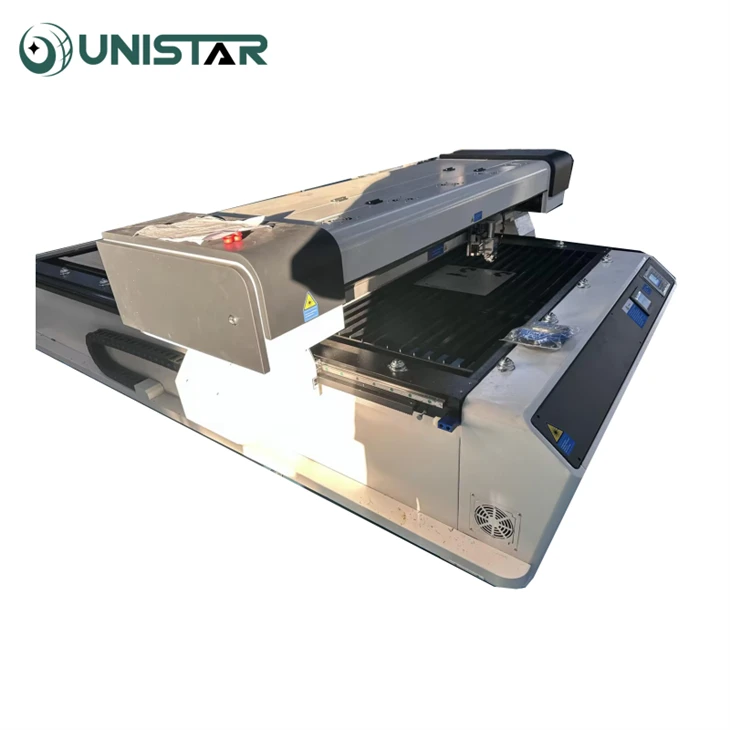

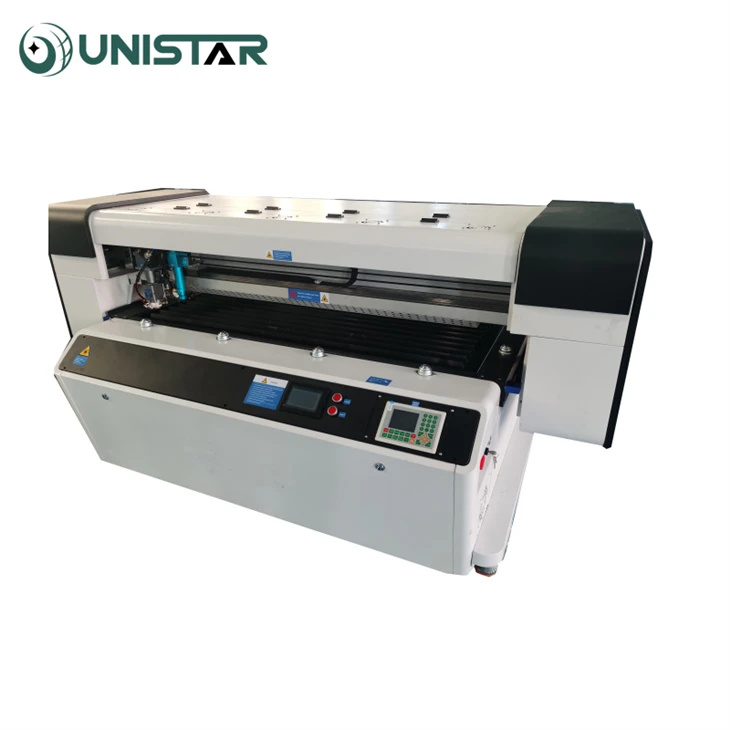

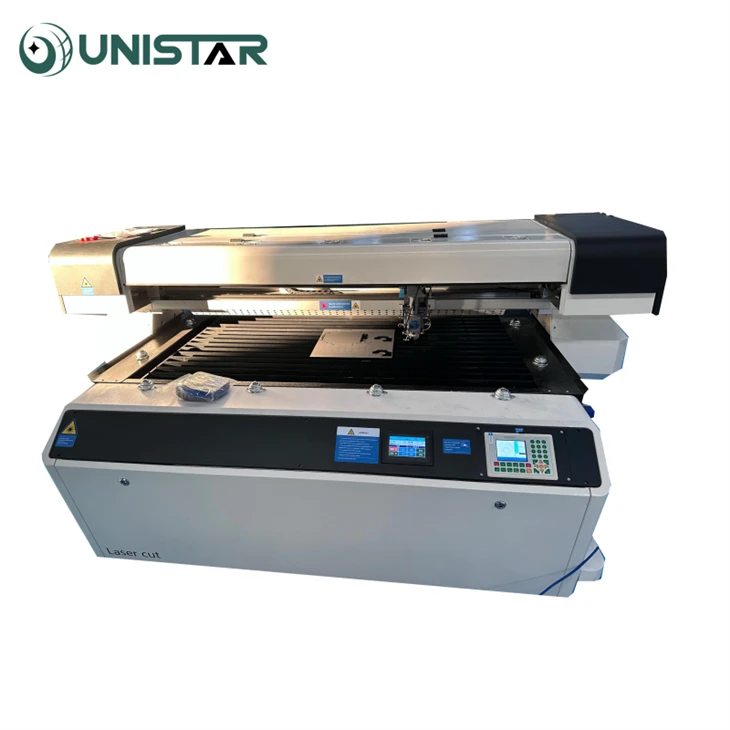

CO2 Hybrid Cutting Laser Machine
Machine configuration
| Mold | USJ-1325 |
| Working area | 1300*2500mm |
| Laser type | CO2 laser tube |
| Laser head | Mixed cutting laser head |
| Focus | 63.5mm |
| Laser tube | EFR / RECI optional |
| Power | 150w/180w/200w/300w |
| Control system | RD control system |
| Motor and driver | Stepper motor and driver |
| Transmission way | Rack and belt |
| Table type | Blade or honeycomb optional |
| Red-light pointer | Included |
| Cooling Mode | Water Cooling |
| Water chiller | CW 3000/5000/5200 |
| Control pannel | LCD English |
| Graphic Format Supporte | AI,PLT,DXF,BMP,DST,DWG,LAS and DXP. |
| Belt | Fulong |
| Air pump | ACO-009 |
Applicable of machine
Applicable industry:
Mould industry (construction mould, aviation and navigation mould, wooden mould), advertising, decoration, arts and crafts, electronics, electric appliances, etc.
Applicable Materials:
Materials such as acrylic, wood planks(light planks,candlenut wood),bamboo ware, double color board, paper, leather, shell, coconut shell, ox horn, resin animal grease,ABS board, lamp shade, etc.
Feature
1.Whole machine guarantee 2 years .
2.After auxiliary oxygen can cut stainless steel, carbon steel and iron plate. Complete cutting & engraving of non-metal materials such as acrylic, MDF, leather, PVC......and stone, glass and ceramic carving.
3. Aluminum alloy blade working platform, equipped with universal wheels for convenient plate placement.
4.High-precision power combination, equipped with stable reducer, to make machining accuracy higher.
5.Automatic metal induction follow-up,laser head auto-focus,automatically adjust the height with the flatness of the plate.
6.Adopts original Taiwan straight linear rail, high accuracy and fast speed, equipped with Omron stroke limit, widening 5M step belt.
7.Using a powerful laser tube and using imported metal molybdenum mirrors and focusing mirrors to reduce machine operating costs.
8.Ruida control, farewell to the tedious storage of parameters, plug and play, offline and online, very easy to use, separate control system, strong anti-interference ability, very stable long-term work
9.Install one-way throttle valve, which is convenient for free cutting when cutting with air or oxygen, saving oxygen.
10.The overall planer bed ensures the accuracy of rail installation. A smoke exhaustsystem and a high-power centrifugal fan are installed behind the machine,Strong power, good smoke exhaust effect and long life . Drawer-type sample box, no sample is lost after cutting, convenient and easy to take out . The universal wheel at the bottom allows you to easily move the position of the machine, And there are ground feet to increase the machine's balance performance. Towline routing & wear-resistant High strength cables, beautiful and extend the life of the machine.
11. The CNC box is equipped with four cooling fans to ensure the stable operation of the machine for a long time.
12.Install short-circuit relay , the circuit will automatically stop working when a short circuit occurs.
Machine detail
Machine body
The machine bodies produced by our company are all welded from square steel pipes. The bed is a heavy-duty bed and the work surface is precisely processed to ensure the stability and high precision of the whole machine.
Guide rail
The guide rail surface is precisely ground and has high plane accuracy; the reference guide rail datum has high linearity.

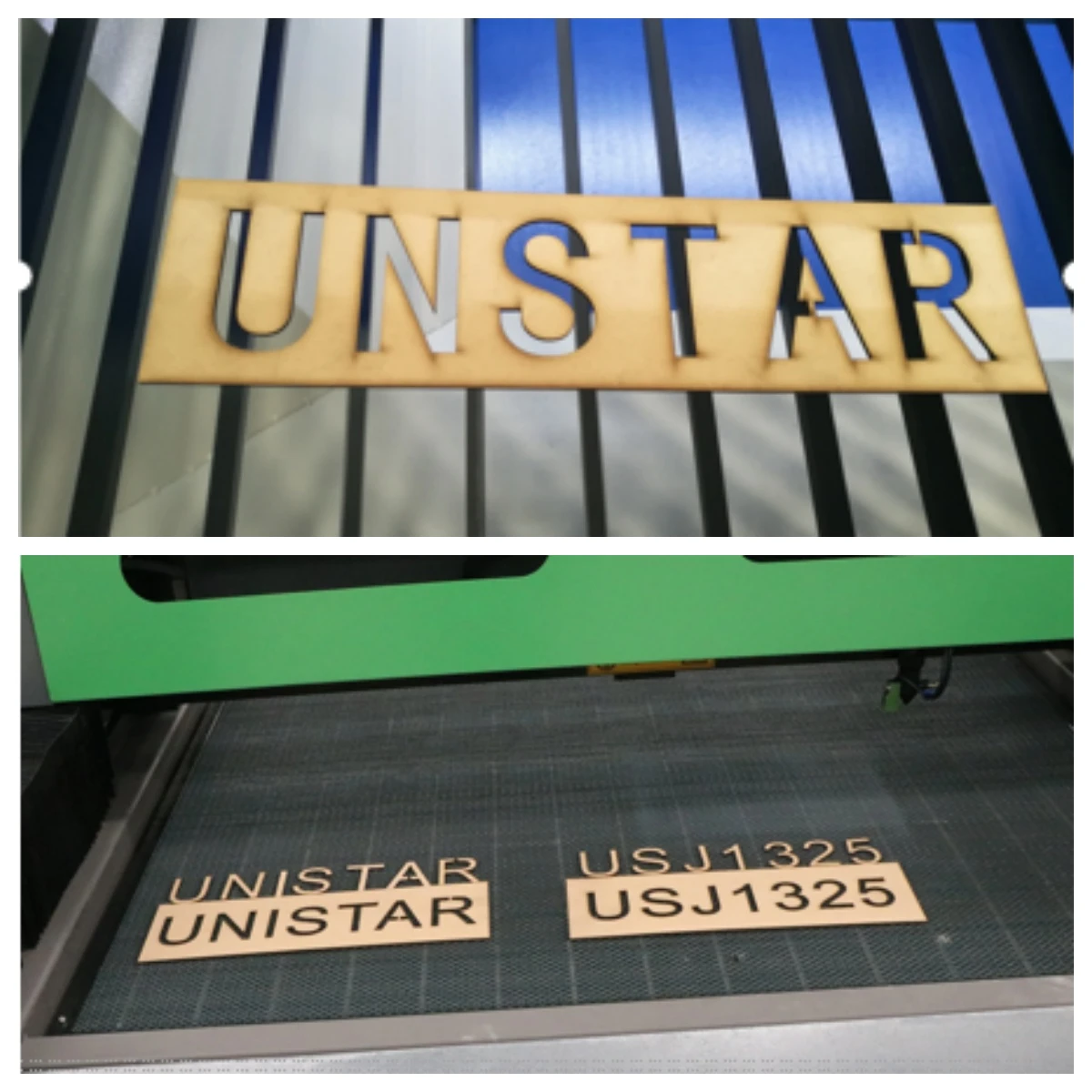

table
Blade table space is relatively large, and the contact surface of the material is relatively small, very suitable for acrylic, density board and other hard plates, to avoid leaving traces at the bottom of the material.
Honeycomb table is more suitable for leather, cloth, paper and other soft materials. These soft materials can be adsorbed to ensure that the material is smooth and to eliminate bumps and warped edges.
Laser tube
The laser tube adopts the Beijing Reci closed CO2 laser with good stability and long life. The spot is small and the power is sufficient.

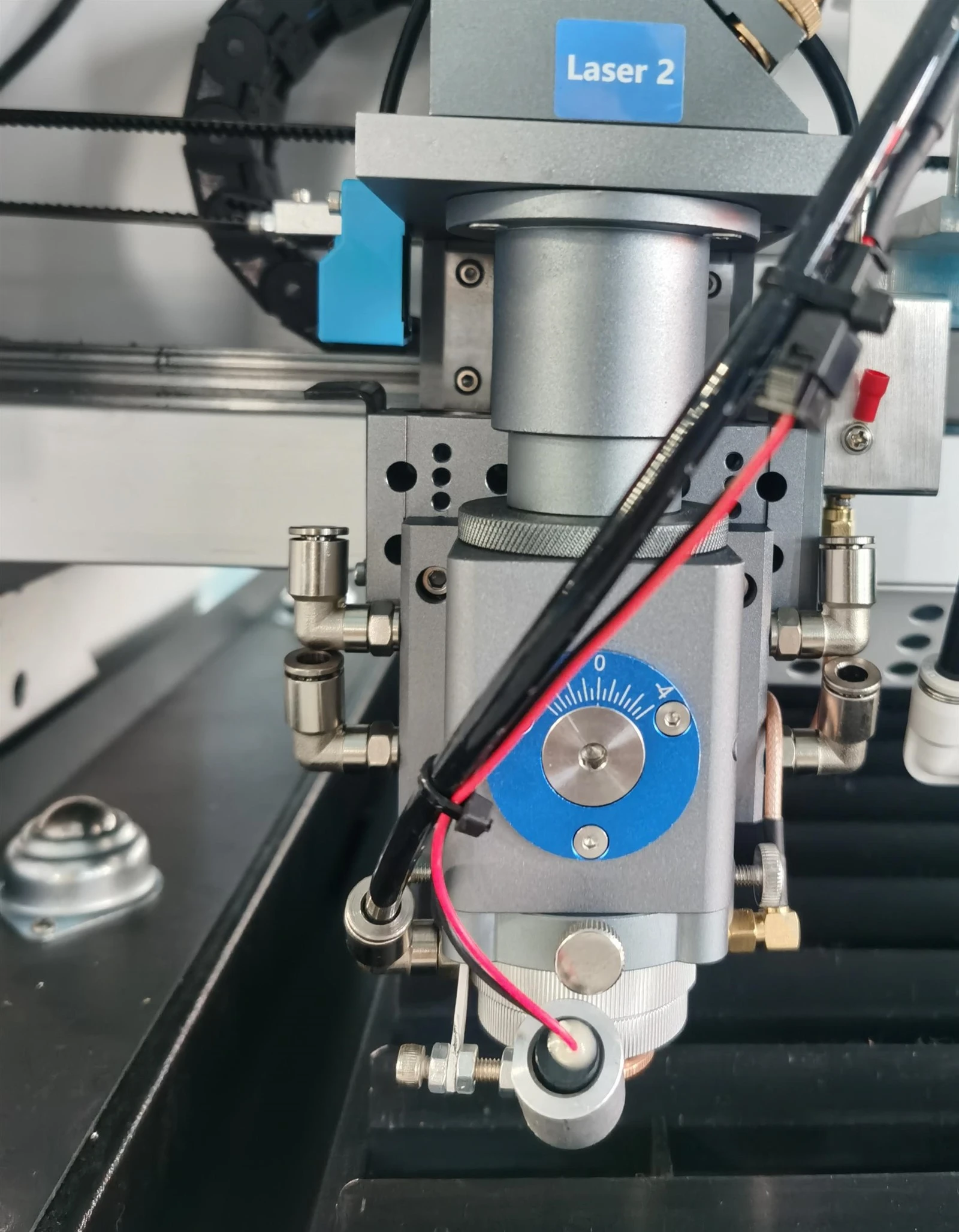

Laser head
Automatic metal induction follow-up laser head auto-focus,automatically adjust the height with the flatness of the plate.
Control system
Ruida control, farewell to the tedious storage of parameters, plug and play, offline and online, very easy to use, separate control system, strong anti-interference ability, very stable long-term work
Belt
Belt drive is a kind of mechanical transmission. It relies on friction to achieve movement and power transmission. Its biggest feature is: elasticity. It can reduce vibration and vibration during work, and run smoothly and without noise.

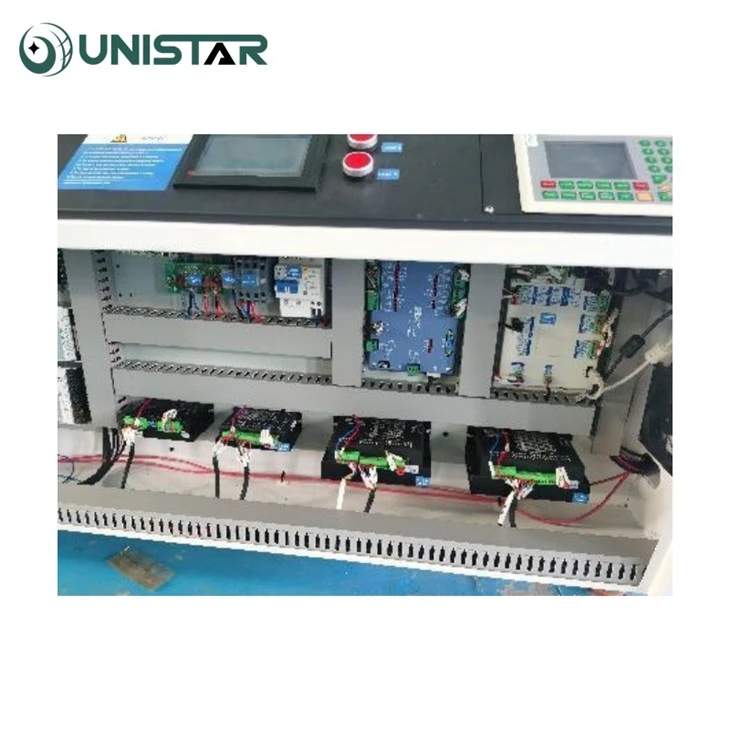

Distribution box
This box is small in size, easy to install, has unique technical performance, fixed position, unique configuration function, is not restricted by the site, has a wide range of applications, operates stably and reliably, has high space utilization, occupies a small area, and has good environmental protection effect.

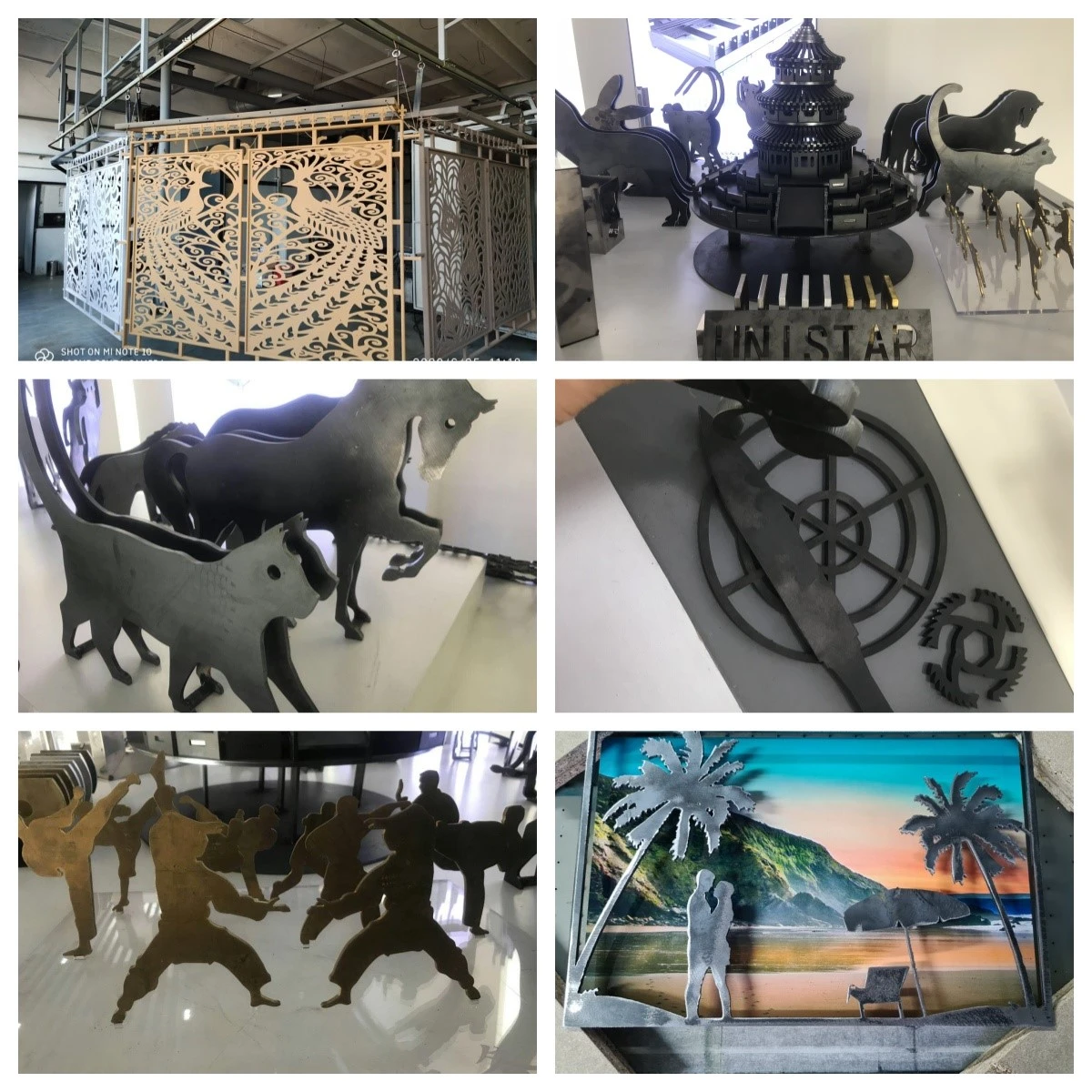

sample
Packaging and transportation
1. Standard plywood case, its compressive strength and bearing quality is better.
2. the board area is bit, the soil structure is good, it is better in leakproofness and waterproof.
3. when importing, the plywood case is with fumigation-free, the procedure is simple.
4. Delivery Detail: within 7-15 days after received your payment
Customer visit picture

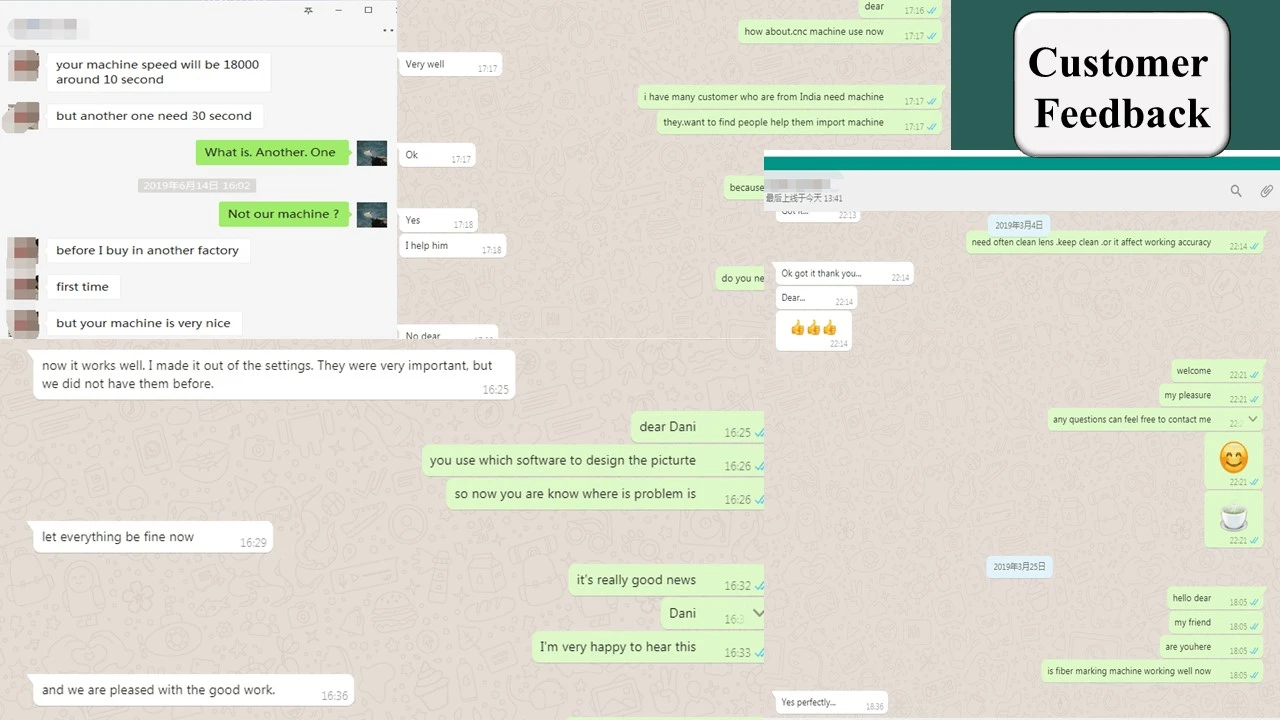

Customer Reviews
We are very pleased that after our return visits, our machines have received consistent praise from customers in various regions.
We will strive to maintain this phenomenon and make our machines and services better and better.

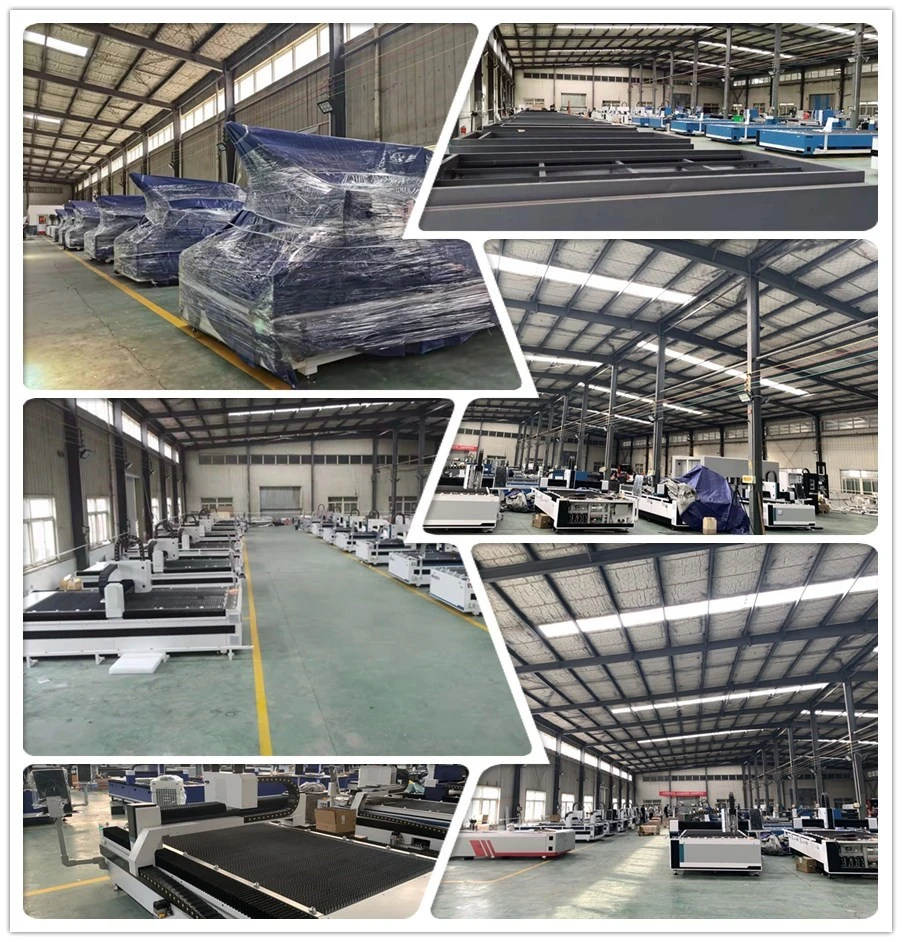

Factory show
FAQ
Q: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don't worry, you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
