applicable materials
Marble, granite, jade, bluestone, black stone and other stone materials, as well as ceramics, glass, plexiglass, PVC board, aluminum-plastic board, bamboo wood and other materials.
part details

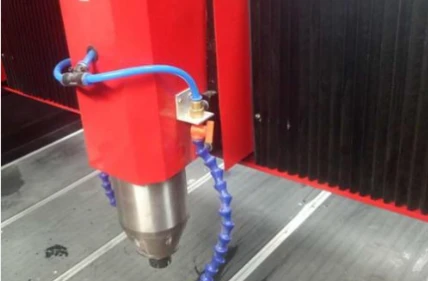

spindle
The water cooling adopt spindle adopt water cycle to cooling the spindle,cooling effect is good. almost no noise long life, small rotation vibration,fine carving without corrugation.

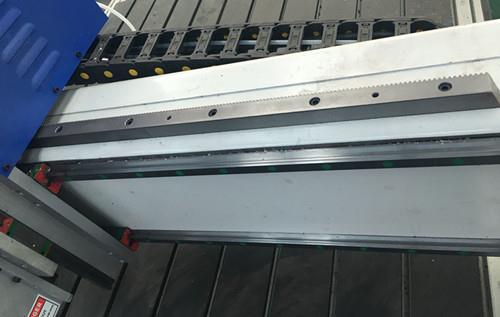

rail guide
We adopt the world famous rail and guide manufacturer Taiwan Hiwin square rails,self-lubricating sliding block.This ensures equal force in all directions and accuracy and strength of the machine.

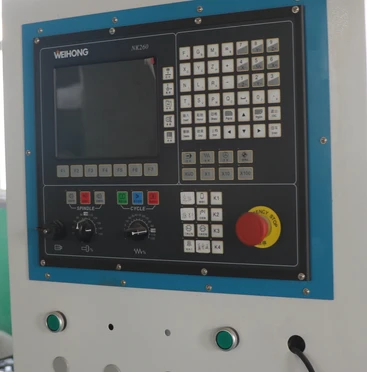

control system
We use the NC Studio control system.The efficient and stable operation of the control system ensures the high quality operation of the engraving machine and the improvement of production efficiency.

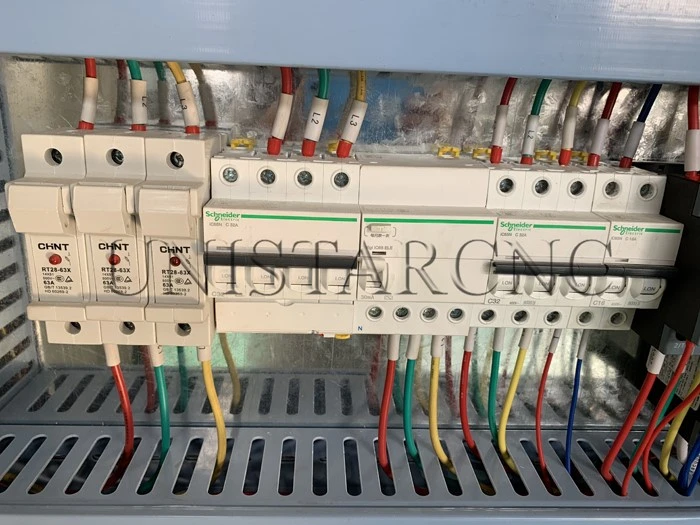

electronic
We ues the Frence Schneider electrical,the utility model has the advantages of good quality, long service life, large load capacity, uneasy damage, safety and reliability.

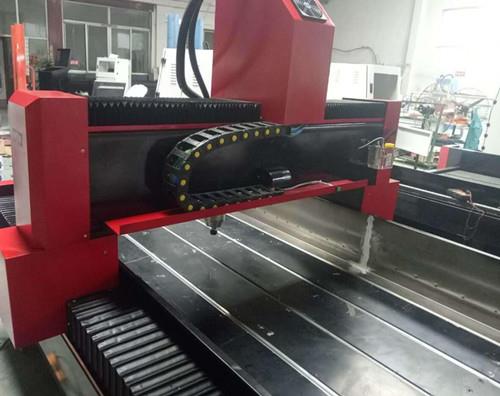

table structure
They are use 8 mm steel, ensure our machines good stability,longer life and amazing accuracy rate.
inverter
The Fuling inverter is mainly used to control spindle' start,stop,and adjust spindle speed.

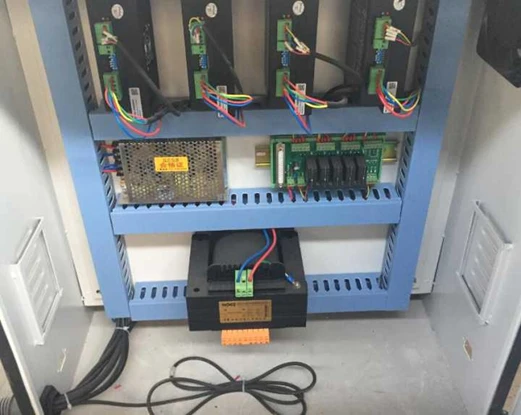

motor and driver
It can use the subdivided driving technology to improved greatly step torque resolution,reduce the torque ripple,avoid the low frequency resonance and reduce running noise.
oil injection system
Reduce manual intervention and error, reduce operating costs, energy saving and environmental protection, contribute to the stable operation of machinery and equipment and extend the life.
technical parameters

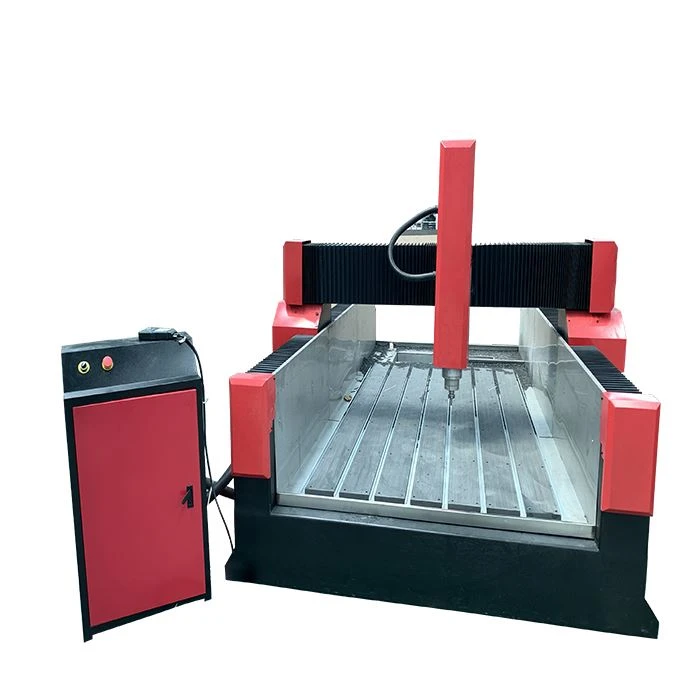

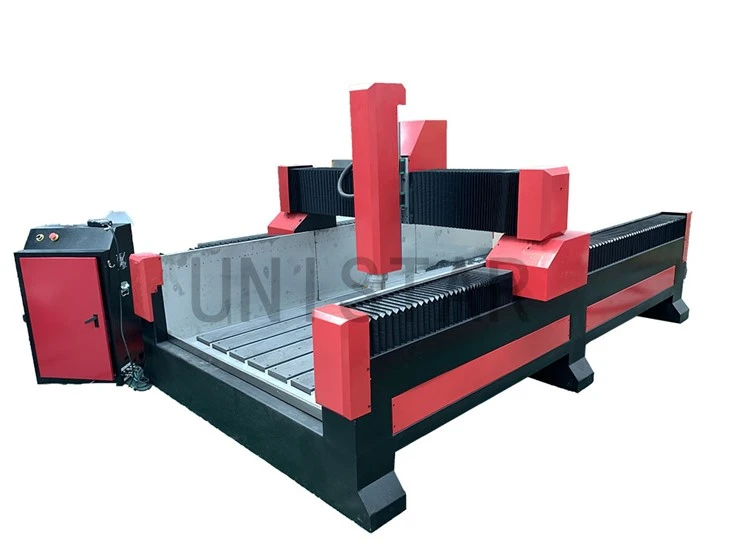

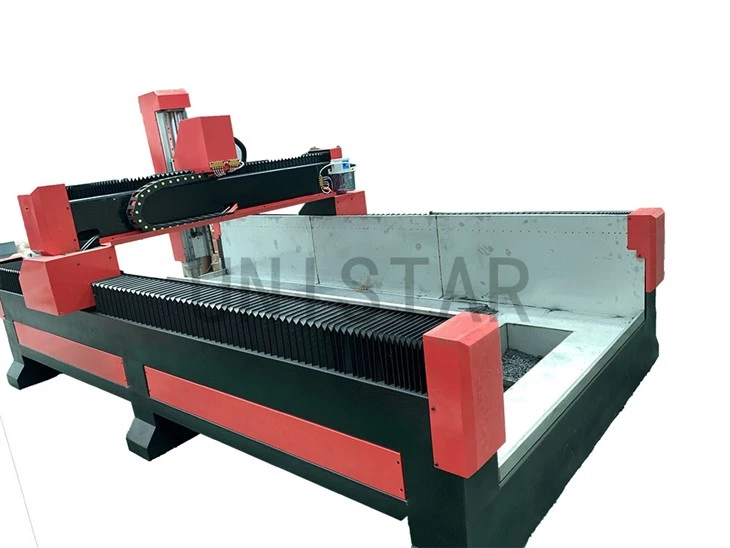

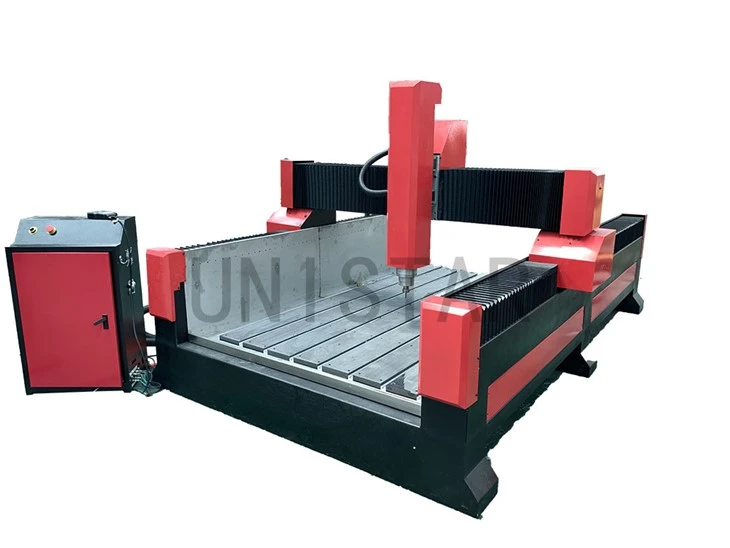

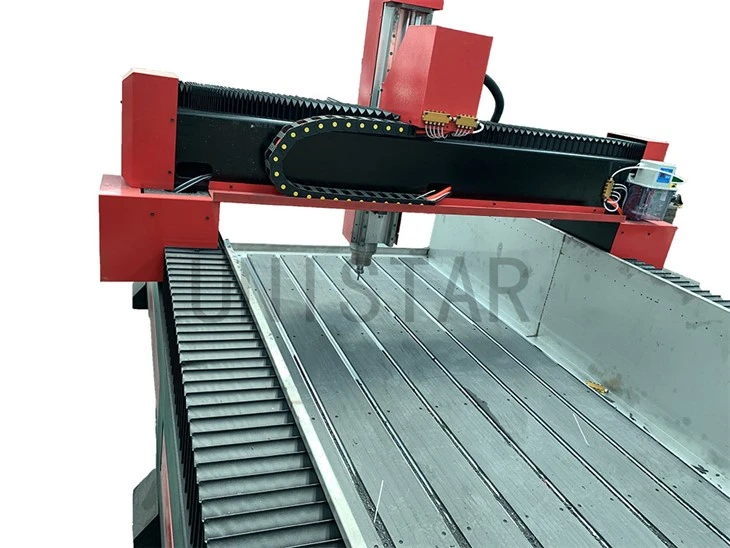

| Model | CNC stone cutting machine |
| Working area | 1300mm*2500mm*200mm |
| Table structure |
T -slot and aluminum table |
| Rail guide | Taiwan HIWIN square rail guide |
| Transmission | X,Y axis rack and pinion, Z axis Taiwan TBI ball srew |
| Spindle | water cooling |
| Spindle power | 5.5KW |
| Spindle speed | 0-24000r/mm |
| Inverter | Fuling inverter |
| Drive system | Stepper motor and drivers |
| Oiling system | oil injection system |
| Working voltage | AC380V,3ph,50HZ |
| Control system | NC Studio control system |
| Working accuracy | ±0.05mm |
| Repositioning accuracy | ±0.05mm |
| Max travelling speed | 25000mm/min |
| Max working speed | 15000mm/min |
| Command code | G code |
| Option |
Rotation axis |

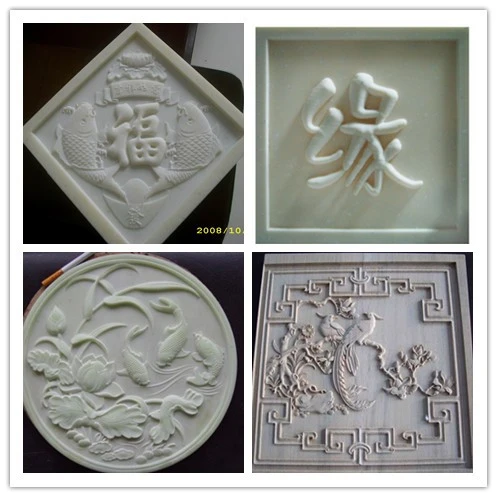

samples
warranty and service
1.Jinan Unistar CNC Factory guarantees all new machines sold to be free of manufacturer's defective workmanship, parts and material. We will repair or replace, without charge.
2.If your machinery breaks due to the operator's error, the warranty will pay for the work to repair the machine. Examples are spindles crashing, damaged guide rails.
3.If the Machinery was new when the warranty began, in the event of a total loss, we pay the new replacement value of the machine including the cost of dismantling less the value of salvaged parts.
FAQ
Q: When can you deliver the goods?
Q: How many years of warranty period?
Q: Do you have CE document and other documents for customs clearance
Q: How to install and run the machine?
Q: How to solve it if there is some problem or parts broken during operating CNC stone cutting machine?
Q: I don't know which kind of cnc router machine is suit for me
Q: Which payment way your company can accept?
