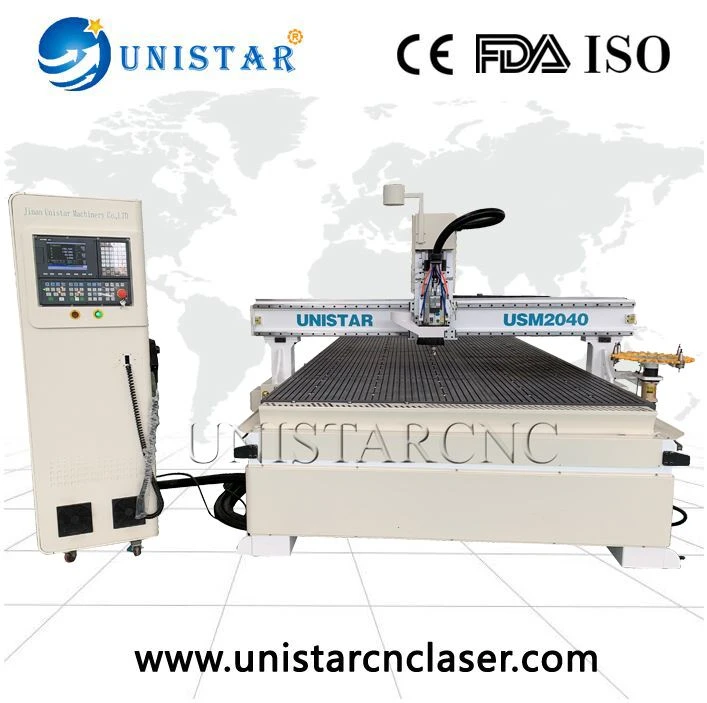

Multifunctional USM-2040 Automatic Tool Changer in CNC Machine
2040 Automatic Tool Changer in CNC Machine is a multifunctional numerical control equipment for custom furniture production. It is mainly used for cabinet door and wood door milling engraving; it can also be used for vertical hole, slotting and material cutting of plate furniture production.
Applicable industry
3D silk flower processing, wave board processing, wooden doors (such as cabinet doors, unpainted doors, etc.) production, panel furniture, density board, solid wood furniture carving, wood art mural carving, paint free door carving, all kinds of artificial board Cutting production.
Machinable materials: Various wood materials
Features
>Taiwan TBI square linear guide rail, with good dustproof effect, long service life, and easy lubrication and maintenance.
>Taiwan delta servo motor, high torque, strong load capacity, fast processing speed, low noise.
> Surfar power inverter, high driving power, powerful spindle cutting.
>NK260 control system, high read data speed, high precision and stable processing.
>Vacuum adsorption countertops are particularly suitable for large-format wooden panel batch processing, high efficiency
Technical Parameter
Name | Specification |
Machine area (X) | 2000mm |
Machine area (Y) | 4000mm |
Machine Area (Z) | 200mm |
Working area | 2000*4000*200mm |
Spindle | 9KW air cooling HQD auto tool change spindle |
Machine body | Heavy duty structure weld steel 12mm thickness |
Control system | NK260 control system with high quality |
Table type | Strong vacuum suction table ( Option: T-slot table) |
Motor and driver | Taiwan delta servo motor and drivers |
Inverter | Surfar inverter (Best in China ) |
Transmission | Taiwan ball screw (Has good performance ,long life) |
Rail guide | Taiwan TBI rail guide , |
Prevent dust system | Dust proof system |
Transmission | X,Y Helical rack -pinion ,Z ball screw |
Oil system | Auto oil injection system |
Traveling speed | 60m-80m/min |
Processing speed | 25m/min |
Spindle RPM(max) | 0-24000 RPM |
Position accuracy | ±0.02mm |
Tool sensor | Auto tool sensor |
Dust collect system | 3KW Double bags collect system |
Vacuum pump | 5.5KW vacuum pump for vacuum table |
Tool magazine | Carousel style ATC 8 position |
Tool holder | 8 tool holder (Option: 10 /12 tool holder) |
Date of delivery | 25 WORKING DAYS AFTER GET PAYMENT |
Detail pictures
1.Italy HSD/China famous brand HQD 9KW air cooling spindle

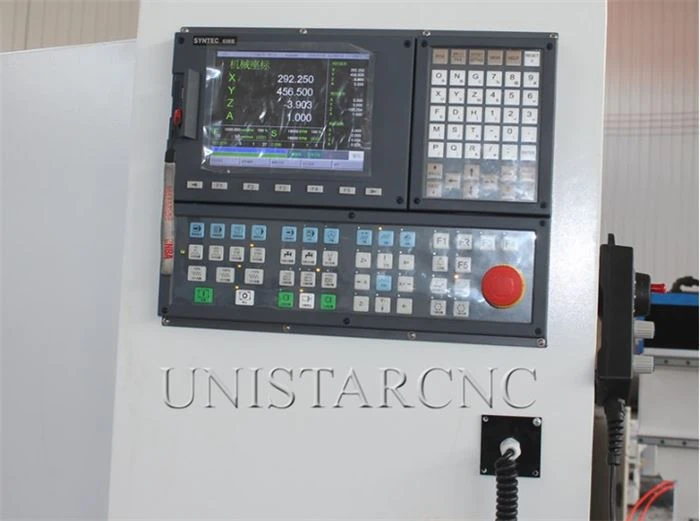

2.Taiwan Syntec control system

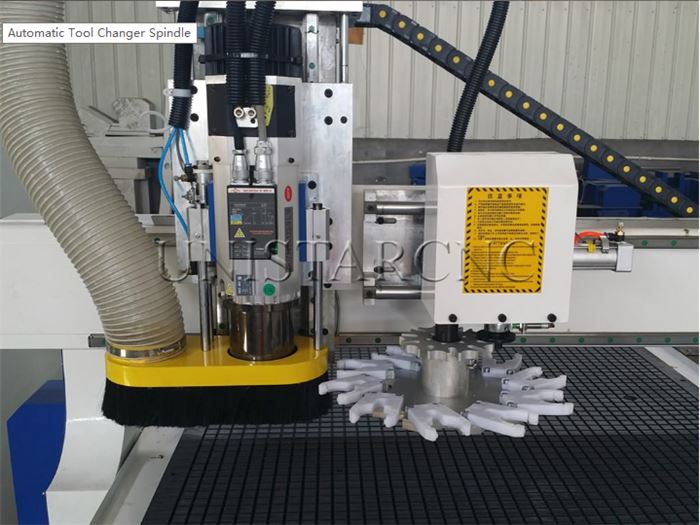

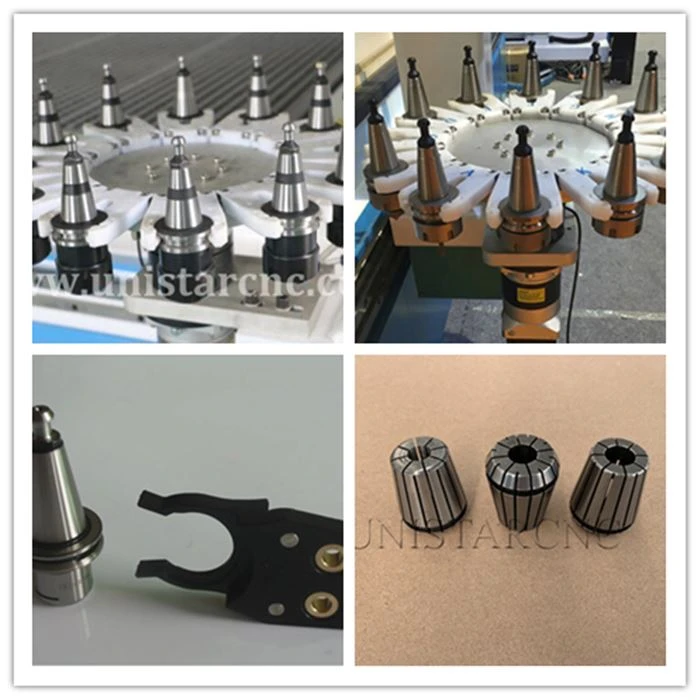

3.Tool magazine ( 8/ 10/12 optional )

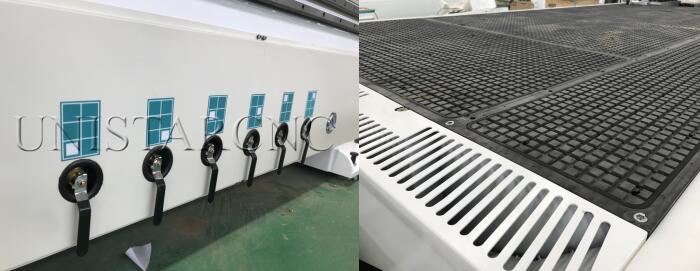

4.Vacuum adsorption table, instant adsorption, instant release, strong adsorption of different areas of the plate
Sample picture

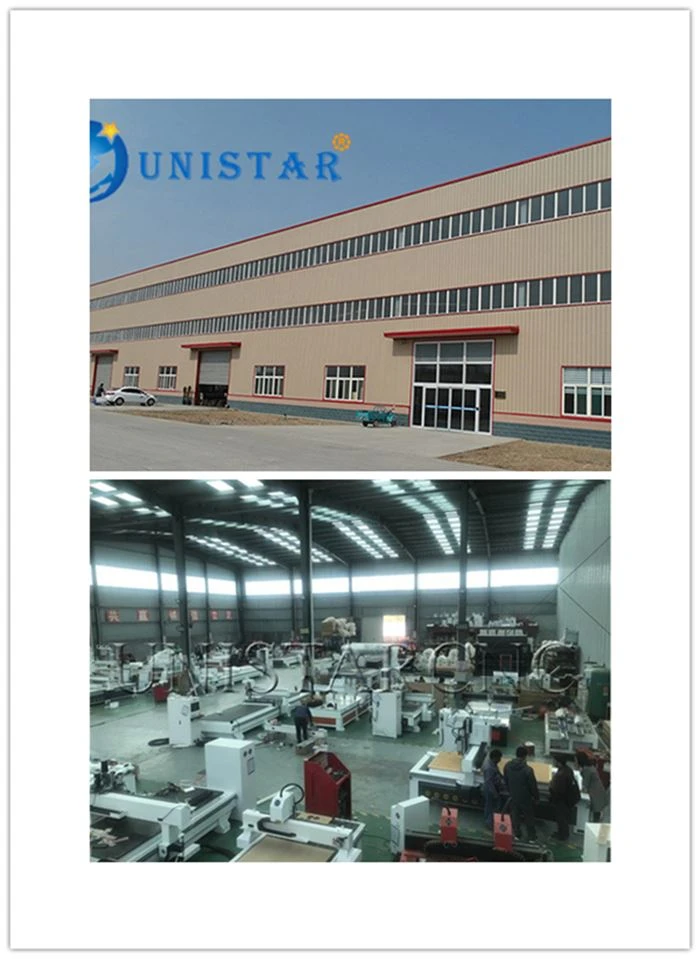

Factory show
OUR SERVICES
Pre-sale service:
1. Free inquiry and consulting support.
2. Free sample testing.
3. 24 hours detection process by professional testing equipment and facilities before shipment.
After-sales service:
1. 1 years warranty for the machine.
2. Free "instruction manual" and "operation video".
3. Free online training for installation and operation.
4. Lifetime technical support by e-mail, phone or video.
5. Provide door-to-door instruction and operating training service by our engineer if need.
6. Engineers available to service machinery overseas.
