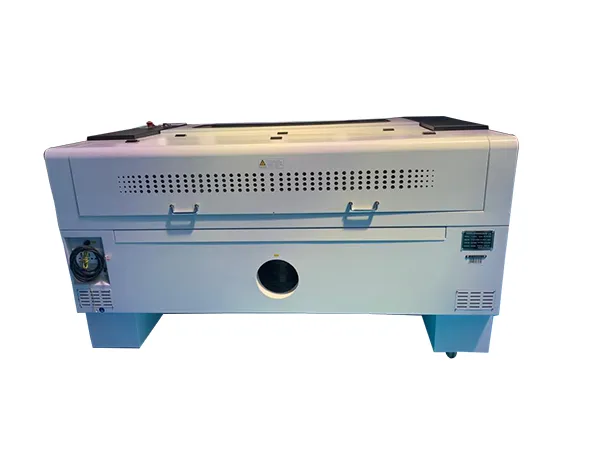

Acrylic Laser Cutting Machine

Acrylic Laser Cutting Machine

Adopt integration frame structure design, make the machine running stable no noiseCarbon dioxide laser cutting machine principle is the use of carbon dioxide molecular motion to produce laser, both carbon dioxide laser tube laser, through the focusing mirror focusing, the laser beam focused on the surface of the object to produce high temperature, so that the material is sublimed into a gas, by the extraction fan to achieve the effect of cutting objects
Send Inquiry
Chat Now
Description



applicable industry



Printing and packaging industry: rubber version of laser engraving cutting, paper products such as laser engraving cutting.
Craft gift industry: crystal carving, bamboo slips laser engraving, laser engraving block book, annatto laser engraving, double color boards carving, box crafts laser engraving, laser carving, carved in the marble board.
The advertising industry: organic glass laser engraving (cutting), double color boards carving, all kinds of plaques made of laser.
Leather clothing industry: all kinds of leather, clothing, textile fabric design, leather cutting and pattern engraving and cutting.
Model industry: building model, ABS plate cutting, aviation model slicing, wood cutting and carving.
Stone (tomb) industry: photos and text on the marble, granite carvings.
Studio industries: photo albums, paper, organic glass, acrylic, wood engraving pictures, make special photo album.



Products details
product-511-340

laser tube

Laser cutting can accurately and quickly cut a variety of materials, such as metal, wood and plastic, and its carving effect is also quite significant.

product-511-340

laser head

The operation is simple, can be carved order, processing level, which can realize partial or all of the one-time output laser power, speed, focal length adjustment flexible.

product-511-340

control panel

It can operate the machine accurately and accurately, select the processing path, and the operation is simple and efficient.

product-511-340

inverter and drivers

Control the movement of spindle and motor, running speed is fast, no noise, to ensure the stable operation of the machine.

product-511-340

body

Elegant appearance design; Super strength steel plate, industrial grade; The effective protection of equipment running smoothly and life

product-511-340

rail guide

The movement speed is fast, the precision is high, to ensure the smooth operation of the machine

technical specification



Name

Specification

Type

USJ1390

Marking Area

1300*900MM

Laser Power

60W/80W/100W/130W/150W/ CO2 laser tube

Cooling Mode

Water cooling, water chiller CW3500

Material

Acylic, wood, MDF, leather ,paper and so on

Control System

RD (Ruida) control system

Motor and drivers

Stepper motor and drivers (import from Taiwan,has high quality)

Table

Blade table

Ball srew

Taiwan TBI ball srew

Rail

Taiwan high quality rail guide

Transmission

ShangHai Fulong belt transmission

Prevent dust system

Dust proof system

Feed rate (Max)

8m/min

Accuracy

0.001mm

Repeatability

0.005mm

Cutting Speed

350mm/s

Support Software

Coreldraw, photoshop, Autocad, TAJIMA

Graphic format support

PLT,DXF,BMP,JPG,AI and etc



samples
product-500-400
product-500-400
product-500-400
warranty and service

#. In the processing of production, our professional technical engineers inspect the processing to ensure the quality of products
#. Every machine must be tested before delivery for 8 hours, all of them are absolutely qualified.
#. 12 months guarantee of the whole machine.
#. Main parts(excluding the consumables) shall be changed free of charge if there is any problem
during the warranty period.
#. Lifetime maintenance free of charge.
#. We will provide the consumable parts at an agency price when you need replacement.
#. Machine has been adjusted before delivery.
#. Our staff can be sent to your company to install or adjust if necessary

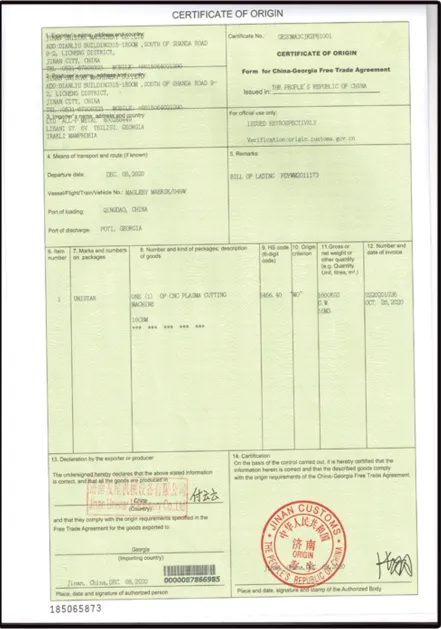

Our qualifications
product-437-607
product-429-603
product-446-625
product-441-629
product-445-611
fAQ

Q: How many years of warranty period?

A: The whole machine have 2 years quality guaranty, ,any parts broken during the warranty time , we will take place of it free (Under no human damage ).

Q: Do you have CE document and other documents for customs clearance

A: Yes, we have CE, Provide you with a one-stop service. At first we will show you and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.

Q: How to install and run the machine?

A:Our technician have installed the machine before shipping. For some small parts

installation, we will send detail training video, user's manual along with the machine.

95% customers can learn by themselves.

Q: How to solve it if there is some problem or parts broken during operating metal tube laser cutting machine

A: If machine technical problem , we have engineer online support service , through remote control , video show , to help solve problem , if parts broken ( not consumption parts ,we will take place a new one as soon as possible .
