Pipe Laser Cutting Machine

What is Steel pipe cutter machine ?

1>It's professional tube cutting fiber laser machine, suitable for all kinds of stainless tube, round tube, square tube and oval tube. Improve the quality of tube cutting products, make cutting become simple.

2>Apply industry

Suitable for all kinds of metal pipes: round pipe, square pipe, rectangular pipe, elliptical pipe, waist pipe, D pipe, hexagonal pipe, special-shaped pipe, etc

Advantages of the Fiber Laser cutter for pipe Cutting

1. Precision
The Laser Tube Cutting Machine provides high precision and accuracy in cutting due to its focused laser beam. It offers a smooth and clean cut with no burrs or deformations.

2. Speed
The machine's speed is one of its most significant advantages. The Laser Pipe Cutting Machine can cut through tubes and pipes in a matter of seconds, making it an incredibly fast and efficient process compared to traditional cutting methods.

3. Versatility
The Laser Pipe Cutter can cut through a wide range of materials, such as steel, aluminum, brass, and copper. It can also handle a wide range of tube diameters, from small to medium to large.

4. Cost-effective
It is a cost-effective option due to its precision and efficiency. It reduces material waste and speeds up the production process, resulting in savings on production costs.

5. Easy to Use
The machine is easy to use, with no complicated programming or setup required. It can be operated by a single person and does not require any additional tools or equipment.

Japan Shimpo reducer



High output torque, small rotation clearance
-PCS-2 standard configuration, the efficiency is as high as 98%.
- High gear meshing precision

.

Smart touch screen



- Adopt HD tempered glass, smart touch, fast response, smoother operation.
- Ultra-low power consumption and high resolution.
- The new intelligent alarm system is pushed to the interface through the control center to detect anomalies in advance, quickly eliminate and feedback, reduce hidden dangers, and there is no danger in remote alarm operation

Japanese Fuji servo motor and driver



- Closed-loop control, no out-of-step, high precision.
- Good high-speed performance, the rated speed can generally reach 3000 rpm.
- Smooth operation even at low speeds.
- Fast response time and high reliability.

Max laser source

Long life, maintenance-free operation
- High electro-optic conversion efficiency
- Good beam quality, high energy density
- Remote network diagnosis system
- wide modulation frequency
- Strong reliability

Raytools BM110 Autofocus cutting head



The laser head has an automatic focus function, which can automatically adjust the focal length without manual adjustment. The software can automatically change the focusing lens according to the different thickness of the material. It can shorten the punching time, improve the punching quality and cutting speed. It is simple, convenient and fast.

Integrated machine bed

- The unique industrial structure design gives it maximum stability and higher shock resistance and shock absorption qualities

Taiwan YYC rack and pinion
-High transmission efficiency
- Transmission is sensitive and stable
- High positioning accuracy
- Good accuracy retention
- High transmission rigidity

French Schneider Electric components or American Honeywell
- Flame retardant casing, environmentally friendly.
- 3C certification.
- Quick shutdown function.
- Stable and not easily affected by seasonal temperatures.

High power dual exhaust fan system

- Dual high power exhaust fans provide powerful suction.

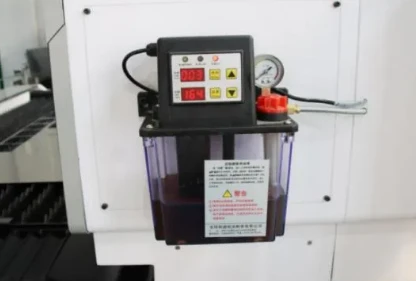

Automatic oil supply lubrication device

We can control the time and frequency of lubrication through the central control system. It can lubricate sliders, guide rails, racks, etc., and can automatically collect used lubricating oil. It has the functions of abnormal lubrication alarm and low liquid level alarm to help maintain the fiber laser cutting machine.







Q1: What kind of material can a laser tube cut?

A1: It can cut Stainless steel, carbon steel, galvanized sheet, gold, silver, copper and aluminum all kinds of metal pipe.

Q2: What are the wearing parts of the laser pipe cutting machine

A2: Nozzle, Ceramic ring, protect lens and optical element.

Q3: Did Your Factory Accept OEM Production?

A3: Yes, we can customize the machine and logo according to customers' requirements

Q4: What is Max Traveling speed of X,Y, Z axis?

A4: X axis and Z axis speed can up to 80m/min, Y axis back chuck moving speed is about 80m/min

Q5: Does Pipe Laser Cutting need gas assisted cutting?

A5: YES, Cutting carbon steel Pipe need O2, stainless steel tube choose N2 or Air

Option is air compressor, but it's better to choose gas. this cutting effective is better

Q6: What Are the Optional Accessories for Metal pipe cutter?

A6: It is mainly contain air compressor, pressurizer, also can choose up and down loading device (for Automatic feeding saves labor and time).
