ATC CNC Woodworking Linear Tool Changer

ATC CNC Woodworking Linear Tool Changer Machine / 9 KW ATC Air-cooling Spindle Auto Linear Tool Changer CNC Router

Application Industries

UNISTAR ATC CNC woodworking linear tool changer is widely used in the industrial of solid wood furniture  , wood cabinet, wardrobe cabinet, office desk  and solid wood door, decorative panel, computer desk, office furniture.

More Machine Detail Picture

Technical Parameter

Machine Detailed Description

CNC Router HSD Spindle

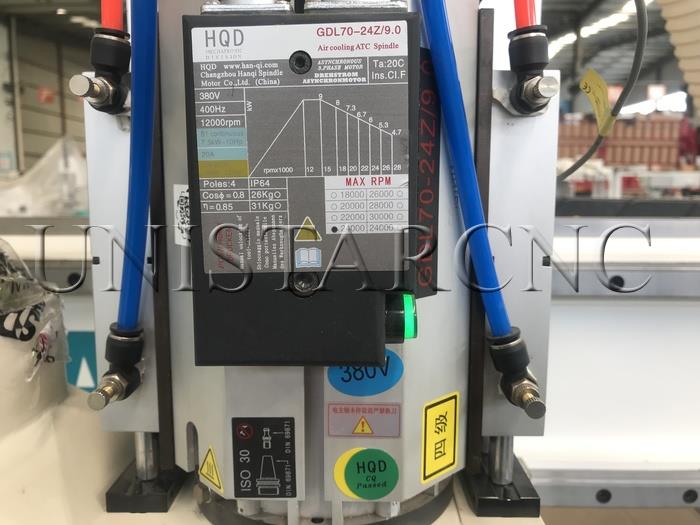

ATC CNC Woodworking Linear Tool Changer is equipped with an HQD 9kw frequency spindle with programmable speeds of up to 18,000 RPM.

CNC Gantry

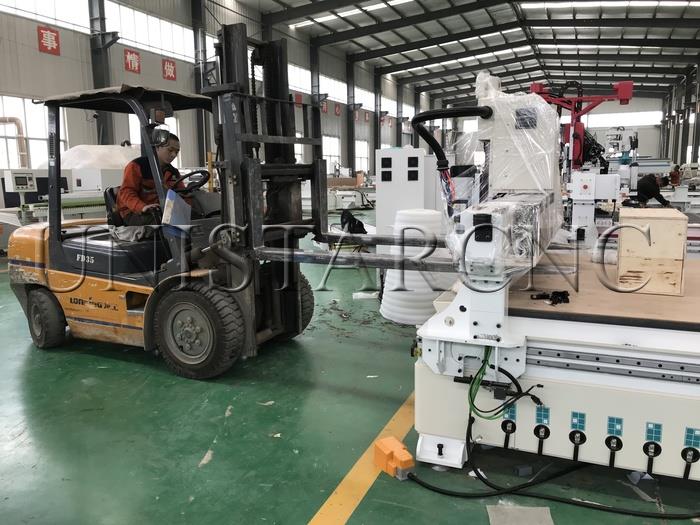

Gantry “Be warned thought that the gantry is very heavy and we needed a forklift truck to put it into place.”

CNC Machine Frame

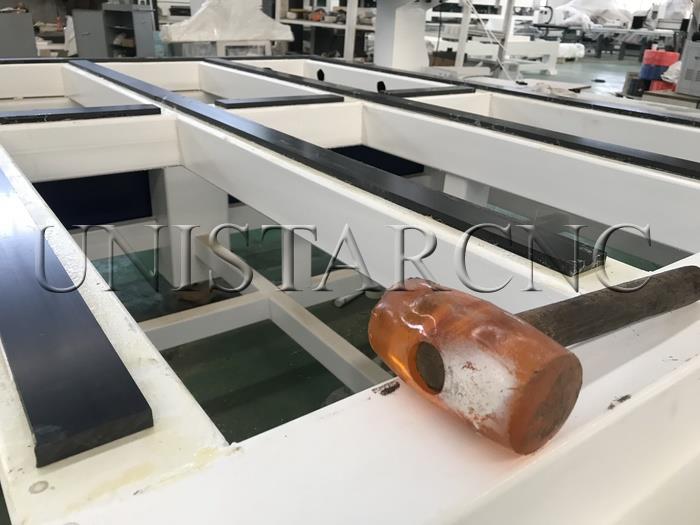

The cnc machine frame is fabricated from heavy-duty tubular steel that is well welded, precision machined and stress relieved, the whole machine frame ensures the machine work steady very well.

Vacuum Working Table

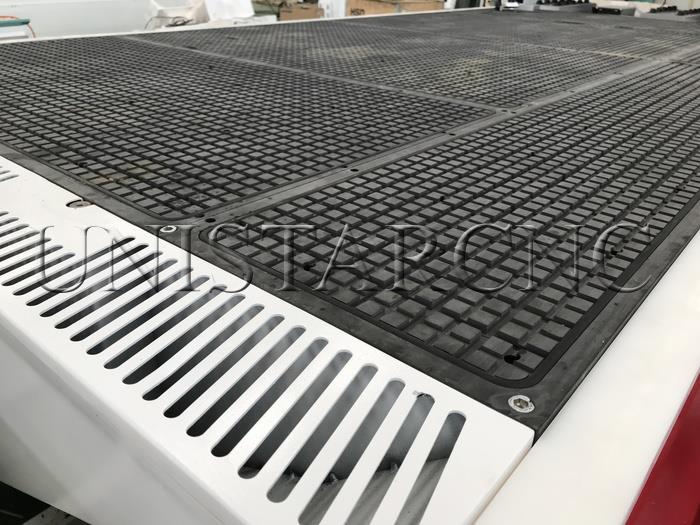

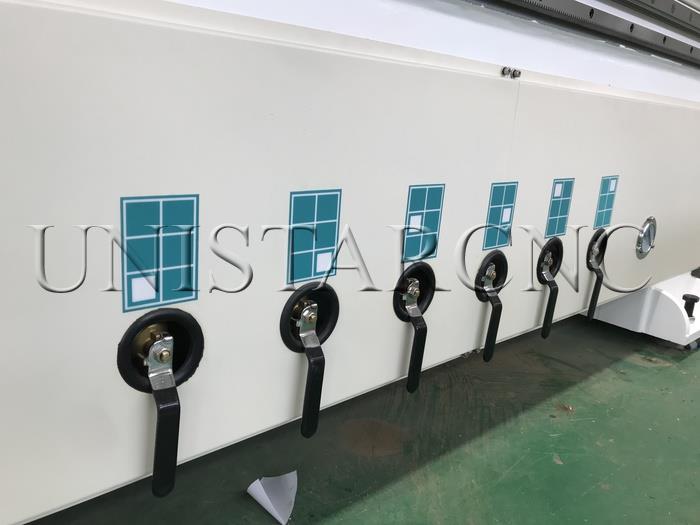

A matrix table and powerful vacuum pump, (up to 140m3/h, -85kpa) are used to allow the best vacuum hold down, this is essential for nested-based manufacturing. The table has a 25mm thick phenolic vacuum table surface mounted onto the steel base frame, is with multi zones, which allows the operator to switch from full sheet processing to smaller part processing. Every vacuum zone is controlled by separated valves on the front of machine, and whole vacuum zones are with one general valves to control.

Syntec Controller

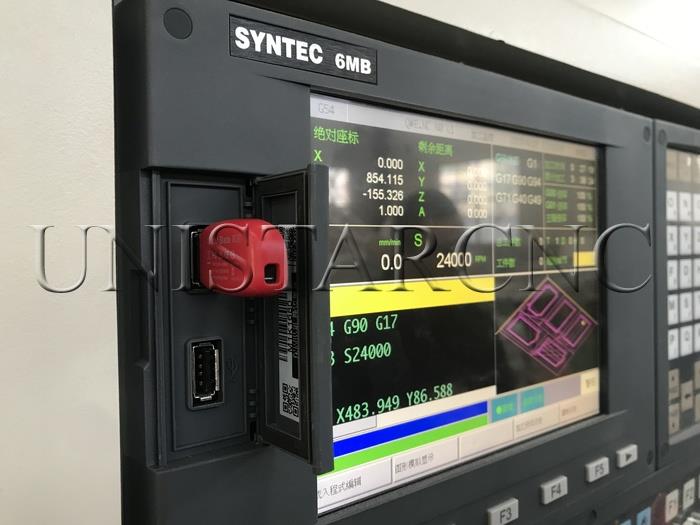

Syntec control system is a new CNC management system with a new concept. -PC Platform Control System -Waterproof design

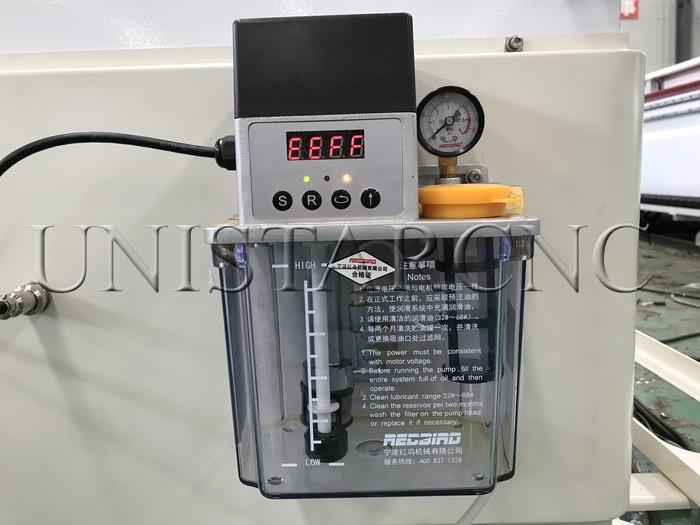

Automatic lubrication system

After filled lube tank, every week move it to lubricate all 3 axis for longer life time working. Trying 15-40 motor oil or gear oil 75w to start.

Features:

1. High-power encryption vacuum adsorption table can absorb different volume of plates, saving time for loading and unloading, and reducing the work intensity of workers.

2, The plate utilization rate is high, the plate is automatically positioned, saving time and effort, the CNC cutting saw can use the milling cutter to open the material at any direction, with the optimization software, the combined order layout utilization rate is over 96%.

3. The Y-axis is driven by a dual motor, and the pairing is selected to ensure smooth movement. It does not deform or shake for a long time at high speed. The Z-axis uses Taiwan-made ball screw and imported linear guides for high precision and durability.

4. A powerful vacuum system, can absorb wood chips and broken foam during the processing, there will be no dust flying phenomenon, can improve the working environment.

5. Many functions, cutting and cutting, slotting holes, engraving machine shape can be omnipotent, can cut the shaped plate, can work continuously and stably.

6. The special control system has the functions of breakpoint, power cut, broken knife continuous carving, processing time prediction, etc., to ensure continuous processing in the next day, with high stability and high efficiency, and easy to learn.

7. Strong compatibility, suitable for a variety of CNC software: type3, Artcam, Castmate, Pore, Wentai, a variety of CAD / CAM software. Embossing, shadow carving and 3D art characters can be easily made.

8. T-type structure heavy bed, thick-walled square tube seamless welding, after vibration aging treatment, durable, not easy to deform.

9. Shaped cutting: The cutting machine adopts the cutter cutting method, which can cut any shape. At the same time, the automatic typesetting software can also optimize the typesetting of the shaped type, so that the shaped cutting becomes faster and more precise.

10. Humanized interface design, simple operation, ordinary people can complete the operation after simple training, no professional knowledge.

Sample  Picture

Packing and Shipping

The volume of USM-1325 ATC CNC woodworking linear tool changer machine is about 13 cbm ,

Usually be loaded by 20'/40' container and shipped by sea , this is the most convenient and economic way.

The sea shipping days depend on the distance between the port of destination and the port of origin.

Normally it will take 30-40 working days to destination port .

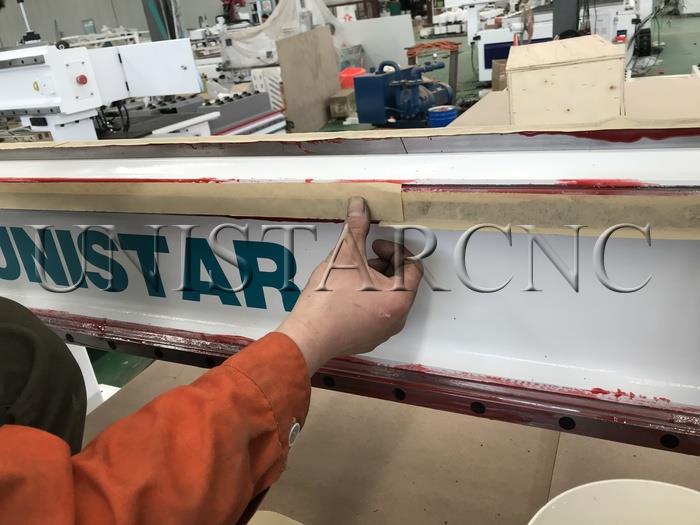

EU international standard packaging guarantee anti-moisture , anti -collision  and  anti water during the long time sea shipping time , Each rack and rail guide is rust-proofed before shipment to ensure that it does not rust when it arrives at the customer.
