Plasma Cutting Table for sale with cheaper price

The desktop CNC plasma cutting machine is a high-precision, high-precision, high-reliability cutting equipment that combines precision mechanical transmission and thermal cutting technology. A good man-machine interface makes the operation more convenient. It can quickly and accurately cut a variety of plates with complex shapes. It is especially used for automatic cutting of medium and thin non-ferrous metal plates, stainless steel and carbon steel plates.

Send Inquiry

Description

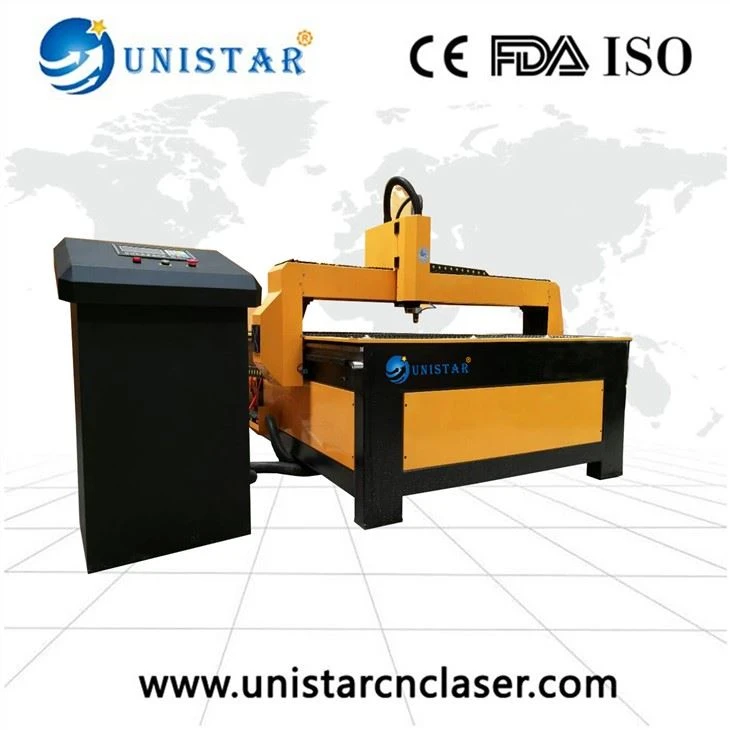

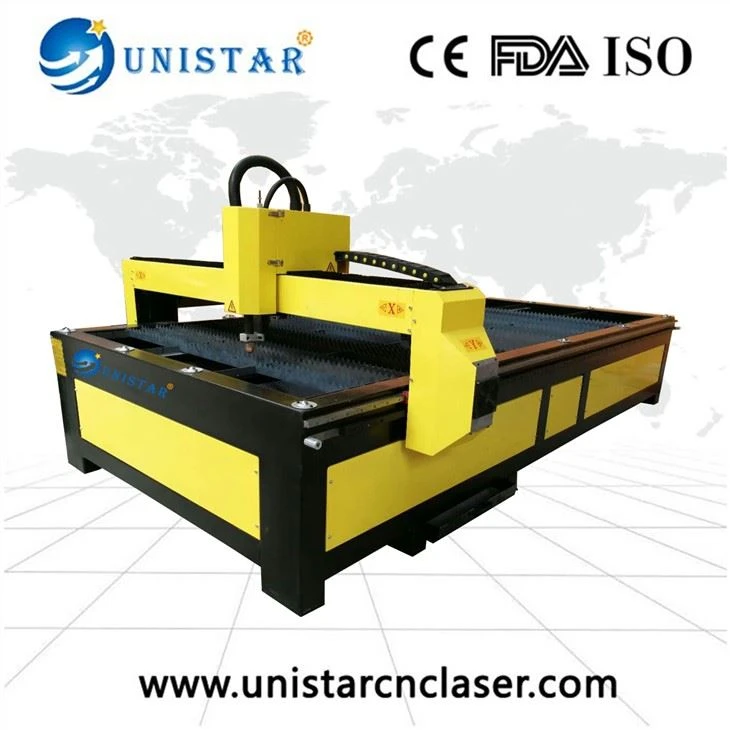

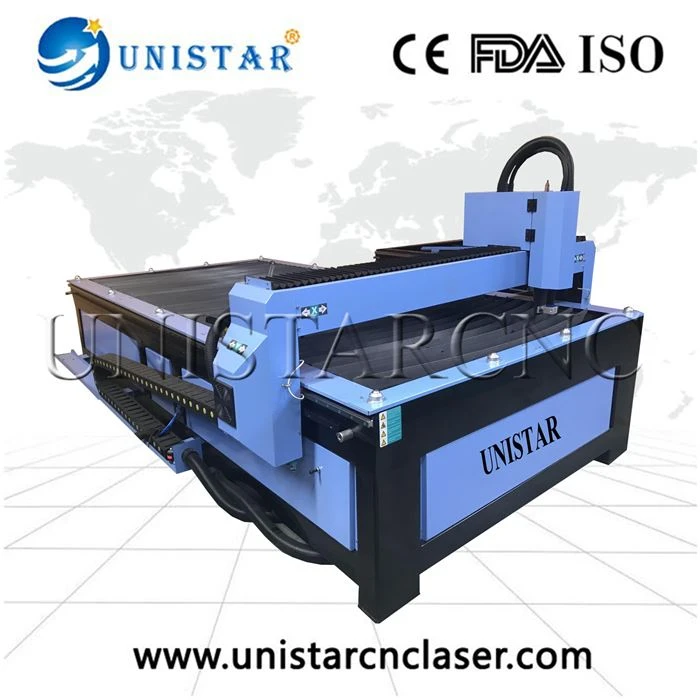

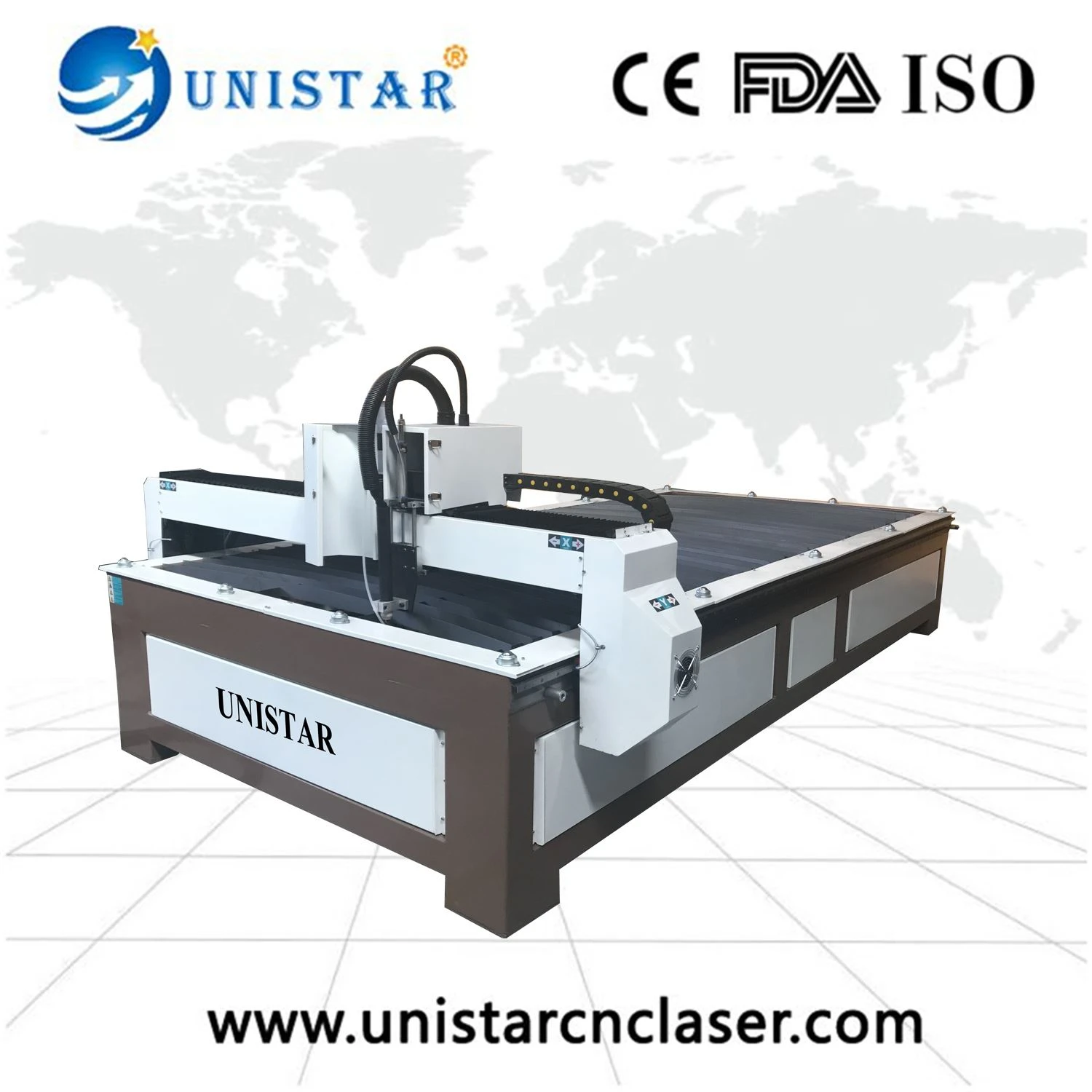

USP1530 Professional Supplier Plasma Cutting Table

1500

Industrial Appilacation

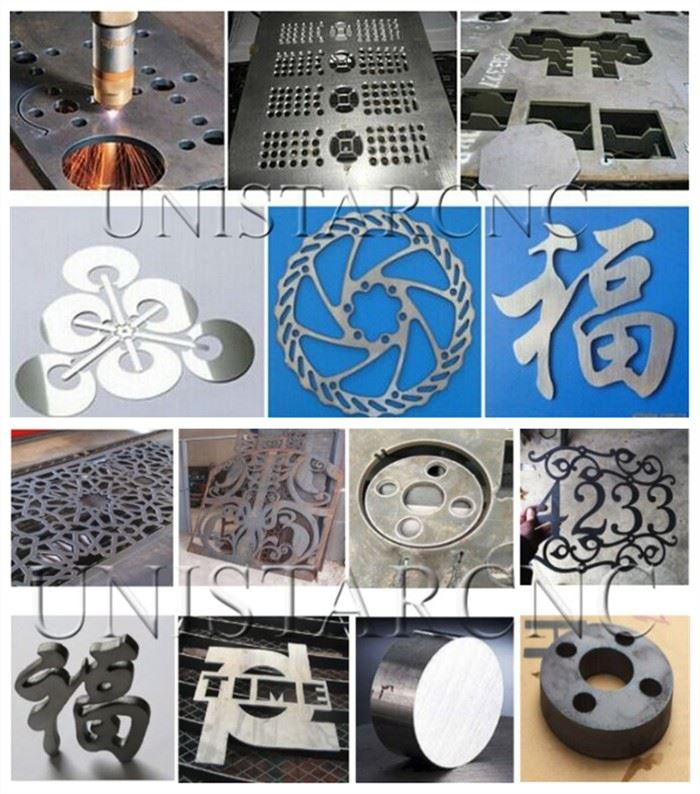

Advertising, air duct, sheet metal, metal processing, machinery manufacturing, auto parts, ventilation and environmental protection, steel structure shipbuilding and other industries.

Techinical parameter

Name	Specification
Machine area (X)	1500mm
Machine area (Y)	3000mm
Working area	1500*3000mm

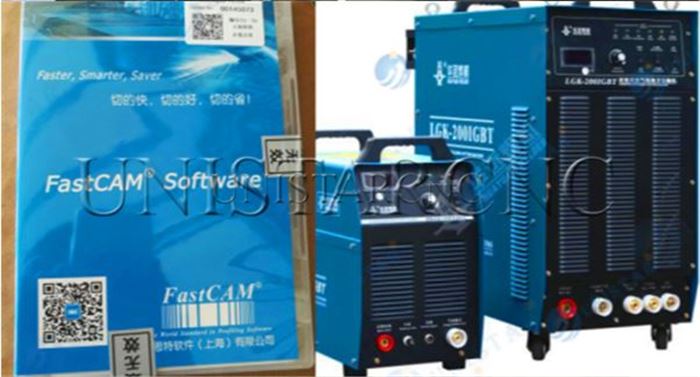

Supply power	China domestic Huayuan plasma power LGK160A（option American Hypertherm ）
Control system	Beijing Startfire control system
Motor and driver	Stepper or Servo motor and drivers with best quality option
Transmission	Taiwan ball screw with high accuracy
Transmission	X,Y Helical rack -pinion ,Z ball screw from Taiwan
Rail guide	Taiwan rail guide

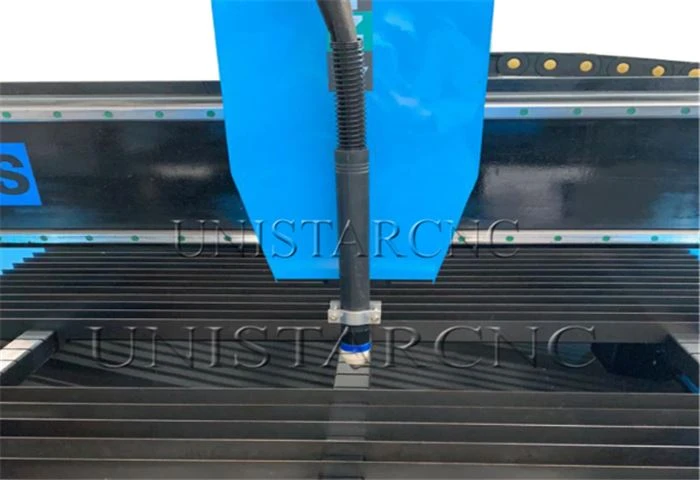

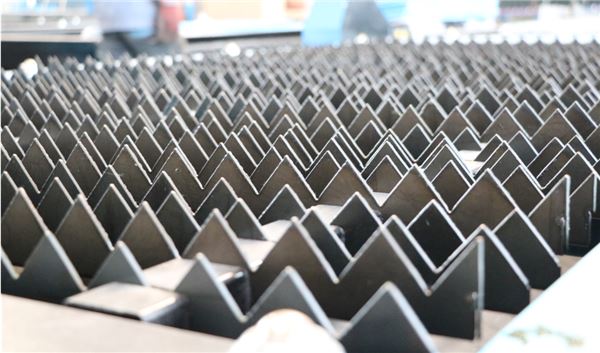

Table type	3mm thickness Blade table (other factory use 2mm thickness)
Machine body	Whole machine is welded with seamless steel structure
Software	Original one Fastcam software special use for CNC plasma machine
THC system (follow-up system）	Torch height control system (has touch screen , more easy to adjust the arc height)
Prevent dust system	Dust proof system
Oil system	Auto oil injection system
Max. cutting speed	16000mm/min
Power cutting ability	0.5-30mm
Repeatability	0.005mm
Working voltage	380V/60HZ/50HZ

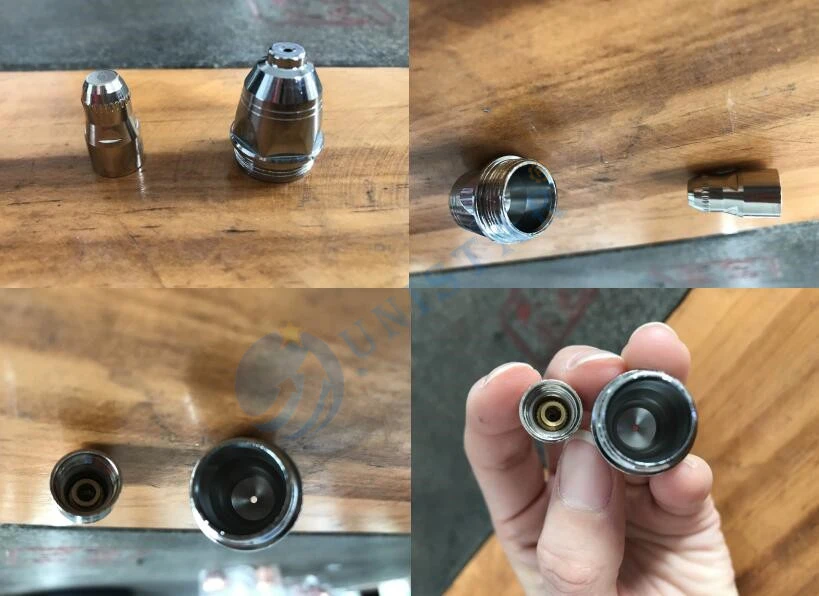

Spare parts	Electrode / Nozzle / Protective cap
Air compressor	We added for you
Warranty	Machine 1.5 Years ,during warranty , we can take broken parts free if no human damage

Plasma Cutting Table Feature

1. The whole bed adopts steel structure after welding to finish machining, and the whole tempering, fully eliminate the welding stress, and the performance is stable and reliable. After the beam and the end turn are cast aluminum, they are finished and transported.

Good performance. The longitudinal use bilateral synchronous drive system. Ensure the machine speed and accuracy.

2. The vertical and horizontal guide rails adopt domestically-made or imported linear guides with high precision and good guidance. The drive rack and gear are customized by professional manufacturers, and the surface is carburized and quenched with high precision.

3, With a liquid crystal display, all using Chinese characters display. The various methods of operation are displayed at any time below the display, so the operator can perform various exercises simply by training.

It is very clear and convenient to use.

4. The drive system is servo drive or stepping drive. According to the user's needs, it can choose the world's high quality products - imported Japanese Panasonic AC servo drive or stepper motor drive, It is a more stable operation of the whole machine, wider speed range, and short acceleration time.

5. The machine has a unique smoke and dust removal device as well as ventilation type cutting table and slag storage device to create a good working environment.

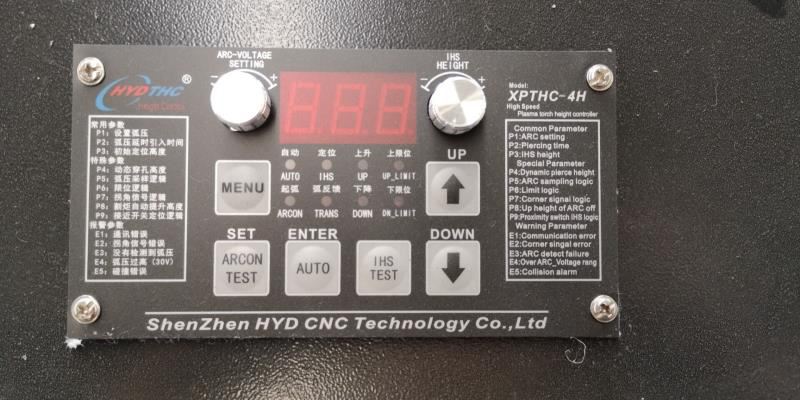

6. With high response sensitivity arc voltage regulator, automatic adjustment to select the best cutting distance, in order to ensure the accuracy of the workpiece cutting.

7. According to user requirements can be equipped with a variety of plasma power supply to meet the different metal material cutting.

Detial picture show

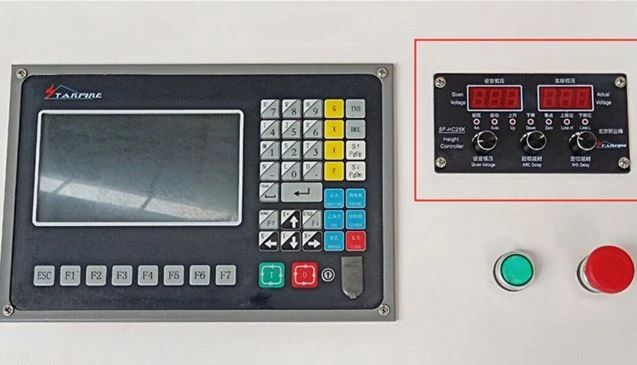

Plasma Cutting Table for sale with cheaper price with Beijing Starfire control system,easy to operate and use.
