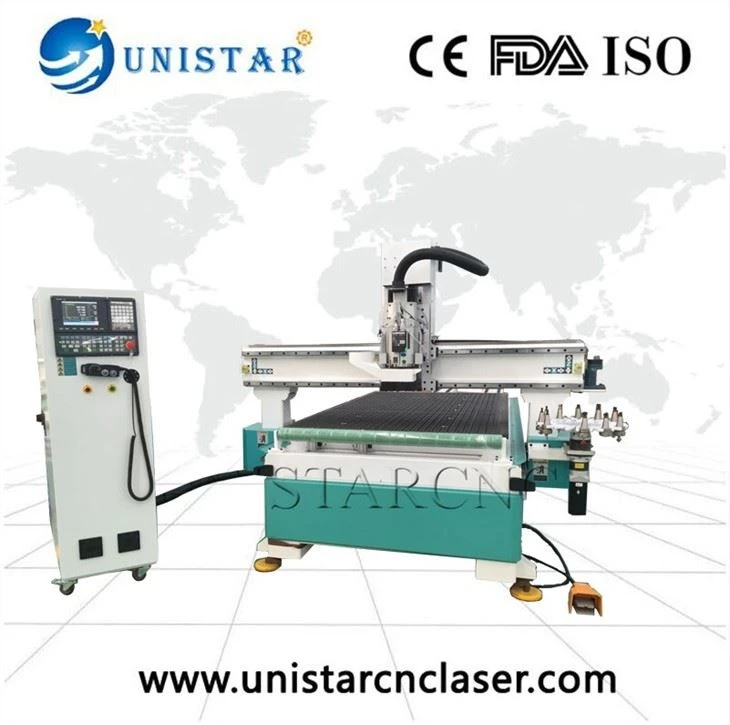

1325 Wood CNC Router Wood Working ATC Machine Router CNC 1325
Features
Features:
1. Circle style automated tool changer with 8 pieces of tools in total.2. 9KW (optional) Italy made air cooling spindle, very stable and durable.
3. High torque Japan YASKAWA servo motor and driver, greater accuracy and stability.
4. Vacuum table with 6 vacuum zones, which can adsorb different size materials and has strong suction of 23 cube meters /hour. 5. Oil-injection system makes the maintenance more convenient.
6. Advanced syntec control system(optional)
Standard configurations of 3d cnc router:
9kw Air cooling ATC spindle, 24000rpm
Taiwan SYNTEC 6MB control system,
Japan Panasonic servo motor and driver, more stable and stonger.
8*position, also can choose 6pcs, 10pcs, 12pcs etc.
XY axis transmission is Taiwan HIWIN linear guide with Helical rack, high performance.
Zaxis transmission is Taiwan TBI Ball Screw with Taiwan HIWIN linear guide, high precision.
Technical Parameter List
| Model | USM1325/1530/2040ATC |
| X.Y.Z Working Area | Effective working area 1300*2500*300mm/1500*3000*300mm etc. |
| X.Y.Z Repositioning Accuracy | ±0.02mm |
| Table Surface | Vacuum and T-Slot Comined |
| Frame | Thickness steel square tube heavy structure,8mm thick steel,gantry with T-type |
| X.Y Structure | Gear and rack tranmission,Taiwan HIWIN linear rail |
| Z Structure | Taiwan TBI Ball Screw,Taiwan HIWIN linear rail |
| Max.Power Consumption | (without spindle) 4.5Kw |
| Max.Rapid Travel Rate | 12000mm/min |
| Max.Working Speed | 25000mm/min |
| Spindle power | HQD 9Kw Air Cooling ATC spindle |
| Spindle speed | 0-24000RPM |
| Motors&Drivers | Leadshine Servo |
| Inverter | 11Kw TAIWAN Delta |
| Command language | G code |
| Operating system | TAIWAN LNC EtherCAT control system |
| Conputer interface | USB |
| Working voltage | AC380V/50Hz |
| Software compatibility | Type 3/Artcam/Ucancam/Alphacam |
Samples
Packing&Shipping
Packing
Water-proof plastic film package with foam protection in each corner
Solid seaworthy wood case package with steel belt which fixed on the pallet
Save space as much as possible for container loading
Shipping
For standard machines, usually within 15 days
For non-standard machines (the OEM or customized machines), according to clients' specific requirements, we promise won't cost more than your expected days
FAQ
Q1: I did not know much about the CNC router and engraving machine.What kind of machine should I choose?
It is not a problem to choose the right machine for your application. Just tell us what you plan to do by using the machine, and tell us your material working size, then we will offer you our perfect solutions and suggestions.
Q2: What are the machine displayed on the website that did not fit me best and I can change some part?
We are manufacturer direct sale, has an R&D department and engineers to help design and OEM according to your need. It is ok to choose optional parts, like changing the spindle, choosing the control system, or adding the water tank and vacuum pump, etc.
Q3: What should I do if the machine fails during warranty period?
Just contact us----our sales are online for 24-hours and ready to help. Replacement of damaged parts for free(make sure it is not broken because of wrong operation).The CD and operation manual----It shows the most common failures in working processing and how to solve the problems.
Q4: Are you a trading company or manufacturer?
Any certifications of the product, and the warranty period? We are a factory direct sale, can guarantee you got the best product at the best price.All the products have CE, ISO certifications, all the machines are tested well before delivery. There is a 12 months warranty.
Q5: How long is your delivery time?
Generally it is a weekday if the goods are in stock. or it is 15 working days if the goods are not in stock, it is according to your quantity.
Q6: What if I want to be your agent in our country?
Agents are wanted all the time, it is great that you choose to be our agent, it will be a win-win situation. We can discuss and negotiate the agent rights and duties completely by email and confirmed by both of our sides.
