Applicable industrial
1.Woodworking industry
Linear automatic tool changer cnc router can be used for soild wood furniture,mahogany furniture,solid wood door,supboard door and window,folding screen etc.
2.Artwork industry
Linear automatic tool changer cnc router can process wooden craft,mural art of wood,musical instrument etc.
3.The advertising industry
It can engrave all kinds of signage,trademark,nameplates,badge,decorative gift,embossed medal etc.
4.Mold industry
It can carve copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic board, PVC pipe, wood and other non-metal molds
5.Electronics industry
It can engrave electronic component,integrated circuit,electronis plastic case,electronic product model,circuit board,electronic Light box,keyboard and a variety of electronic products.
Applicable materials
Linear automatic tool changer cnc router can process glass, ceramic, marble,solid wood,mahogany and other wood materials.
Features of machine
1.The 1530 Linear automatic tool changer cnc router use 7.5KW HQD linear tool changer water cooling spindle,It can realize the automatic switching of the tool .
2.It is equipped with the side feeding device and the rear pulley feeding, which reduces the labor demand and greatly improves the production efficiency and product quality.
3. The 1530 Linear automatic tool changer cnc routercan meet a variety of complex pattern carving tasks.
4.We use the world's famous manufacturers of high quality accessories, these accessories are good quality, long life, not easy to damage, to a certain extent to avoid the machine damage and shutdown in the process of use.
Products Description
Spindle
We use the 7.5KW HQD water cooling linear tool change spindle.It is a well-known brand in China.The spindle is cooled by water circulation, and the cooling effect is good. Almost no noise, long spindle life.it can realize the function of automatic tool change, which is very convenient.
Inverter

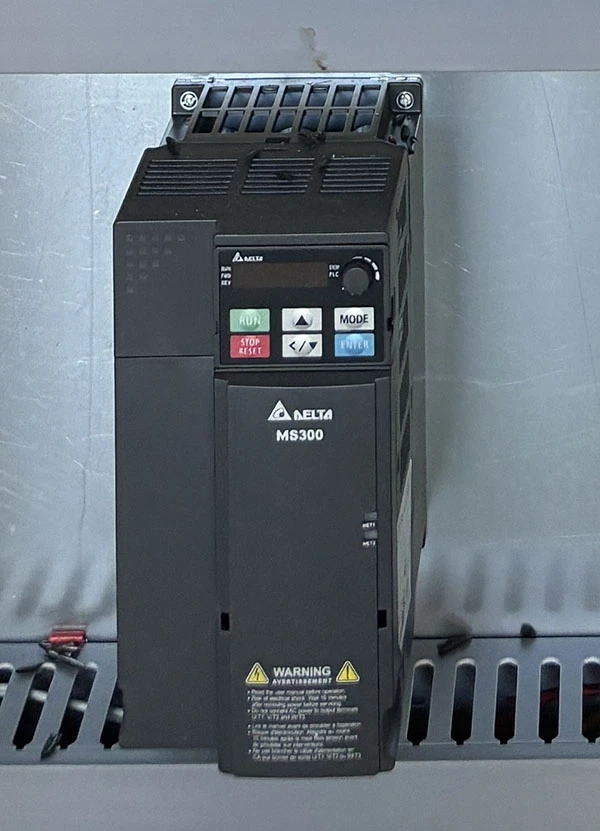

We ues the Taiwan Delta inverter ,inverter on the machine is mainly used to control spindle' star,stop,and adjust spindle speed.

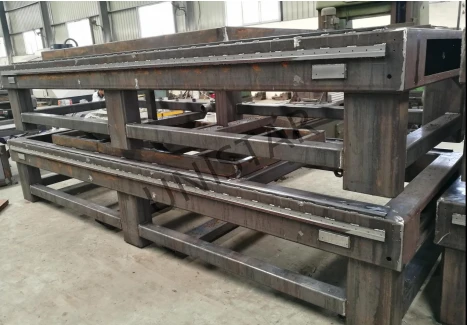

Machine body
Heavy duty structure weld steel 10 mm thickness,Heavy-duty bed,tempered sandblasted rust-proof treatment,five-sided milling center drilling the hole of the machine body,to ensure the high accuracy.

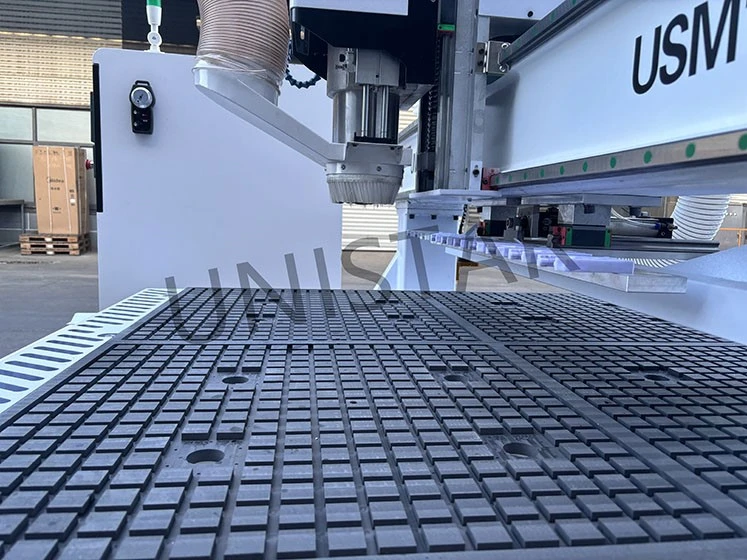

vacuum absorption and T- slot table
Our table surface can be either vacuum-adsorbed material or fixed with a fixture.It can meet the fixed effect of different materials.The texture of our vacuum table is double hard pvc,which is high-temp an cauterization endurable.
Rail guide
Taiwan Hiwin square linear guide way
For x,y axis, import Taiwan High quality rail guide.The square rail can withstand high load pressure in four directions, high positioning accuracy, small friction coefficient, can maintain walking accuracy for a long time, its load capacity and accuracy retention capacity is more than 30 times that of the circular guide rail, and can be installed automatic oiling system.
Transmission

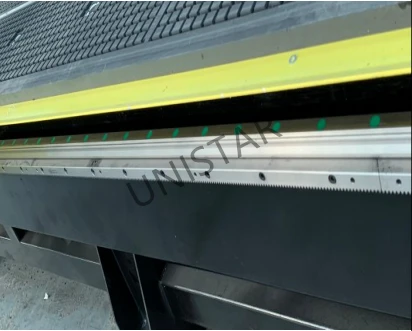

X, Y axis by high precision Helical racks and pinions. Z axis Taiwan TBI ball screw (has good performance ,long life ,import from taiwan )

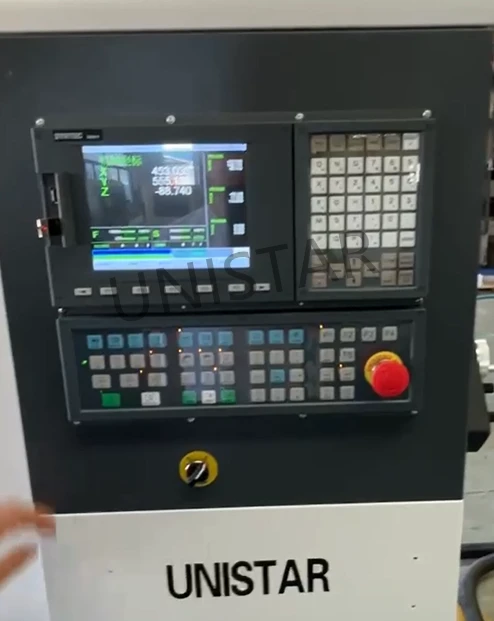

control system
We use the famous Taiwan syntec control system, which makes the operation of the machine more convenient and the machine work more accurately.

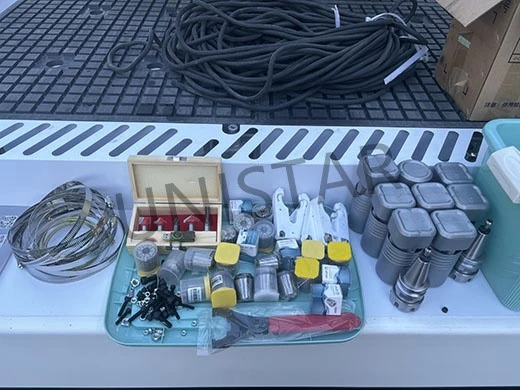

Toolbox accessories
We ship with a tool kit containing replacement tools, wrenches, tool holders, data cables and more.
tool sensor
Automatic tool setting device fixed position,changing the tool speed is fast,high accuracy.

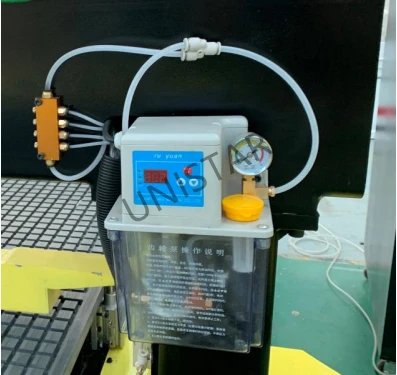

Automatic Oiling System
microcomputer control,DIP switch settings 1,2,3,6,12 months automic,uniform,timely and accurate daily injections of lubricant required.
| Products name | 1530 Linear Automatic Tool Changer CNC Router |
| Machine area (X) | 1500mm |
| Machine area (Y) | 3000mm |
| Machine Area (Z) | 200mm |
| Working area | 1500*3000*200mm |
| Spindle | 7.5KW HQD linear tool changer water cooling spindle |
| Cooling-water machine | CW 5200 S&A cooling-water machine |
| Tool Holder | BT30 tool holder with ER 32 collets |
| Machine body | Heavy duty structure weld steel 10 mm thickness,Heavy-duty bed, tempered sandblasted rust-proof treatment,five-sided milling center drilling the hole of the machine body, to ensure the high accuracy. |
| Control system | Taiwan Syntec control system |
| Table type | Vacuum absorption and T- slot table |
| Motor and driver | Taiwan Delta servo motor and drivers 1KW |
| Reducer | Shimpo reducer |
| Inverter | Taiwan Delta inverter 11KW |
| Tool changer magazine | 10 pieces follow up linear tool changer |
| Transmission | X, Y axis by high precision Helical racks and pinions. Z axis Taiwan TBI ball screw (has good performance ,long life ,import from taiwan ) |
| Rail guide |
Taiwan Hiwin square linear guide way for x,y axis, import Taiwan High quality rail guide |
| Positioning air cylinder | Four on the Yaxis, three on the Xaxis |
| Electricity |
French Schneider electricity parts |
| Limited switch | OMRON limited switch |
| Prevent dust system | Dust proof system |
| Oil system | Automatic Oil Lubrication System |
| Traveling speed | 60m-80m/min |
| Processing speed | 25m/min |
| Spindle RPM(max) | 0-24000 RPM |
| Position accuracy | ±0.02mm |
| Tool sensor | Auto tool sensor |
| Dust collect system | 5.5KW double bags dust collector |
| Vacuum pump | 7.5KW vacuum air pump |
| Working voltage | The machine working voltage is 3 phase 380V/50HZ |
If you have specific requirement of machine, customization is available.
Sample Display

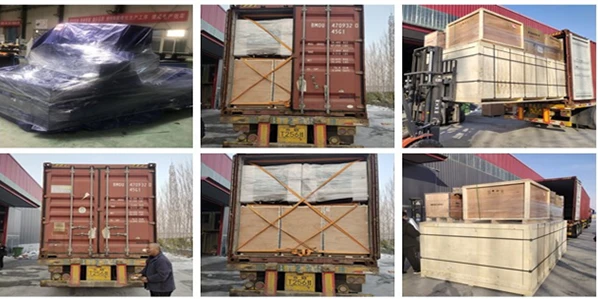

We use Plywood Case Package
The advantages of Plywood Case Package:
Firstly, plywood case, its compressive strength and bearing quality is better, is the market of
choice for the goods of high-weight packaging.
Secondly , the board area is big, the soil structure is good,and operational process is simple, So its
is better in leakproofness and waterproof.
Thirdly , when importing the plywood case is with fumigation-free , the procedure is simple.
Warranty
1.All the above quotation is based on factory price.
2.Offer validity: 10 days.
3.Production lead time:20 working days.
4.Payment:30% T/Tpayment in advance,70% T/T before ship out from the factory.
After-Sales Service
We guauantee the quality of the main parts within 2 years.If the main parts go wrong without artificial factors within 2 years,we will freely provide them or maintain them for you.After 2 year,if you need to change parts,we will kindly provide you with the best price or maintain it in your site.Whenever you have technical question in using it,we will freely do our best to support you.
