Latest Economic Model Linear ATC
Auto Tool Changer CNC Router / Auto Tool Changer Center
We have some machine testing video of cnc linear auto tool changer, if more video information is require available , please send us inquiry

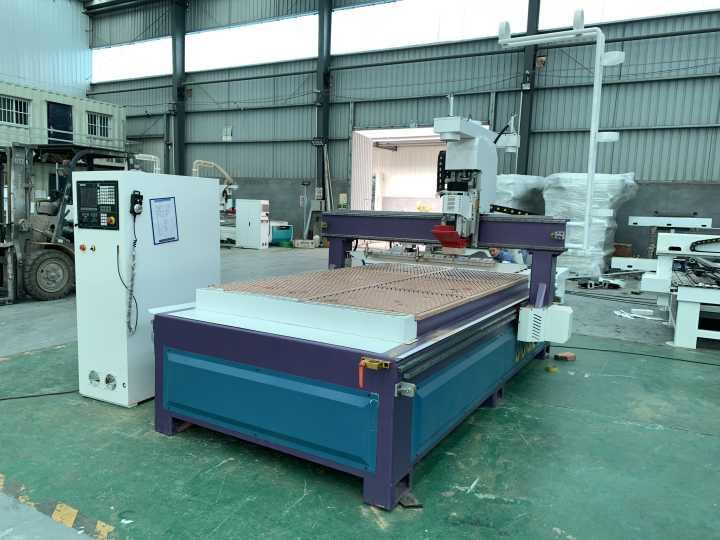

UNISTARCNC New Design Affordable Type Linear ATC Auto Tool Changer CNC Router has 12 pieces tool magazine, which can hold 12 different tools for cutting, slotting, engraving, releifing, and hollowing. The linear 12 tool holders is installed under the gantry, can move with X axis together, which is the highlight of this linear tool changer cnc. This new design helps to save the tool changer time and provide the processing efficient. After technical upgrade, this model ATC tool changer cnc router is more economical, so it become more popular in the industrial.
Machine Feature
9kw Jester air cooling spindle
11KW Yuanxin Inverter
Baoyuan NW2200 control system
High Performance JMC servo motor and driver
#25 rail 1.5M high precision helical gear for X, Y axis
25 square rail high precision TBI screw for Z axis, coupling direct connection
France Schneider safety switch
Automatic central centralized lubrication system
Automatic tool sensor calibration
Japan Shimpo Reducer for X,Y axis
Japan OMRON limit switch for X,Y,Z axis
Type3 or Art cam software
3 kw double packet dust collector
Auto oil mist cooling sprayer
7.5kw Jiahe air vacuum pump

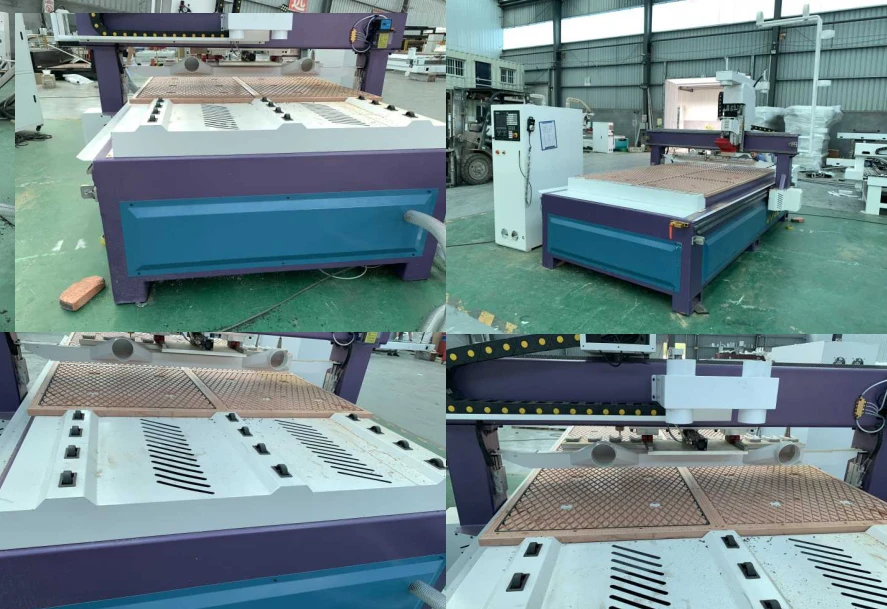

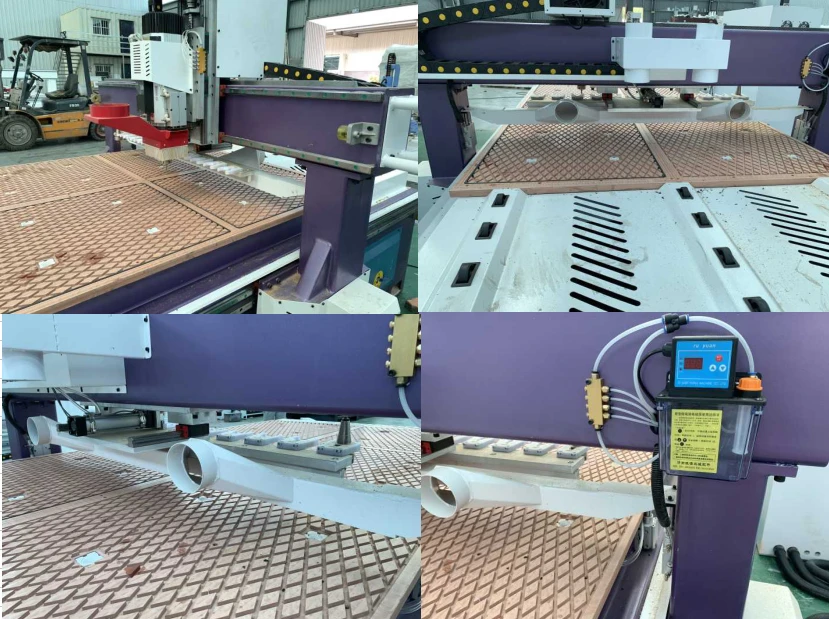

Mainpart Display

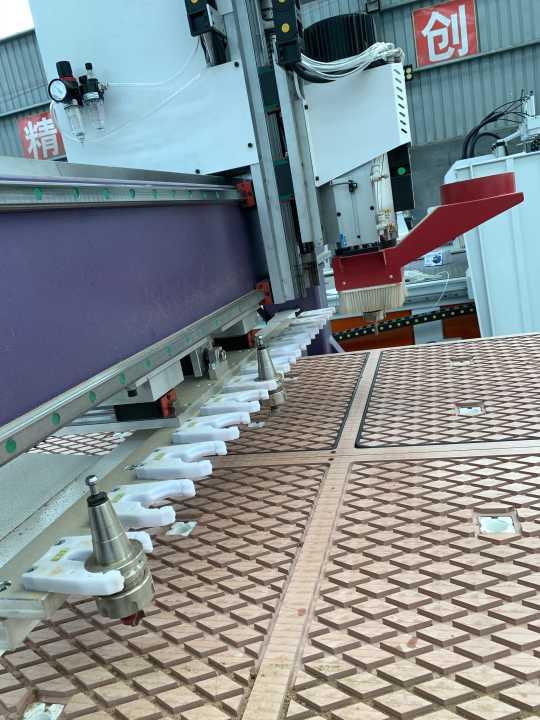

The tool holder has 12 pieces bits. This new design tool holder is integrated with gantry, can move with X axis with together, do es not need to move front and back like the old design for changing different tools, improve the tool changing efficient.
4 mm thick plastic vacuum working table

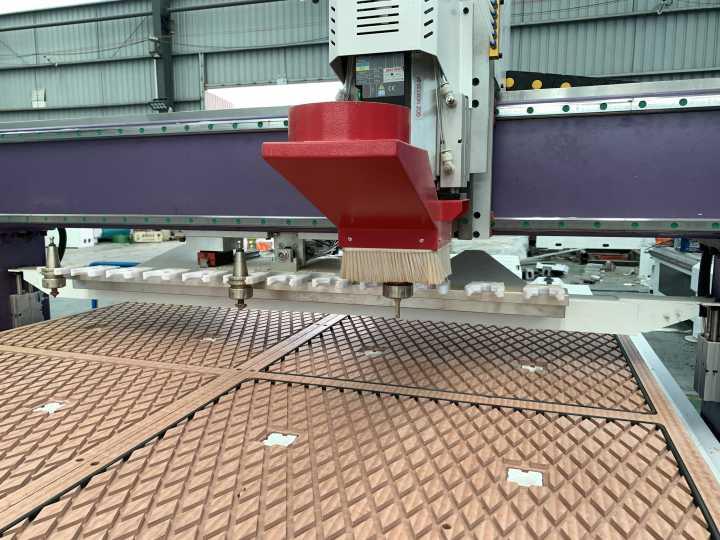

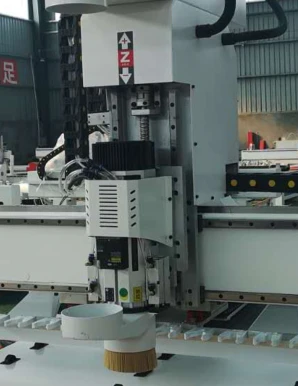

9KW Jester ATC air cooling spindle

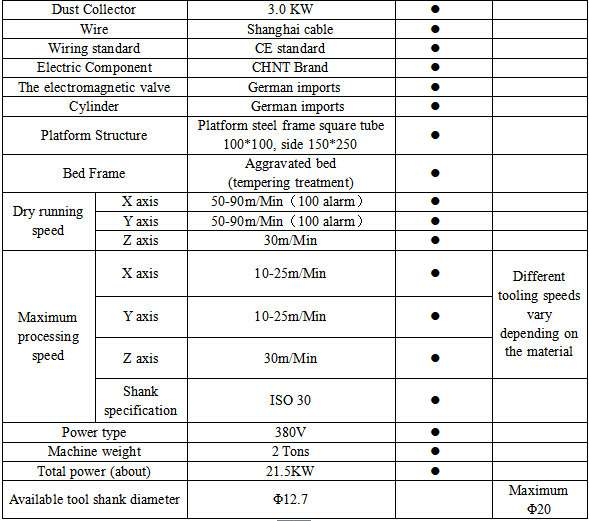

Technical Parameter
More Details
Application Area
Advertising: Advertising signs, logo making, acrylic cutting, plastic molding, engraving on a variety of advertising decorative products materials.
Various Wooden product, like Solid Wood Furniture and Solid Wood Door,Decorative Panel,Computer Desk,Office Furniture.
Other industry: relief, widely used in craft gifts industry, Aluminum industry, Cutting aluminum, aluminum composite panel, aluminum honeycomb panels, aluminum profile,
3D ornamental engraving process, wave board production, LED, neon trough literal cutting, plastic mold making light box . Acrylic, copper, PVC board, artificial stone, MDF board and other types of sheet processing.
Sample Picture
Packing and shipping
