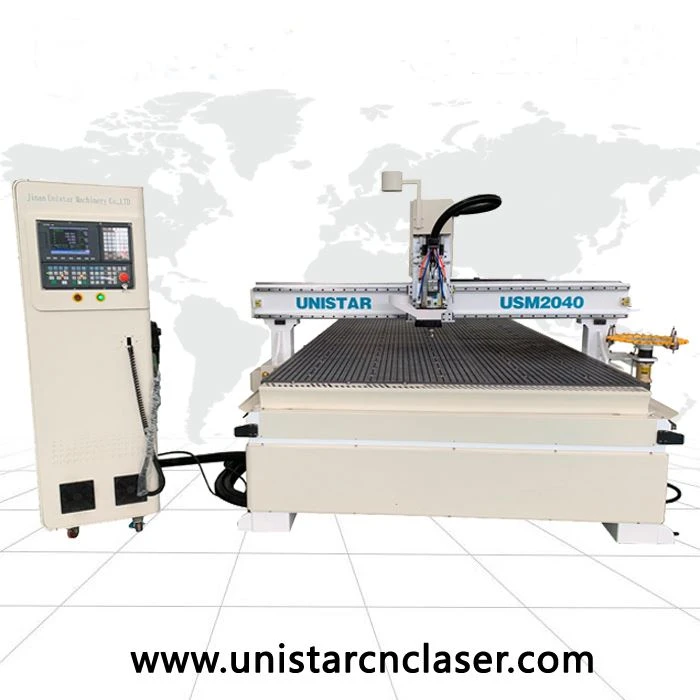

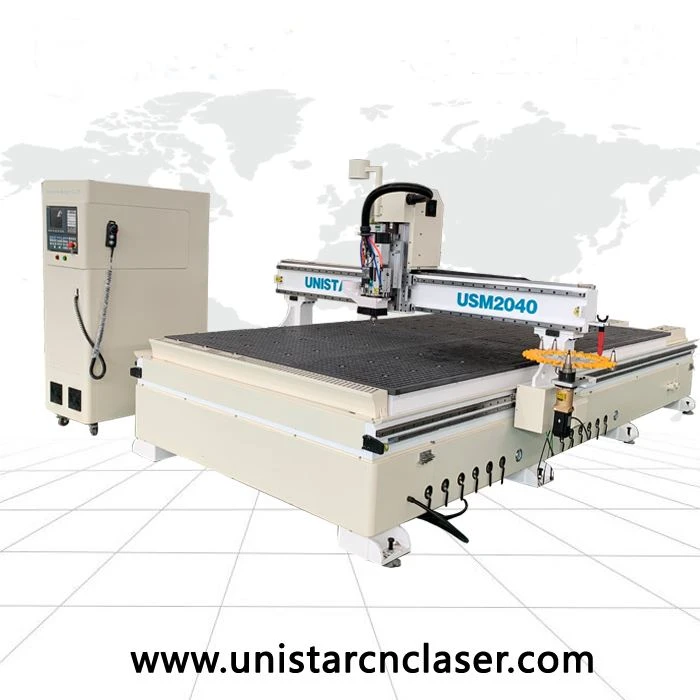

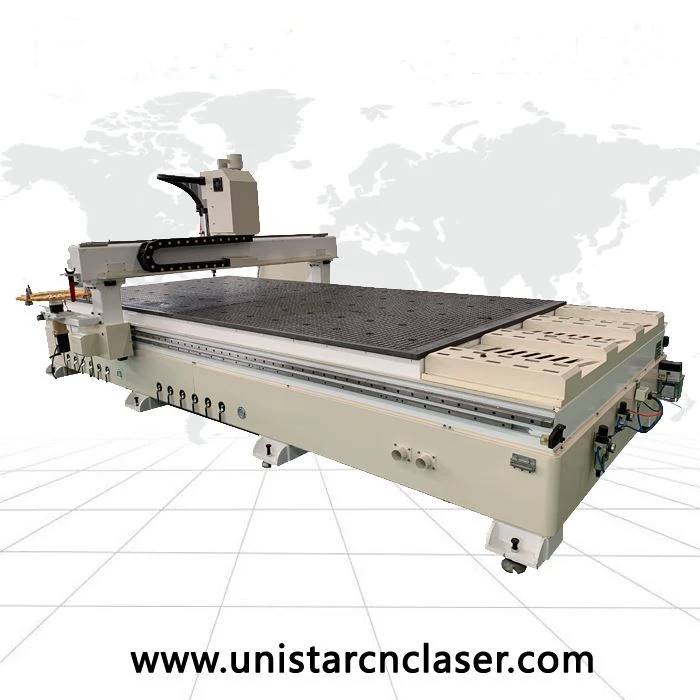

ATC Disk Tool Changer Automatic Wood Carving Machine
Support AutoCAD / ALPHACAM /JD
Application
1. Customized furniture, panel furniture, complete cabinets, cabinet doors, etc.;
2. Wooden door and furniture decoration industry: solid wood and composite doors, cabinet doors, large-area plate plane engraving, solid wood, panel furniture engraving, solid wood art mural carving, etc.;
3. Processing of wood products: watches, electrical countertops, office supplies, sporting goods;
Data Sheet
Equipment model | USM--2040 | |
Effective machining stroke | X : 2000 mm | |
Y : 4000 mm | ||
Z : 200 mm | ||

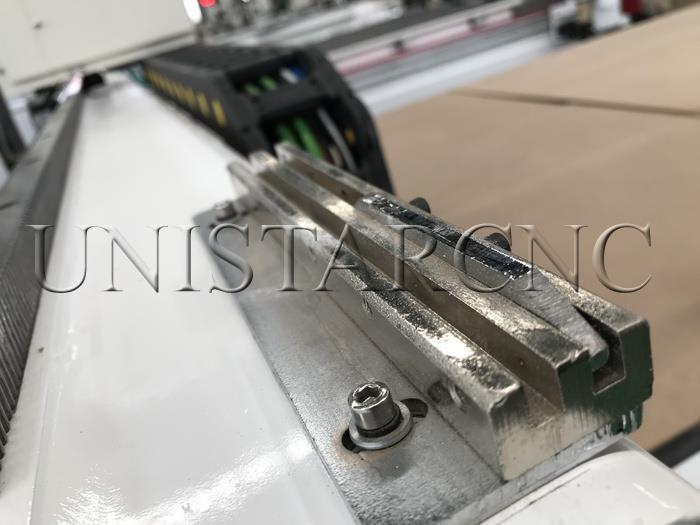

Transmission form | X, Y-axis precision helical rack, Z-axis screw | |
Guide rail | Taiwan HIWIN 30 square track | |
Working method | Japan YASKAWA servo motor | |
Frequency converter | Simphoenix inverter | |

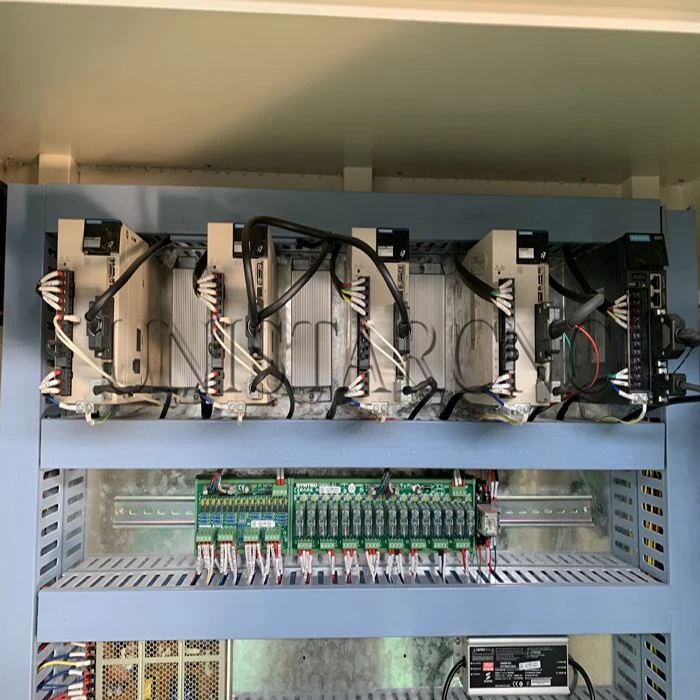

Drive system | Japan YASKAWA servo drive | |

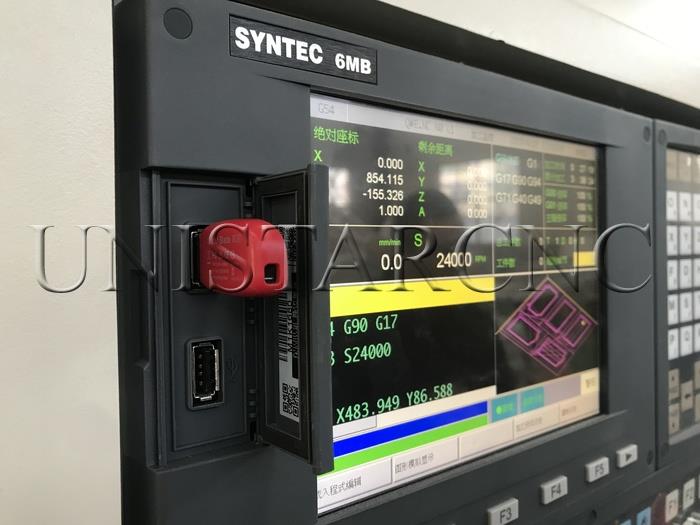

Operating system | Taiwan SYNTEC control system | |
Software | Intelligent design, typesetting production software | |
Spindle | Cooling mode | Air cooling |
Power | 9KW automatic tool change | |
Speed | 0~18000 r/min | |
Tool magazine capacity | Disc type tool magazine, 12 tools are optional | |
MAX tool holder diameter | φ12.7 mm | |
MAX blank line speed | 60000 mm/min | |
Effective processing speed | 25000 mm/min | |
Processing accuracy | ±0.05 mm | |
Repeat positioning accuracy | ±0.05 mm | |
Countertop structure | vacuum adsorption | |
Positioning | Taiwan AirTAC positioning cylinder | |
Bed structure | Wall thickness square steel welding | |
Processing instruction | G code | |
Working voltage | AC380V/5PH/50HZ | |
Accessories | Vacuum pump : 7.5KW vacuum pump | |
Vacuum cleaner: 5.5KW vacuum cleaner, automatically sucking away the processing garbage | ||

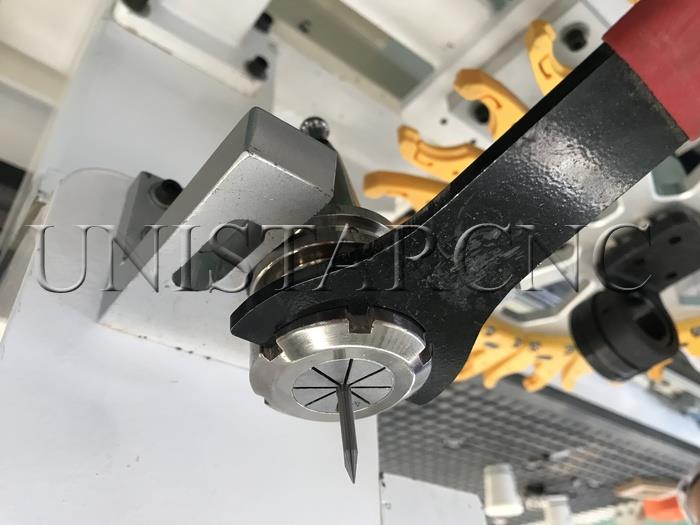

Toolbox: holder φ6 mm, φ12.7 mm, wrench, etc. | ||
Machine Feature

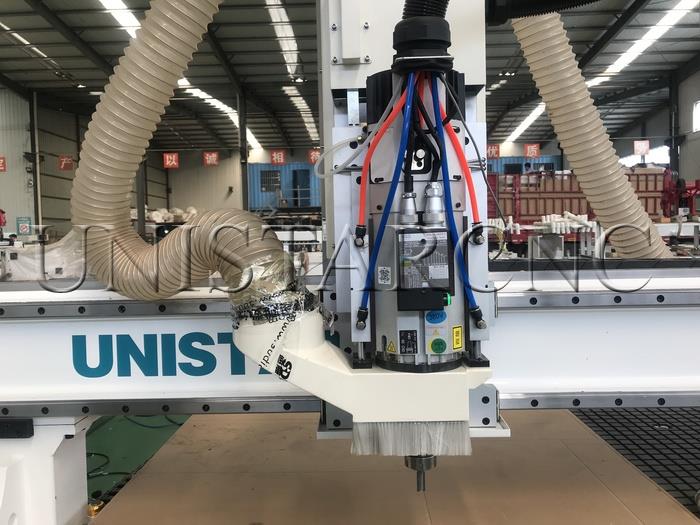

Function : China famous brand HQD 9KW air cooling ATC spindle
It can cut 80mm thickness wood,, suit for Carving and milling, relief, drilling, cutting, chamfering and other diversified products processing
Structure

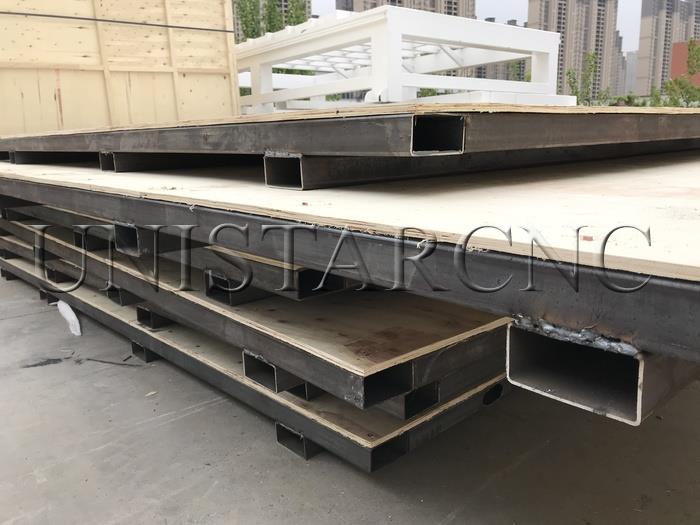

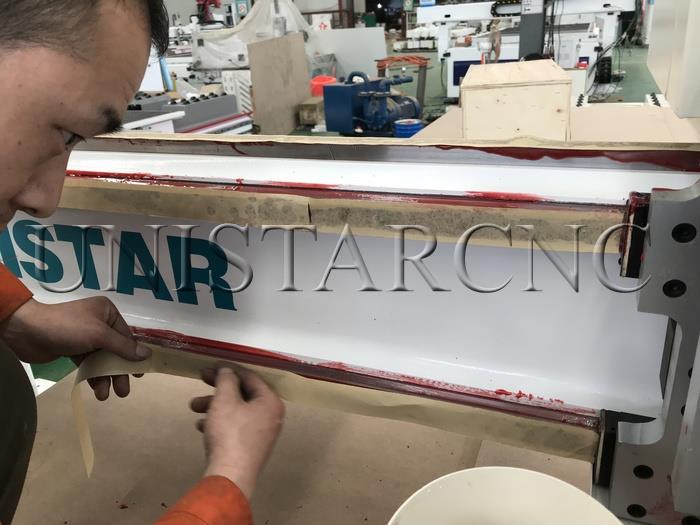

This automatic wood carving machine body is use high strengthen and more thickness metal tube welding,After annealing aging sand blasting treatment, Auto tool changer cnc router body is more stable ,stronger,keep high precision ,Long-term use will not be deformed.
Accessories
All parts of this automatic wood carving machine are made of world-renowned brands - German rack / Taiwan guide screw / Japan Shimpo reducer / Schneider electric components, etc., with stable performance and durability.
Accuracy
Excellent accessories, Sophisticated detection device，making cnc router
Tool changer position more accuracy
High speed

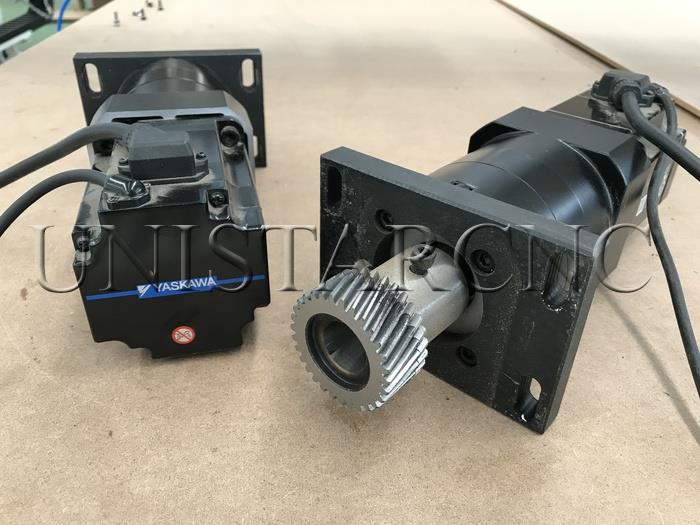

Adopt reducer direct connection design, high torque, high kinetic energy, X axis double motor drive, high smooth running efficiency.
Table

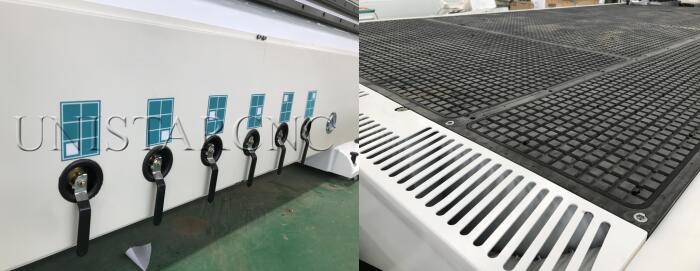

Vacuum adsorption table, instant adsorption, instant release, strong adsorption of different areas of the plate.

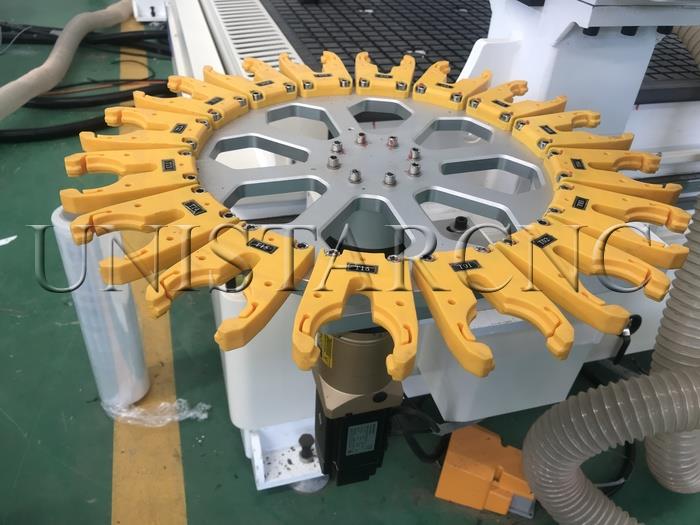

Tool magazine

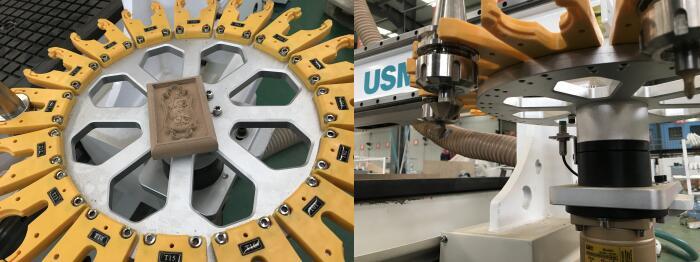

8/12 pieces Disc type knife library structure, firm in structure, accuracy is very high, change tool speed can be 5 seconds finished .

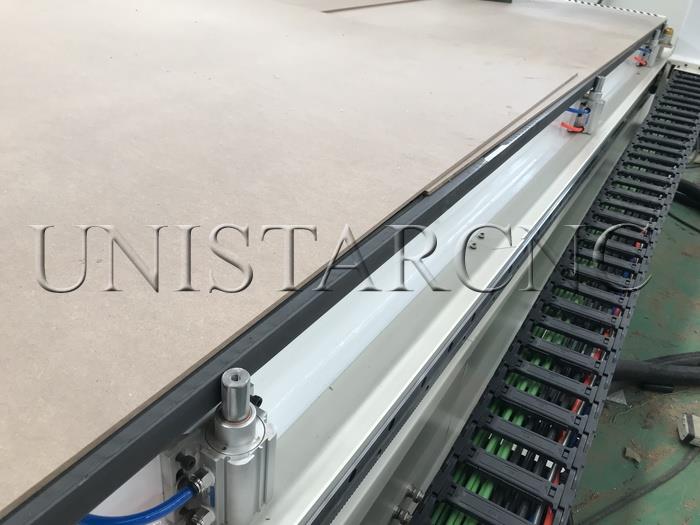

Positioning cylinder : 4+2 AirTAC Positing cylinder can make the wood panel Precise positioning,no mater big size material or small.

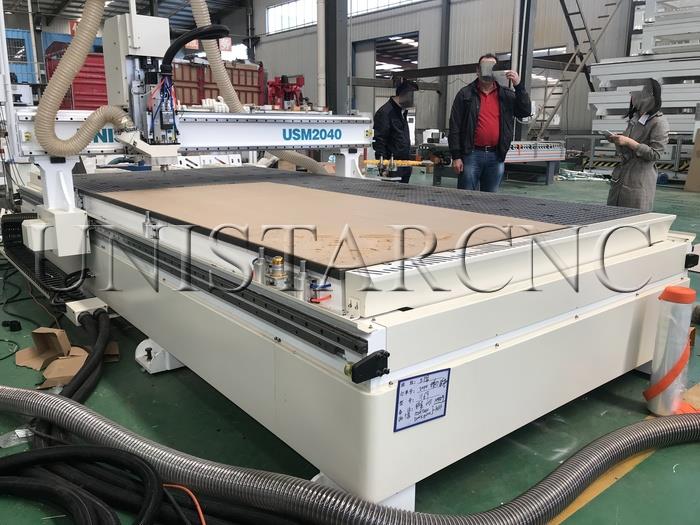

Detail Picture

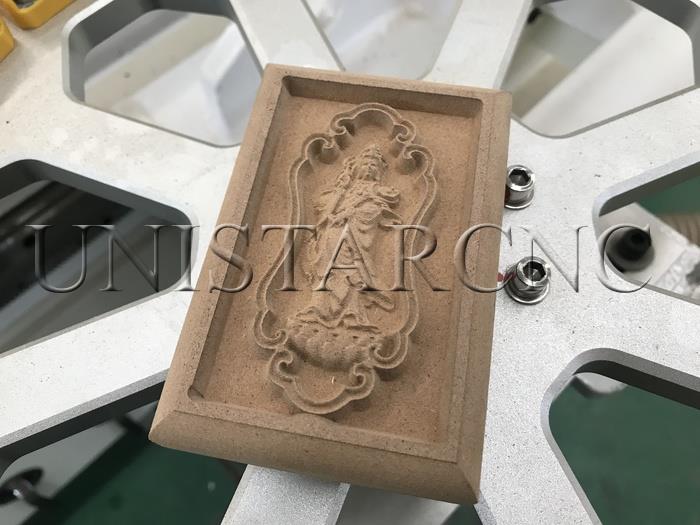

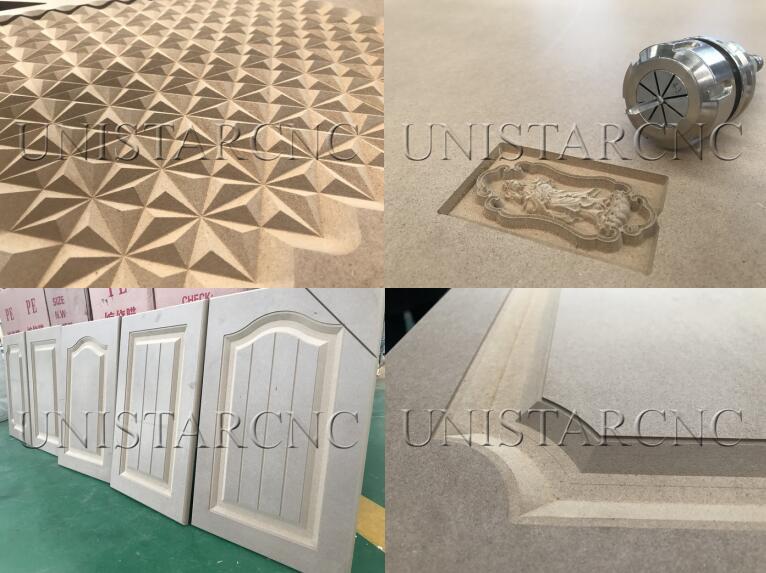

Cutting sample
Packing and Shipping
We apply anti rust oil to rail guide and put some moisture proof bag into machine for protecting from rust during long time sea shipping.

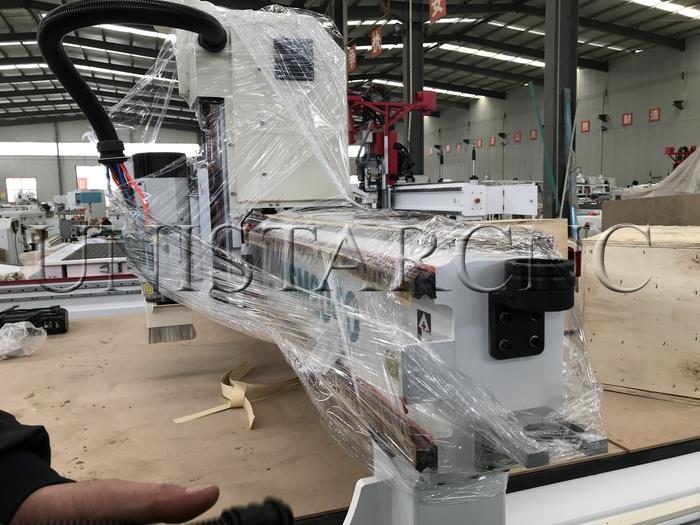

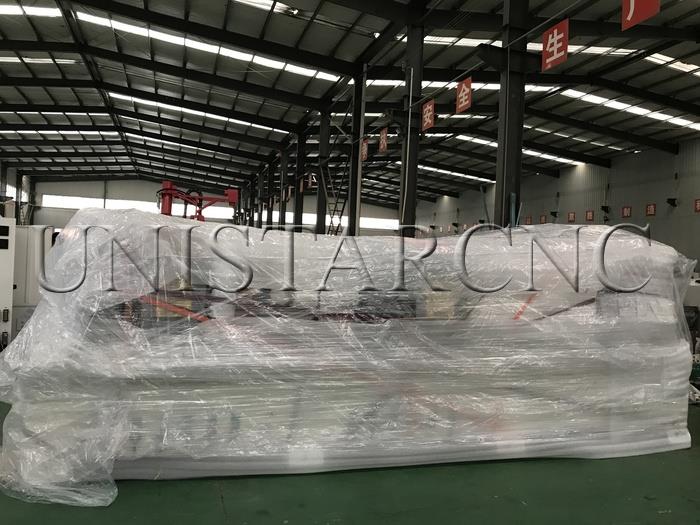

After that we package this automatic wood carving machine with plastic film and plywood box
