Application industry
1. Advertising industry: involved in advertising signs, sign making, acrylic cutting blister molding, a variety of advertising materials and decoration products.
2. Mold industry: can carve artificial marble, sand, plastic board, PVC pipe, wood and other non-metal mold.
Craft gift industry: carving all kinds of shadow carving, relief, is widely used in craft gift industry.
3. Wood door and furniture decoration industry: solid wood and composite door, cabinet door, large area plate plane carving, solid wood carving, panel furniture carving, antique mawood furniture carving, solid wood art mural carving, etc.
4. Wooden crafts processing: clock frame, craft photo frame, thin aluminum crafts milling and carving, electrical counter surface, sporting goods and equipment.
5. Musical instrument production industry: engraving three-dimensional curved surface of Musical Instruments, shape cutting, such as large, violin panel, piano head engraving and milling.
Application materials
1. Wood: The engraving machine is suitable for the processing of all kinds of wood, including solid wood, wood-based board, multi-layer board, etc.
2. Stone: engraving machine can be used for marble, granite, gypsum and other stone processing and engraving.
3. Metal: Engraving machine is suitable for cutting and engraving of aluminum, copper, steel, stainless steel and other metal materials.
4. Plastic: The engraving machine can handle a variety of plastic materials, such as polyurethane, acrylic, PVC, etc.
HQD Air cooling spindle
The air cooling spindle can quickly dissipate heat, reduce the temperature of the spindle, and improve stability and machining accuracy. Compared with the traditional water cooling spindle, the air cooling spindle has higher efficiency and is more convenient to use.
Taiwan syntec control system
Syntec system has high data processing speed and stable operation. The operation interface is intuitive and simple, easy to learn.

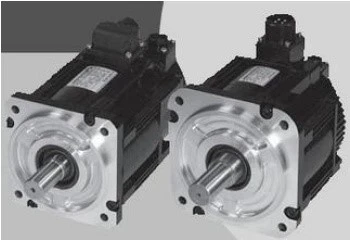

japan yaskawa driver and motor
Yaskawa servo motor adopts speed observation control to greatly reduce the speed fluctuation of the motor and smooth operation at low speed.
japan shimpo reducer
SHIMPO reducer adopts cone bearings, so that the output shaft can withstand greater axial and radial loads. The gear box and bracket are made of strong materials with the overall structural design to ensure the strong torque performance of the reducer.
shanghai fuling invrter
Fuling inverter has a variety of protection functions, such as overheating, overcurrent, overload, short circuit, etc., effectively improve the reliability and safety of the equipment.
positioning cylinders
Three on the Y axis and two on the X axis. The five positioning cylinders are all adjusted by the dial indicator to ensure the secondary positioning accuracy of the front and back machining.
France schneider electric accessories
Schneider Electric Accessories in France use the best materials to ensure the safety of electricity.
filter
The filter can filter out the current interference, has the effect of stable signal transmission, and ensures the stability of the machine processing.
taiwan hiwin rail guide
The cost can be effectively controlled by using the HIWIN guide rail. The HIWIN guide rail has a small friction coefficient, which can effectively reduce power consumption during use. HIWIN rail design is simple, strong rigidity, can be perfect for optical fiber cutting machine.
dust collector
The function of the dust collector is to absorb a large amount of wood dust generated when the machine is working.
automatic oil injection
The automatic oil filling system can automatically fill the machine with lubricant to avoid the risk of oil loss
tool instrument
The tool setting instrument can automatically measure the distance from the tool tip to the workpiece and quickly position it.
Product parameters
| Item | USM-2140 | |
| Work Area | 2100*4000*200 mm | |
| Transmission | X, Y | Rack and pinion |
| Z | Ball screw | |
| Rail Guide | Taiwan HIWIN | |
| Motor and driver | Japan Yaskawa servo motor and driver | |
| Spindle | 9KW HQD air cooling spindle | |
| Spindle speed | 6000~24000 r/min | |
| Inverter | Fuling Inverter | |
| Control System | Taiwan Syntec control system | |
| Software | ARTCAM, JD painting, Alphacam | |
| Tool Changer Type | automatic linear tool changer | |
| Maximum Tool Holder Diameter | 12.7 mm | |
| Maximum Air Move Speed | 40000 mm/min | |
| Effective Machining Speed | 15000 MM/min | |
| Machining Precision | ±0.05 mm | |
| Table | T-slot and vacuum table | |
| Working Command | G command | |
| Working Voltage | 380V/5PH/50Hz | |
| Accessory |
vacuum pump | |
| dust collector | ||
| work-box | ||
| Warranty | 2 years | |
We have passed CE certification, ISO9001 quality management system certification, patent certificate, Saber certificate, FDA and other international certifications. We strictly control all aspects of incoming materials, processing, assembly, debugging, testing, packaging, transportation, etc., to ensure the quality of products.
Our company
1. Extensive experience. Our company has been engaged in CNC ROUTER machine production industry for more than 20 years, with rich product experience.
2. Professional team. Our company has 20 professional R & D senior technical engineers, they are experienced, can provide customized services for customers.
3. Competitive price. We have our own factory, we export by ourselves, there is no middleman to earn the difference, the price of our products is very advantageous. Our product quality and after-sales are guaranteed.
4. Excellent service. Our company's purpose is to maximize the interests of customers, to provide a full range of quality services, to ensure customer satisfaction.
Our services
1. Provide 24-hour online consultation service, customers can ask questions at any time.
2. Two years warranty. In case of quality problems during the warranty period, the damaged main parts can be replaced free of charge (caused by non-human factors).
3. Replacement of consumable parts can be provided at the agency price.
4. On-site service is available. If the machine breaks down, our engineers can go there to repair it.
5. We provide distance learning, including machine assembly, commissioning and maintenance.
FAQ
Q: Do you have CE document and other documents for customs clearance?
Q: How to install and run the machine?
Q: How to solve it if there is some problem or parts broken during operating metal tube laser cutting machine?
Q: I don't know which kind of cnc router machine is suit for me
Q: If I want to see the machine condition of your factory , And It's not convenient for me to go to China , what should I do?
Q: What are your after-sales services
