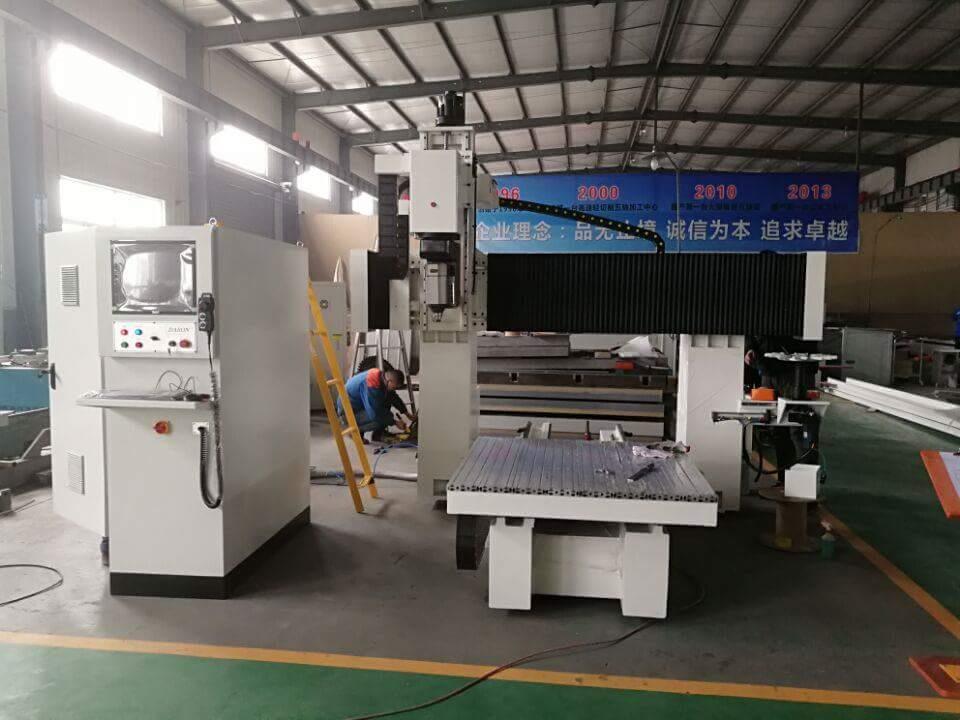

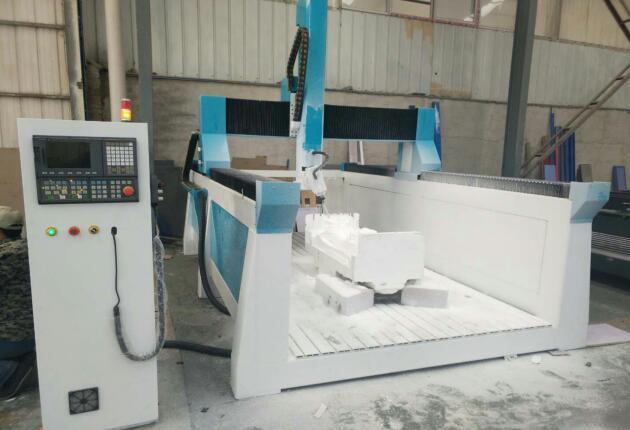

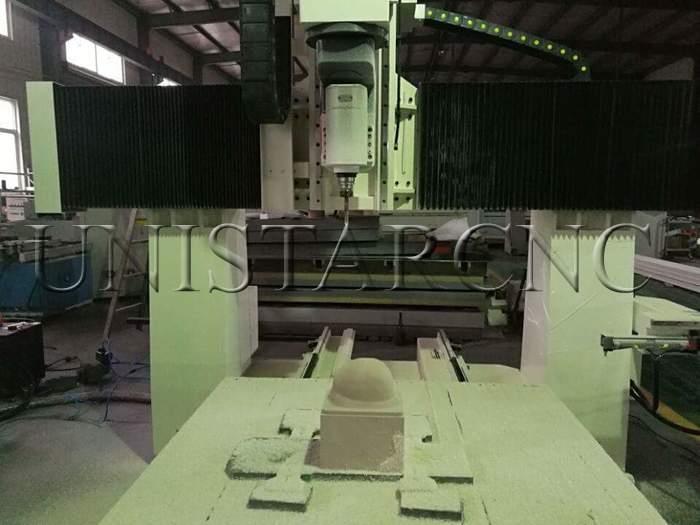

4 Axis Automatic Tool Changer CNC Machine

Name: China 4 Axis Automatic Tool Changer CNC Machine Manufacturers & Suppliers - Factory Direct Price Machinery - UNISTAR
Brand: UNISTAR
SKU: 77222760

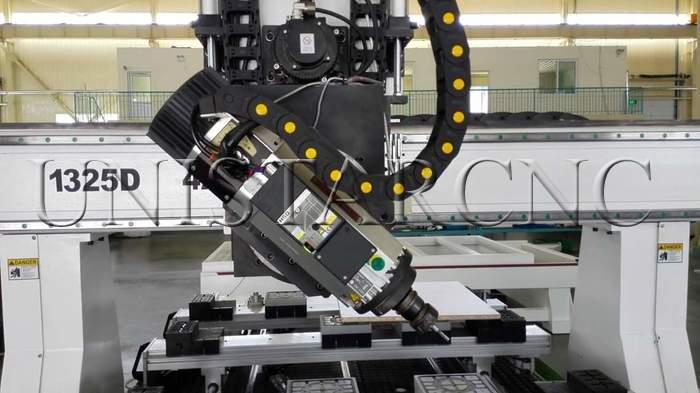

UNISTAR introduced this high-tech 4 Axis Automatic Tool Change CNC Machine is mainly used to engrave and cut the curve surface, wood board, cabinets, MDF, PVC, plastic, acrylic, etc. Customers can use different tools to finish the work according to the process requirements.The spindle(B axis) can rotate ±90 degree, for side milling, drilling, cutting, lock slot, very suitable for processing on different surface carving.

Send Inquiry

Description

4 Axis Automatic Tool Changer CNC Machine

4 Axis Automatic Tool Changer CNC Machine

Machine Configuration

1300*2500*700 mm working size

9 KW Italy HSD air cooling spindle

8 piece bits ATC disk tool magazine

Vacuum table and T-slot table type 2 in 1

Moving table type

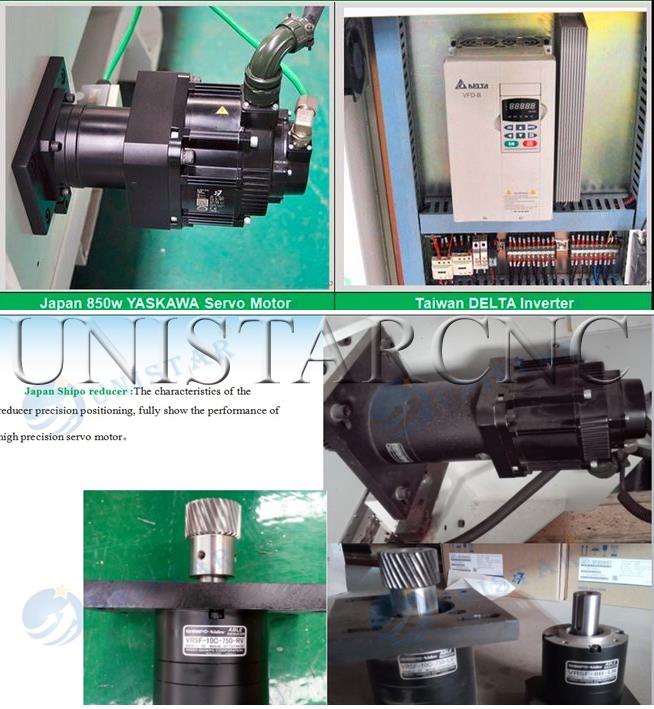

Japan 850W YASKAWA servo motor and drivers

RichAuto B58 control system profession for four axis processing and tool changer

Original Taiwan HIWIN guide rail way

Taiway DELTA INVERTER

Working voltage:380v 3phase 50HZ

Warranty : 12 months

CE Certification

9 KW Italy HSD air cooling spindle

Feature of 4 axis automatic tool changer cnc router

1. Designed with round or carousel type auto tool changer. Different knife can be installed in tool holder. This machine is similar to USM-1325 Disk Tool Changer CNC Router Machine.

2. ATC CNC Routers can change more than 8 tools automatically in the engraving process.

3. Distinct from 3 Axis CNC Machines, the spindle of this machine can swing 180 degrees. 4 Axis CNC Machines can carved three-dimensional objects and molds.

4. Different from 1325 ATC CNC Router Machine, the working size and processing area are larger. In that case, the working efficiency can be greatly promoted.

5. Designed with 2 pieces roller in the front of table , which make MDF or wood plate get through table conveniently.

6. Like another kind of 1530 ATC CNC Router, the machine was designed with Italy HSD ATC air cooling spindle.

7. Dust cover can be added on the Y axis or the other axis.

8. This kind of Multi-use CNC cutting center (furniture CNC router for side punching) is not only suitable for wooden furniture cabinet, but also can process foam mould. Besides, the machine can also finish side punching work for door hole, because the rotary spindle can swing 180 degree.

9. Please notice that all the specifications can be designed according to your requirements.

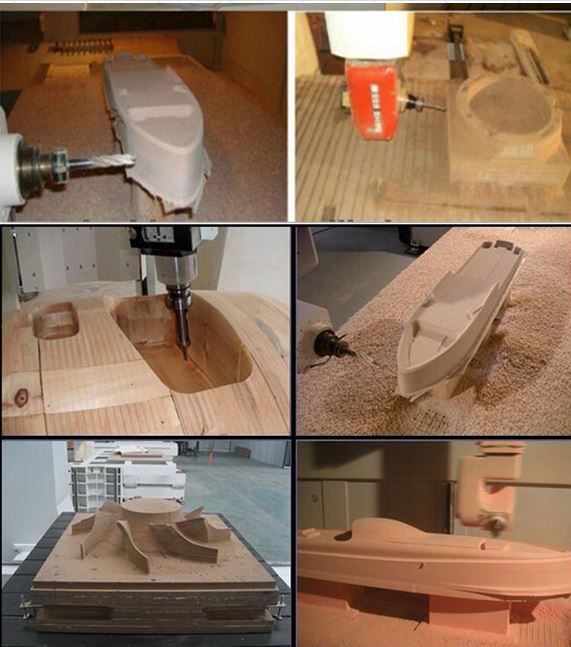

Cutting Sample

Cutting Sample
