Unistar double head stone engraving machine adopts 380V voltage control (220v optional) Improved machine structure, high speed and stability. The use of silver linear guide, double-row slider, smooth operation, high precision, long life, accurate under the knife. Can realize double-effect work, suitable for mass production of home improvement curtain wall industry, or decoration of exterior wall engineering enterprises.

Send InquiryChat Now
Product Details

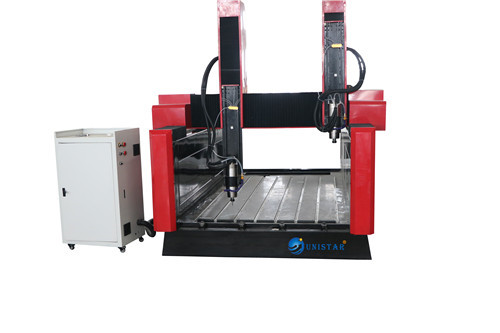

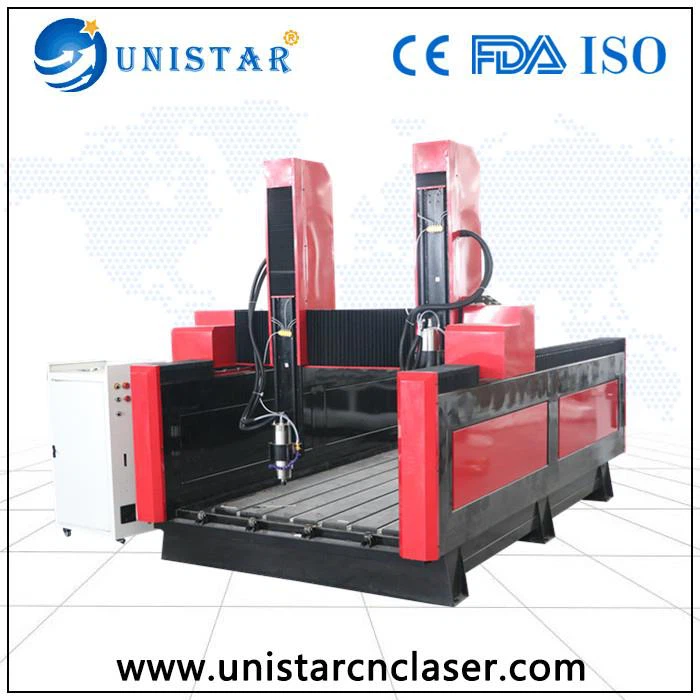

Heavy Body Double Spindle Granite Cutting Machine


Stone carving machine suitable material

Natural marble, granite, bluestone, sandstone, artificial stone, tombstone, milestone, tile, floor tile, metal, glass, and hard object material. Three-dimensional relief and line carving, cutting, edge milling, drilling, and two Dimensional sculpture.


Granite Cutting Machine Specification

Model NO

USM-1325

X, Y, Z Axis working area

1300mm*2500mm*380mm

Table structure

Aluminum T-slot table

Frame

Square pipe Welded Structure

X Y transmission

Helical Rack Gear

Z transmission

Original TBI Ball Screws

X Y Z guide rail

Taiwan HINWIN Square rail

Spindle power

3.0 kw water cooling

Driving system

Stepper motor and driver(Option: Servo)

Operation system

NC studio

Max Spindle speed

24000r/min

Inverter

Shanghai Fuling inverter

Max traveling speed

25m/s

Max. working Speed

18m/s

Processing Accuracy

±0.025mm

Reposition Accuracy

≤0.025mm

Command language

HPGL, G code

Working voltage

AC380V /50HZ

Interface

USB

Command

G code*.u00*.mmg*plt

Granite Cutting Machine Feature

# The new USM-1325 stone carving machine body adopts an all-steel structure and adopts heavy-duty machine tools such as countertops and gantry beam structures, which are structurally stable.

# Y-axis dual motor drive reduces motor load and increases service life.

# Perfect water circulation system to reduce water waste.

# The machine has a superior dust-proof system, which effectively increases the service life of the machine and increases production efficiency.

# The use of standard original helical gears, with a large bearing area, extends the service life of the machine and increases stability.

# Machine intelligent processing cross-border protection to prevent the mechanical collision caused by the design layout exceeding the processing format

# Can be equipped with an independent chassis, can be adjusted according to the level of the ground to reduce the requirements of the venue.

# A variety of software compatible: Advanced professional control system, compatible with a variety of software Type3, Artcam, Castmate, Pro-e, Ug, Cad, llustrator, Wentai, JDpaint and so on.

# Working for a long time can achieve power failure, breakpoints, and processing every other day, which is convenient and effortless.

# The use of ceramic double-bearing spindle motor, so that the tool process is more stable force, reduce tool wear and extend the spindle motor life.

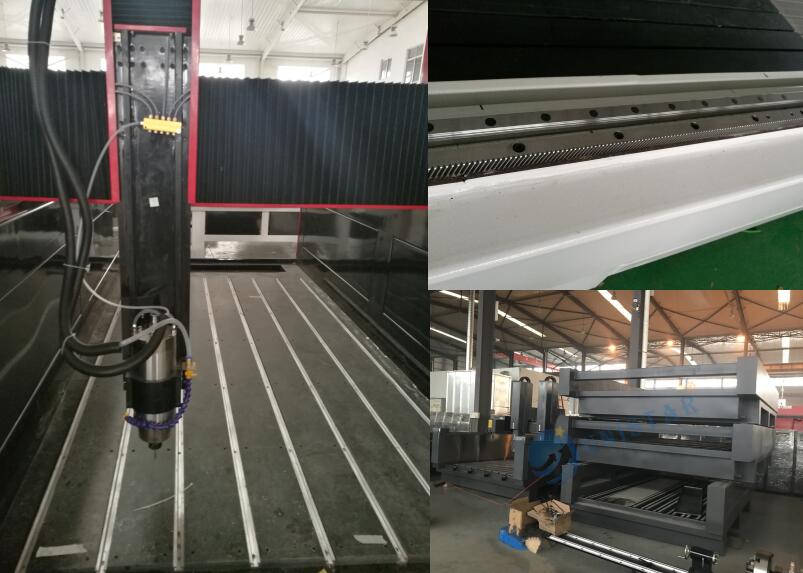

Product Detali picture

Granite Cutting Machine

Granite Cutting Machine

Sample Picture


Granite Cutting Machine


Granite Cutting Machine
