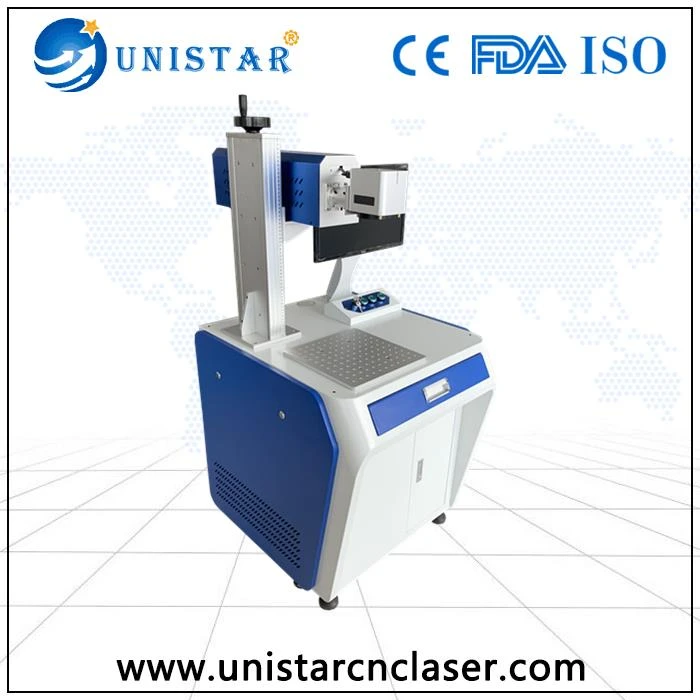

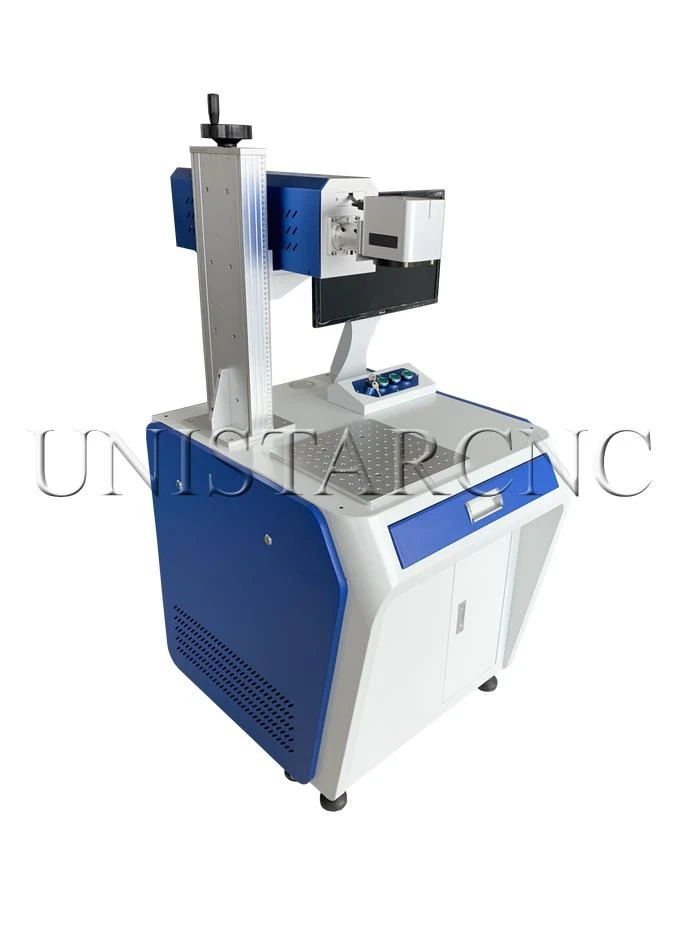

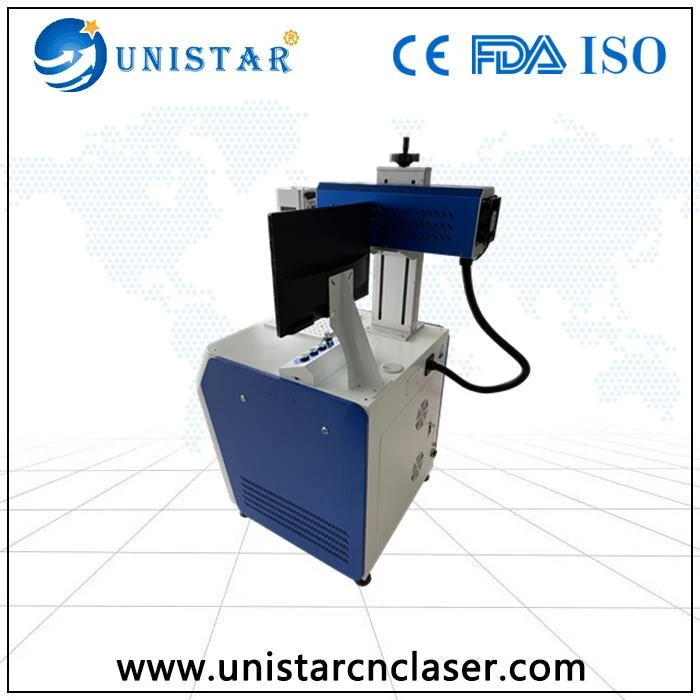

CO2 SYNRAD RF Metal Tube Laser Coding Machine For Nonmetal
、
Application
CO2 laser marking machine industry application:
Widely used in clothing leather, buttons, glasses, craft gifts, electronic components, food packaging, plexiglass, fabric cutting, architectural ceramics, PCB, rubber products, shell nameplate and other marking and cutting.
CO2 laser coding machine suitable materials:
Most non-metallic materials such as bamboo and wood products, paper, leather, cloth, plexiglass, epoxy resin, fabric, plastic, rubber, ceramics, crystal, jade, glass and artificial stone.
Machine configuration
Printing range | 110mm × 110mm |
Option | 175*175mm/ 200*200mm /300*300mm / 400*400mm |
Marking depth | 0.01-1mm (depending on the material) |
Marking speed | ≤7000mm/s |
Marking small line width | 0.015mm |
Mark small characters | 0.3mm × 0.3mm |
Sound and light Q operating frequency | 0.01-50KHz |
Laser output type | continuous laser |
Laser wavelength | 1064nm. |
Repeatability | 0.001mm |
Average power | 1.5KW or 500W |
Laser power | 20W |
Working voltage | 220V/50HZ |
Working environment | -5 ~ 35 ° C |
Cooling method | air cooling |
Product Advantage
 | 01 high quality galvanometer Fast marking speed, high efficiency and stable marking performance Compact structure, good sealing, ultra high precision |
 | 02 Lifting handle Rotating lifting is simple and precise With the use of the ruler, the adjustment is more precise |
 | 03 movable bracket Can be rotated 90 °, marking at any angle, high-definition ruler, marking more accurate |
 | 04 Air cooling RF laser coding machine 's cooling system is air cooling , don't need extra water pump , Low energy consumption |
 | 05 Product Advantage The heat affected zone is very small, there is no thermal effect, the material is not deformed, it is not burnt, and the service life is longer than CNC laser cutter |
 | 06 Marking advantage High-precision and fine spot to ensure perfect marking results; marking process is non-contact, marking effect is permanent |
Feature
>The laser power arrange is big , and the laser can be selected from 10W, 30W, 50W, 100W, etc.
>Power is controlled by software and continuously adjustable.
>Low processing costs, no need for any consumables.
>The marking range of laser coding machine is large.
>The marking effect is clear, not easy to wear, and the marking cutting efficiency is high.
>The depth of the carving is easy to control.
>Using a fully enclosed RF laser with a long life (20,000 to 30,000 hours), the beam is stable.
>The beam quality is good than other laser marking plastic machine , the light output is stable, and the failure rate is low.
>CO2 series models can also be used in conjunction with production lines and automated production lines.
>Software is powerful, compatible with software files such as Coreldraw, AutoCAD, Photoshop; support PLT, PCX, DXF, BMP, etc., can directly use SHX, TTF font; support automatic encoding, print serial number, batch number, date, barcode, two Dimension code, automatic jump number, etc.
Sample
Factory
FAQ
The steps of operate the laser coding machine :
(1)Turn on the external power supply
(2)Press the button of computer power ,then can operate the computer.
(3).Start the main control power；clockwise switch key switch (LOCK),then the entire device can start .
(4).Turn on the emergency stop switch (EMERGENCY)clockwise , the machine can in normal operation.(if there have some abnormal condition occurs, press the emergency stop switch quickly and the system goes into power off. and if you turn on the power again, please turn off the emergency stop button.
(5).Infrared ray ray indicator button (Red Indication), press the button START can be used to simulate the red light laser scanning, easy to determine the scope and location of laser marking. Under normal circumstances remain open.
(6).Galvanometer drive switch (S-SWITCH), switch to ON, galvanometer drive open, Scan Power Alarm indicator off.
(7)Press the power switch on the HAN-S LASER starter , so the fiber laser head in working state.at this time, the power switch indicator lights is on.
Now you can turn on the computer monitor , enter the S LASER MARKING SYSTEM on the desktop programmed .Any graphics or text is suitable, pressing the marking to observe the instrument and software is normal.
(8)Turn on the laser power box.Press the power switch to the ON state, then press the START button, the lamp is on, the instrument is normal, and the current is adjusted. Turn the CURRENT button to adjust the current to 12-14 A. (According to the characteristics of machines, the greater the current, the marking depth are deeper.
(9)Place the same height of products, to focus on the laser head(to make continuous marking of graphics or files). to adjust the height of arrow on the pole.
When the laser light in the most bright position and can listen the marking sound, it means the best focus.
(10)Prepare the marking produce after the efficient set .enter the operation of computer
