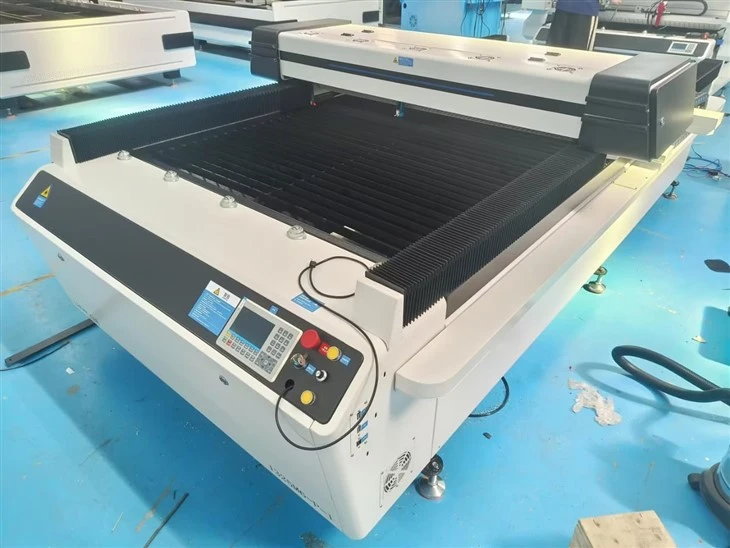

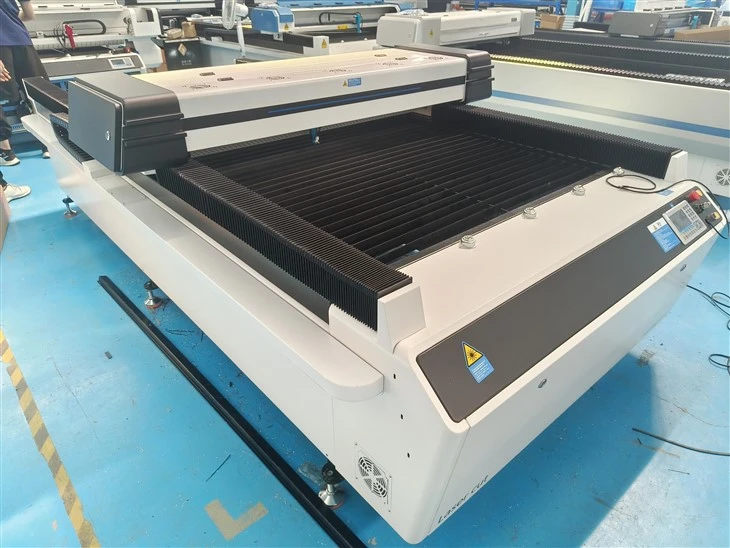

CO2 laser Cutting and engraving machine USJ1325
application
CO2 laser engraving and cutting machine is currently the most cost-effective multifunctional CNC laser machine. There are multiple sizes to choose from: 60*40cm, 90*60cm, 130*90cm, 140*100cm, 160*100cm,130*250cm , etc. We can provide customization.
CO2 laser machines are available from 60W to 300W. Suitable for carving and cutting various non-metallic and metallic materials, such as acrylic, wood, density board, rubber PVC, Leather, paper, stone, glass, metal sheets, etc. Low power laser machines are mainly used for carving, while high-power laser machines are mainly used for cutting.
1 Cutting: acrylic,perspex,wood,MDF,plywood,veneer,paper,leather,rubber,fabric,cloth,canvas,foil,leather,fur,foam,plastic,PES,PC,PA,PE,PP,composite material,PVC, etc.
2 Engraving: acrylic,perspex,wood,MDF,plywood,stone,marble,glass,jade,crystal,metalcoating,paper,leather,rubber,fabric,cloth,plastic,PVC,etc.
Machine features
Features
1.High-effciency Laser Tube ,easy in cutting and engraving.
2.Precise Linear Guideway,high-speed and precise,strong load capacity and rigidity.
3.Professional Control System,high-speed engraving and cutting.
4.USB port transfer flies, support offline work.
5.Newest laser work software, compatible with CoreIDraw and AutoCAD.
6.The circulation of water cooling,guarantee the water temperature is constant.
7.Laser Machine Software to control the cutting and engraving process of your work, controlling speed, power, and resolution. Capable of engraving vector and picture files directly.
8.This software is compatible with a large variety of design programs (Such as CorelDraw, PhotoShop, AutoCAD, TAJIMA,Artcut, and more) and files: BMP, PLT, DST, DXF, AI, JPG, GIF, PGN, TIF formats.
9.Imported high precision linear guide rail and professional optical system of the laser cutting and engraving machine, dust-proof and lubricate, which improve the engraving quality and prolong machine lifetime.

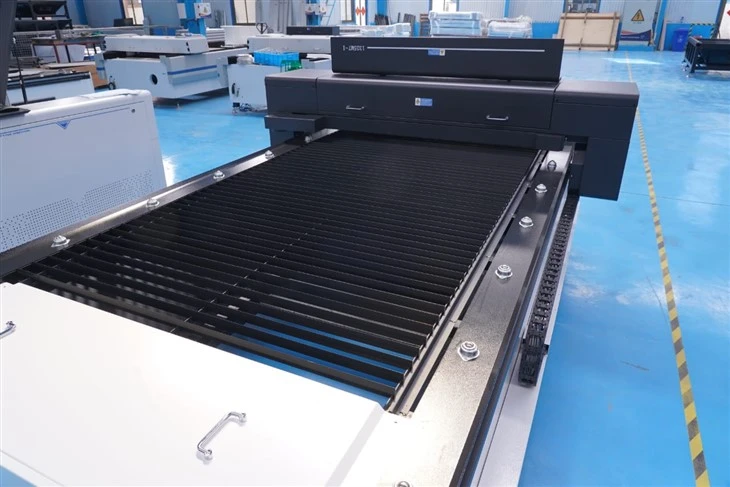

10.Professional Honeycomb and Strip work table, which meet the needs of diversified laser procession.
11.Laser Engraving machine can be applied to different kinds of materials and has many advantages such as smooth
cutting edges, free from polishing, noise free, dust free, fast processing speed, high precision, less waste and higher efficiency. It is the best optional for upgrading traditional equipments in various industries.
12.Heavy body more steady difficult deformation and protect rust.Multi function one machine can cut ,engraving & scan .Have fine cutting and engraving effect and price advantage.Support U-download data, support off-line.
13.Emergency stop (turn off the machine immediately when there is an accident)color layer setting(change the working speed and power by using color settings).Glass viewing windows creating a safe enclosure for laser processing.
14.Adopt imported Linear Guiding System and ensure the machines endurability.
15.The Optical Lens adopt high intensity gilding silicon and non sphere focusing lens, So the Lens. Can endure the scrubs and the high temperature and no need no be often changed, thus reduce the resuming cost. The focusing diameter of the non sphere lens is small, and make the cutting effect better.
16.High Quality Laser tube provides the Strong beam and Long service life.
Detailed parameter
|
Model |
USJ-1325 |
||
|
Working Area |
1300*2500mm*200mm |
||
| Laser Head | one heads | ||
|
Laser Power |
60w/80w/100w/130w//150w/180w/200w/300w/600w |
||
|
Laser Type |
CO2 Laser Tube,10.6μm |
||
|
Cooling Type |
Water Cooling |
||
|
Engraving Speed |
0-60000mm/min |
||
|
Cutting Speed |
0-40000mm/min |
||
|
Laser Output Control |
0-100% Set by Software |
||
|
Min.Engraving Size |
Chinese:2.0mm*2.0mm,English Letter:1.0mm*1.0mm |
||
|
Highest Scanning Precision |
4000DPI |
||
|
Locating Accuracy |
≤+0.01mm |
||
|
Controlling Software |
Ruida 6445G Control System |
||
| Laser Tube | Beijing EFR /RECI Laser Tube | ||
| Table Structure | Blade or Honeycomb Table | ||
| Drive System | Stepper Motor and Driver | ||
| Belt | Shanghai Fulong Belt | ||
| Rails Guide | Taiwan HIWIN Square Linear Rail | ||
|
Graphic Format Supported |
DST PLT BMP DXF DWG AI LAS,etc |
||
|
Compatible Software |
CORELDRAW,PHOTOSHOP,AUTOCAD,TAJIMA,etc. |
||
|
Color Separation |
Yes |
||
|
Drive System |
High-precision 3-phase Stepper Motor |
||
|
Auxiliary Equipments |
Exhaust Fan and Air Exhaust Pipe |
||
|
Power Supply |
AC110V/220V+10%,50HZ/60HZ |
||
|
Working Environment |
Temperature:0-45C,Humidity5-95%(No Condensate Water) |
||
Product Description
1. Different control power signal lines adopt separate routing design, and the whole is clean and tidy, avoiding electromagnetic interference between various types of signal lines.2.Silent slider to reduce the resistance of the laser head and the potter during the movement, making the laser machine work more smoothly.
3. Adopting high-torque Leadshine stepper motor drivers. The engraving accuracy is 20 % higher than other drivers and has a long service life.
4. With double fume pipe design, extract fume fast and completely.
5. Dowin laser engraving machine with advanced RUIDA control system, has the function of consecutively high speed curve cutting and the shortest path selection, which largely improve your working efficiency.
6. The X/Y axis uses high-precision belt-driven motor to improve response speed and cutting accuracy. The dual coaxial power transmission is more stable, reducing the inertia error, improving the engraving precision of the laser machine.
7. Imported gallium arsenide focusing lens, the light transmittance is as high as 99.9%.
8. S&A Brand CW-5200 Water cooling control system. Famous brand chiller has warning and automatic protection system, more stable and cool down tube faster.
RECI laser tube:
Adopt the new high-efficiency CO2 laser tube of RECl,the 100W co2 laser tube can reach a peak of 122W.The laser beam is more stable and the life of the lasertube can exceed 10.000 hours.
Adjustable laser head:
The aluminum alloy adjustable laser head is lighter than other metal laser heads, which can minimize the inertial error when the laser head moves. The structure is simple, the operation is convenient, the laser equipment is stable, and the maintenance cost is low.
Imported laser lens:
Silicon reflective lens, 5-layer silicon coating, laser reflectivity of 99.9%. Imported zinc selenide laser focusing lens with a transmittance of 99.8%. High temperature resistance and wear resistance.
Ruida Control System:
Control system from Shenzhen RD company ,no need dongle. English Control panel is convenient to operate and with Re-carving function after break point or power failure.
Ruida control system Supports USB cable controled by computerand and also offline control system by just a U disk
Leadshine motor drive
Leadshine motor drive:
The high-torque Leadshine stepper motor driver has a20% higher engraving accuracy than other drives andhas a long service life.
detail samples
Packing and delivery
why choose us
*2 years guarantee of the whole machine and we give lifetime maintenance free of charge.
*Free training to make sure you master the operating of machine at our factory.
* 24 hours online services through Whatsapp, Skype, Email or on the phone.
*Engineers available for overseas training and after-sale services.
* Friendly English version manual and operation video CD disk.
Packaging & Shipping
1.Sea freight is an economical option. When loading machines into containers, it is necessary to fully consider the size and weight of the equipment and choose the appropriate container type. The equipment is usually placed on wooden pallets and tied with steel or plastic straps to enhance stability. In the container, buffer materials such as foam pads and air cushions should also be used to fill the gap between the equipment and the container wall, so as to reduce the collision caused by ship shaking during maritime transportation. In addition, due to the high humidity in the marine environment, it is necessary to carry out moisture-proof treatment on the equipment, such as placing desiccants inside the equipment packaging.
2.Outer packaging box: Generally, wooden or metal frame structure packaging boxes are used, which have high strength and stability. Wooden packaging boxes have relatively low costs and can be customized according to the size of the equipment. Metal packaging boxes are more sturdy and durable, suitable for long-distance transportation or transportation in harsh environments. The exterior of the packaging box is usually labeled with prominent signs such as "Fragile Items", "Precision Equipment", "Upward", "Moisture proof", etc., to remind transportation personnel to pay attention.
3.Internal cushioning materials: In order to protect the precision components of the equipment, various cushioning materials are used inside the packaging box. Foam plastic is one of the most commonly used materials. It can be cut and filled according to the shape of the equipment to provide good shock absorption effect. In addition, materials such as air cushion film and sponge will also be used. For example, for the laser generator, it will be wrapped with thick foam plastic, and then wrapped with air cushion film in multiple layers to ensure that it will not be impacted and vibrated during transportation.
4.Fixed device: In the packaging box, the equipment will be prevented from displacement through various fixed devices. For large fiber laser cutting machines, steel fixed brackets are used to secure the main body of the equipment to the bottom of the packaging box. For some small components, such as cutting heads, control cabinets, etc., plastic buckles or nylon zip ties are used to fix them in specialized positions. At the same time, cushioning materials such as rubber pads will be placed between the equipment and fixed devices to avoid wear and tear caused by direct contact.
fAQ
Q1: Are you a factory or trading company?
A: We are a factory,which manufactures fiber laser cutting machine and CNC plasma cutting machine,with 10 years experience in CNC machine industry.
Q2: Do you have CE document and other documents for customs clearance?
A: Yes, we have CE, provide you with a one-stop service. At first we will show you and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
1. What main job you do with the machine?
2. What is your request? diameter, __mm* length, __mm?
3. What material you want to cut,stainless steel,carbon steel?
Q4: How about warranty?
A: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be
changed free of charge(some parts will be maintained) when if any problem during the warranty period.
Q5. What is the delivery time for the machine?
A:Fast delivery. The delivery time for most machine models is usually within 15-30 working days.
Q6. How do I install the machine after I receive it?
A: We have prepared a complete user manual, installation preparation guide and installation video. These documents will be sent to you in advance and you can prepare according to them. After the machine arrives, we will set up an online group where our engineers will be available to guide you, and we will stay online 24 hours a day.
Q7. Why should you buy from us not from other suppliers?
A: Our company has 20 years experience in this field ,owns 4 automatic production lines, and the annual production capacity of laser cutting machines exceeds 1,500 units. All machines passed the European CE authentication, ISO 9001 certificate .
Q8. How can I get the suitable machine ?
A: Please tell us the materials you need to process , and the materials size like the length , width and thickness , we will suggest suitable machine according to your requirement.
Q9. Does the machine have CE , ISO and other safety certificates?
A:All our machines has safety certificates. You can ask for the electronic version of the certificate with our sales staff
