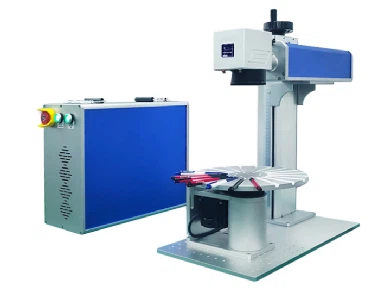

50W Fiber Laser Metal Deep Engraving Machine

•Metal material

The characteristics of different metals have different effects on the deep engraving speed. Aluminum has the lowest melting point, so under the same conditions, aluminum has the fastest deep engraving speed.

•Pulse width

When the pulse width is large, the speed is fast and the engraving shadow is rough; when the pulse width is small, the speed is slow and the engraving shadow is delicate. The engraving depth increases with the increase of pulse width. In practical applications, it is necessary to select appropriate parameters according to the needs of deep etching, taking into account the speed and quality of deep engraving.

•Laser source

The choice of laser source determines the absorption efficiency, which needs to be measured from multiple aspects such as specific brand, process, budget, etc.

•Laser power

When other conditions remain unchanged, the power of the laser generator is proportional to the depth.

•Engraving time

Laser deep engraving is a process of repeated etching. The length of engraving time directly determines the depth.

•Surface condition

The metal surface is smooth, shiny, rough, and whether it has been treated by wire drawing, anodizing, electroplating, phosphating, passivation, blackening, etc. Different coatings have different absorption reactions to lasers, and the surface state directly determines the absorption result.

•Scanning range

This is determined by the laser focusing optical system. The larger the scanning range, the more difficult it is to etch and the slower the deep engraving speed.

• Easy and quick installation, USB can be easily connected to the computer.

• Low cost: The conversion rate of electrical energy to laser is high, and the power consumption of the whole machine is less than 500W, which          is one-tenth of the optical pump source laser.

• Maintenance-free operation: No maintenance is required for the laser, and no lens cleaning is required.

• Long service life: The laser metal engraving machine uses a laser diode as a pump source, and the working time can reach 100,000 hours.

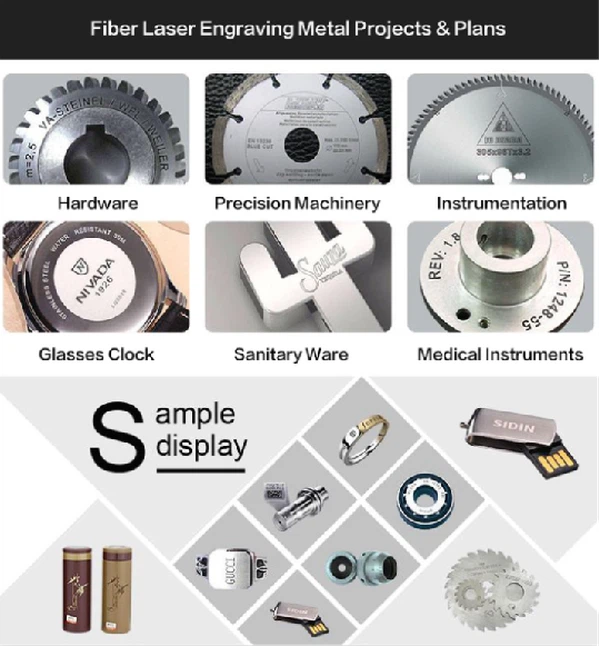

Fiber laser deep engraving machine is suitable for metal (stainless steel, aluminum, alloy, brass, silver, gold, titanium, iron) and non-metal surface marking and engraving, such as firearms, firearms, rings, bearings, gears, auto parts, hardware tools, aerospace parts, integrated circuit chips, computer accessories, clocks, electronic communication products, home appliances, wires and cables, jewelry, accessories, necklaces, bracelets and many other fields of graphics and text marking.

Deep laser engraving machine can also cut thin metals such as stainless steel, aluminum, alloy, brass, silver, gold, titanium.

Laser deep engraving is achieved by using a higher power and higher frequency laser generator to perform multiple focused scans. The higher the power, the easier it is to understand. Higher output power means greater pulse energy per unit area and more natural depth. At the same time, the power of the current light source can be adjusted during laser processing (for example, 10-100%). Under the principle that depth and results need to be balanced (high power-fast speed-coarser shadows; low power-slow speed-finer shadows, more controllable), you can first use high power to outline the main line direction, and then use low power to engrave details.

A higher repetition frequency is an important indicator to describe the number of laser pulses per unit time. The higher the repetition frequency, the more working pulses per unit time, and higher quality processing results can be obtained when engraving at high speed.

Concentrate attention and scan multiple times, this goes without saying.

The ergonomics of laser deep engraving is an important factor that needs to be considered together with the budget and laser parameter performance.

Of course, there are also some lasers for deep laser engraving technology, and customers can choose according to their budget and the specific material of the processed parts.

Will the package be damaged during transportation?

Our packages are handled safely, all damages are taken into account, and our shipping agent has rich experience in safe transportation. Our products have been exported to more than 180 countries around the world. So please rest assured that the package you receive will be intact.

How to set up the laser metal engraving machine?

Our technicians have debugged the machine before shipment. For the assembly of some small parts, we will provide detailed teaching videos and user manuals with the machine. 95% of customers can learn by themselves.

What if the machine cannot run?

If you encounter such problems, please contact us as soon as possible, and do not try to repair the machine by yourself or others. We will reply you as soon as possible within 24 hours.

#In the processing of production, our professional technical engineers inspect the processing to ensure the quality of products

#Every machine must be tested before delivery for 8 hours , all of them are absolutely qualified

# 2 Years guarantee of the whole machine

#Main parts shall be changed free of charge if there is any problem during the warranty period

#Machine has been adjusted before delivery

• A skilled and strict quality inspection team during material procurement and production.

• All finished machines we deliver are 100% strictly tested by our quality control department and engineering department.

30% T/T deposit in advance, the balance to be paid before shipment.
