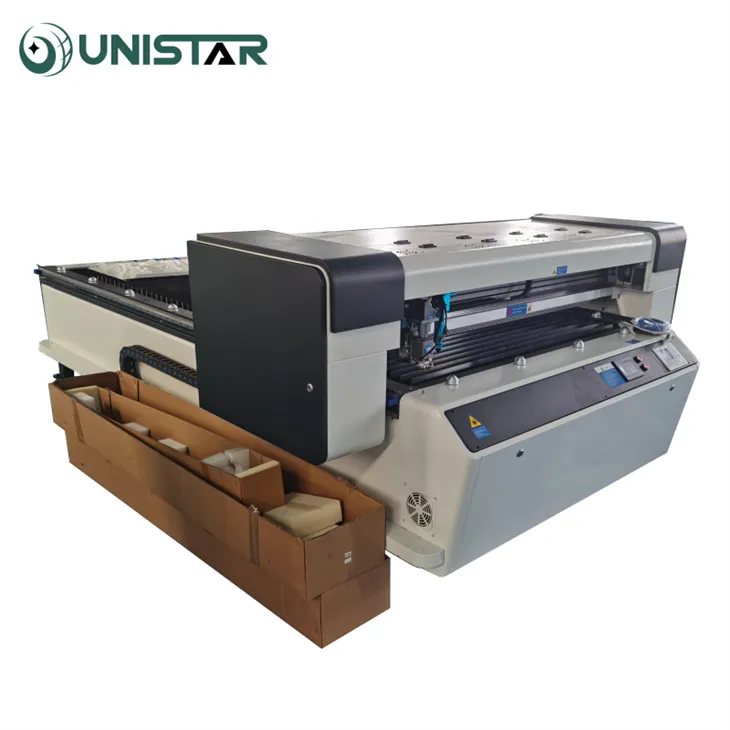

CO2 Laser Cutting Machine For Metal And Nonmetal

Configurations

Brief Introduction

Laser cutting processing is to replace the traditional mechanical knife with an invisible beam, with high precision, fast cutting, not limited to cutting pattern restrictions, automatic typesetting to save materials, smooth incision, low processing costs, will gradually improve or replace the traditional metal cutting process equipment.

Applicable Industry

Stainless steel plates and non-metallic materials used in advertising, decoration and other industries, there is also a workpiece processing with a complex cutting profile but a small amount, which is used to save the cost and cycle of manufacturing molds.

Applicable Materials

Stainless steel, carbon steel, alloy steel, spring steel, copper plate, aluminum plate, gold, silver, titanium and other metal plates and plastic, acrylic, plexiglass, leather, bamboo, wood, cardboard, etc

Advantages

1. Fast cutting speed. Carbon dioxide laser cutting machine is very fast in terms of cutting speed, the speed is dozens of times faster than traditional mechanical cutting.

2. High cutting efficiency. Good surface finish, no need for secondary processing, thus improving production efficiency and product quality
3. High precision. The laser beam is thin and the focus is high, so the dimensional accuracy of the cut parts is high
4. The HAZ is small. Since the thermal action of the laser beam is the local heating of high energy density, the heat affected area can be made small, reducing the thermal damage to the area around the material. So that the material will not deform.
5. Save material and labor. Carbon dioxide laser cutting machine does not need to use chemical reagents in the cutting process, does not produce waste gas or waste water, so it can achieve the purpose of environmental protection and energy saving. At the same time, because the cutting process of the equipment only requires a large amount of laser energy to complete the task, the minimization of material waste can be achieved, and the cost of manpower and material resources can also be saved.

Details Of Mix CO2 Laser Machine

LASER TUBE

Beijing RECI

This brand of laser tube is of high quality and strong stability.

MOTER AND DRIVERS

The quality is stable and reliable, which can maximize the performance of the motor and make the motor run to achieve the "three super performance" of ultra-stable, ultra-low noise and ultra-low heat.

TRANSMISSION

Transmission mode inner slide rail, hidden structure of guide rail, better effect, faster speed, and can prevent smoke aging of guide rail. Synchronous gear, made of pure copper, wear resistance and corrosion resistance.

RAIL GUIDE

Precision milling guide surface, higher plane precision;The guide rail is installed with datum plane, the linear precision is higher.

WATER CHILLER

Multiple alarm functions: compressor time-delay protection, compressor over current protection,water flow alarm and over high / low temperature alarm; It has better cooling effect and better protection of laser tube and machine.

LASER HEAD

It has with follow up system and Auto focus function.The laser head focusing lens adopts Ameircan imported wavelength lens; it is durable

LENSES AND MIRRORS

The brand is USA II-VI.

The diameter of the reflector is 25mm, the diameter of the focusing mirror is 20mm, and the focal length is 63.5mm

CONTROL SYSTEM

RD6445S touch screen control system

MACHINE BODY

Square pipe welding, heavy-duty bed, accurately machined table, so that the machine working more stable , high accuracy.

OPTICAL FRAME

Using 0.25 filament optical frame, the filament thread is not easy to change light, and the optical path is more stable.

EXHAUST FAN

550W exhaust fan

The main function is to remove smoke , dust and remove debris when cutting materials.

TABLE

Blade table bearing capacity is good, can cut acrylic, wood, MDF, plywood and other hard materials

Samples Pictures Of Mix CO2 Laser Machine

Packing And Shipping

1.Shipping: Shipping time depends on the port of destination.

2. Package:

We use international standard fumigation-free plywood packaging.

The advantages of Plywood Case Package: Firstly, plywood case, its compressive strength and bearing quality is

better, is the market of choice for the goods of high-weight packaging. Secondly , the board area is big, the soil

structure is good,and operational process is simple, so it is better in leakproof and waterproof. Thirdly , when

importing the plywood case is with fumigation-free , the procedure is simple.

Why Choose Us?

* Our Company

1. Unistar company have been in machinery manufacture industry for more than 20 years, we always aim to satisfied customer around world with our rich experience and optimal solution, we trade quality first , service first , customer first as our purpose to help every customer earn benefit.

2. We have expert R&D team to ensure product quality and continuous introduction of new products to meet market demand.

3. We have our own factory, quality and service are guaranteed.

4. Enterprise excellent management mechanism, reliable quality assurance system and advanced technology and equipment and advanced management concept, so that the company has been sustained and steady development.

5. We pursue efficiency by management, survival by quality, actively improve product quality values, adhere to the principle of professional and practical product design, the pursuit of excellence, continuous progress, dedicated to provide customers with excellent products and perfect after-sales service system.

*Our Service

1. 12 months guarantee of the whole machine.

2. Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.

3.Lifetime maintenance free of charge.

4.We will provide the consumable parts at an agency price when you need replacement.

5.Machine has been adjusted before delivery.

6.We have excellent engineers good at English to provide at doorservice. If your machine has big problems if by any chance, our engineers would arrive there to debug and fix.

7. Could be remote control if needed.

8. We can provide English software, user manual and detailed Videos CD

9. Door to door technical group service. 24 hours technology online support ,Skype, MSN, Yahoo,etc or by mail and phone .

10. Free training course at our plant.
