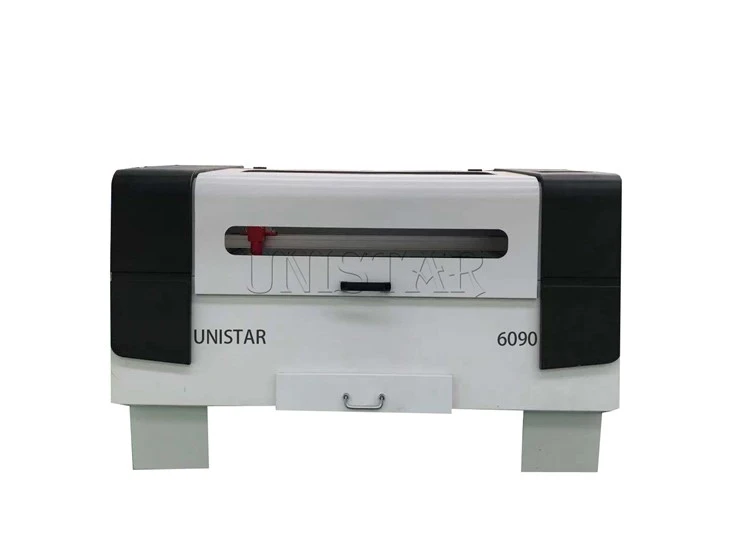

CO2 laser Cutting and engraving machine USJ6090
application
--- Clothing, embroidery, cloth toys, home decoration, handbags, gloves, leather, leather cutting and surface carving in the toy industry.
--- Precision cutting of non-metallic sheets such as crafts, models, advertisements, decoration, electrical appliances, acrylic sheets and medium density decorative sheets in plastic industry.
--- Woodworking business like MDF cutting,hard wood deep engraving, 3D engraving, 2D cutting etc
Machine features
1.High-effciency Laser Tube ,easy in cutting and engraving.
2.Precise Linear Guideway,high-speed and precise,strong load capacity and rigidity.
3.Professional Control System,high-speed engraving and cutting.
4.USB port transfer flies, support offline work.
5.Newest laser work software, compatible with CoreIDraw and AutoCAD.
6.The circulation of water cooling,guarantee the water temperature is constant.
7.Laser Machine Software to control the cutting and engraving process of your work, controlling speed, power, and resolution. Capable of engraving vector and picture files directly.
8.This software is compatible with a large variety of design programs (Such as CorelDraw, PhotoShop, AutoCAD, TAJIMA,Artcut, and more) and files: BMP, PLT, DST, DXF, AI, JPG, GIF, PGN, TIF formats.
9.Imported high precision linear guide rail and professional optical system of the laser cutting and engraving machine, dust-proof , which improve the engraving quality and prolong machine lifetime.
10.Professional Blade or Honeycomb , which meet the needs of diversified laser procession.
11.Laser Engraving machine can be applied to different kinds of materials and has many advantages such as smooth
cutting edges, free from polishing, noise free, dust free, fast processing speed, high precision, less waste and higher efficiency. It is the best optional for upgrading traditional equipments in various industries.
12.Heavy body more steady difficult deformation and protect rust.Multi function one machine can cut ,engraving & scan .Have fine cutting and engraving effect and price advantage.Support U-download data, support off-line.
13.Emergency stop (turn off the machine immediately when there is an accident)color layer setting(change the working speed and power by using color settings).Glass viewing windows creating a safe enclosure for laser processing.
14.Adopt imported Linear Guiding System and ensure the machines endurability.
15.The Optical Lens adopt high intensity gilding silicon and non sphere focusing lens, So the Lens. Can endure the scrubs and the high temperature and no need no be often changed, thus reduce the resuming cost. The focusing diameter of the non sphere lens is small, and make the cutting effect better.
16.High Quality Laser tube provides the Strong beam and Long service life.
Detailed parameter
|
Model |
USJ-6090 |
||
|
Working Area |
600*900mm*200mm |
||
| Laser Head | one heads | ||
|
Laser Power |
60w/80w/100w/130w//150w/180w |
||
|
Laser Type |
CO2 Sealed Laser Tube,10.6μm |
||
|
Cooling Type |
Water Cooling |
||
|
Engraving Speed |
0-60000mm/min |
||
|
Cutting Speed |
0-40000mm/min |
||
|
Laser Output Control |
0-100% Set by Software |
||
|
Min.Engraving Size |
Chinese:2.0mm*2.0mm,English Letter:1.0mm*1.0mm |
||
|
Highest Scanning Precision |
4000DPI |
||
|
Locating Accuracy |
≤+0.01mm |
||
|
Controlling Software |
Ruida 6445G Control System |
||
| Laser Tube | Beijing EFR /RECI Laser Tube | ||
| Table Structure | Blade or Honeycomb Table | ||
| Drive System | Stepper Motor and Driver | ||
| Belt | Shanghai Fulong Belt | ||
| Rails Guide | Taiwan HIWIN Square Linear Rail | ||
|
Graphic Format Supported |
DST PLT BMP DXF DWG AI LAS,etc |
||
|
Compatible Software |
CORELDRAW,PHOTOSHOP,AUTOCAD,TAJIMA,etc. |
||
|
Color Separation |
Yes |
||
|
Drive System |
High-precision 3-phase Stepper Motor |
||
|
Auxiliary Equipments |
Exhaust Fan and Air Exhaust Pipe |
||
|
Power Supply |
AC110V/220V+10%,50HZ/60HZ |
||
|
Working Environment |
Temperature:0-45C,Humidity5-95%(No Condensate Water) |
||
Product Description
The blade table is suitable for hard meterials.
Aluminum alloy knife strip working table, ensure high quality cutting, optional Honeycomb platforms table for soft material work.
Yongli/Reci Laser Tube technology is mature and the quality is stable and reliable. The use of the latest process technology improves the stability of the product structure and improves the spot output mode to a certain extent, Ensure stable cutting speed and cutting accuracy. With Long service life and low failure rate.
Automatic focus, can quickly locate the workpiece position,Flexible and fast, Reduce material waste.Double head can Increased speed
American import Three reflect mirrors and one focus mirror with high hardness make the optical path transmission more efficient.
Control system from Shenzhen RD company ,no need dongle. English Control panel is convenient to operate and with Re-carving function after break point or power failure.
Ruida control system Supports USB cable controled by computerand and also offline control system by just a U disk
Leadshine motor drive
The high-torque Leadshine stepper motor driver has a20% higher engraving accuracy than other drives andhas a long service life.
detail samples
Packing and delivery
why choose us
*2 years guarantee of the whole machine and we give lifetime maintenance free of charge.
*Free training to make sure you master the operating of machine at our factory.
* 24 hours online services through Whatsapp, Skype, Email or on the phone.
*Engineers available for overseas training and after-sale services.
* Friendly English version manual and operation video CD disk.
fAQ
Q1: Are you a factory or trading company?
A: We are a factory,which manufactures laser machine ,with more than 10 years experience in CNC machine industry.
Q2: Do you have CE document and other documents for customs clearance?
A: Yes, we have CE, provide you with a one-stop service. At first we will show you and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
1. What main job you do with the machine?
2. What is your request? diameter, __mm* length, __mm?
3. What material you want to cut?
Q4: How about warranty?
A: 2 years quality guaranty, the machine with main parts(excluding the consumables) shall be
changed free of charge(some parts will be maintained) when if any problem during the warranty period.
Q5. What is the delivery time for the machine?
A:Fast delivery. The delivery time for most machine models is usually within 15-30 working days.
Q6. How do I install the machine after I receive it?
A: We have prepared a complete user manual, installation preparation guide and installation video. These documents will be sent to you in advance and you can prepare according to them. After the machine arrives, we will set up an online group where our engineers will be available to guide you, and we will stay online 24 hours a day.
Q7. Why should you buy from us not from other suppliers?
A: Our company has 20 years experience in this field ,owns 4 automatic production lines, and the annual production capacity of laser cutting machines exceeds 1,500 units. All machines passed the European CE authentication, ISO 9001 certificate .
Q8. How can I get the suitable machine ?
A: Please tell us the materials you need to process , and the materials size like the length , width and thickness , we will suggest suitable machine according to your requirement.
Q9. Does the machine have CE , ISO and other safety certificates?
A:All our machines has safety certificates. You can ask for the electronic version of the certificate with our sales staff
