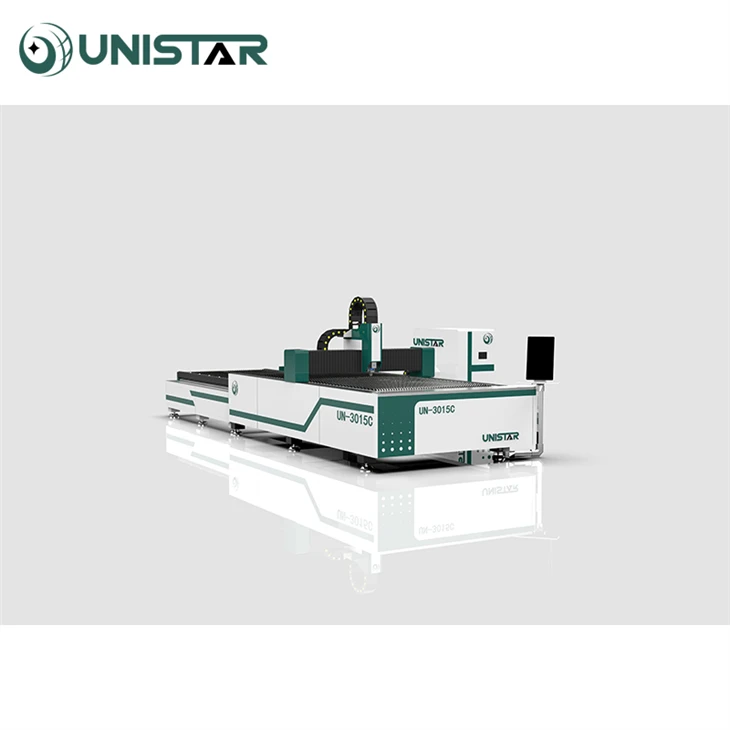

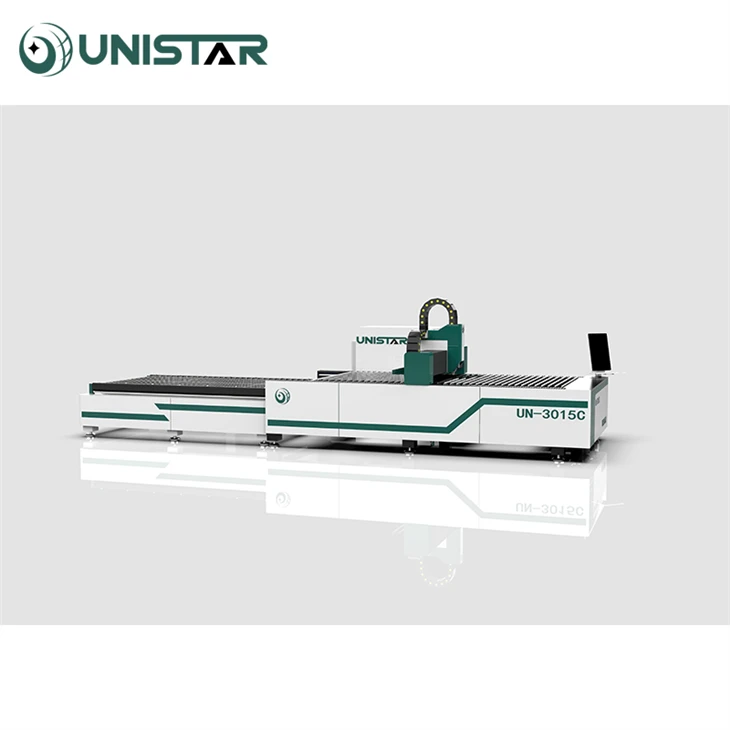

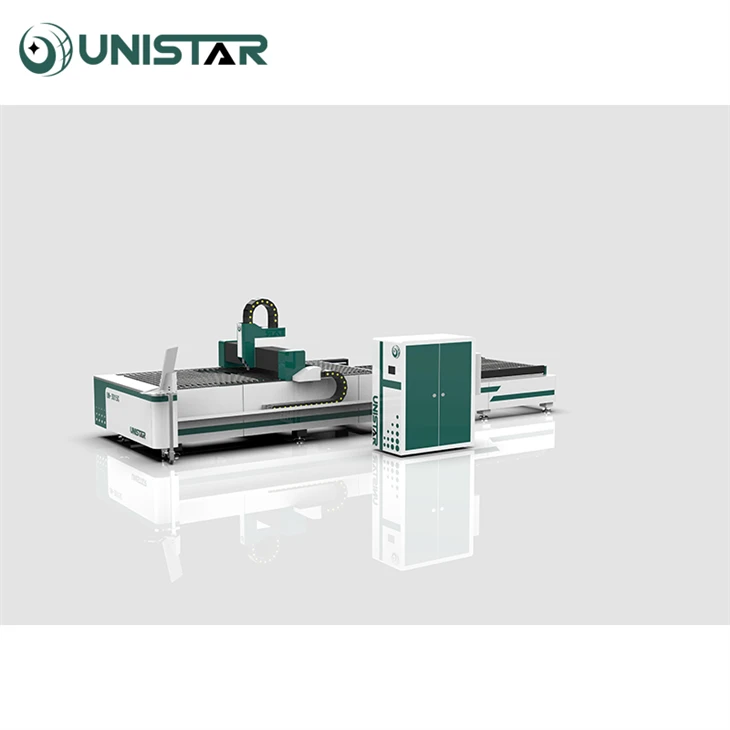

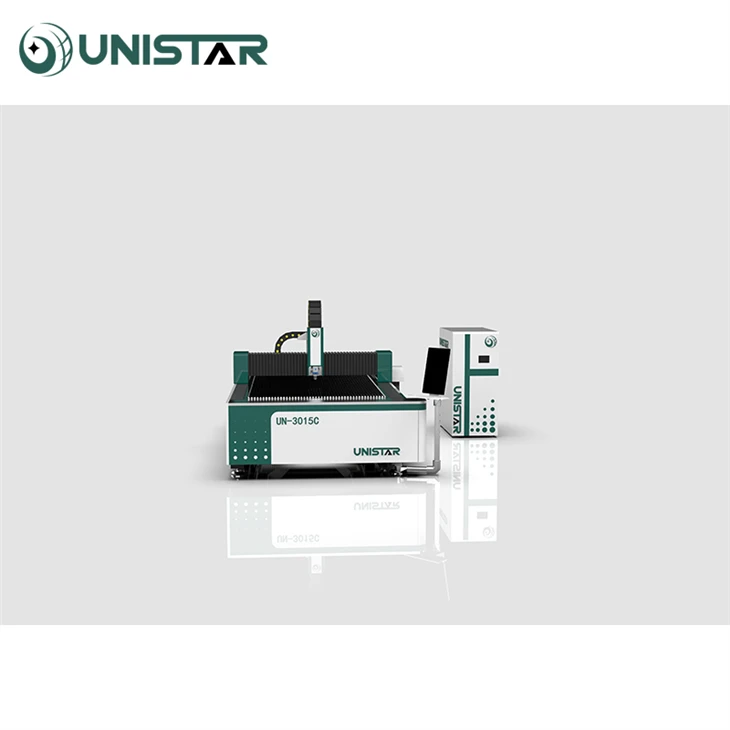

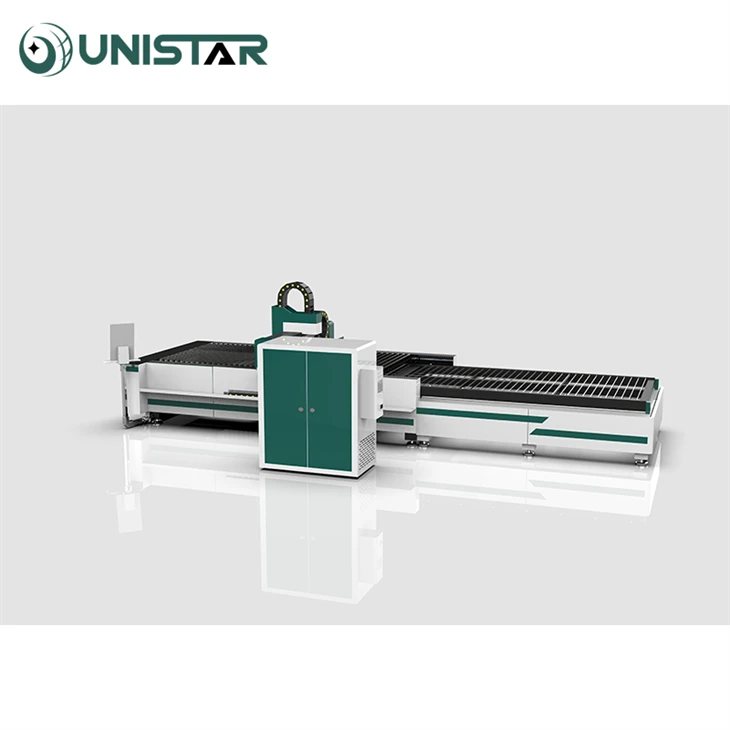

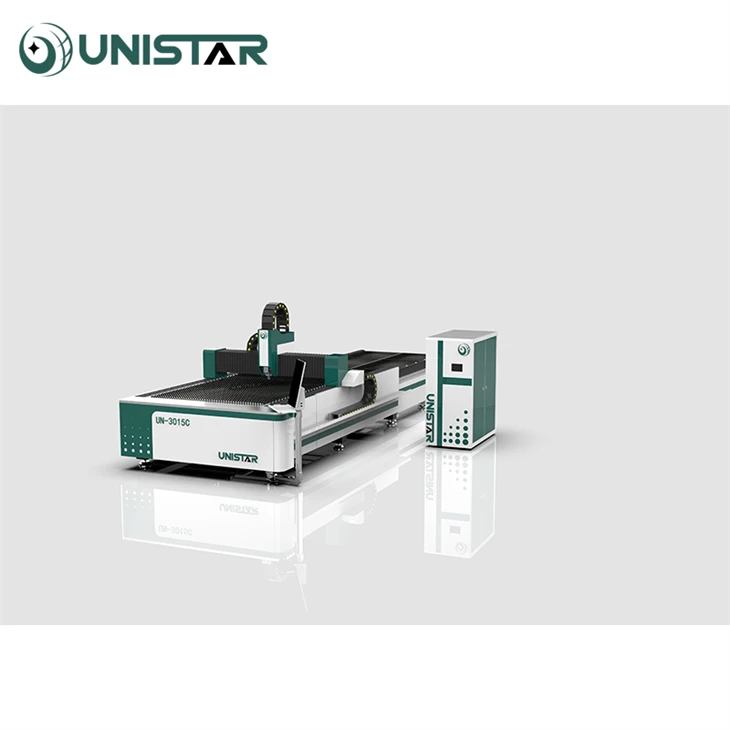

5x10 Fiber Laser Cutter With Exchange Table For Metal

5x10 fiber laser cutter is a large format automatic metal cutting machine working with a CNC controller, using a laser beam to cut through metals. The "5x10" designation refers to the cutting area dimensions, which is typically 5 feet by 10 feet, allowing for full-size sheets of metal to be cut.

Send Inquiry

Description

Features and Advantages of 5x10 Fiber Laser Cutter withExchange Table for Metal

Raytool laser cutting head:

product-319-531

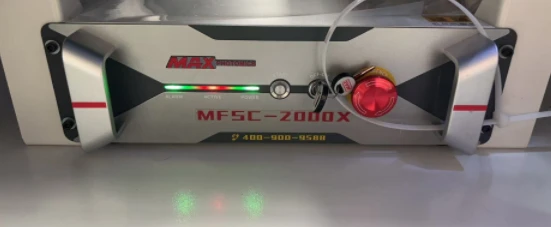

Max laser generator:

product-551-227

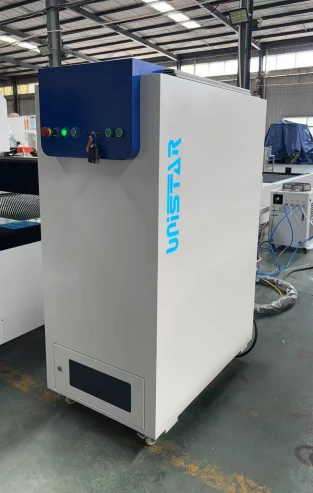

Independent cabinet：

product-313-493

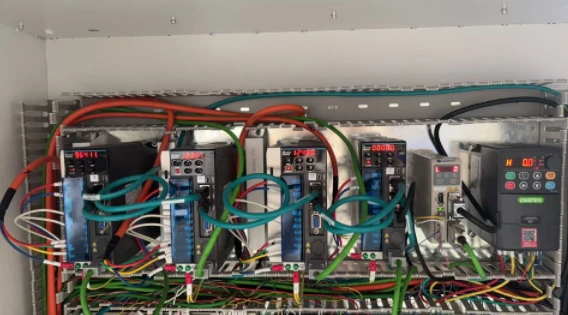

Control box:

product-568-315

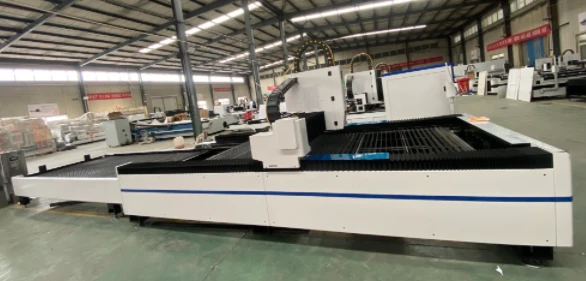

Exchange table:

product-586-281

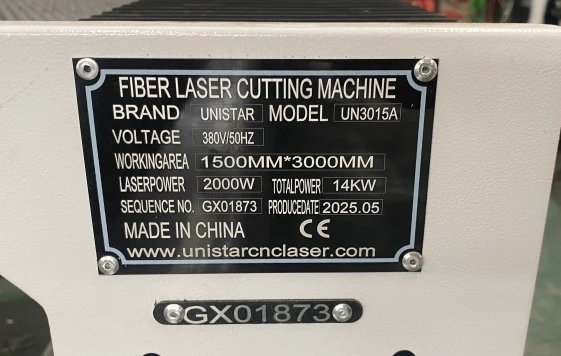

Nameplate：

product-561-356

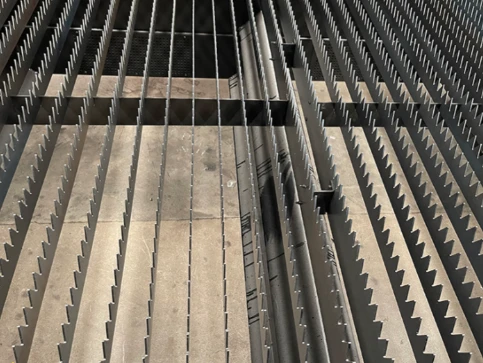

Sawtooth blade table:

product-483-363

Technical Parameters of 5x10 Fiber Laser Cutter

Working Area	3000*1500mm
Laser Power	1500W/2000W
Laser Wavelength	1080 nm
Beam Quality	<0.373mrad
Positioning Accuracy	≤ ±0.03mm/m
Re-positioning Accuracy	≤±0.02mm/m
Maximum positioning acceleration	1.5G
Max moving Speed	40000mm-60000mm/min

Machine body	Machine structure precision machining welding bed, quench and tempering heat treatment
Laser head	Raytools laser head with autofocus
Motor and drivers	Taiwan Delta motor and drivers
Control System	Raytool control system
Laser source	Max laser source
Transmission	X,Y, import Taiwan YYC helical rack and , Z axis Taiwan TBI ball screw
Rail guide	Taiwan import original Hiwin rail guide, high accuracy, not easy rust, keep long lifetime.
Water chiller	S&A water chiller-1500 W /2000W
Exhaust fan	1.5/2 KW exhaust fan
Reducer	Japan Shimpo reducer
Pneumatic accessories	Japan SMC
Component	Electronic Component French Schneider
Supported Graphic Formats	NC PLT, DXF, BMP, AI, DST, DWG, etc
Working temperature	Indoor temperature is OK.
Years of warranty	2 years warranty

Applications of 5x10 Fiber Laser Cutter for Metal

Applicable Materials: stainless steel, carbon steel, electrical steel, galvanized steel, aluminum zinc plate, aluminum, aluminum alloy, titanium alloy, copper, brass, iron and other metal materials.

Application Industries: sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing, other manufacturing processing industries.

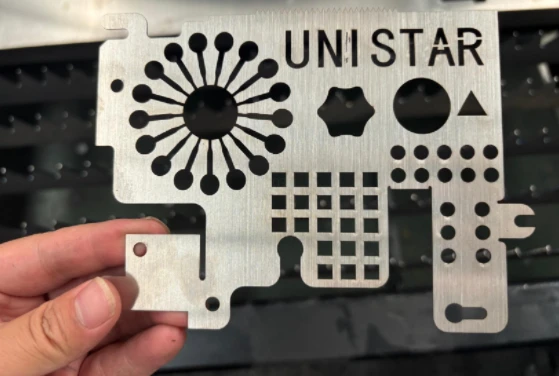

5x10 Fiber Laser Cutter for Metal Projects

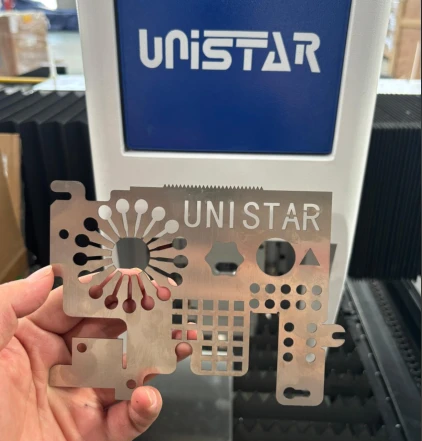

product-422-441

product-559-376

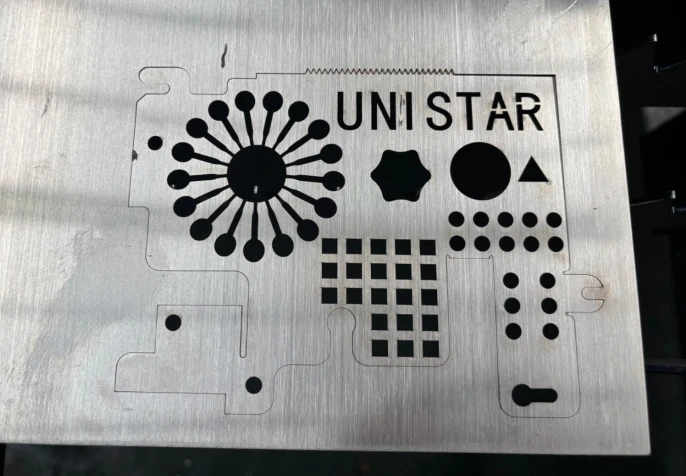

product-686-476

Pre-Sale Service of 5x10 Fiber Laser Cutter

1. Free sample cutting service:

For free sample cutting/testing, please send us your CAD file (.plt or .ai), we will do cutting in our factory and make video to show you the cutting process and result, or send samples to you to check the cutting quality.

2. Progressing Solution Design:

According to customer's product processing requirement, we can design the unique solution that supports higher manufacturing efficiency and better processing quality for customer.

3. Customized machine design:

According to customer's application, we may revise our machine according to customer's convenience and high production efficiency.

Get a quote

If you have an idea to get a free quotation of 5x10 fiber laser cutter with exchange table for metal, please answer the questions as following and tell us by email, so that we can recommend the most suitable laser machine and quota the affordable price to you directly.

1. Do you need to cut metal sheets/plates, metal pipes/tubes only or both?

2. If need to cut tubes, What is your tube length, diameter and max thickness?

3. For cutting metal sheet, what is the max working area required?

4. After processed, what the materials will be used for? (Applications)

5. Which seaport is the nearest to you?

6. Do you have any experience in the portable fiber laser cutter?

7. What is your online chat way? Such as Skype and Whatsapp.

8. Are you an end user or reseller?
