Hot Sale CO2 Laser Cutting Engraving Machine 1325 100W Wood Arcrylic Fabric Leather Cutter Engraver CNC Laser Cutting Machine
Introductions:

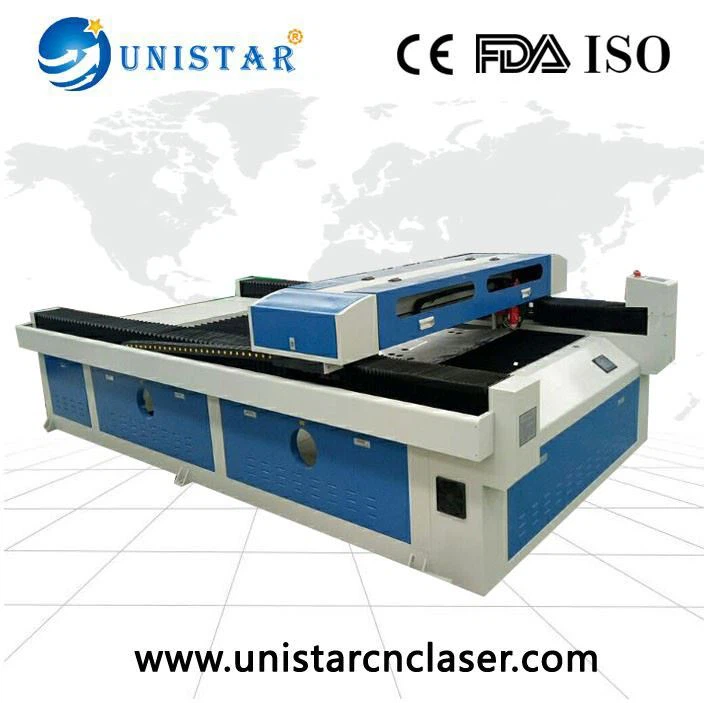

This cnc laser cutting machine is the latest design with high-power laser tube. The high-quality laser tube is equipped with imported beam-forming laser device, adopts England GSI technology. Perfect laser spot, excellent beam profile at all power levels, high Stability output, negative High Voltage Structure, and more Stable &longer lifespan. Its lifespan can reach more than 45000 working hours, far more than other usual laser tube's lifespan. It can cut metals such as stainless steel,carbon steel, also can cut non-metal such as acrylic,wood/MDF/Plywood, leather, fabric, foam, plastic and etc. It is equipped with advanced laser controlling system with auto focus function, if the metal sheet is not flat, the system can sense the distance from the nozzle to the material surface and follow the surface up and down to automatically adjust the certain focus distance to keep the highest precision cutting quality.
Features:
1.The super high photo-electric conversion efficiency can be up to about 70%. So the machine runs with the lowest power consumption compared to other laser cutting machines under output power. The cutting lost is the lowest.
2.With laser beam of good quality from high power laser tube, the focus spot is super fine, and the cutting seam is very smooth. Then the efficiency can be higher, and the quality is better.
3.The efficiency is very stable and reliable, and you have no need to adjust the light path. So it is easy to operate and maintain the machine.
4.The machine costs little water and energy. So the running cost is lower.
Equipped with electric lifting table and rotary device, can make you cut round tube, such as steel tube and etc. (Options)
The CCD can automatically locate the picture adge, to make the automatic cutting.(Options)
Specifications:
| Model | USM1325 CO2 laser cutter |
| Working size | 1300mm*2500mm (4*8 feet) |
| Laser power | 100w-600w |
| Cutting speed | 0 - 50mm/s |
| Reposition accuracy | ±0.05mm |
| Working voltage | AC110- 220V±10%,50-60Hz |
| Consuming power | less than 1,000W |
| Working temperature | 0 - 45°C |
| Working humidity | 8 - 95% |
| Minimum letter size | English :1 x 1mm Chinese:2 x 2mm |
| Supported file format | BMP, HPGL, PLT, DST, DXP, and AI |
| Transmission | Belt or Ball-Screw Transmission |
| Driving system | Stepper or Servo |
| Cooling Way | Water cooling with protection. |
| Other auxiliary equipment | Exhaust-fans&air-exhaust pipe, Air Pump, Chiller |
| Laser controller | RD6445G with auto focusing function |
| Laser Head | Auto Focus |
| Compatible software | CorelDraw, AutoCAD, Photoshop |
| Laser tube type | Sealed CO2 glass laser tube |
Advantages:
Cutting Ability for some materials:
| Materials | Thickness(mm) | Speed(mm/s) |
| Stainless steel | 0.5 | 144 |
| 1 | 96 | |
| 2 | 48 | |
| 3 | 18 | |
| Carbon steel | 0.5 | 188 |
| 1 | 144 | |
| 2 | 60 | |
| 3 | 24 | |
| Acrylic | 5 | 70-80 |
| 10 | 31-36 | |
| 20 | 13-15 | |
| 30 | 12-14 | |
| Wood | 12 | 35-40 |
| 20 | 17-22 | |
| 30 | 12-15 |
Applicable Industries:
Mainly used for advertising industries ( stainless metal and carbon steel ), sheet metal industry (carbon steel ), packaging industry (die board )and so on . steel industries,Plastic and rubber industry, ads/crafts/presents industry. Strumpet/machine components, leather cloth industry. Advertising logo signs, gifts, crystal ornaments, paper cutting techniques, relief, wood carving Jane. Printing plate, leather clothing, embroidery, decoration, frame making and other industries.
Applicable Materials:
Double color boards, acrylic, glass, wood planks, bamboo, foam, MDF, rubber, plastic, garments, paper, leather, marble, granite, tiles, carbon steel, stainless steel and etc... Other models for reference:
Samples Display:
Packages and Delivery:
FAQ:
Q1: I knew nothing about this machine, what kind of machine i should choose?
Very easy to choose. Just tell us what you want to do by using CNC laser machine, then let us give you perfect solutions and suggestions.
Q2: When I got this machine, but I don't know how to use it. What should I do?
We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail.
Q3: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
Q4: Before sending me an inquiry on our cnc laser, it is better for you to provide me the following information
1)Your metal or non-metal material size. Because in our factory, we have different models according to working area.
2)Your materials are Metal/Acrylic/plywood/MDF?
3)You want to engrave or cut?
If cut, could you tell me your cutting thickness? Because different cutting thickness need different laser tube power and laser power supplier.
