Stone engraving machine is a kind of high-tech automatic computer control engraving equipment, specially used in natural stone, glass, ceramics and other materials for calligraphy and painting engraving. Its main functions include stone engraving, relief, Yang carving, Yin carving, line carving, cutting and hollowing
Industrial Appilcation
1. Stone industry : used for stone lettering and relief production.
2. Stone tablet processing : used to make all kinds of stone tablets and monuments.
3. Advertising : used for making billboards and signboards.
4. Decoration industry : used for interior and exterior decoration relief and carving.
5. Ceramics : used for carving and decoration of ceramic products
Main feature
1. Fast speed, high precision, strong stability, low noise, long service life;
2. The bed is T-shaped steel bracket, using full welding process and vibration aging treatment, which can ensure that the machine does not shake during high-speed operation, continuous cutting, and the product processing surface is highly smooth;
3. High-power transverse torque spindle, large bearing, high speed, large amount of chips, and the motor is not easy to damage.
Main function
Stone engraving, stone relief, stone Yang carving, stone Yin carving, stone line carving, stone cutting, stone hollowing.
Applicable material
Marble, granite, jade, bluestone, black stone and other stone, as well as ceramics, glass, plexiglass, PVC board, aluminum-plastic board, bamboo wood and other materials
Techinical Parameter
|
Item |
Standard Specifications 1325 |
|
X,Y,Z Working Area for Panel |
2500*1300*300mm |
|
Spindle Power |
5.5KW Powerful Water Cooling Spindle |
|
X,Y,Z Traveling Positioning Accuracy |
±0.025mm |
|
Table Surface |
Aluminum T-slot table |
|
X,Y,Z Rail and Transmission |
X/Y rack and pinion |
|
Max. Rapid Travel Rate |
30,000mm/min |
|
Max. Working Speed |
20,000mm/min |
|
Drive Motors |
Yako stepper motor and drivers |
|
Working Voltage |
380V 3 phase or custom made. |
|
Command Language |
G code |
|
Operating System |
Shanghai Weihong NC-Studio |
|
Interface |
USB |
|
Software Capabilities |
Vectric Aspire, Type3, Ucancam, Artcam, AlphaCam, Powermill,etc. |
|
Running Environment |
Temperature: 0ºC~45ºC |
Details show

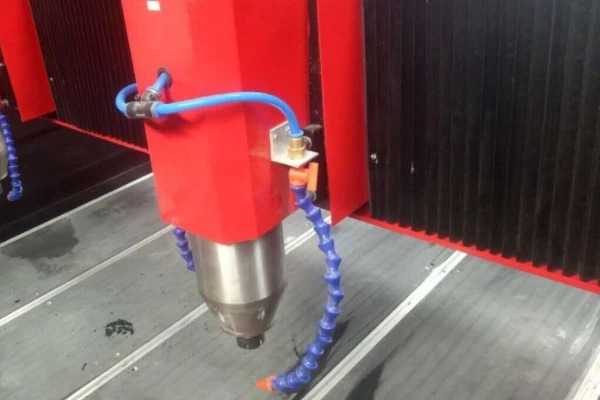

5.5KW High Frequency Water Cooling Spindle
The M Series machine comes standard with a 5.5kw high frequency water cooling spindle. And is fully programmable with speeds from 6000 to 24000 RPM
Leadshine Stepper motor and driver
Won't lose step when it work,guarantee the positional accuracy of the motor.
RichAuto DSPA 11 Control system
DSP control system don't need connect to PC.It included three parts, control card, U disk,and handle Controller. DSP is easily operate and learned, especially for the freshman.
inverter
Fuling inverter has a variety of protection functions, such as overheating, overcurrent, overload, short circuit, etc., effectively improve the reliability and safety of the equipment.
Tool Instrument
Automatically determine the distance from the tip to the workpiece, improve accuracy and save time.
Rail and Transmission
The machine adopts Taiwan Hiwin square rail, which is more than twice durable. X and Y axis is drivern by rack and pinion. The Z axis is drivern by ball screw.
Electric Accessories
Schneider Electric Accessories in France use the best materials to ensure the safety of electricity.
Machine Structure
Machine Structure is welded by thick steel tube , through special fine processing , whole-structure stable combined and good rigid, guarantee the carving accuracy, make sure no deformation after long time using.
Sample picture
Company profile
UNISTAR CNC Co., Ltd. was established in 2002, specializing in CNC machinery with rich experience! The company has two factories: CNC Router and Laser Machine factories and plants.
UNISTAR CNC is comprehensive in the production, designing, manufacturing, trading and supplying service of CNC machine, and provide high quality and good efficient CNC machines worldwide. With a strong staff team, "Brand UNISTAR CNC " gained success in woodworking engraving machine, advertising engraving machine, stone engraving machine, metal engraving machine, laser engraving machine and laser cutting industry equipment. The production facilities occupies China's forefront in development and expansion.
UNISTAR CNC Products are widely used in the fields of advertising, furniture, gifts, decoration, packaging etc., and materials of wood, acrylic, stone, fabric, leather metal, etc."UNISTAR CNC "is well-known not only in China, but also in Russia, Europe, Southeast Asia, Middle East, Africa, the Americas, India and other more than 120 foreign countries.
UNISTAR CNC is with advanced and powerful machining capability. We have imported high precision 5 axis CNC Machining center to process the machine frame, the top milling, side milling, and side drilling will be finished in one machining center, which ensure our CNC machine is with higher precision, Moreover, the small machine parts are machined by American imported Haas ATC CNC Center.
UNISTAR CNC has strong technical strength. We has more than 10 engineers to develop new machines every year, and our engineers will design the machine according customer's special request. We have more than 20 after-sale service engineers to serve our customers 7*24.
UNISTAR CNC always adhere to the principle --- First class reputation, first-class service and excellent products.
Packing and Shipping
Customers visit us

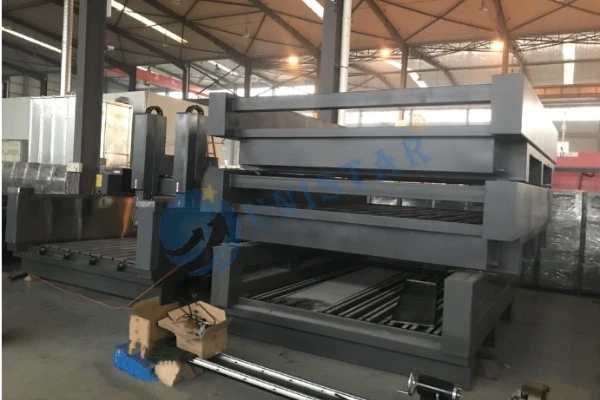

Factory show
FAQ
Q: How do I install and run the machine?
95% of customers can teach themselves.
Q: I don't know which kind of CNC milling machine suits me.
Q: What should I do if I want to see the condition of the machines in your factory and it is not convenient to go to China?
Q: What's your delivery date?
Q: What should I pay attention to when cutting ?
