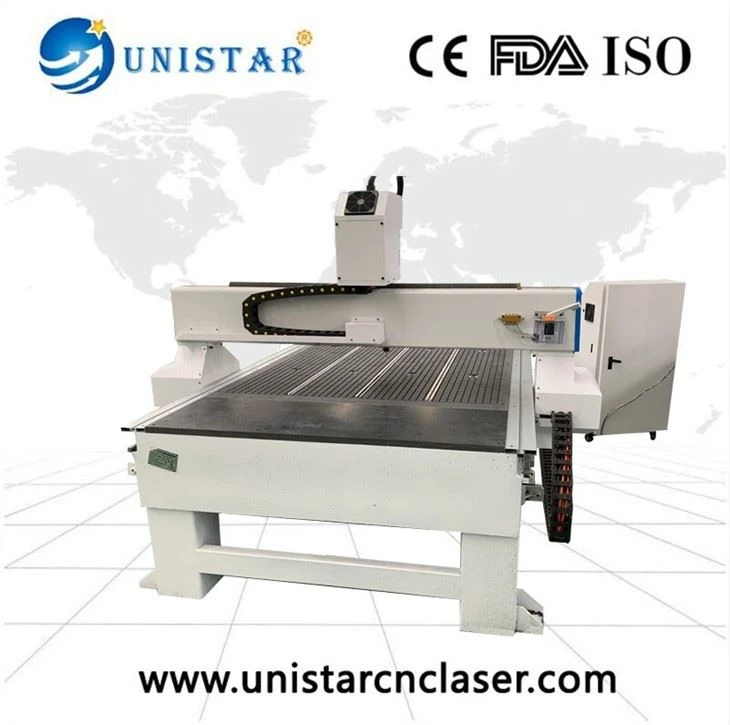

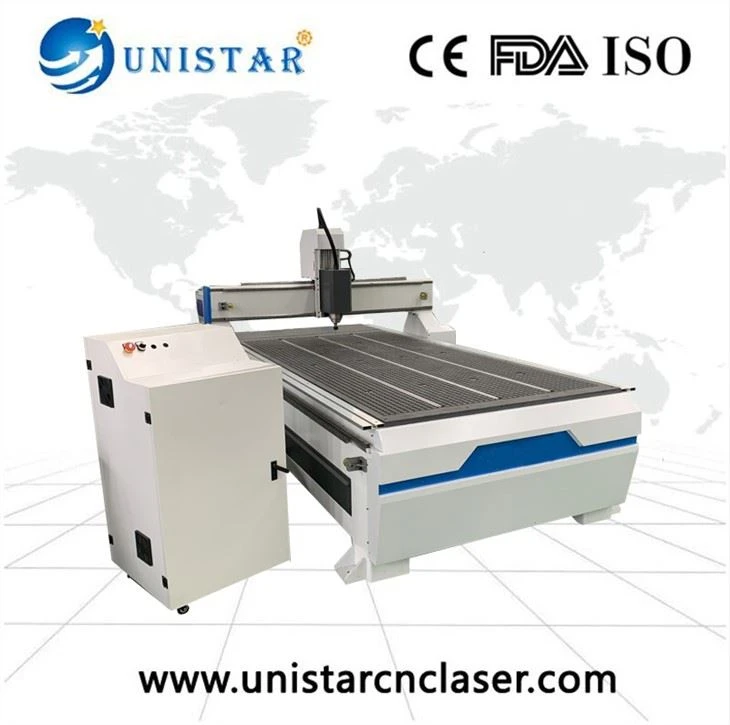

1325 Woodworking and Carving Engraving Machine CNC Router for Wood Working
Product Description
Product Parameters
Dimension | 3100*1850*1650 |
Platform size | 1500*3000 |
Work area | 1300*2500*200 |
Travelling speed | 20m/min(MAX) |
Working speed | 12m/min(MAX) |
Working voltage | AC220V(Optional 380V) |
Spindle power | Water cooled 3.2KW-24000RPM |
Device architecture | One molding process,space saving cabinet (380V for the normal external cabinet)high structural stability ,high precision and small deformation |

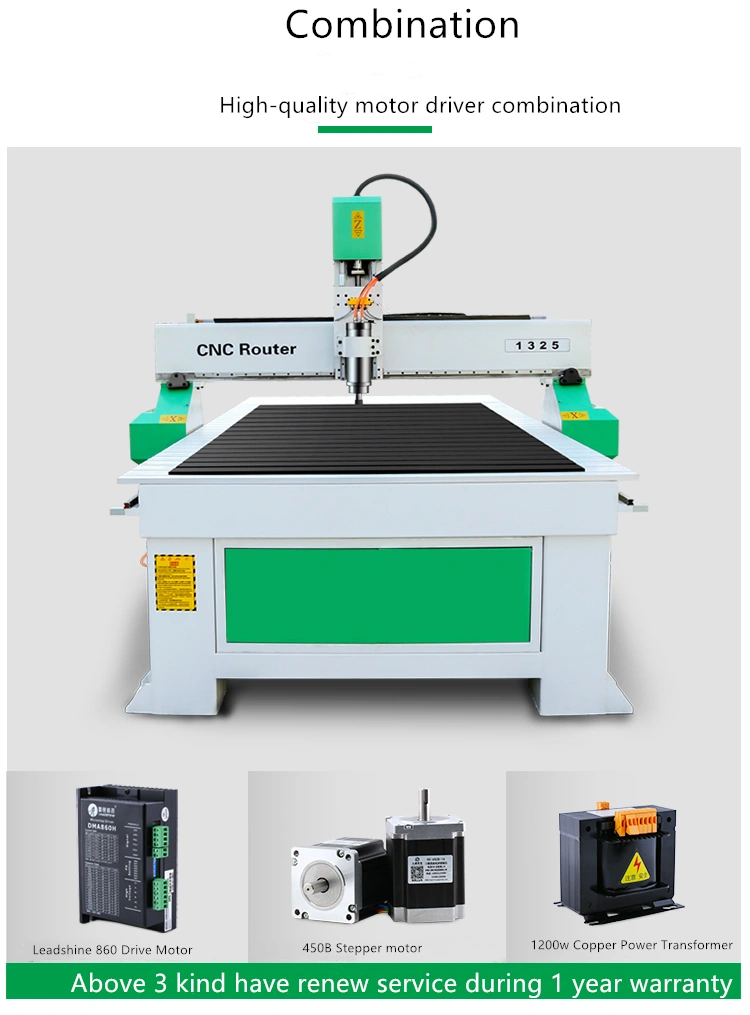

Driving system | XYZ: 86 high torque stepper drive motor and drive |
Rack and pinion | The new 1.2m alloy hardened helical gear rack + alloy hardened helical gear rack |
Guide Rails | Taiwan Original 20 guide rails +Taiwan TBI 2510 ball screw |
Operating system | Weihong |
Platform structure | Aluminum profile + fixture |
Electrical accessories | Omron, Chint |
Inverter | Best |
Power cable | Shanghai customized high-soft high-speed shielding cable, anti-interference and anti-breakage |
Lubrication system | Oil pump centralized lubrication control |
Security system | Overtravel protection, electrical protection etc. |
Dust collector | 2.2KW vacuum cleaner,Vacuum pipe,Vacuum hood |
Fastenings | The transmission parts are fixed with high strength 12.9 class screws, and the sheet metal is fixed with 304 stainless steel screws |
Accuracy | Each axis is fixed rigidly, and the locating pin is added to the precision part |
Quality Control | Incoming material, process, delivery full control, 24 hours machine test |

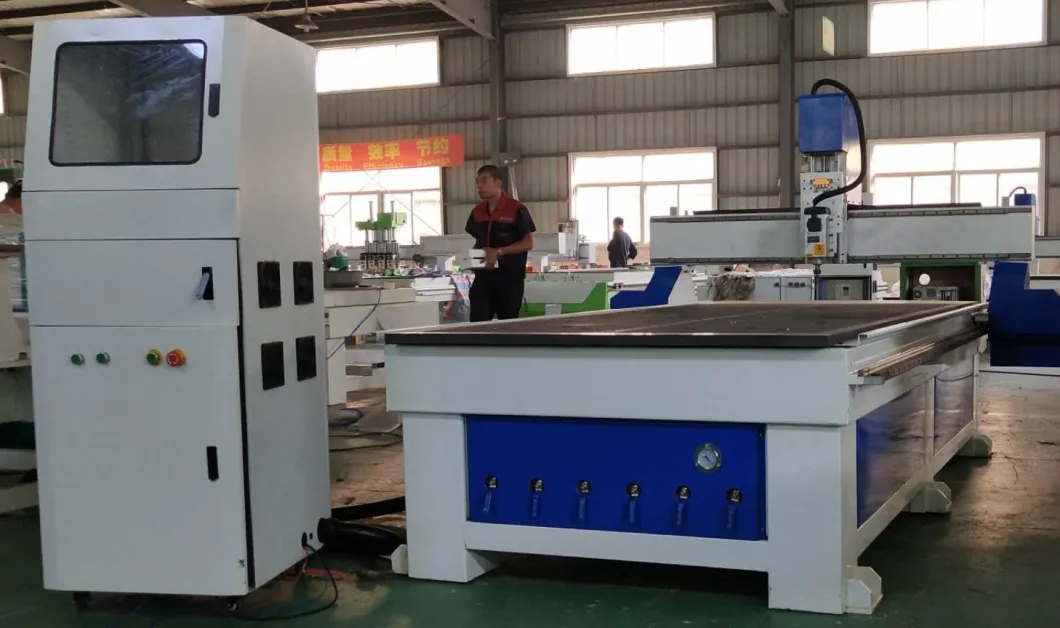

Detailed Photos

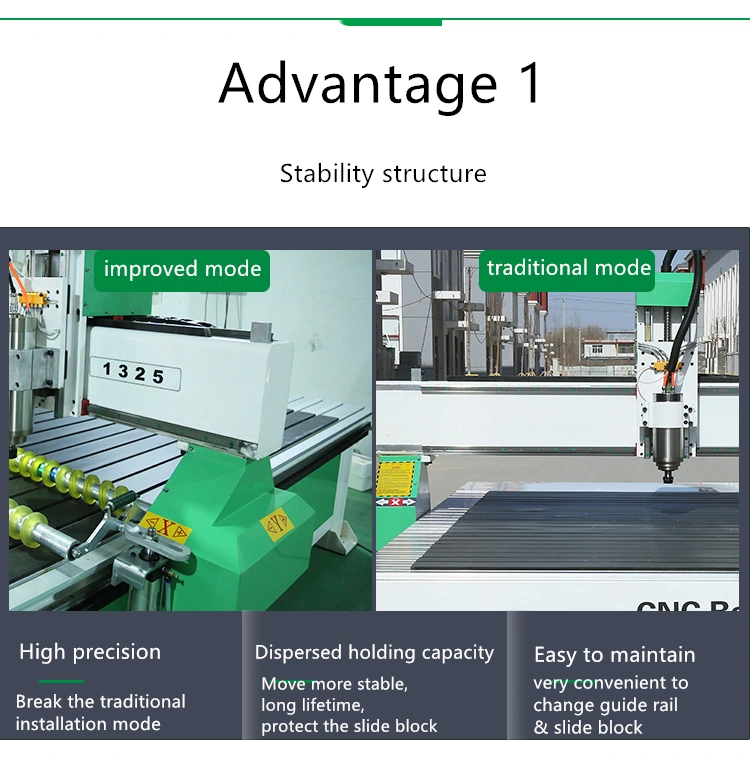

ADVANTAGE 1
Stablility Structure
High Presciison
Break the traditional installation mode
Dispersed Holding Capacity
Move more stable,
long lifetime,
protect the slide bolock
Easy To Maintain
Very convenient to change guidie rail&slide block
ADVANTAGE 2
Z Axis Direct Connection
The force is directly generated to macimaize the Z-axis power
Continuous screw,more effective protection form deformation,higher precision
Completely solve the hidden danger of belt

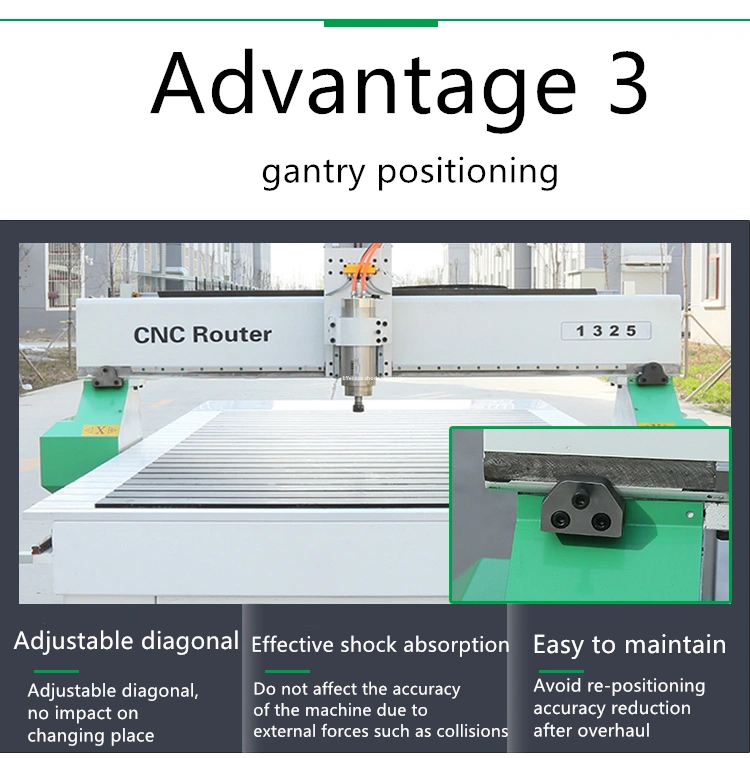

ADVANTAGE 3
Gantry Positioning
Adjustable diagonal
Adjustable diagonal,no impact on changing place
Effective shock aborption
Do not addect the accuracy of the machine due ti external forces such as collisions
Easy to maintain
Avoid re-positioning accuracy reduction after overhaul
Application
Mainly used for batch business production, such as coffin, relief and assembling wooden toy production, carved furniture inlay art and decoration, furniture, decoration, interior doors, cabinet doors , decorative woodwork, wooden crafts, screen, three - dimensional wave board, advertising, precision instrument shell with industry and trade, musical instruments and other industries, plastics, foam batch processing, and so on.
Feature
1.Solid machine bed, high steel stability, high precision. Long using life 2.Y axis is with double motor driving, best configurations, stable process 3.Adopting high precision rack transmission, high precision &speed 4.SpeciaT multi-spindle designed, spindle quantity & power can be optional, the distance between spindles can be easily adjusted.

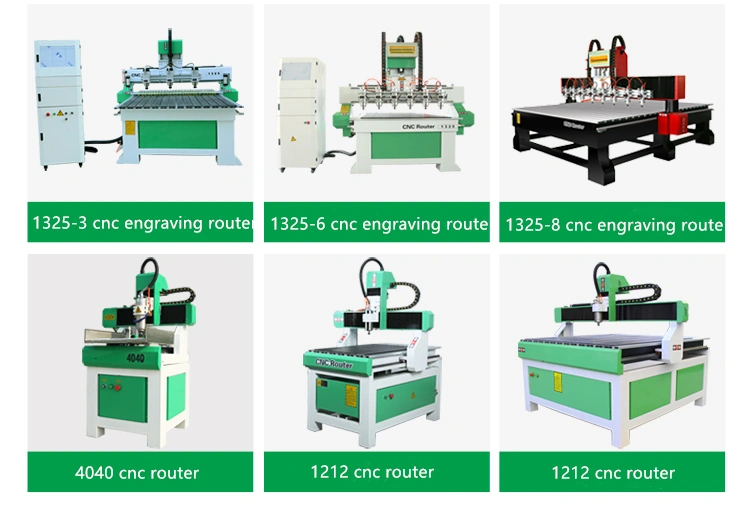

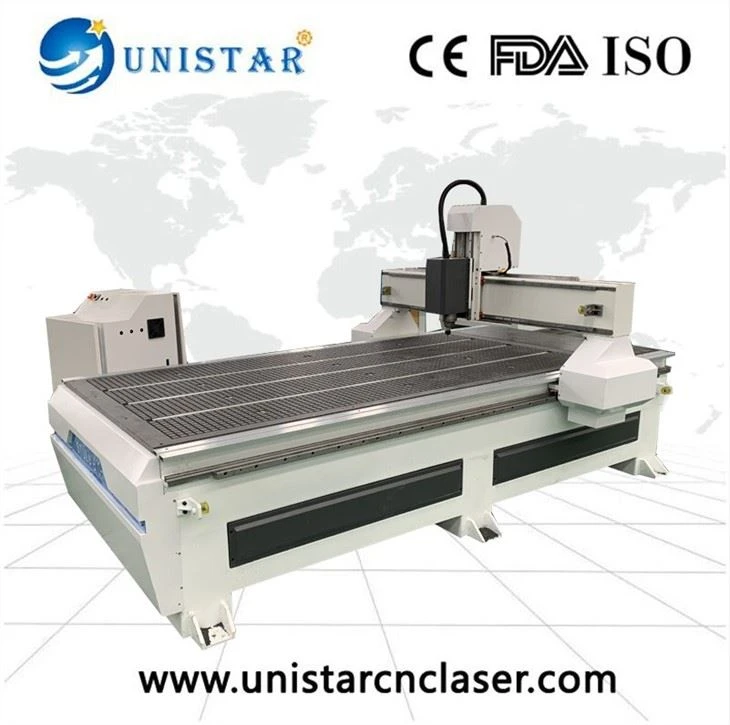

Another Type

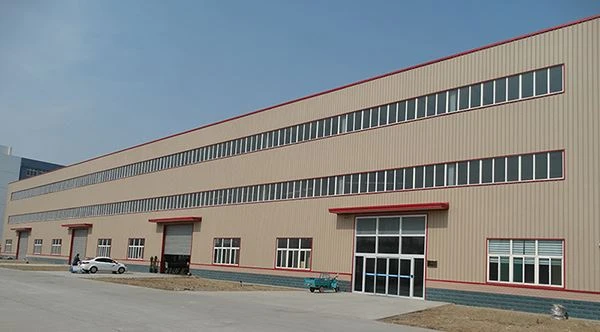

Company Profile
FAQ
1. This is the first time I buy the machine, is it easy to operate?
A: We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team
viewer" online, with telephone or Skype explain.
2. ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory.
3. Can I visit your factory?
A: Yes! We greatly welcome customers to visit our factory!
4. What is your MOQ?
A: Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
After sale-service
1.24 hours online by Ali Trademanager, Skype, Email, QQ, Whatsapp or telephone. 2.We will provide free training, free maintenance, free technical upgrading, 3.We accept the ODM, OEM.
4.Oversea agents wanted, if any interest, pls let me know.Please feel free to contact us for more information!
