Double Independent Air Cooling Spindle CNC 3D Router For Woodworking Machine
Unistar 3d Router Machine is a common type automatic wood engraving and cutting machine. It is usually controlled by NC-studio or Rich Auto DSP handle system. It is very easy to operate and use. The most special highlight part for this machine is equipped with two constant torque air cooling spindle. These two head can working independently, improve the working efficient double.
What industrial can be cut or engraving by this machine ?
Mainly used in heavy plate cutting, drilling, milling, embossing and other processing, wood furniture, audio, solid wood doors, paint doors, sliding door cabinets, Buddha, bamboo and wood crafts, tea trays, plastic, fixtures, wave boards, screens , window grilles, photo frames, decoration, wood products, 3D carving, drilling, cutting and embossing.
Unistar Machine Control
Technical Paremeter
X, Y, Z Axis working area | 1300 mm*2500 mm*120 mm |
Spindle power | 9 kw HQD air cooling spindle *2 |
Operation system | Rich-Auto DSP A11 control system |
Motor and drivers | Hybrid Servo motor and driver |
Table Type | 4mm Plastic Vacuum Working table |
Rail way | Taiwan Linear Square Rail guide |
Transmission | X,Y Rack and pinion |
Transmission | Z high accuracy ball screw |
Machine structure | Heavy machine welded by thick square steel tube |
Inverter | Shanghai Fuling inverter*2 |
Oil injection | Auto oil injection system |
Dust proof | Intelligent dust proof system |
Air pump | With |
Max. Spindle speed | 24000r/min |
Max. traveling speed | 25m/s |
Max. working Speed | 18m/s |
Processing Accuracy | ±0.025mm |
Reposition Accuracy | ≤0.025mm |
Command language | HPGL, G code |
Working voltage | AC380V /50HZ |
Interface | USB |
Command | G code*.u00*.mmg*plt |
The Detailed Description
1. 9KW HQD Air Cooling Spindle

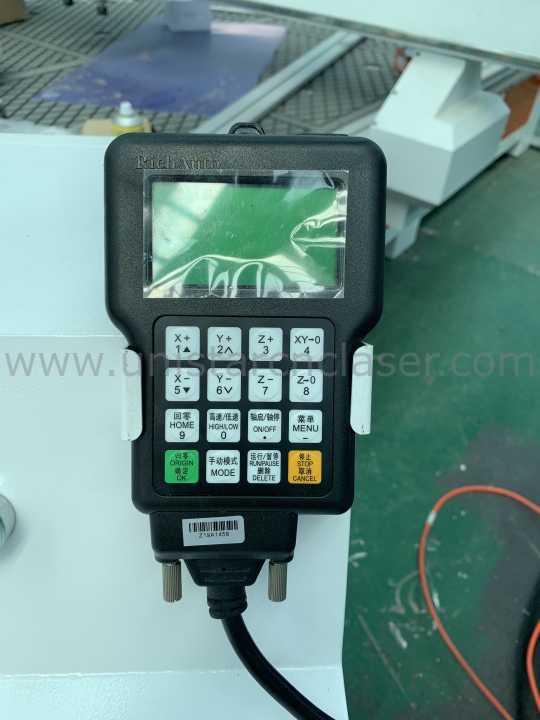

2. Rich Auto DSP A11 Control System
3. High Quality Stepper Motor and Driver
3. Shanghai Fuling Inverter
4. Schneider Electrical Component
Machine Highlight
Three Highlight For This 3D Router Machine
Finish product show
