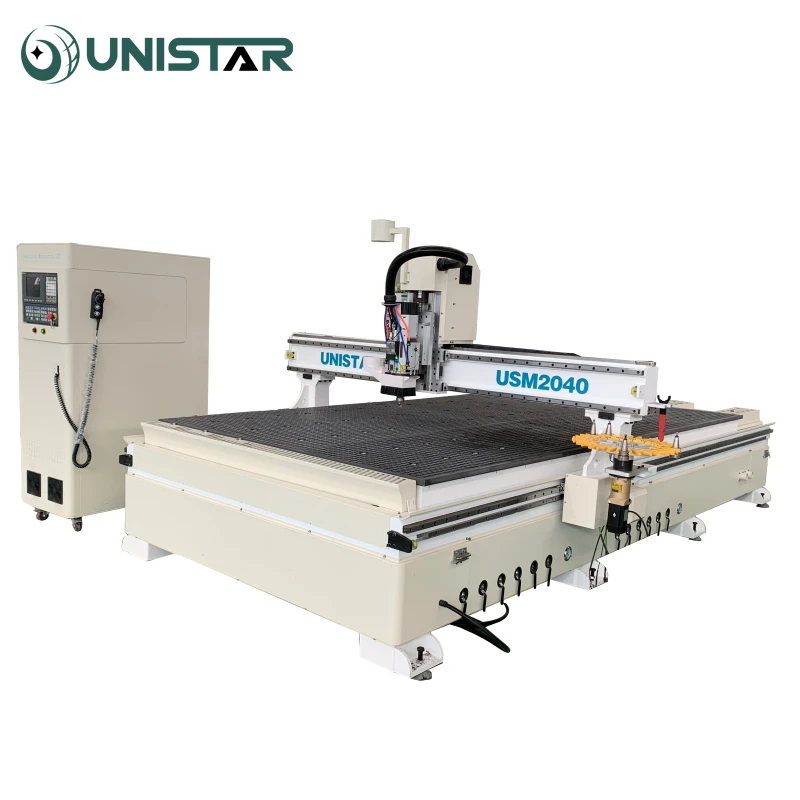

Linear Tool Changer Cutting Machine

Application

1. Application Industry: Automatic tool changer machine is mainly used in cabinet door panel, solid wood furniture, panel furniture, wardrobe doors, Musical Instruments and other processing industries.
2. Application material: The main materials processed are all kinds of wood, glass, plastic, acrylic, insulating materials and other non-metallic materials.

Advantages of ATC machine

1. Save time. Automatic tool change can be completed without manual operation, which can save a lot of time and improve work efficiency.
2. Complete more complex graphics. The linear tool changing machine can produce complex patterns and different shapes. There are 8, 10, 12, 16, 20 tools to choose from.
3. High precision. Compared with other engraving machines, automatic tool changing machines have higher processing accuracy.
4. Multi-functional. In addition to engraving, drilling and other operations, the automatic tool changing machine also has cutting, grooving, hollowing and other functions.

Product Parameters

Detail photos

The air cooling spindle can quickly dissipate heat, reduce the temperature of the spindle, and improve stability and machining accuracy. Compared with the traditional water cooling spindle, the air cooling spindle has higher efficiency and is more convenient to use.

Syntec system has high data processing speed and stable operation. The operation interface is intuitive and simple, easy to learn

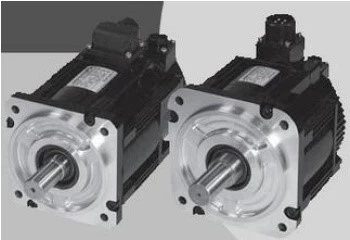

Yaskawa servo motor adopts speed observation control to greatly reduce the speed fluctuation of the motor and smooth operation at low speed.

SHIMPO reducer adopts cone bearings, so that the output shaft can withstand greater axial and radial loads. The gear box and bracket are made of strong materials with the overall structural design to ensure the strong torque performance of the reducer.

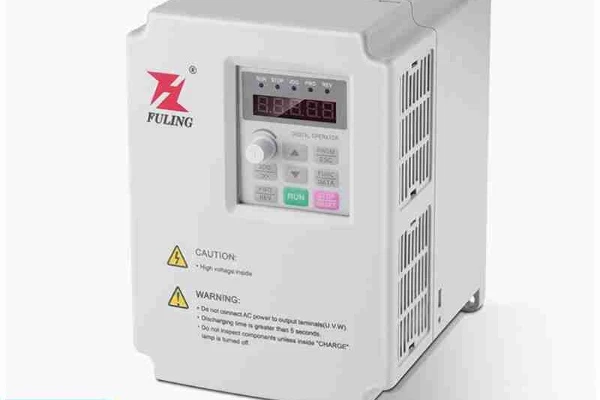

Fuling inverter has a variety of protection functions, such as overheating, overcurrent, overload, short circuit, etc., effectively improve the reliability and safety of the equipment.

Taiwan HIWIN square rail guide
The cost can be effectively controlled by using the HIWIN guide rail. The HIWIN guide rail has a small friction coefficient, which can effectively reduce power consumption during use. HIWIN rail design is simple, strong rigidity, can be perfect for optical fiber cutting machine.

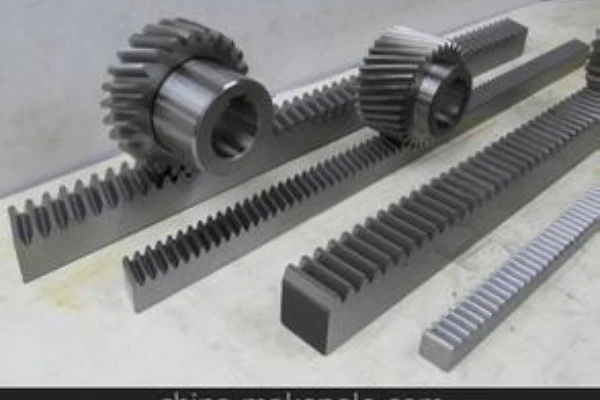

Rack and pinion drive is a widely used transmission form. Compared with other drives, it has the characteristics of large transmission power, wide speed range, high efficiency, reliable operation, long life, compact structure and so on.

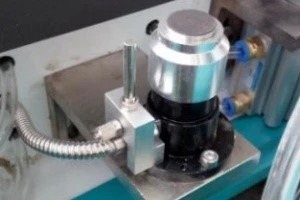

The tool setting instrument can automatically measure the distance from the tool tip to the workpiece and quickly position it.

The function of the dust collector is to absorb a large amount of wood dust generated when the machine is working

Vaccum table need to combine with vacuum pump. Wihout it, vacuum table can not work. We use 7.5 KW water pump.

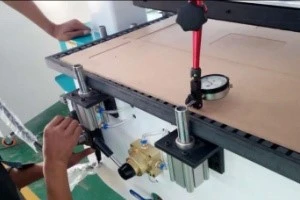

Positioning cylinders: three on the Y axis and two on the X axis. The five positioning cylinders are all adjusted by the dial indicator to ensure the secondary positioning accuracy of the front and back machining.

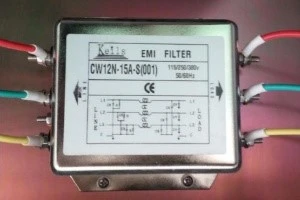

The filter can filter out the current interference, has the effect of stable signal transmission, and ensures the stability of the machine processing.

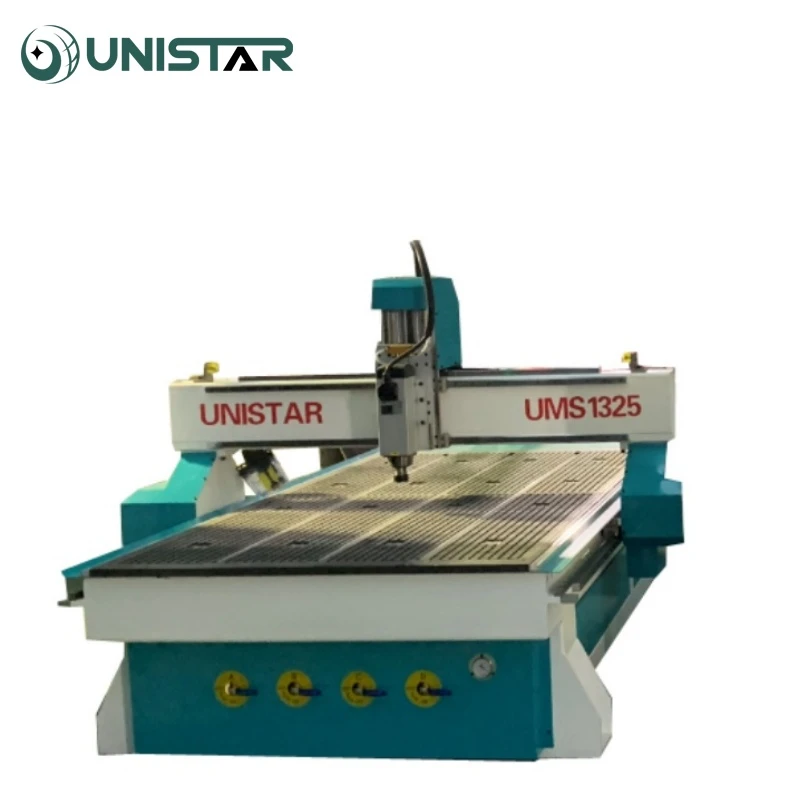

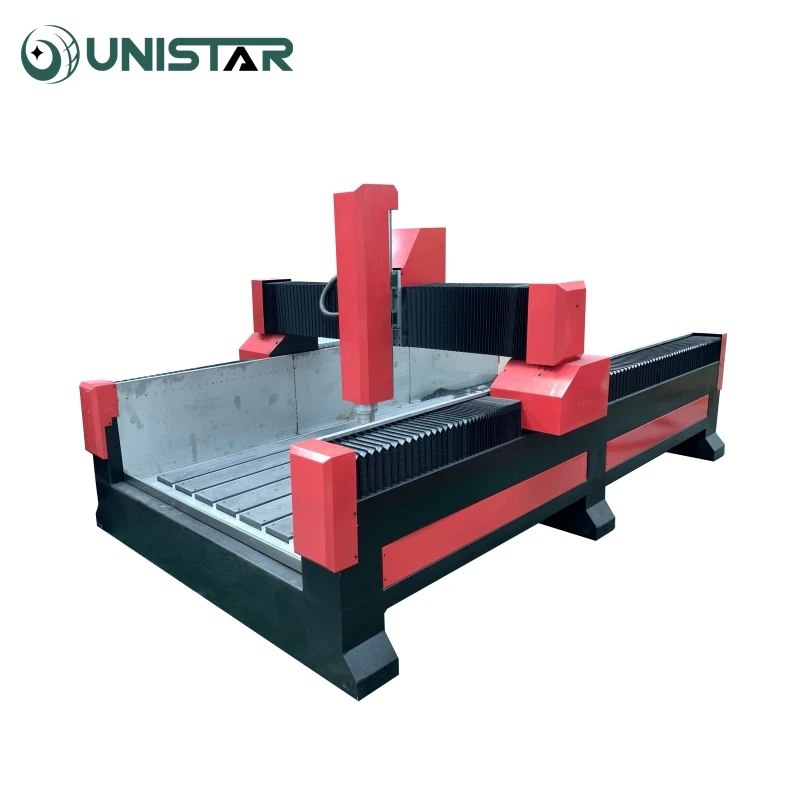

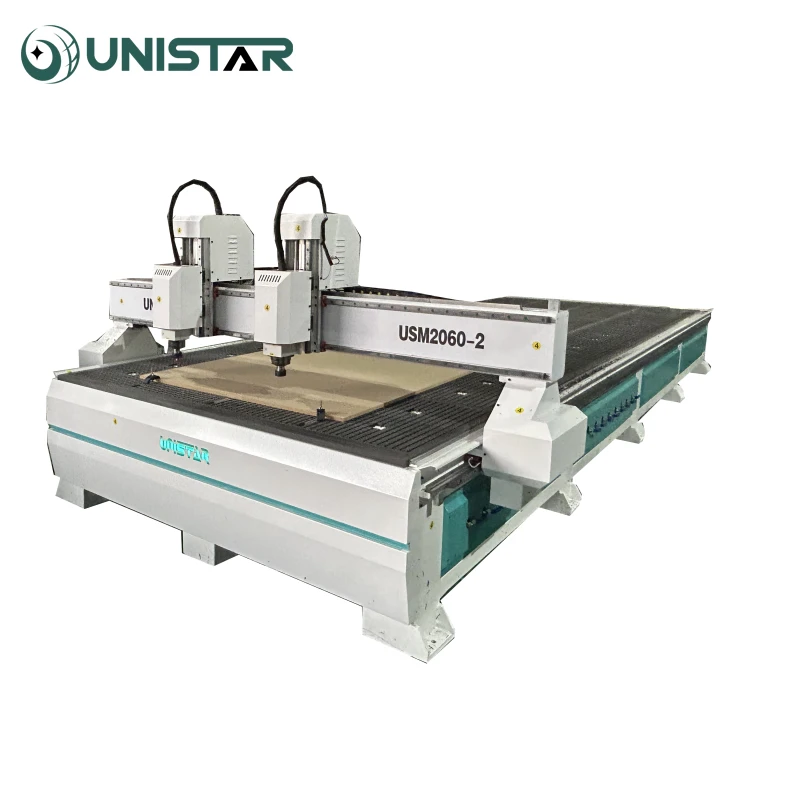

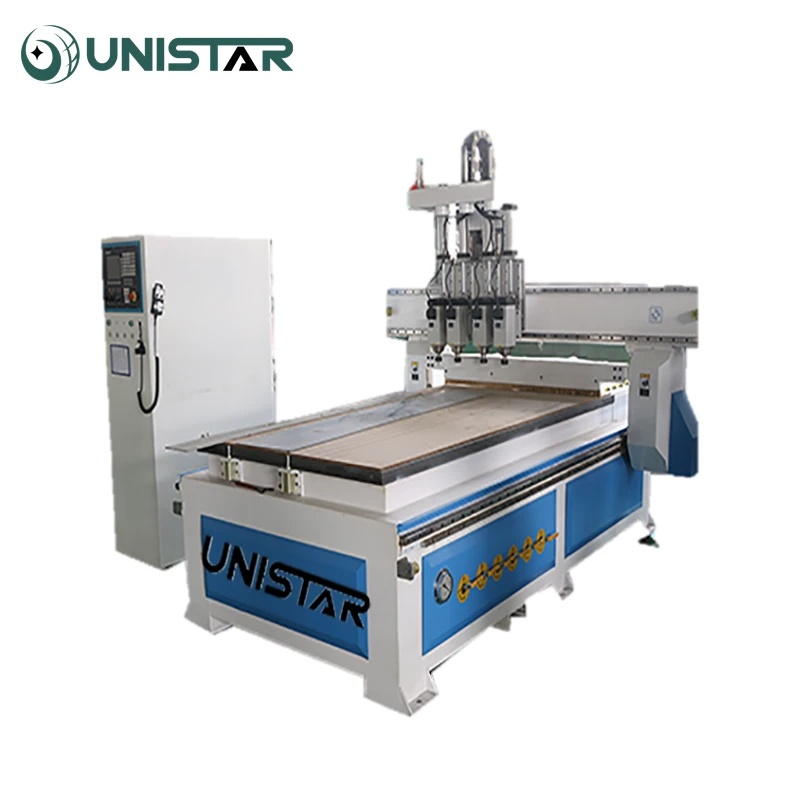

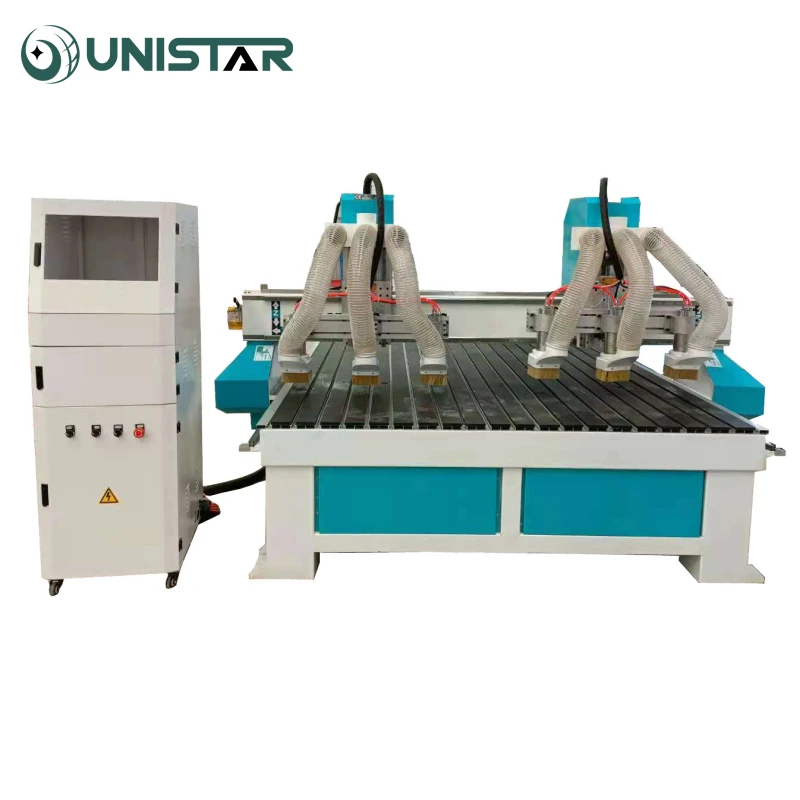

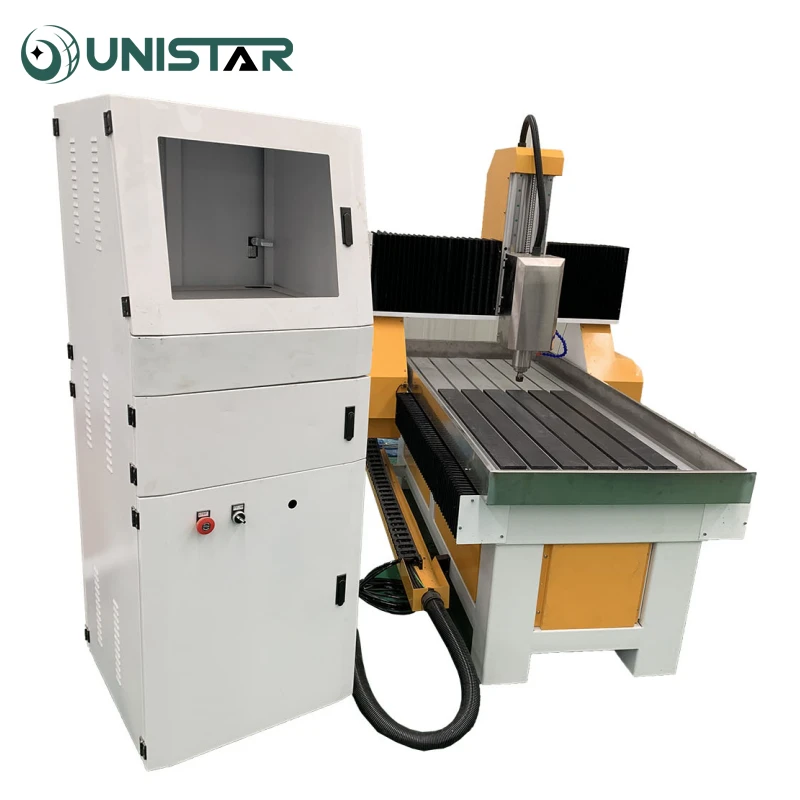

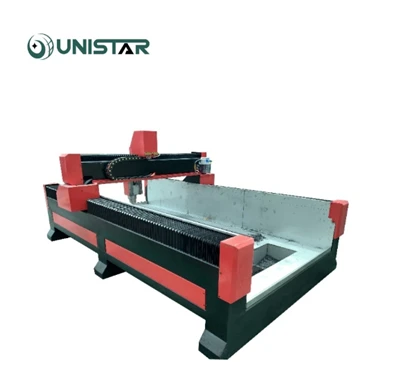

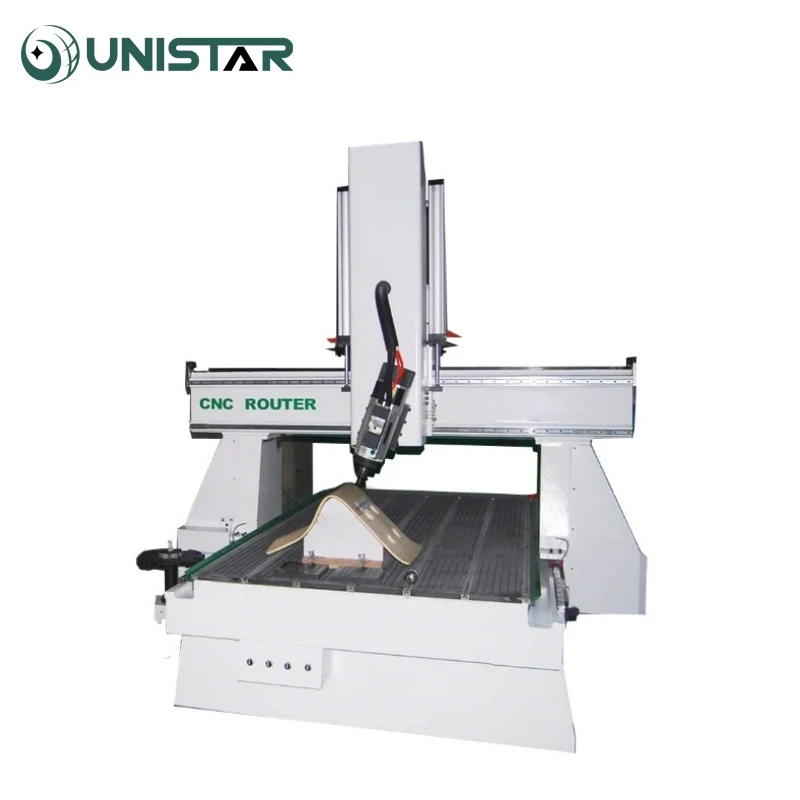

Other cnc router

Company profile

Our company

1. Unistar company have been in laser and cnc machinery manufacture industry for more than 20 years, we always aim to satisfied customer around world with our rich experience and optimal solution, we trade quality first , service first , customer first as our purpose to help every customer earn benefit.
2. We have expert R&D team to ensure product quality and continuous introduction of new products to meet market demand.
3. We have our own factory, quality and service are guaranteed.
4. Enterprise excellent management mechanism, reliable quality assurance system and advanced technology and equipment and advanced management concept, so that the company has been sustained and steady development.
5. We pursue efficiency by management, survival by quality, actively improve product quality values, adhere to the principle of professional and practical product design, the pursuit of excellence, continuous progress, dedicated to provide customers with excellent products and perfect after-sales service system.

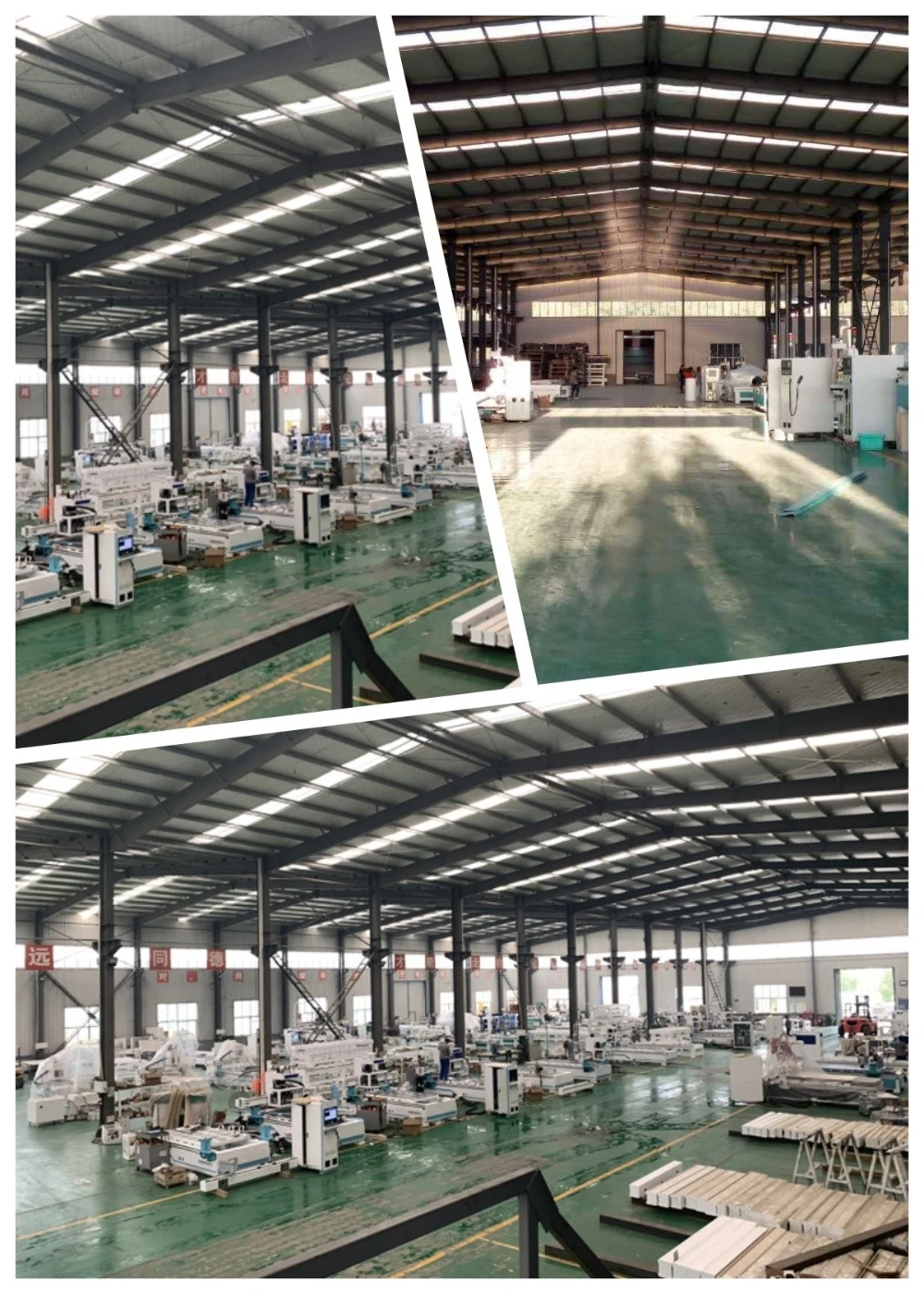

Our factory

Our team

Our certificate

Samples

Customer visiting

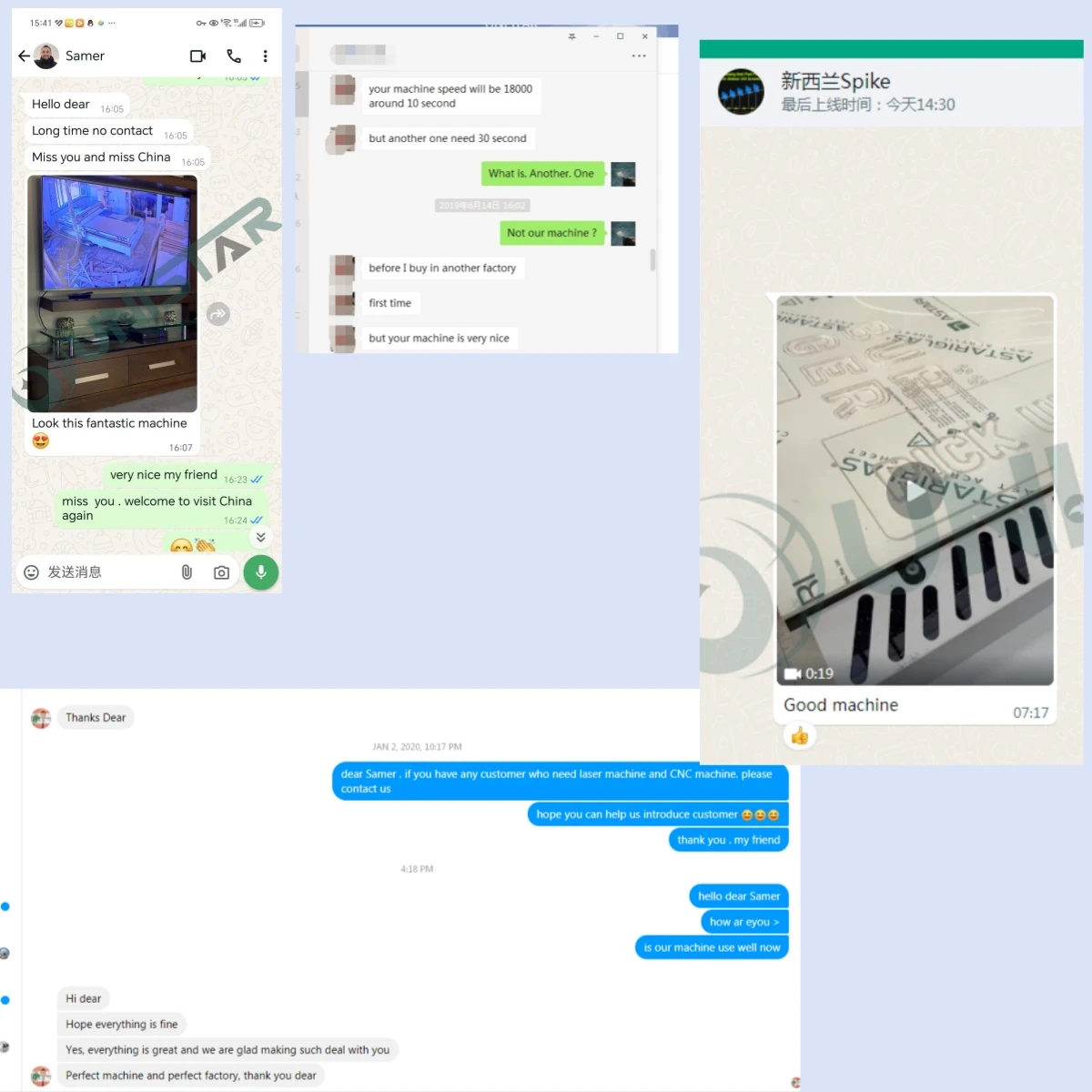

Customer feedback

After sales services

1. 24 months guarantee of the whole machine.
2. Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
3.Lifetime maintenance free of charge.
4.We will provide the consumable parts at an agency price when you need replacement.
5.Machine has been adjusted before delivery.
6.We have excellent engineers good at English to provide at door service. If your machine has big problems if by any chance, our engineers would arrive there to debug and fix.
7. Could be remote control if needed.
8. We can provide English software, user manual and detailed Videos CD.
9. Door to door technical group service. 24 hours technology online support ,Skype, MSN, Yahoo,etc or by mail and phone .
10. Free training course at our plant.

Packing

1. Standard plywood case, its compressive strength and bearing quality is better.
2. The board area is bit, the soil structure is good, it is better in leakproofness and waterproof.
3. When importing, the plywood case is with fumigation-free, the procedure is simple.
