Products Description
Advantages
*Long service life. Fiber laser cutting machine is imported laser, in terms of performance is very stable, the service life can reach 10W hours, much longer than the previous two generations
*Low processing cost. The photoelectric conversion rate of fiber laser cutting machine can reach about 30%, which is 3 times that of CO2 laser cutting machine. And low maintenance costs, no need for reflective lenses.
*Humanized control: advanced man-machine interface and operation application, simple and intuitive operation. It can achieve efficient and accurate cutting, reducing the difficulty and error rate of the operator.
Products parameters
| Model | UN-3015A |
| Working Area | 3000*1500mm |
| Laser source media | Raycus/MAX/IPG |
| Laser Power | 2000W |
| Laser head | Raytool/CYPCUT |
| Laser Wavelength | 1080 nm |
| Beam Quality | <0.373mrad |
| Positioning Accuracy | ≤ ±0.03mm/m |
| Re-positioning Accuracy | ≤±0.02mm/m |
| Maximum positioning acceleration | 2G |
| Max moving Speed | 40000mm-60000mm/min |
| X-axis Stroke | 1500mm |
| Y-axis Stroke | 3000mm |
| Working Table | Blade platform thickness 3mm thickness |
| Machine body | Strong heavy duty machine body ,Machine structure precision machining welding bed ,quench and tempering heat treatment, |
| Control System | CYPCUT/Raytool |
| Rack | Taiwan import YYC helical rack with high accuracy |
| Rail guide | X,Y,Z axis import Hiwin Rail Guide |
| Water chiller | S&A/Hanli |
| Pneumatic accessories | Japan SMC |
| Motor and drivers | Taiwan delta |
| Reducer | Japan Shimpo reducer |
| Supported Graphic Formats | NC PLT, DXF, BMP, AI, DST, DWG, etc |
| Working temperature | Indoor temperature is OK. |
| Working voltage | 3 Phase 380V/50HZ |
| Years of warranty | 2 years warranty (not include vulnerable part ) |
Detailed photos

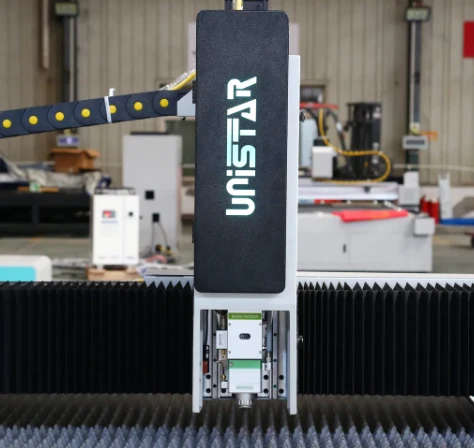

Cutting head
Fiber laser cutting head energy saving and environmental protection, does not produce too much industrial waste, durability is very high, can be used for a long time

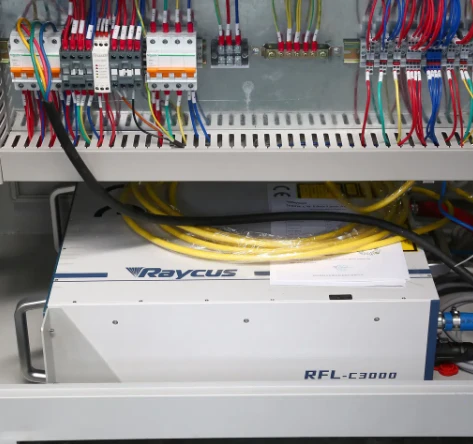

Fiber laser source
The laser source is the heart of any fiber laser cutting machine, which determines the precision, speed and quality of the cutting.

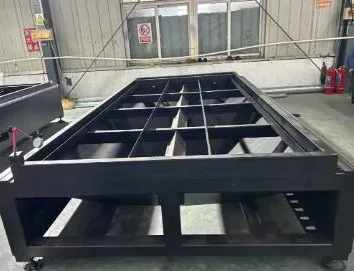

Machine Bed
In the entire working process of the laser cutting machine, the production process of the machine tool occupies a key position. A good bed plays a decisive role in cutting accuracy and stability.
Japanese Fuji servo motor and driver:
Small motor, low noise, low vibration design, improve production efficiency, energy-saving design in line with national standards, safety and environmental protection.

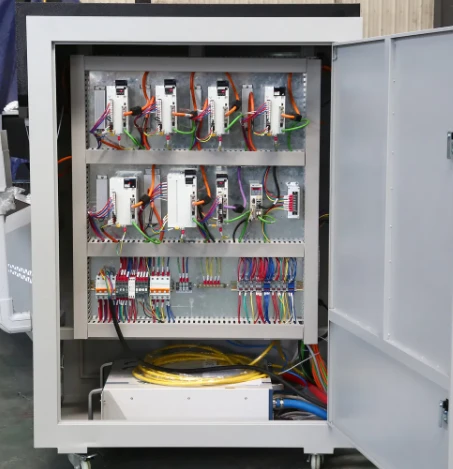

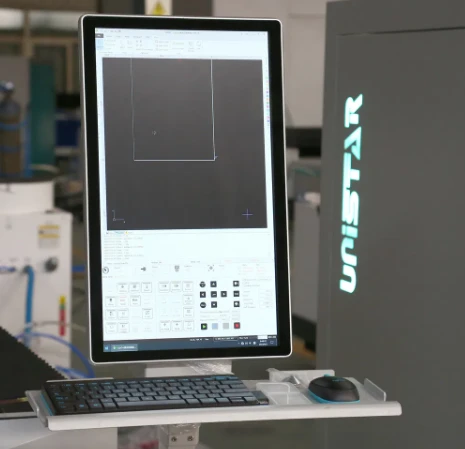

Control System Panel
The control system is generally composed of hardware such as motion controller, servo system and load, and software such as control algorithm.

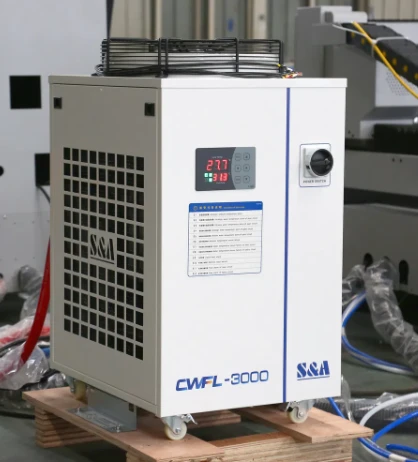

Water chiller
The S&A water chiller is equipped with a two-channel water cooling system, which can cool the laser and optical components simultaneously.

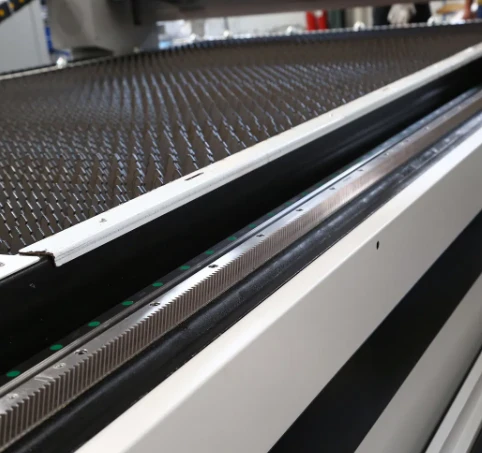

Taiwan YYC impot helical rack
Enhances power transmission, minimizes friction, and
improves machine stability and durability, resulting in
more efficient power transmission and prolonged
machine lifespan.

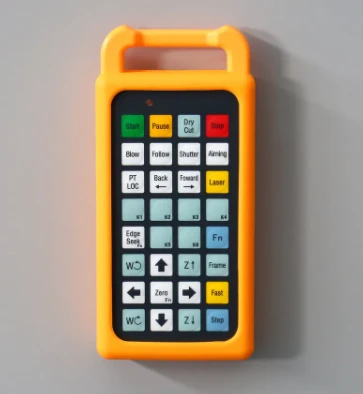

Handle control
easy to operate. You can
control the machine within 40m.
samples
why choose us
Jinan Unistar Machinery Co.,LTD,was established in 2002,experienced 15 years of development and solid operation,the company has 20 professsional research senior technical engineers in the field of laser,100 sales team,30 domestic and foreign after-sales service team,150 workers,with strong new product development ability....
Customer with us
Packaging & Shipping
FAQ
Q1:I am a fresh man for this machine,what kind of machine I should choose?
Very easy to choose, just tell us :
1. the work you want to do ?
2. the maximum size of your material ?
then we give you perfect solutions and suggestions.
Q2:When I got this machine, but I did not know how to use it,What should I do?
We will send tutorial video and English version manual with the machine, If you still have some doubts,we can talk by telephone or skype. Or even send our engineers oversea to help you.
Q3:If some problems happened to this machine during warranty period,what should I do?
We will supply free parts in machine warranty period if machine have some problem, While we also supply free after-service,so any doubts, just let us know, we will give you solutions.
Q4:What is the MOQ?
MOQ for our products is 1 set machine, we could send it to the nearest port to you.
Q5: What are your after-sales services?
1. We provide a tutorial machine installation video and technical online guided installation, along with a machine instruction manual.
2.We offer engineer overseas training and installation if needed. This includes machine installation, software training, machine operation procedures, daily maintenance of the laser tube cutting machine, and common problems and solutions.
3. We have agent service bases in various countries such as Peru, Egypt, Europe, and Saudi Arabia. If an issue arises, you can also contact our foreign service agents.
4. We provide 24-hour online technical support through remote control systems to solve customer problems. We use various chatting tools like QQ, WeChat, WhatsApp, and Skype to ensure your issues are resolved promptly.
