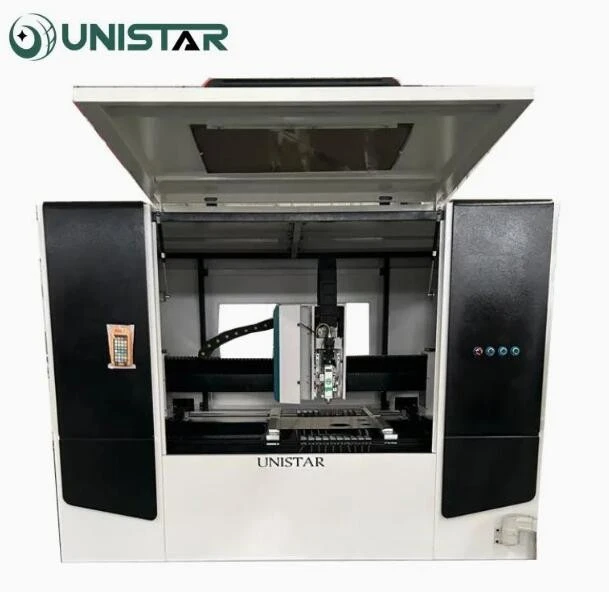

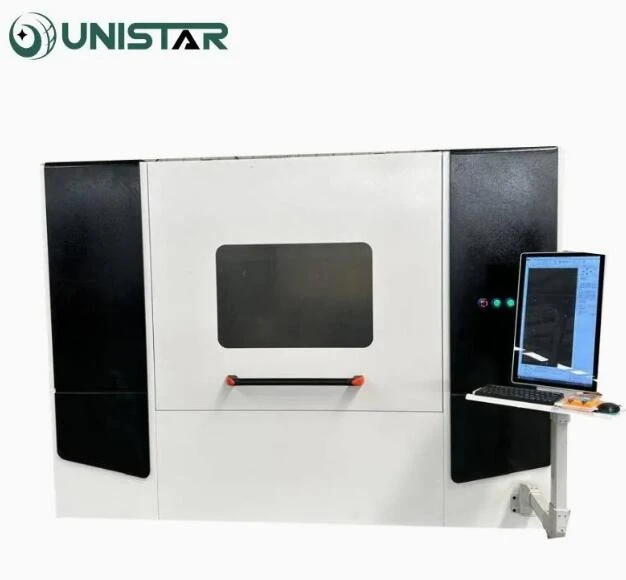

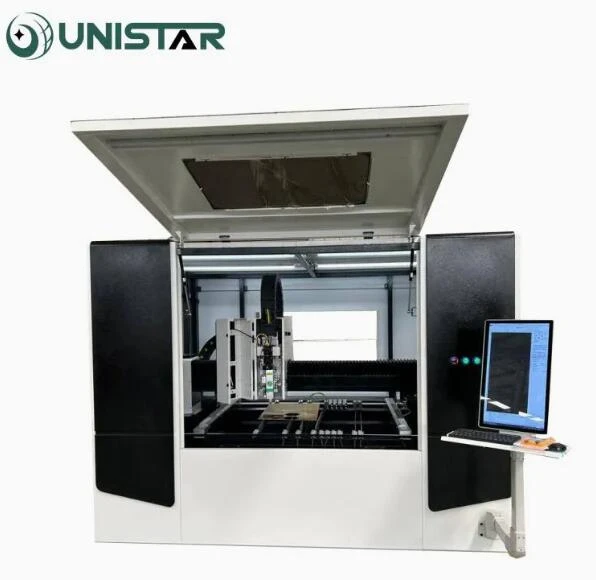

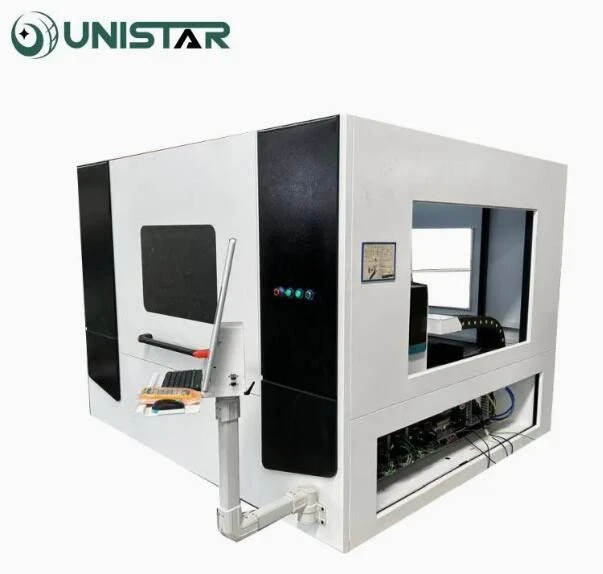

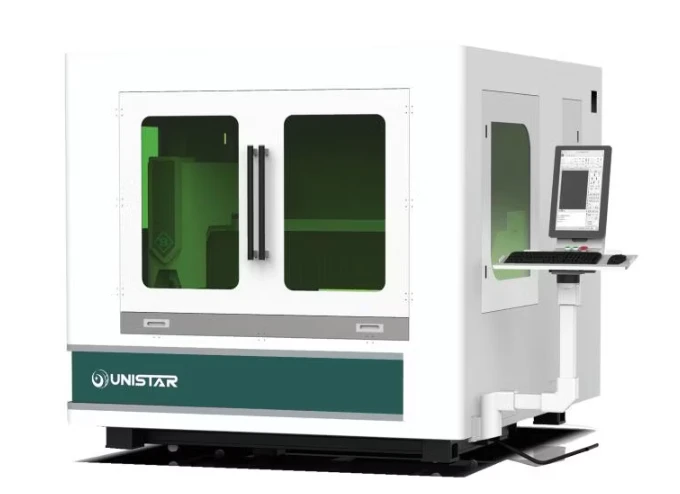

Fiber Laser Metal Sheet Cutting Machine
Products Description
| Model | UN-6090 |
| Working Area | 600*900mm |
| Laser source media | Raycus/MAX/IPG |
| Laser Power | 1500W |
| Laser head | Raytool/CYPCUT |
| Laser Wavelength | 1080 nm |
| Beam Quality | <0.373mrad |
| Positioning Accuracy | ≤ ±0.03mm/m |
| Re-positioning Accuracy | ≤±0.02mm/m |
| Maximum positioning acceleration | 2G |
| Max moving Speed | 40000mm-60000mm/min |
| X-axis Stroke | 600mm |
| Y-axis Stroke | 900mm |
| Working Table | Blade platform thickness 3mm thickness |
| Machine body | Strong heavy duty machine body ,Machine structure precision machining welding bed ,quench and tempering heat treatment, |
| Control System | CYPCUT/Raytool |
| Rack | Taiwan import YYC helical rack with high accuracy |
| Rail guide | X,Y,Z axis import Hiwin Rail Guide |
| Water chiller | S&A/Hanli |
| Pneumatic accessories | Japan SMC |
| Motor and drivers | Taiwan delta/ Japan Yaskawa/ Japan Fuji |
| Reducer | Japan Shimpo reducer |
| Supported Graphic Formats | NC PLT, DXF, BMP, AI, DST, DWG, etc |
| Working temperature | Indoor temperature is OK. |
| Working voltage | 3 Phase 380V/50HZ |
| Years of warranty | 2 years warranty (not include vulnerable part ) |
Products
Application
1.Material : Carbon steel, stainless steel, alloy, aluminum, gold, silver
2.Industry:
In the electronics manufacturing industry, it is used to cut the housings and panels of electronic devices, ensuring accuracy and quality.
In the aerospace industry, it is used to manufacture structural components for aircraft and spacecraft to achieve high strength and lightweight requirements.
The advertising industry. Because the advertising industry is more customized, the efficiency of traditional processing is very low. The use of laser cutting machine, only need to input the design drawing, no matter how thick the plate, no matter how many shapes, the laser machine can be quickly processed.
Kitchenware industry. Now people's quality of life has improved, the demand for housing has increased, and the demand for kitchenware related products is increasing. Fiber cutting machine is suitable for cutting sheet stainless steel, and can achieve customized and personalized product development, high customer satisfaction.
Products Details
The high-precision laser head focuses swiftly for accurate, efficient cuts, ensuring a durable and superior finish.
Our lasers efficiently convert up to 90% of electrical energy into laser output.
Delta servo motor ：
no brush and commutator, so the work is reliable, low maintenance and maintenance requirements;
stator winding, heat dissipation is more convenient.

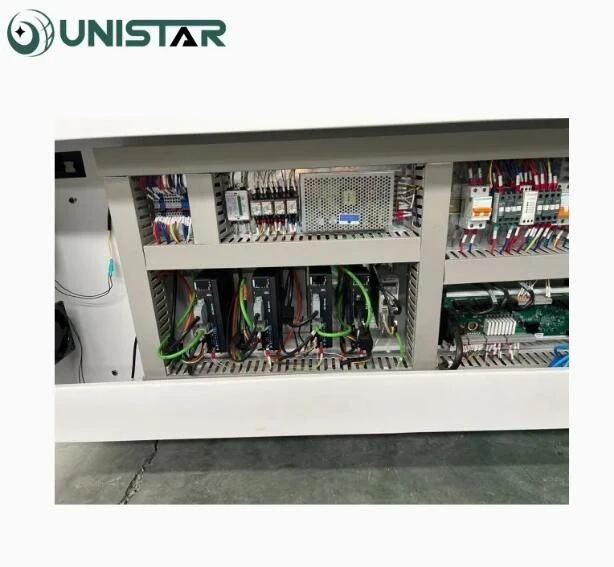

The laser cutter's control system, enables automated, intelligent operations. It consists of a motion controller, servo system, loading hardware, and control algorithm software.

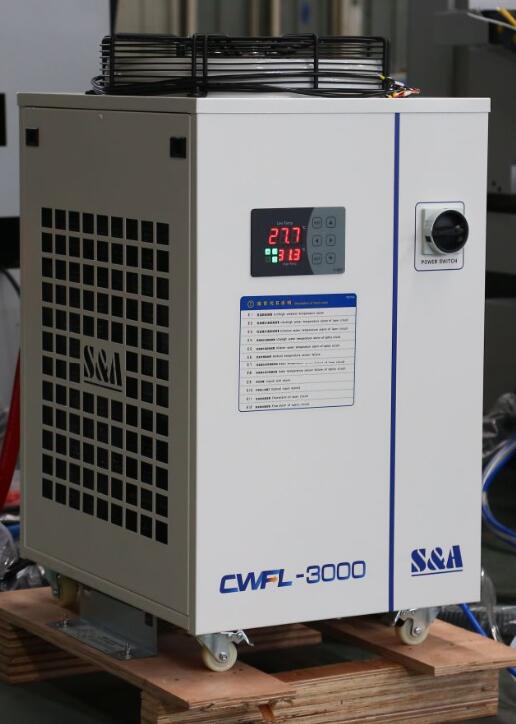

Our cooling system includes safety alarms, dual-mode temperature control, and precise adjustments to ±0.1ºC.
.

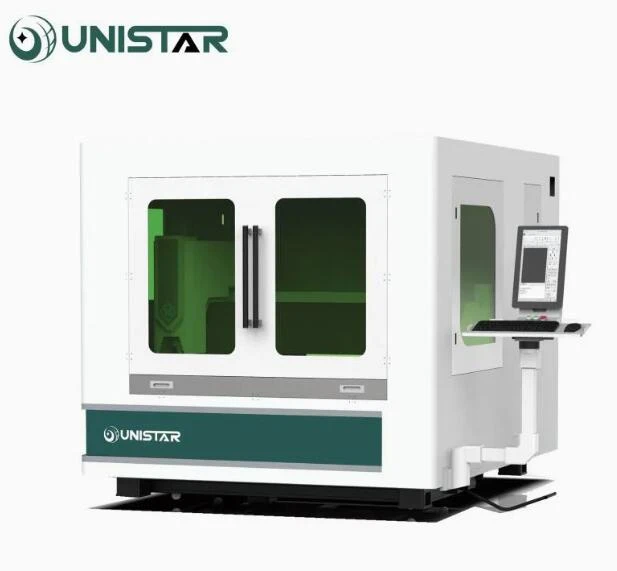

a fully enclosed design for safety and pollution prevention. The CE-standard laser protective glass ensures a clear view while our internal filtration system handles smoke, making it eco-friendly. Precision and user-friendly controls enhance your experience.
Detailed Photos
PACKING AND SHIPPING
Customers visit us
MACHINE WARRANTY
#In the processing of production, our professional technical engineers inspect the processing to ensure the quality of products
#.Every machine must be tested before delivery for 8 hours , all of them are absolutely qualified.
# 2 Years guarantee of the whole machine.
Certifications
CUSTOMER REVIEWS
OUR PARTNERS
Jinan Unistar Machinery Co., Ltd. was established in 2002, experienced 15 years of development and solid operation, the company has 20 professional research senior technical engineers in the field of laser, 100 sales team, 30 domestic and foreign after-sales service team, 150 workers, with strong new product development ability.
FAQ ( Fast Answer Questions )
Q1: What is the warranty period for the entire machine?
A1: The entire machine comes with a 2-year quality guarantee. Any parts that break during the warranty period will be replaced free of charge, provided there is no human damage.
Q2: Do you provide the CE document and other necessary documents for customs clearance?
A2: Yes, we provide the CE document and offer a one-stop service. Initially, we will show you the documents, and after shipment, we will provide you with the CE, Packing List, Commercial Invoice, and Sales Contract for customs clearance.
Q3: How is the machine installed and operated? A3: Our technician installs the machine before shipping. For installing small parts, we provide detailed training videos and a user manual with the machine. 95% of our customers can learn to operate it by themselves.
