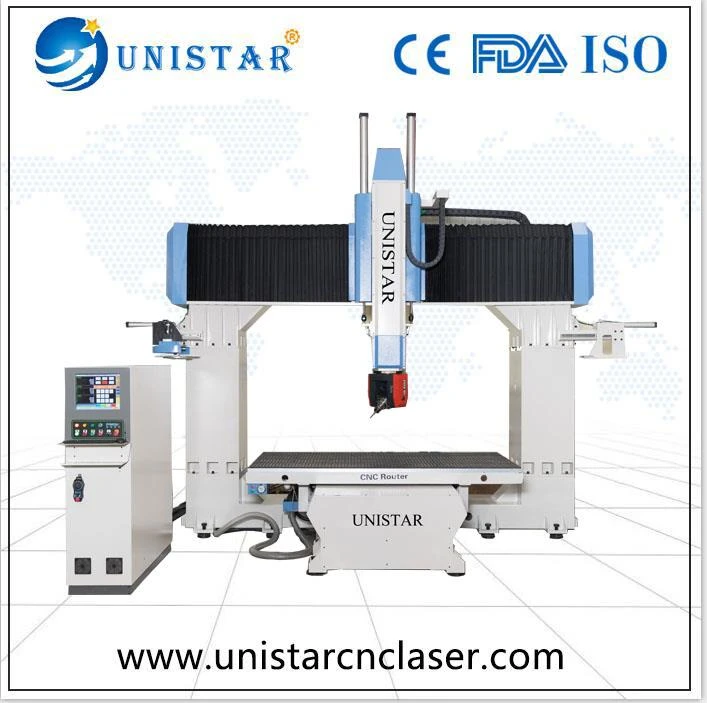

Jinan UNISTAR 5 Axis cnc milling machine with machining center
5 Axis cnc miiling machine apply industry

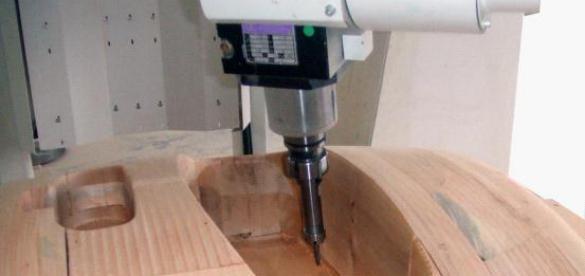

Furniture industry, wood furniture five axis processing, tenon tenon pieces, stair elbow five axis processing.
Composite material industry, blister pieces, glass steel pieces, rubber and plastic products and other composite material products trimming hole.

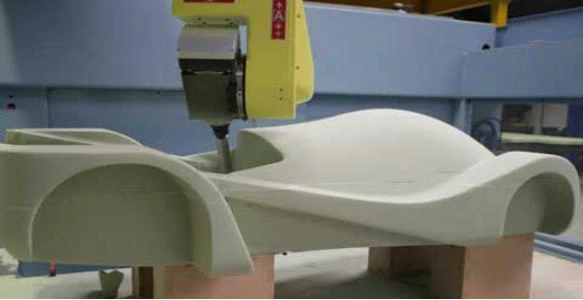

Mold industry. Fiberglass wood mold, casting wood mold, resin products, sludge model and other non metal mold processing.Ceramic sanitary ware industry:

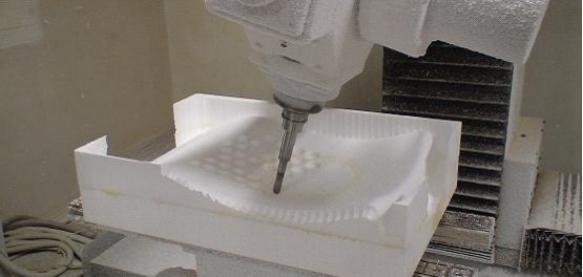

five-axis processing of gypsum mold, five axis processing of various gypsum products;PVC, MDF, PP, anti double, non metallic, non ferrous metal processing
5 Axis cnc machining center characteristics
1) Five axis five linkage control system, with RTCP function (real five axis interpolation) suitable for three-dimensional manufacturing D surface processing.Unique hardware platform modular design, powerful
2) Advanced design of automatic tool changing system greatly improves working efficiency
3) Fuselage integral welding, full 5 axis CNC machining, ensure the accuracy of the cnc router
4) Machine structure is reasonable, the parts adopt the international first-class brand.Excellent processing performance, high reliability, powerful, easy to maintain
5 axis cnc router application case
Advantage of 5 axis machining
Structure: high strength thick wall steel tube welding, embedded reinforcement fuselage, annealing aging sandblasting treatment, stable structure, precision assurance;
Accessories: all accessories are made of world-renowned brands: Taiwan guide screw/German reducer/schneider electric components;
Precision: excellent accessories, precision detection device, so that the products get perfect positioning and operation precision;
High speed: high power servo motor and precision screw link design, high torque, high kinetic energy, smooth operation, high efficiency;
Detail parameter of cnc machine center

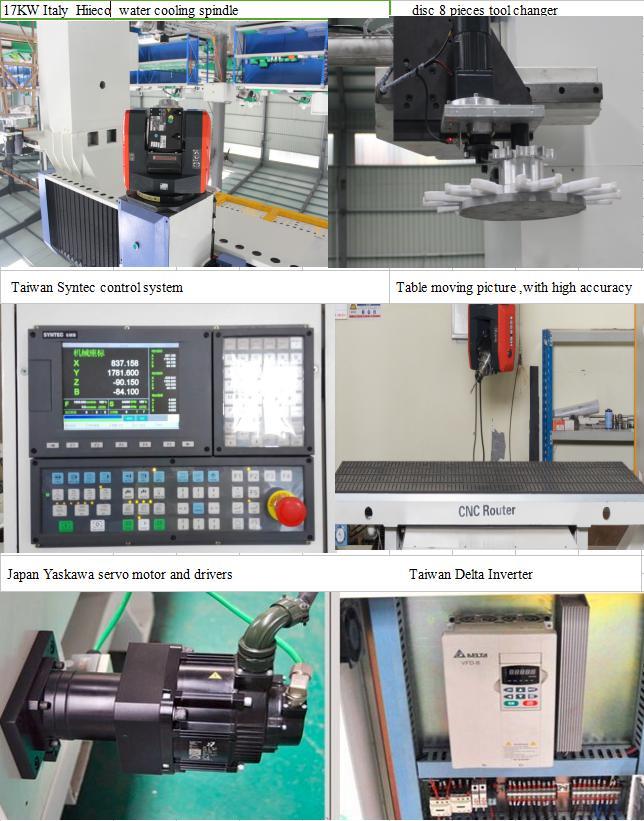

Number | Equipment | Request | BRAND |
1 | Model | G1-1530 | UNISTAR |
2 | Equipment structure | stress relief annealing，pentahedron CNC one time model processing | UNISTAR |
3 | forms of layout | gantry is fixed and the bed moves | UNISTAR |
4 | Control system | 5 axis linkage control panel | Taiwan Syntec control system |
5 | 5 axis spindle head | 10KW -disk tool changer cnc | Italy HSD brand |
6 | Reducer | VASTUN brand | Germany import |
7 | Transmission | Precision preloading guide 35#. German Herion alloy grade 40 grinding | Germany Helical rack |
9 | Tool structure | 8 disk tool changer magazine | UNISTAR |
10 | Motor and drivers | Y axis 2.4KW , X,Z axis 1.8KW | Japan Yaskawa servo motor |
11 | electrical element | control element | French Schneider |
12 | The power cable | High flexible and resistant to breakage, with inner shielding layer | Shanghai JiuTai |
13 | electrical cabinet | Sealed and dustproof | UNISTAR |
14 | Lubricate system | Automatic control of centralized lubrication | South Pump enterprise |
15 | Control host | G1MT | American HP |
16 | Inverter | VFD07543A-E | Taiwan import delta |
17 | Safety system | Overrange protection/emergency stop protection/limit limit/air pressure alarm/safety shield/opening and power failure, etc | UNISTAR |
Number | Performance | Partameter | |
1 | Working size （mm） | 1300X2500 | |
2 | Max process table （mm） | 1300X2500*400mm | |
3 | Loading weight (Kg) | ≥1000 | |
4 | Axis travelling | X Axis （mm） | ≥1800 |
5 | Y Axis （mm） | ≥3300 | |
6 | Z Axis （mm） | ≥400 | |
7 | A axis （°） | ±100 | |
8 | C Axis （°） | ±220 | |
9 | repated postioning accuracy （mm） | ±0.05 | |
12 | Spindle power S1/S6（KW） | 10KW | |
13 | Spindle rotate（RPM） | 20000(MAX) | |
14 | Working voltage | AC380V/3PH/50HZ | |
Detail parts of cnc router machine center
Service commitment
1 After the machine arrives, our company's technicians will personally install, debug, and train.
2 Basic cleaning and maintenance of the machine; common hardware troubleshooting, providing users with technical support equipment maintenance related to the products they produce.
3 The equipment is free of charge for one year, lifetime maintenance, and the response time of customer service is
within 24 hours.
4 After the expiration of the equipment warranty period, the repair service will be provided for life, and extensive software and hardware support will be provided after the warranty period expires.
