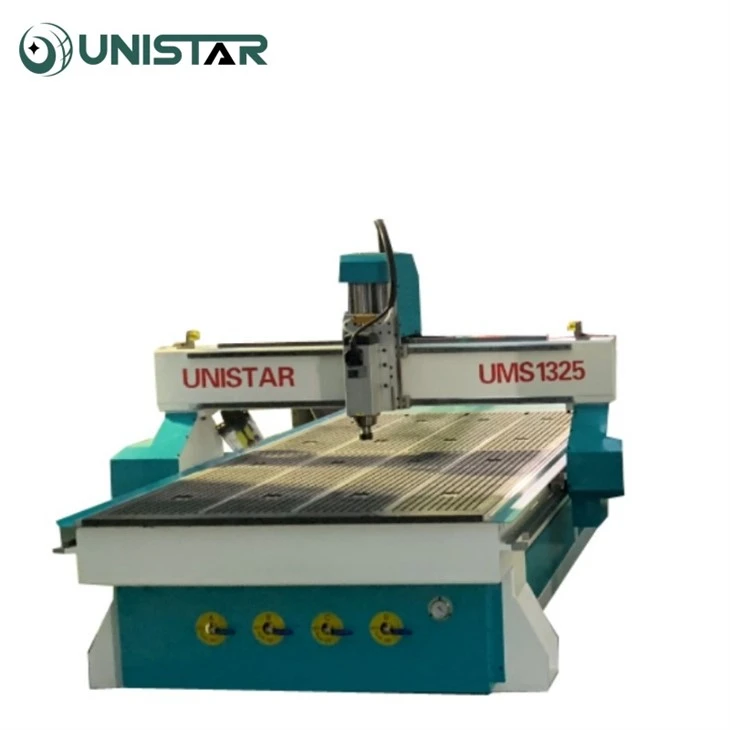

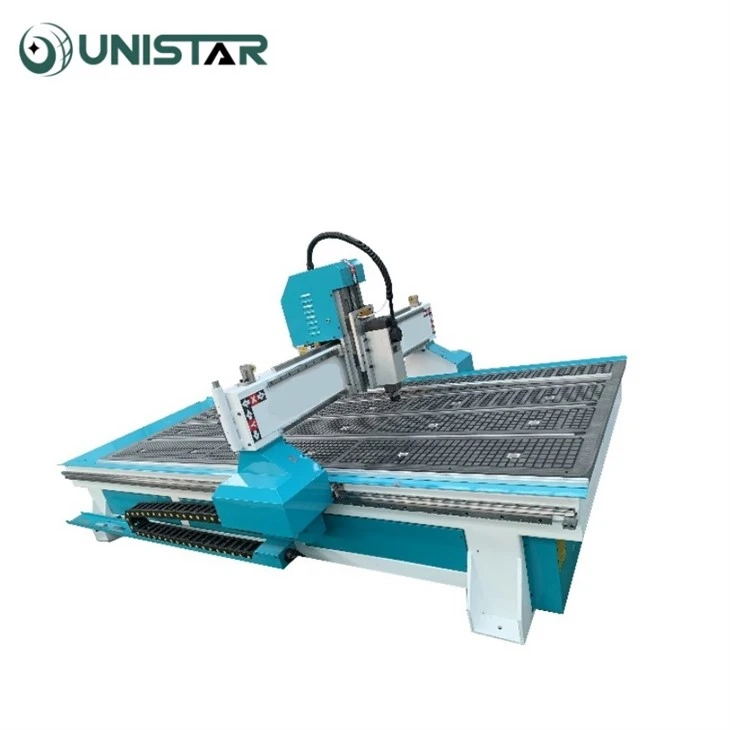

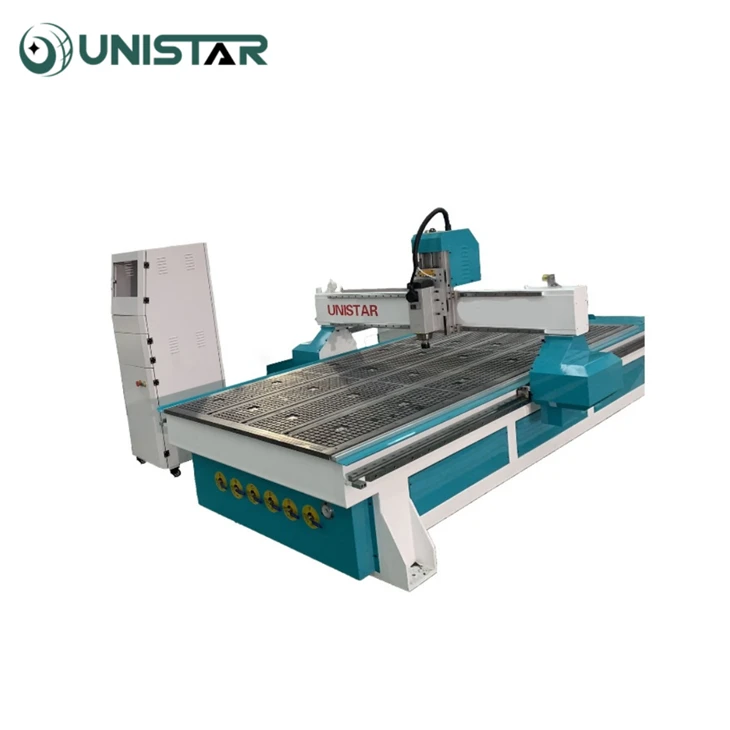

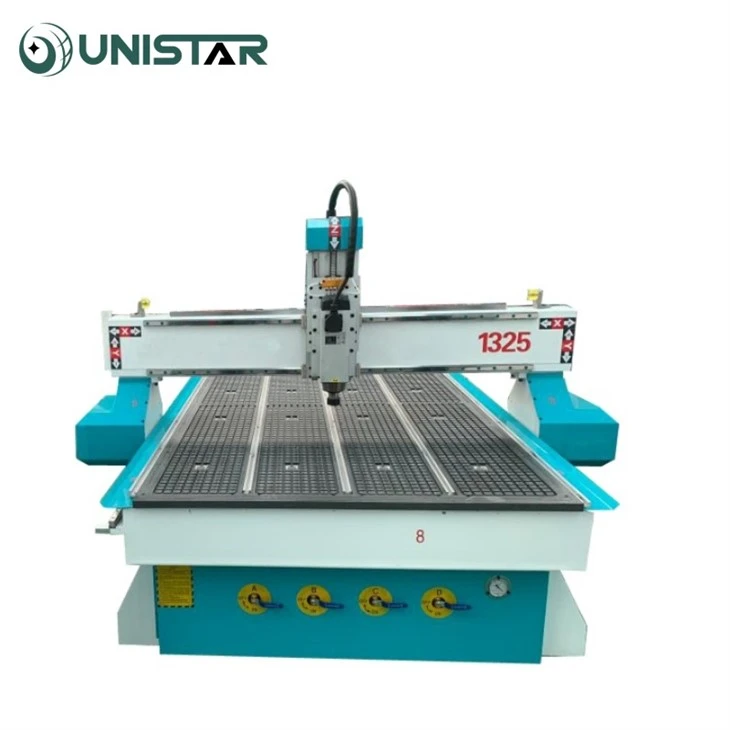

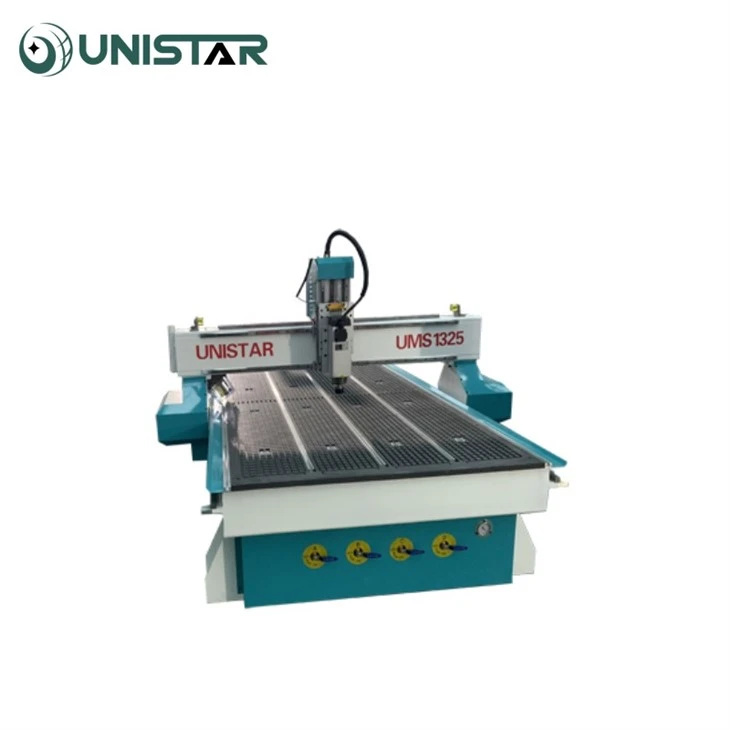

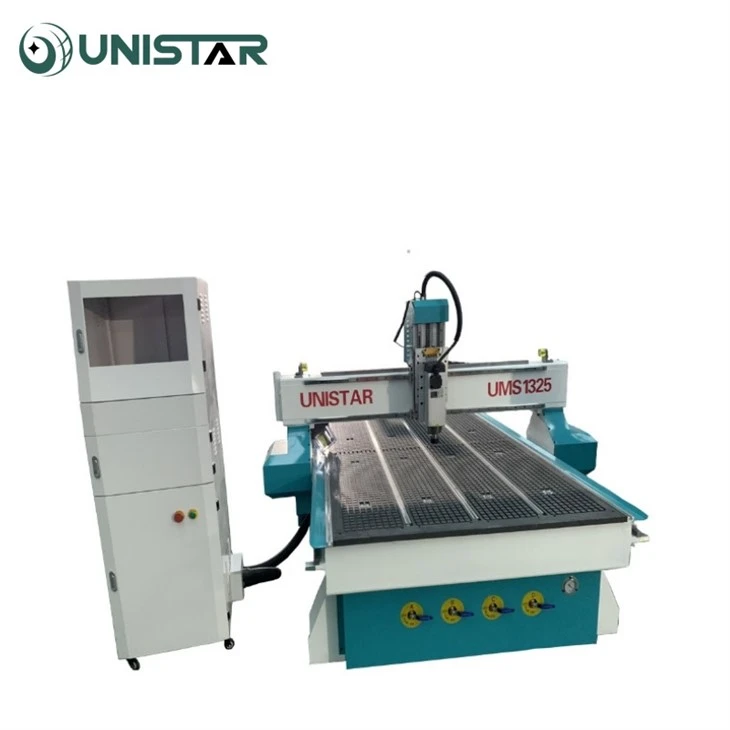

Woodworking engraving machine is a kind of equipment for wood processing, widely used in wood industry, advertising signs, furniture manufacturing, toys and gifts manufacturing, decoration industry and PCB production . Its main function is to carve and cut wood through computer-controlled knives to achieve a variety of complex patterns and shapes.
Industrial Appilcation
Woodworking industry: three-dimensional wave plate processing, cabinet doors, solid wood doors, craft wood doors, paint-free doors, screen, craft window processing, shoe polishing machine, game machine cabinet and panel, mahjong table, computer desk and plate furniture products.
Advertising industry: advertising signs, logo production, acrylic cutting, blister molding, a variety of materials advertising decoration products.
Mold industry: can carve copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic board, PVC pipe, wood and other non-metal molds.
Other industries: can carve a variety of large relief, shadow carving, widely used in the craft gift industry.
Techinical Parameter
|
Parameter |
Specification |
|
Machine area (X) |
1300mm |
|
Machine area (Y) |
2500mm |
|
Machine Area (Z) |
200mm |
|
Working area |
1300*2500*200mm |
|
Spindle |
China famous brand HQD 4.5KW air cooling spindle |
|
Table surface |
vacuum table |
|
Control system |
DSPA11 control system |
|
Motor and driver |
Leadshine stepper motor and drivers |
|
Inverter |
Shanghai Fuling inverter |
|
Transmission |
Taiwan ball screw (has good performance ,long life ,import from taiwan ) |
|
Rail |
Taiwan Rail guide original import |
|
Prevent dust system |
Dust proof system cover on the rail |
|
Transmission |
X,Y rack -pinion , Z ball screw transmission import from Taiwan |
|
Oil system |
Manual oil injection system |
|
Traveling speed |
Max 40m/.min |
|
Processing speed |
Max25m/min |
|
Spindle RPM(max) |
18000-24000RPM |
|
Tool sensor |
Auto tool sensor |
|
Dust collector |
3KW double bags dust collector |
|
Warranty time |
2 Years |
|
Running mode |
G code |
|
Tool box |
We will send you one box tool include screw driver,wrench, tools |
|
Working voltage |
One phase 220V/380V/60HZ |
|
Machine packing |
Strong international plywood case packing,water and moisture resistance |
Feature
1. Less cost input, quick effect: although the initial investment of woodworking engraving machine is high, due to its high production efficiency, it can quickly recover costs
2. Engraving time is fast: the engraving function of woodworking greatly shortens the engraving time, improves production efficiency and alleviates the shortage of hand engravers
3. Improve the comprehensive competitiveness of the factory: the effect of computer engraving is good, high efficiency, favored by consumers, thereby enhancing the market competitiveness of the factory
4. High precision, simple operation: modern woodworking engraving machine is usually equipped with advanced control system, simple operation, high production efficiency, good effect
5. Strong adaptability: suitable for a variety of fields, such as composite materials, mold manufacturing, ceramic ware and furniture industry
Details show
HQD Air cooling spindle
No need to install water pump, easy to operate

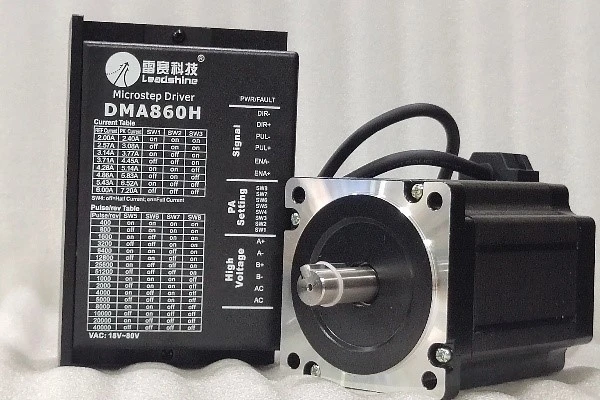

Leadshine Stepper motor and driver
Won't lose step when it work,guarantee the positional accuracy of the motor.
RichAuto DSPA 11 Control system
DSP control system don't need connect to PC.It included three parts, control card, U disk,and handle Controller. DSP is easily operate and learned, especially for the freshman.

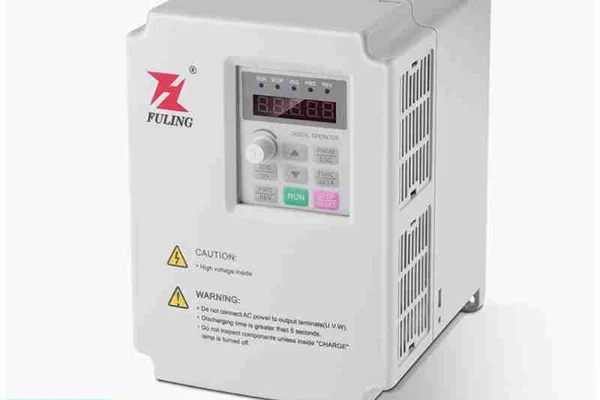

inverter
Fuling inverter has a variety of protection functions, such as overheating, overcurrent, overload, short circuit, etc., effectively improve the reliability and safety of the equipment.
Tool Instrument
Automatically determine the distance from the tip to the workpiece, improve accuracy and save time.
Oil Injection System
Manual oiling system, you can also choose automatic oiling system

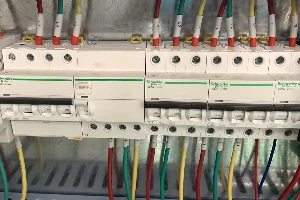

Electric Accessories
Schneider Electric Accessories in France use the best materials to ensure the safety of electricity.

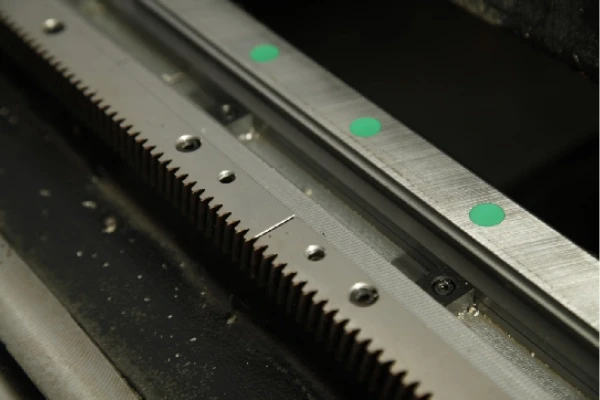

Rail Guide
The cost can be effectively controlled by using the HIWIN guide rail. The HIWIN guide rail has a small friction coefficient, which can effectively reduce power consumption during use. HIWIN rail design is simple, strong rigidity, can be perfect for optical fiber cutting machine.
Sample picture
Packing and Shipping
Customers visit us
Factory show
FAQ
Q: How do I install and run the machine?
95% of customers can teach themselves.
Q: I don't know which kind of CNC milling machine suits me.
Q: What should I do if I want to see the condition of the machines in your factory and it is not convenient to go to China?
Q: What's your delivery date?
Q: What should I pay attention to when cutting ?
