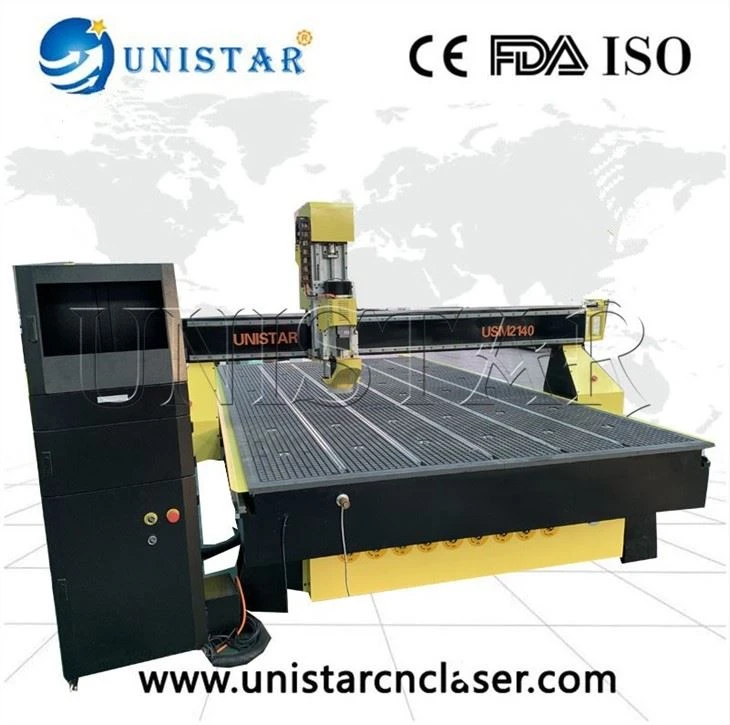

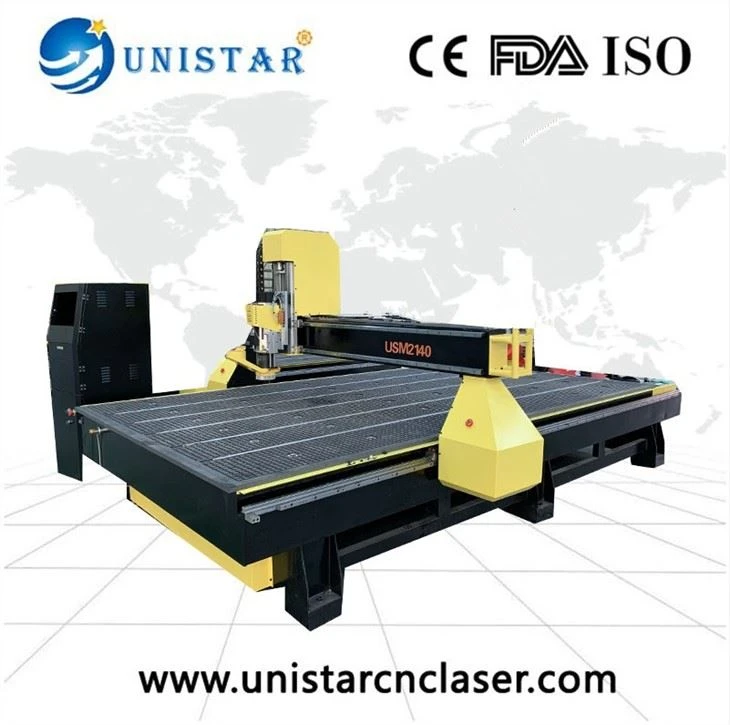

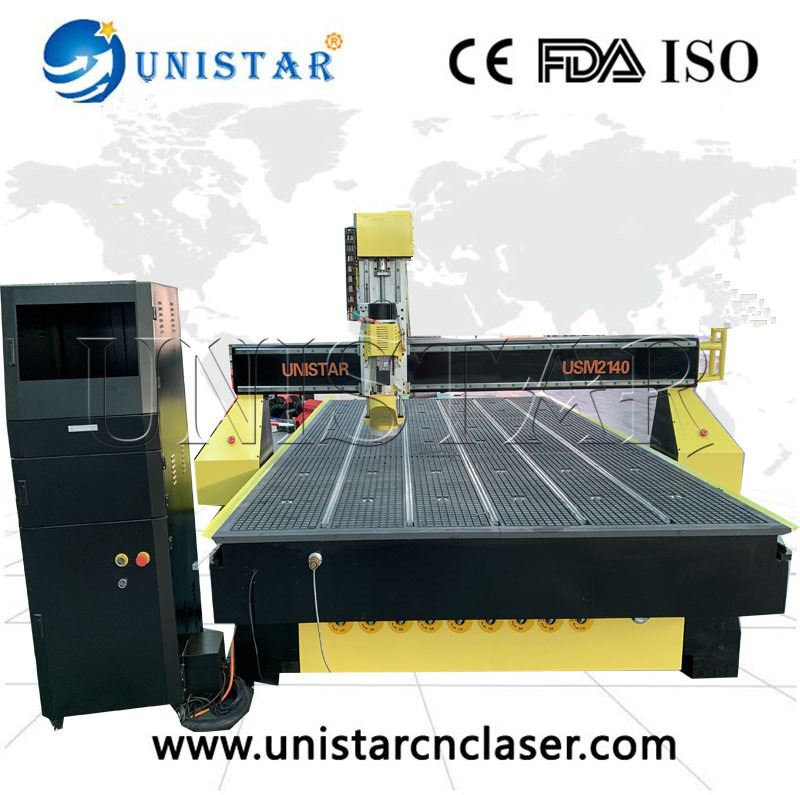

2140 CNC Machines, Wood CNC Router Wood Furniture Cutting Engraving Machine with Vacuum Wortable
Advantage:
2140 CNC Router is a common product with high valve for now, its main parts all use international top brands, with very stable function.
The worktable is vacuum working table, with very powerful absorbing power, can absorb materials of different sizes. It is with big density (1.3-1.45g/cm), won't be out of shape, and also high temperature-resistant (115ºC)
With fast working speed, high working efficiency, the engraving speed can be up to 14m/min. The engraving is precise enough, without any Sawtooth ripple, and the cutting edge is quite clear and smooth.
Technical Parameters:
Description | Parameter |
X,Y,Z Working Area | 2100x4000x200mm |
X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
X,Y,Z Repositioning Accuracy | ±0.03mm |
Table Surface | Vacuum Table |
Spindle | HQD 9kw air cooling spindle |
X, Y Structure | Taiwan HIWIN Linear guide and helical rack |
Z Structure | Ball screw and Taiwan HIWIN Linear guide |
Motor and Drive | Leadshine Servo Motor and Drive |
Max. Rapid Travel Rate | 45000mm/min |
Max. Working Speed | 30000mm/min |
Spindle Speed | 0-18000RPM |
Lubrication system | Manual |
Inverter | 11kw Shanghai Fuling Inverter |
Command Language | G Code |
Control System | Nc-studio Control System |
Computer Interface | USB |
Flash Memory | 512M(U Disk) |
Collet | ER20 |
X,Y Resolution | <0.01mm |
Software Compatibility | Type3 Software, (Option: Artcam Software) |
Running Environment Temperature | 0 - 45 Centigrade |
Relative Humidity | 30% - 75% |

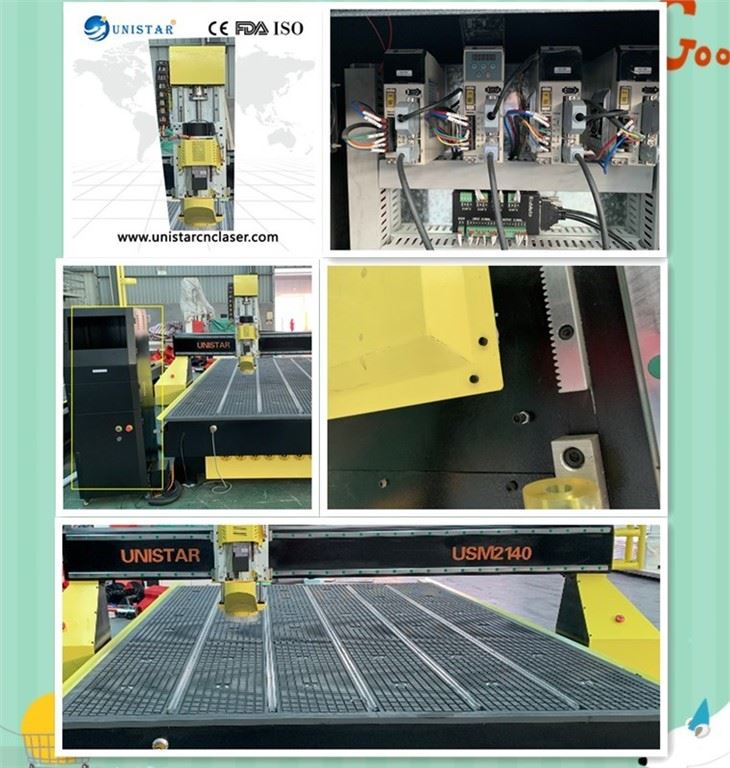

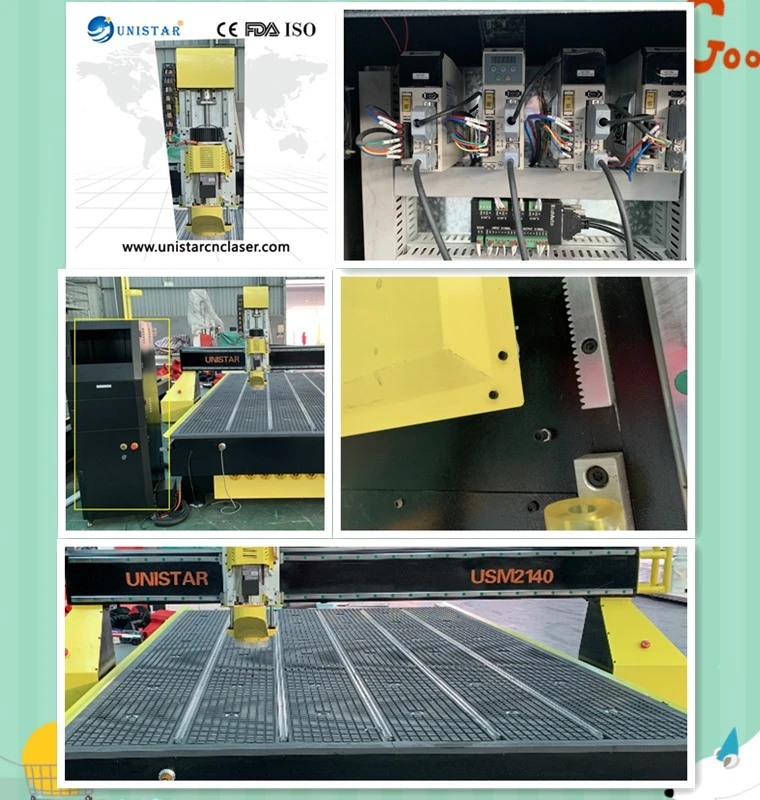

Details Pictures:

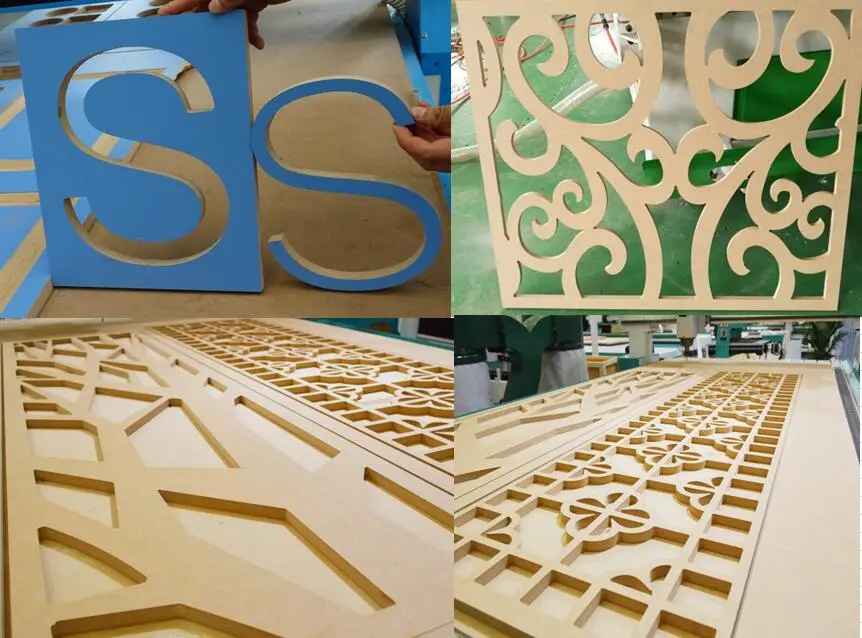

Sample Display:

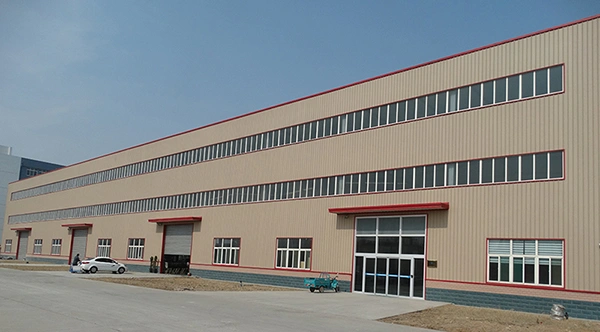

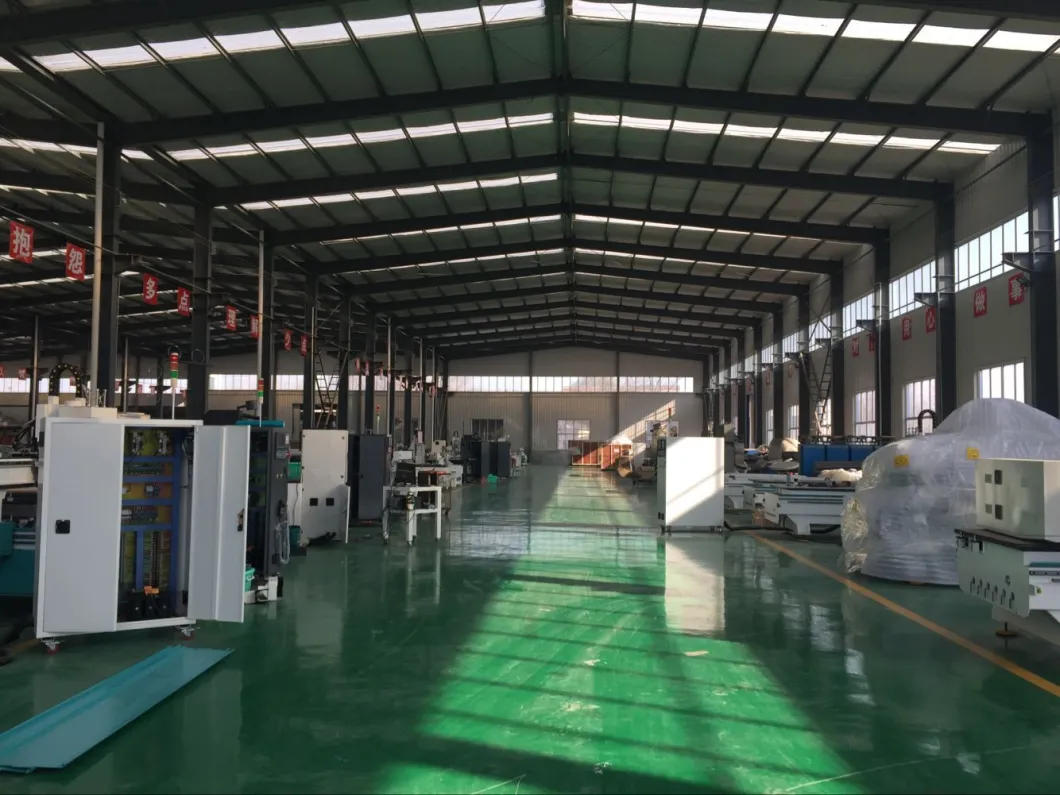

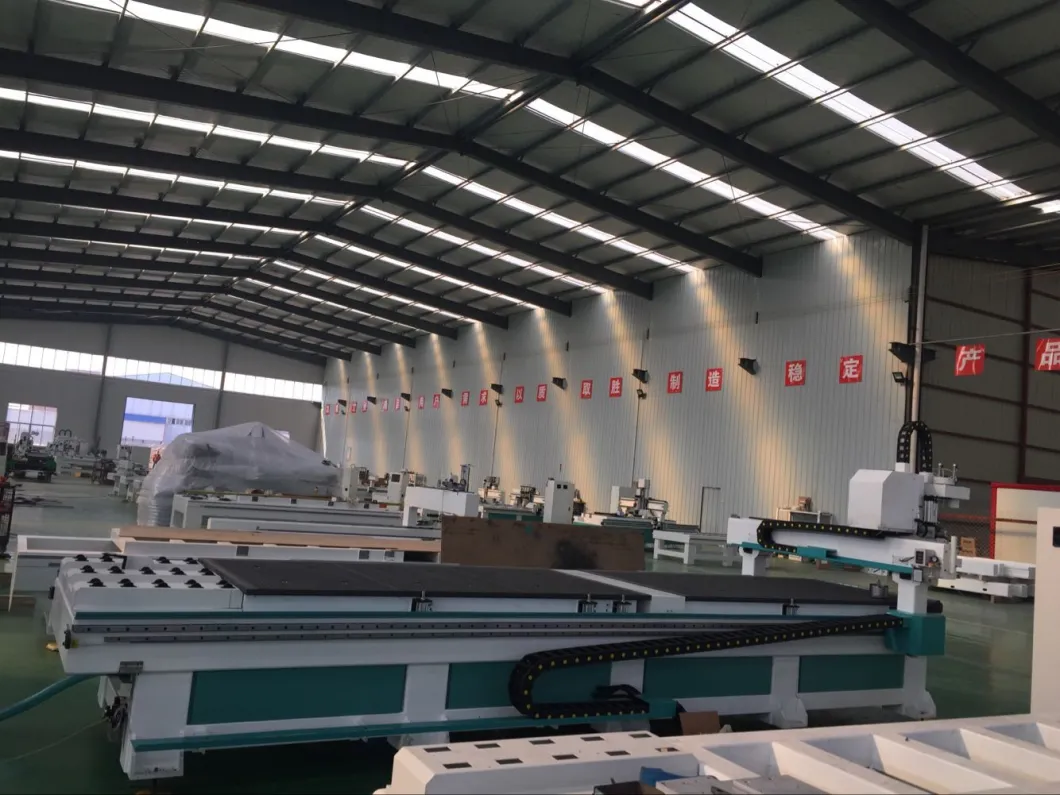

Our company:
Certificate:

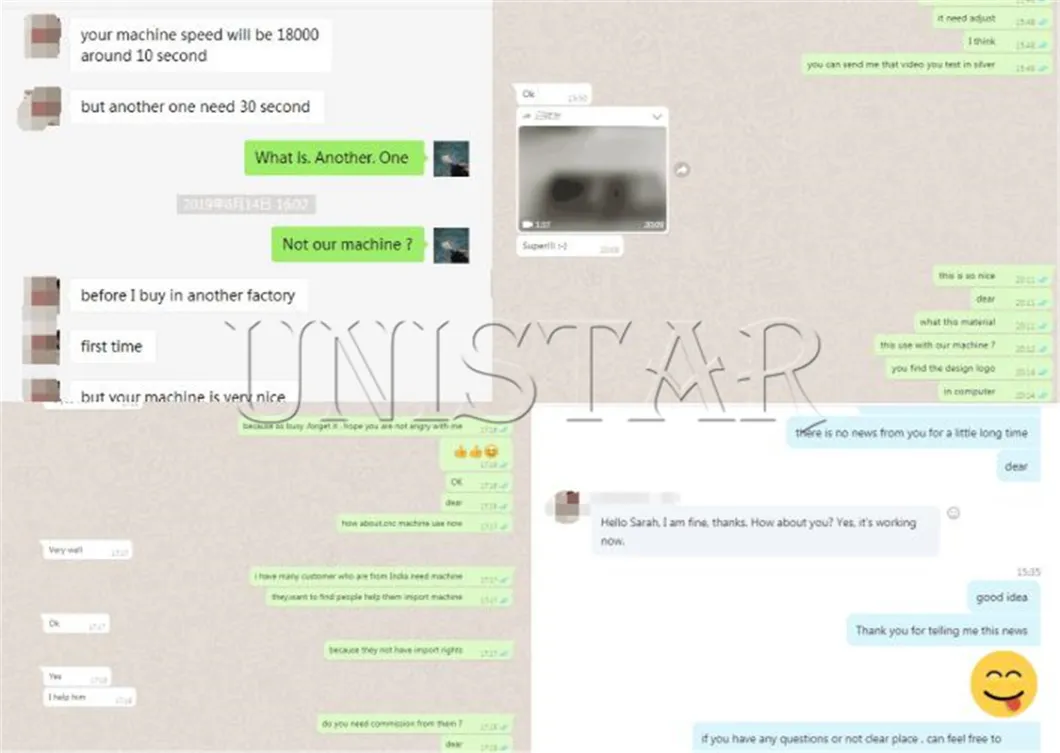

Customers:
FAQ:
1) This is the first time I use this kind of machine, is it easy operate?
There is English manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or Skype.
2)Can you recommend a CNC ROUTER MACHINE to me,thanks?
Yes, In order to give you a suitable router machine, pls tell me the max working area, materials
for processing and the thickness for materials processing engraving or cutting.
Then perfect suitable cnc router will be recommended
3) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have
any problem.
we will give you 24hours service from phone and Skype.
