2140 ATC Linear Tool Changer CNC Machine with 12 Pieces Bits for Wood Furniture Board

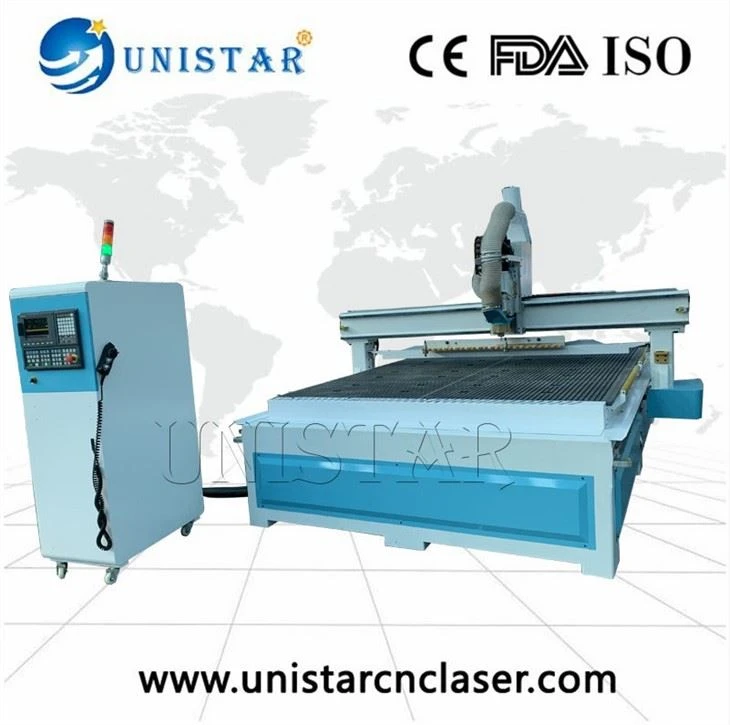

1.INTRODUCTION of USM CNC ROUTER 2140-ATC
PRODUCT DESCRIPTION

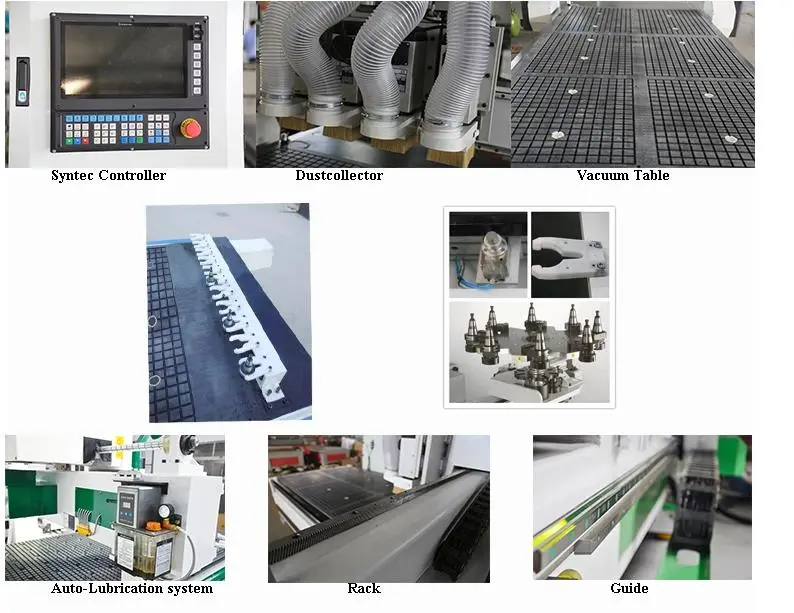

Automatically CNC Router is equipped with Taiwan industrial level HIWIN rail and YYC rack, Japanese servo motors, which guaranteed running speed.
*High power 9KW spindle are effecive
*Vacuum Table help use to firm board on the table.
*Dust collector option is friendly for working environment.
*Syntec/Ncstudio Control is easy and professional for cutting and engraving work.
| Minimum Order Quantity | 1 Piece |
| Rotary Diameter | 200mm |
| X Y Z Travelling positioning accuracy | +-0.01/2000mm |
| Max Rapid travel rate | 35m/min |
| Max working speed | 25m/min |
| Compactable Software | Type3,Ucancam,Artcam,etc. |
| Rotary Length | 1200mm |
| Table | T-slot table |
| Tools Box | (Including all tools for machine) |
| Rail guide | XYZ axis adopt Taiwan Hiwin linear square rail guide |
| Brand | QS |
| Drive System | yaskawa servo motor |
| Voltage | Single phase 220V (Optional AC380V/3PH/50Hz) |
| Working Area | 1300x2500x200mm |

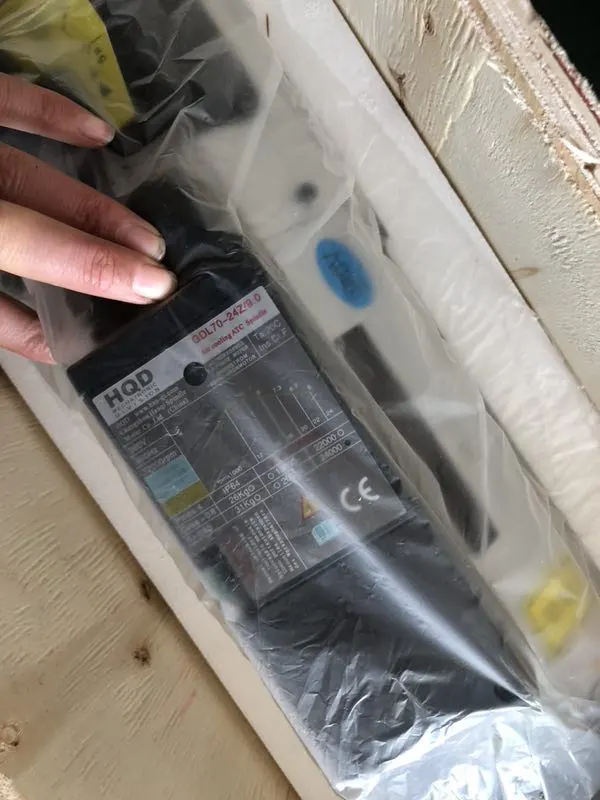

| Spindle Type | ATC Air Cooling Spindle 9 kW |
| Control System | NK260 Control System |
| Clamping System | T-Slot(Vacuum Table) |
| Interface | USB |
| Command Code | G-Code |
| Stepper Motor | Leadshine |
| Spindle Speed | 6000-24000rpm |
| Stepper Driver | Leadshine |
3. PERFECT SAMPLES
4. Certifications
5.Company Profile

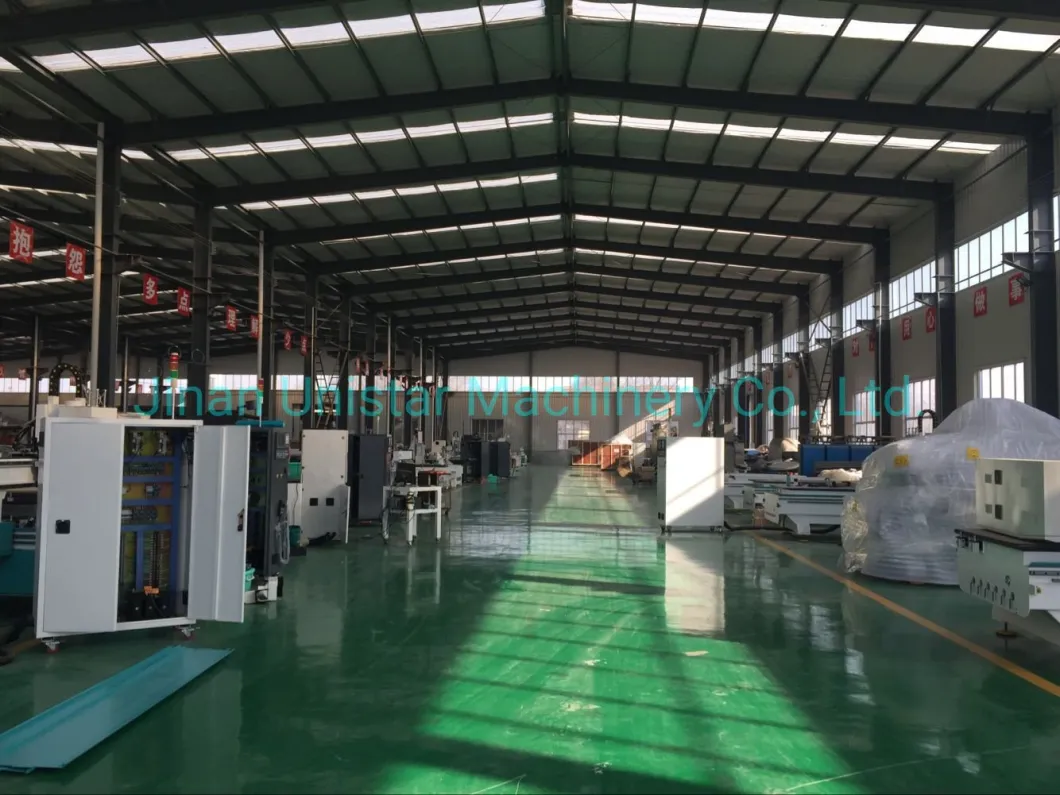

Jinan UNISTAR Machinery Equipment Co., Ltd. is a company specializing in foreign trade exports. It mainly sells engraving machines/woodworking machines/marking machines/plasma cutting machines/optical fiber cutting machines and other mechanical equipment. The products are exported to the United States/UK/Russia/France/ Countries such as India/Libya. The company is located in the beautiful city of Jinan, the capital of Shandong Province, with well-developed transportation and convenient commerce. The company has rich experience in selling various machinery and equipment, and has a complete after-sales service system.
6. Technician Support and service:
(1): UNISTAR can send technician to the customer's country to provide the training if customer required.
(2): Customer will help UNISTAR to solve the visa (available) and provide round flight tickets and Hotel and food while he stay in customer's country.
(3): The whole machine will be warranty two year.
We offer a 24 months warranty carefully, solve all customer's problem reasonably and justly.
(4): On-line Support Service
24 hours telephone line is available for any question.
Experienced service technician team is available.
Support in hard work solution.
7.FAQ
1.How long about the machine's guarantee?
2 years.
2.How about your after-sales service?
Technical support by phone,Whatsapp,Skype,e-mail or QQ around the clock.
3.If i bought machine ,but i don't know how to operation,what i can do ?
Our engineer will teach you how to operation the machine through manual,video or email,i still also will help you
4.Does your company can processing my samples?
Yes,we can.
5.Do you arrange shipment for the machines?
Yes,for FOB or CIFprice,we will arrange shipment for you,for EXW price ,clients need to arrange shipment by themselves or thier agent.
