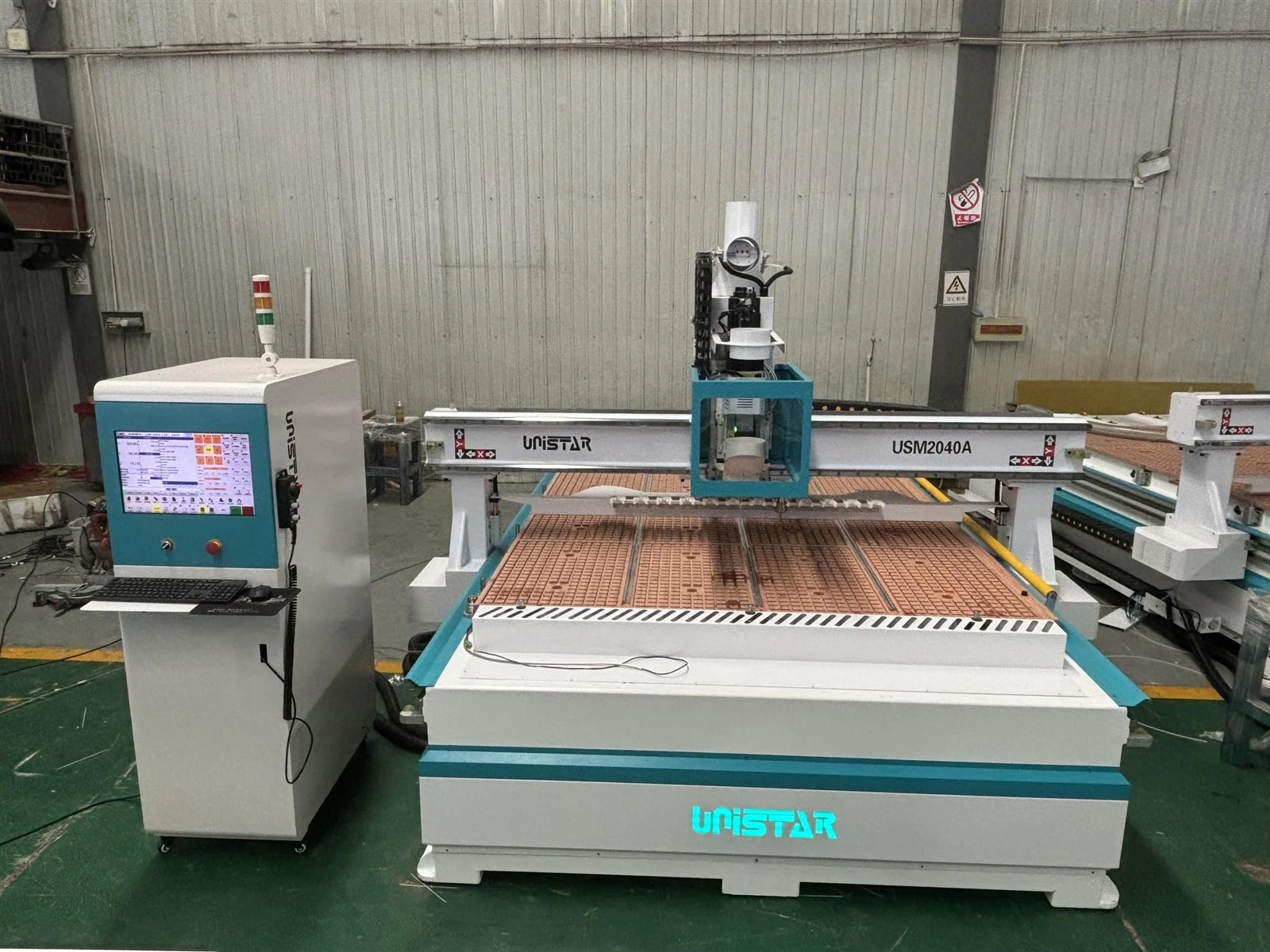

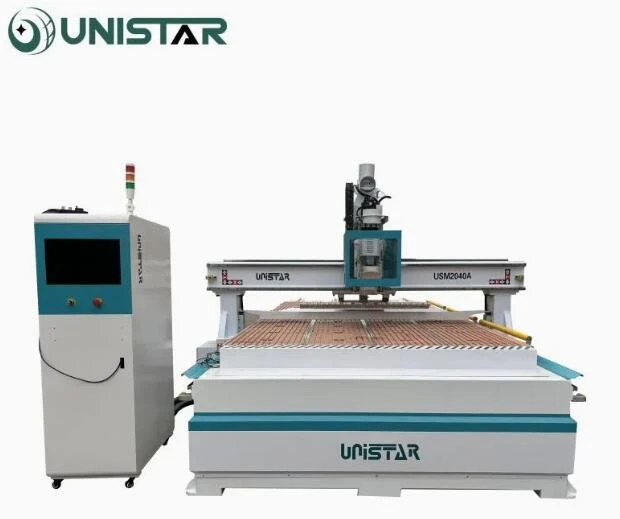

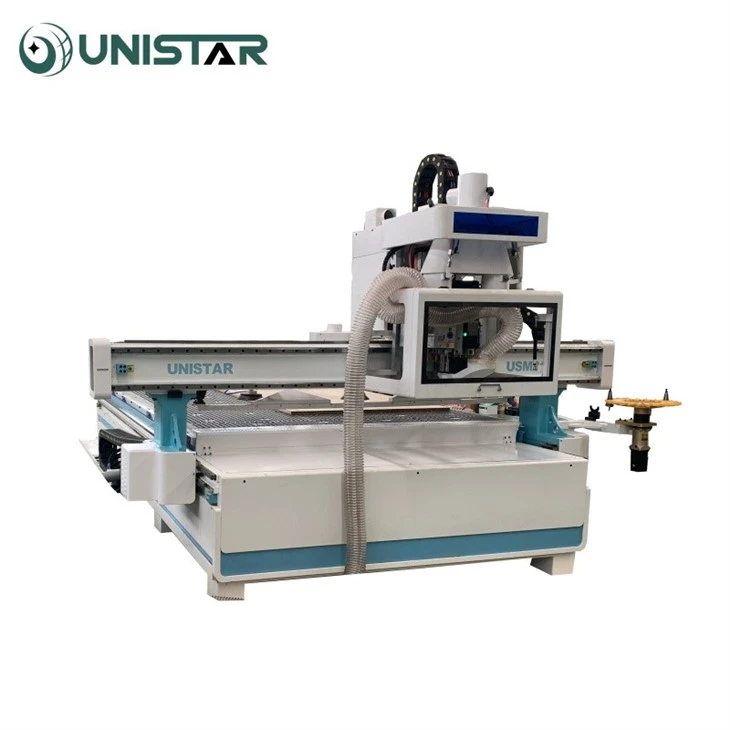

2040 CNC Router Machine
Product Parameters
| Item | USM-2040 | |
| Work Area | 2000*4000*200 mm | |
| Transmission | X, Y | Rack and pinion |
| Z | Ball screw | |
| Rail Guide | Taiwan HIWIN | |
| Motor and driver | Japan Yaskawa servo motor and driver | |
| Spindle | 9KW HQD air cooling spindle | |
| Spindle speed | 6000~24000 r/min | |
| Inverter | Fuling Inverter | |
| Control System | Taiwan Syntec control system | |
| Software | ARTCAM, JD painting, Alphacam | |
| Tool Changer Type | automatic linear tool changer | |
| Maximum Tool Holder Diameter | 12.7 mm | |
| Maximum Air Move Speed | 40000 mm/min | |
| Effective Machining Speed | 15000 MM/min | |
| Machining Precision | ±0.05 mm | |
| Table | T-slot and vacuum table | |
| Working Command | G command | |
| Working Voltage | 380V/5PH/50Hz | |
| Accessory |
vacuum pump | |
| dust collector | ||
| work-box | ||
Our advantage
9KW HQD linear tool changer spindle.
The air cooling spindle can quickly dissipate heat, reduce the temperature of the spindle, and improve stability and machining accuracy. The spindle has the advantages of heat dissipation, energy-saving, environmental protection,not liable to failure and easy maintenance.
Taiwan Syntec Control system
Syntec system has high data processing speed and stable operation. The operation interface is intuitive and simple, easy to learn
SHIMPO reducer adopts cone bearings, so that the output shaft can withstand greater axial and radial loads. The gear box and bracket are made of strong materials with the overall structural design to ensure the strong torque performance of the reducer.
Fuling inverter has a variety of protection functions, such as overheating, overcurrent, overload, short circuit, etc., effectively improve the reliability and safety of the equipment.

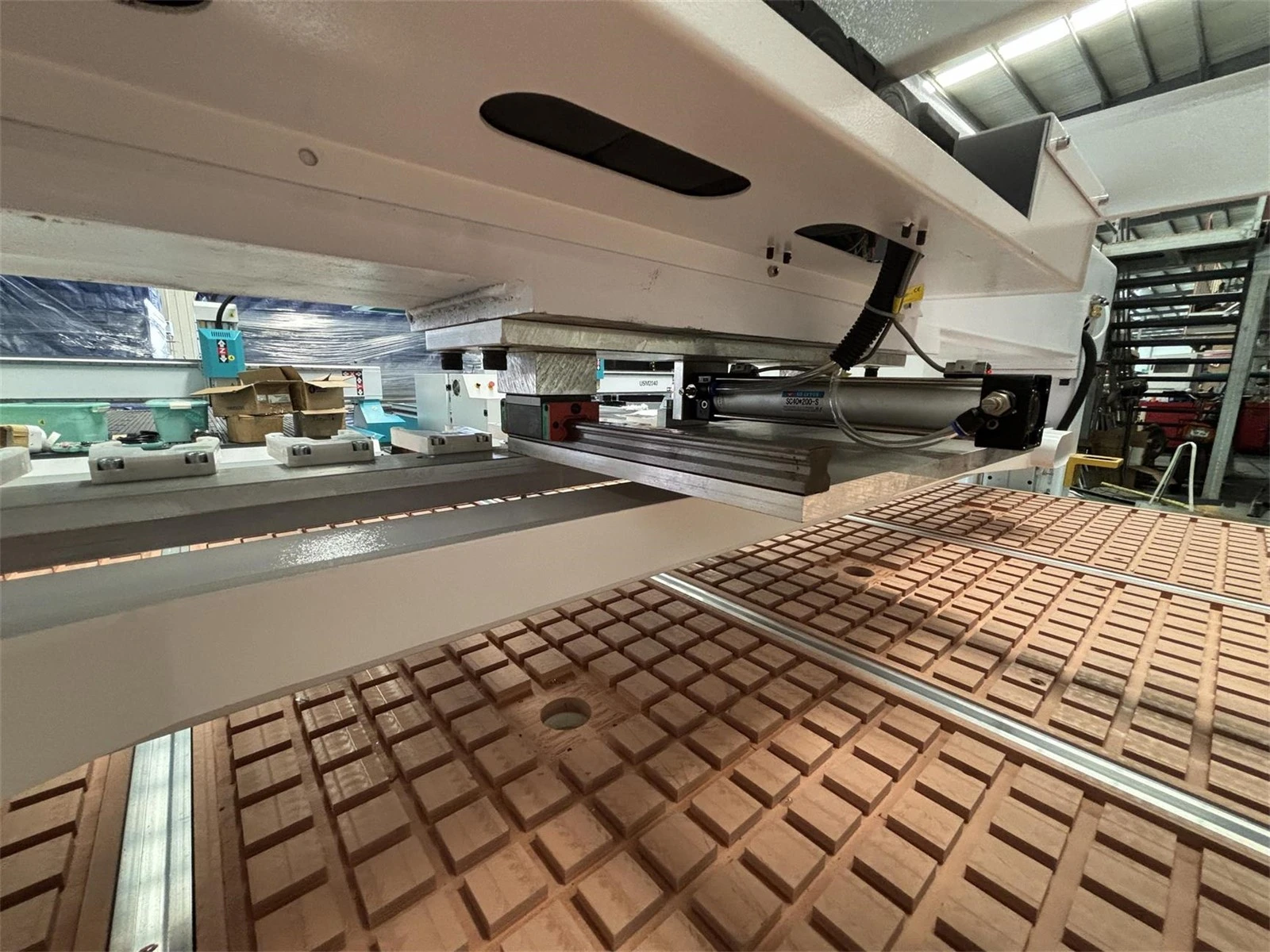

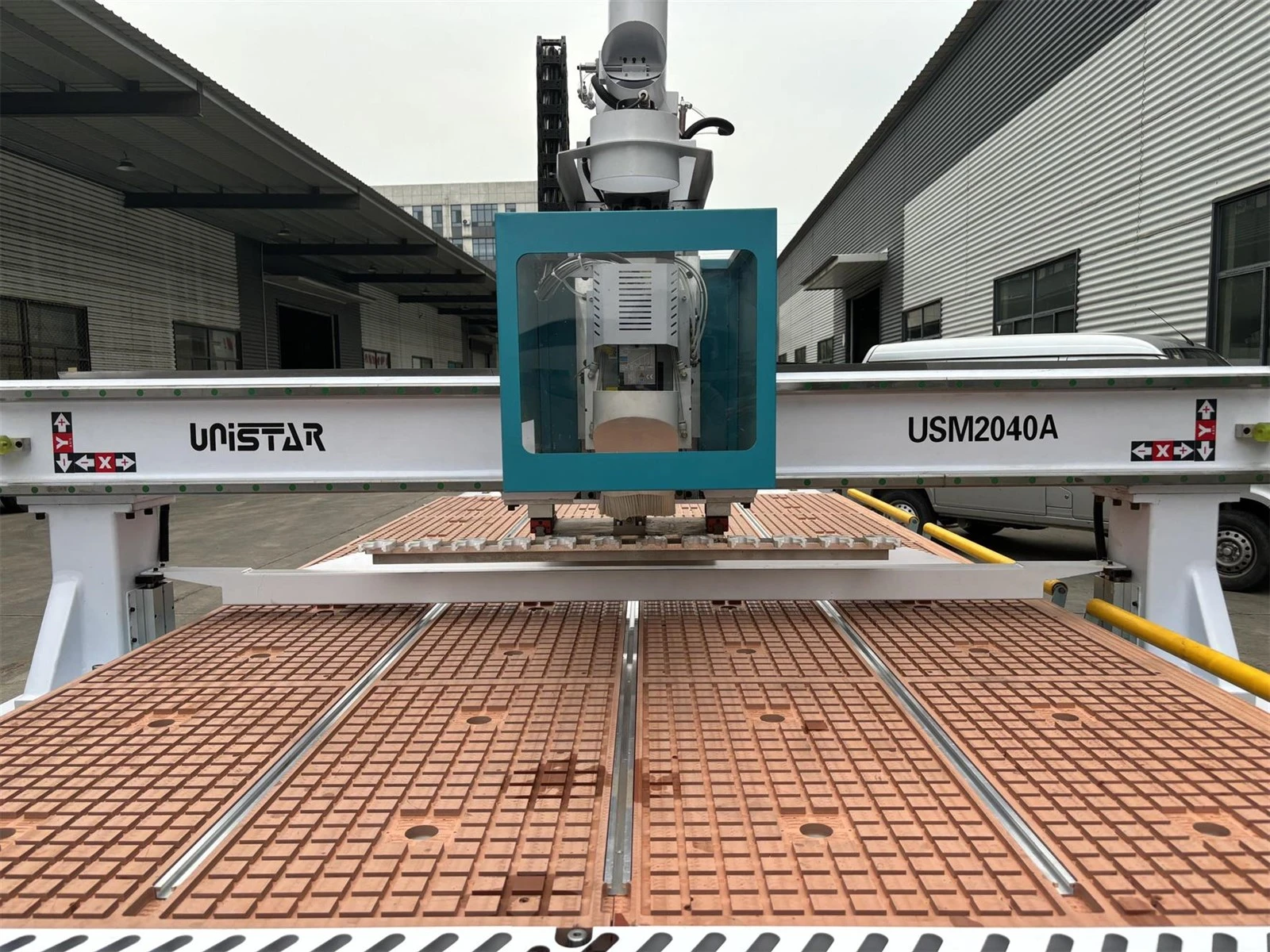

Detailed Photos
Application
1. Furniture industry: solidwood doors, composite doors, cabinet doors, interior doors, sofa legs, headboards, antique furniture and superficial flower-shaped engraving of various plate-type furniture and disposable finishing of process.
2. Decorated industry: variety of decorations engraving process such as decorative murals, screens, decorative patterns, three-dimensional wave boards, sound-absorbing panels and so on.
3. Advertising industry: engraving and making for acrylic cutting and engraving, acrylic plastic model making, badges and a variety of logo signs.
4. Arts & crafts industry: sculpture making of arts & crafts such as process relief, shadow carving, craft ornaments, car accessories and so on.
5. Musical instrument industry: headstock processing ,guitar semi-finished products processing, surface sculpture and three-dimensional curved surface making of various musical instruments' decorative patterns
Packaging & Shipping
CUSTOMERS VISIT US
